- Page 1 Operating Instructions ATMOS Record 55 with standard rail English GA1GB.210200.0 0124 2024-05 Index 25...
-
Page 2: Table Of Contents
Table of contents Introduction.......................4 Notes on operating instructions ................4 Explanation of pictures and symbols ..............5 Intended use .......................6 Function ........................7 Intended users ......................7 Scope of delivery ......................8 Transport and storage ....................8 Notes for your safety..................9 General safety instructions ..................9 Danger for users, patients and third parties ............9 Avoiding damage to the device ................ - Page 3 Reprocessing ....................18 Safety instructions for reprocessing ..............18 5.1.1 General safety instructions ................18 5.1.2 Danger for users, patients and third parties ..........18 5.1.3 Avoiding damage to the device ................ 18 Preparing/completing reprocessing ..............19 Reprocessing surfaces .................... 19 5.3.1 Overview ......................
-
Page 4: Introduction
The quality management system applied at ATMOS has been certified according to international standard EN ISO 13485. These operating instructions are valid for the following devices: ATMOS Record 55 with standard rail – 230 V REF 443.0700.0 ATMOS Record 55 with standard rail – 100 V REF 443.0700.1 ATMOS Record 55 with standard rail –... -
Page 5: Explanation Of Pictures And Symbols
1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. Observe the necessary measures. WARNING Warning of a danger that can cause fatal or serious injury. Observe the necessary measures. -
Page 6: Intended Use
Eurasian conformity Serial number Reference number European Article Number Protection against the ingress of harmful moisture (dripping water) IPX1 Type BF applied part Professional disposal For single use only (symbol located on consumables) Non-sterile STERILE Autoclavable AUTOCLAVE PATIENT Connection suction hose / patient (Serres canister system) ®... -
Page 7: Function

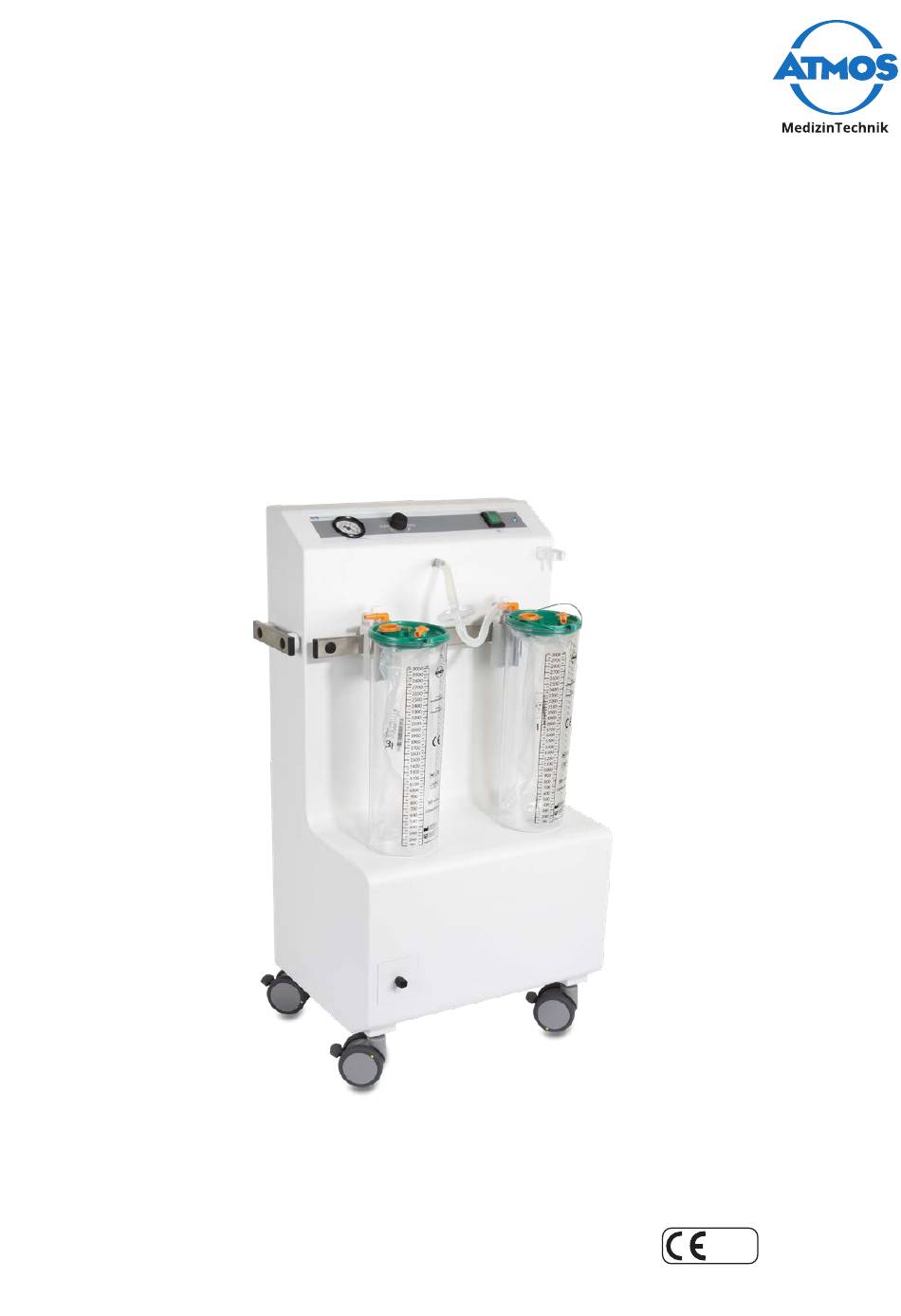

1.4 Function The ATMOS Record 55 is a mains-operated surgical suction device, the core of which is a high-performance, maintenance-free diaphragm pump. It generates vacuum in the hose and secretion canister system, which assists in drawing off and collecting the secretions. -
Page 8: Scope Of Delivery
If damage occurs during transport: 1. Document and report the transport damage. 2. Send the device to ATMOS; see chapter ‘6.3 Sending in the device’ on page 24. Environmental conditions for transport and storage: see chapter ‘10 Technical data’ on page 29. -
Page 9: Notes For Your Safety
‘1.3 Intended use’ on page 6. • Never operate the product in potentially explosive areas or in areas that are oxygenated. • Only use original accessories and original spare parts from ATMOS. WARNING Risk of severe injury to your patient. Avoid misuse. •... - Page 10 • Prior to first use, the transport protection on the bottom of the device must be removed. • ATMOS recommends always having another suction device ready at hand. Thus, suction is available even in the event of device failure. WARNING Risk of infection due to pathogens on the product! Deadly diseases can be transmitted.
-
Page 11: Avoiding Damage To The Device
• Never touch the device interface and the patient at the same time! • Only use original accessories and original spare parts from ATMOS. • Please pay attention to the periodic tests in chapter ‘6 Maintenance and service’ on page 24. -
Page 12: Setting Up And Starting Up
3 Setting up and starting up 3.1 Device overview Front view Vacuum gauge Vacuum regulator On/off switch Bacterial filter and connection piece Hose holder Connection for foot switch or foot controller (optional) Rear view Connection for potential ... -
Page 13: Operation
4 Operation 4.1 Initial start-up Observe the safety instructions prior to initial start-up! Remove the transport protection on the bottom of the device by loosening the two red marked Allen screws. The transport protection screws must be inserted again before a return transport of the device. -
Page 14: Connecting The Suction Hose
4.6 Connecting the suction hose • Attach the suction hose to the angled connection. 4.7 Serres®, Medi-Vac® secretion canister system, other canister systems Observe the operating instructions by the manufacturer of the corresponding canister system. Do not operate the device without a bacterial filter. 4.8 Secretion canister system •... -
Page 15: Using An Overflow Canister
4.10 Using an overflow canister If the bacterial filter becomes blocked too frequently, ATMOS recommends integrating an additional overflow canister (REF 444.0646.0) between the secretion canister and the bacterial filter. This absorbs moisture and foam bubbles. An additional DDS bacterial filter can be used in the overflow canister. Replace the bacterial filter (REF 340.0054.0) with a new filter if it is discoloured or contaminated, or if oversuction has occurred. When the filter is used regularly, a filter change is recommended after 14 days at the latest. 4.11 Using a smoke evacuation filter According to the intended use, the device is used to suction liquids and pieces of tissue. -
Page 16: Checking The Bacterial Filter
4.13 Checking the bacterial filter NOTICE The bacterial filter is a disposable product and cannot be autoclaved or disinfected. • Set the vacuum regulator to ‘max’. • As soon as the vacuum gauge shows a vacuum value higher than −0.3 bar while the suction hose is open, the bacterial filter must be replaced. • To do this, remove the suction connections on the bacterial filter and insert the new bacterial filter. Pay attention to the correct flow direction. • Dispose of the used bacterial filter immediately. Always have some spare filters ready to hand! 4.14 Exchanging the secretion canister 1. -
Page 17: Options
4.16 Options Foot switch REF 443.0755.0 Pneumatically explosion-proof switch for switching the device on and off. 1. Connect the foot switch. 2. Set the main switch in the control panel to foot switch operation (OFF). 3. When you press the foot switch, the device is switched on. -
Page 18: Reprocessing
5 Reprocessing 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results of cleaning and disinfection are achieved. -
Page 19: Preparing/Completing Reprocessing
Unsuitable cleaning agents and disinfectants. Risk of damage to the product. • Do not use any process chemicals that contain the following ingredients on plastic parts: • Chloramides or phenol derivatives • Do not use any process chemicals that contain the following ingredients on stainless steel: •... -
Page 20: Selecting Process Chemicals
5.3.2 Selecting process chemicals Always observe the manufacturer’s specifications for the process chemicals. Cleaning agent (manufacturer) Active ingredients in 100 g Type Disinfection Green & Clean SK <1 g dialkyldimethylammonium chloride, Foam (Metasys) <1 g alkyldimethylethylbenzylammonium chloride, Ready to use <1 g alkyldimethylbenzylammonium chloride Dismozon® plus 95.8 g magnesium peroxyphthalate hexahydrate Granulate (Bode Chemie) Kohrsolin®... -
Page 21: Reprocessing The Accessories
5.4 Reprocessing the accessories 5.4.1 Overview Accessories Secretion canister system • Secretion canister • Canister lid • Double hose connector • DDS bacterial filter Hoses • Suction hose • Vacuum hose • Connection hose Replace the DDS bacterial filter if it is discoloured or soiled, or if oversuction has occurred; see ‘4.3 Connecting the bacterial filter’ on page 13. If there are visible defects or damage, accessories must be replaced. 5.4.2 Selecting process chemicals Always observe the manufacturer’s specifications for the process chemicals. -
Page 22: Secretion Canister System
5.4.3 Secretion canister system Characteristics The accessories have the following areas which are difficult to access: • Double hose connector (lumens) Take particular care when reprocessing hard-to-reach areas. Pretreatment at the site of use • Empty the secretion canister. • Flushing: 60 s • Clean the accessories under cold, running water. •... -
Page 23: Hoses
Sterilisation • Sterilise the accessories using a suitable procedure: Prefractionated vacuum: 3x – Steam sterilisation / autoclaving Temperature: 134 °C / 273 °F • Steriliser: according to EN 285 Time: 5 min Drying: 10 min Storage • Observe the environmental conditions; see chapter ‘10 Technical data’... -
Page 24: Maintenance And Service
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that repairs and tests are carried out professionally, original spare parts are used and warranty claims are maintained. -
Page 25: Troubleshooting
7 Troubleshooting 7.1 Remedying malfunctions The product has been subjected to a thorough quality control in the factory. However, if a fault should occur, you may be able to resolve it yourself. Error symptom Possible cause Remedy • Device does •... -
Page 26: Accessories
8 Accessories Accessories Foot switch 443.0755.0 Foot controller for ATMOS Record 55 443.0770.0 Cable for potential equalisation 008.0596.0 Secretion canister 1.5 l (PC) 444.0100.0 Secretion canister 2.5 l (PC) 444.0099.0 Secretion canister lid 444.0650.0 Secretion canister lid incl. standard rail holder 444.0015.0 Socket nipple set 444.0640.0... - Page 27 Suction hose, silicone, Ø 6 mm, 1 m (minimum 5 m) 006.0009.0 Suction hose, silicone, Ø 10 mm, L = 1.30 m, 1 pc. 318.1012.0 Suction hose, silicone, Ø 10 mm, L = 2 m, 1 pc. 000.0243.0 Suction hose, silicone, Ø 10 mm, 1 m (minimum 5 m) 006.0026.0 ATMOS-Suction Bag 1 l with Gelling Agent, 100 pcs. 401.0101.0 ATMOS-Suction Bag 1 l, 100 pcs. 401.0102.0 ATMOS-Suction Bag 2 l with Gelling Agent, 100 pcs. 401.0201.0 ATMOS-Suction Bag 2 l, 100 pcs. 401.0202.0 ATMOS-Suction Bag 3 l with Gelling Agent, 70 pcs. 401.0301.0 ATMOS-Suction Bag 3 l, 70 pcs. 401.0302.0 Serres® disposable suction bag 1 l, without gelling agent, 36 pcs.
-
Page 28: Disposal
The following notes are only applicable for reusable products. 1. Clean and disinfect the reusable products of the canister system. 2. Recycle the disinfected reusable products. ATMOS Record 55 Do not dispose of the product together with household waste. The product does not contain any hazardous materials. -
Page 29: Technical Data
10 Technical data Unit suction capacity 55 ± 3 l/min Max. vacuum −98 kPa (−980 mbar or −735 mmHg)* Vacuum display −1...0 bar ± 25 mbar Vacuum regulator Mechanical regulation valve Suction hose Ø 6 mm, 2 m long Ø 10 mm, 2 m long Nominal voltage 230 V~, 50/60 Hz Nominal current ca. -
Page 30: Notes On Emc
RF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS Record 55 must ensure that it is used in such an environment. Guidance and manufacturer’s declaration – key features ... - Page 31 Notes Notes on EMC...
- Page 32 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
