4.5

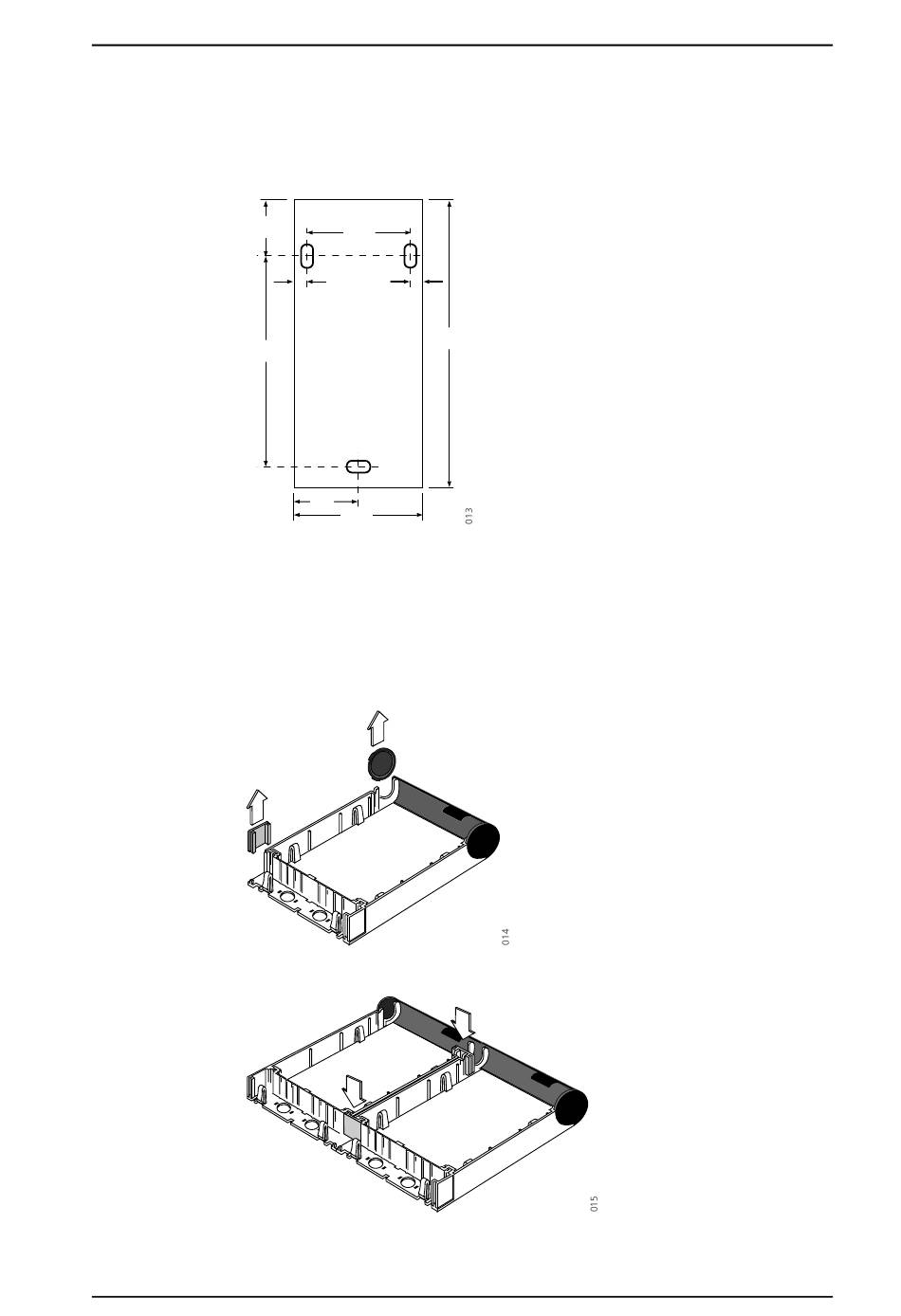

Mounting

Dimensions for installation of the ELISE2 module.
56,5
188,5
Note: To facilitate service after the unit is installed, we recommend a free space of about
150 mm above and 50 mm below the unit.
4.6

Mounting Together with Other Units

1 Remove the rectangular (1) and circular (2) covers.
1
2 The rectangular covers are used to fasten units to each other (3 and 4).
3 Fasten the unit with three screws, see the illustration in
2005-06-15 / Ver.G
Dimensions (H x W x D)
275 x 130 x 60 mm
112
9 9
275
65
130
2
3
4
TD 92232GB
4.5 Mounting on page 13.
