Installation Guide
ELISE2
4.7
System 900 Addressing
The System 900 address consists of two hexadecimal digits that are selected by the eight
sections of the address switch, SW2. Sections 5-8 of the switch select the first (most
significant) digit and section 1-4 select the second (least significant) digit. The address
must not be the same as any other System 900 unit address (see document System
Installation, On-site Paging System, TD 90227GB for more information).
1
IC24

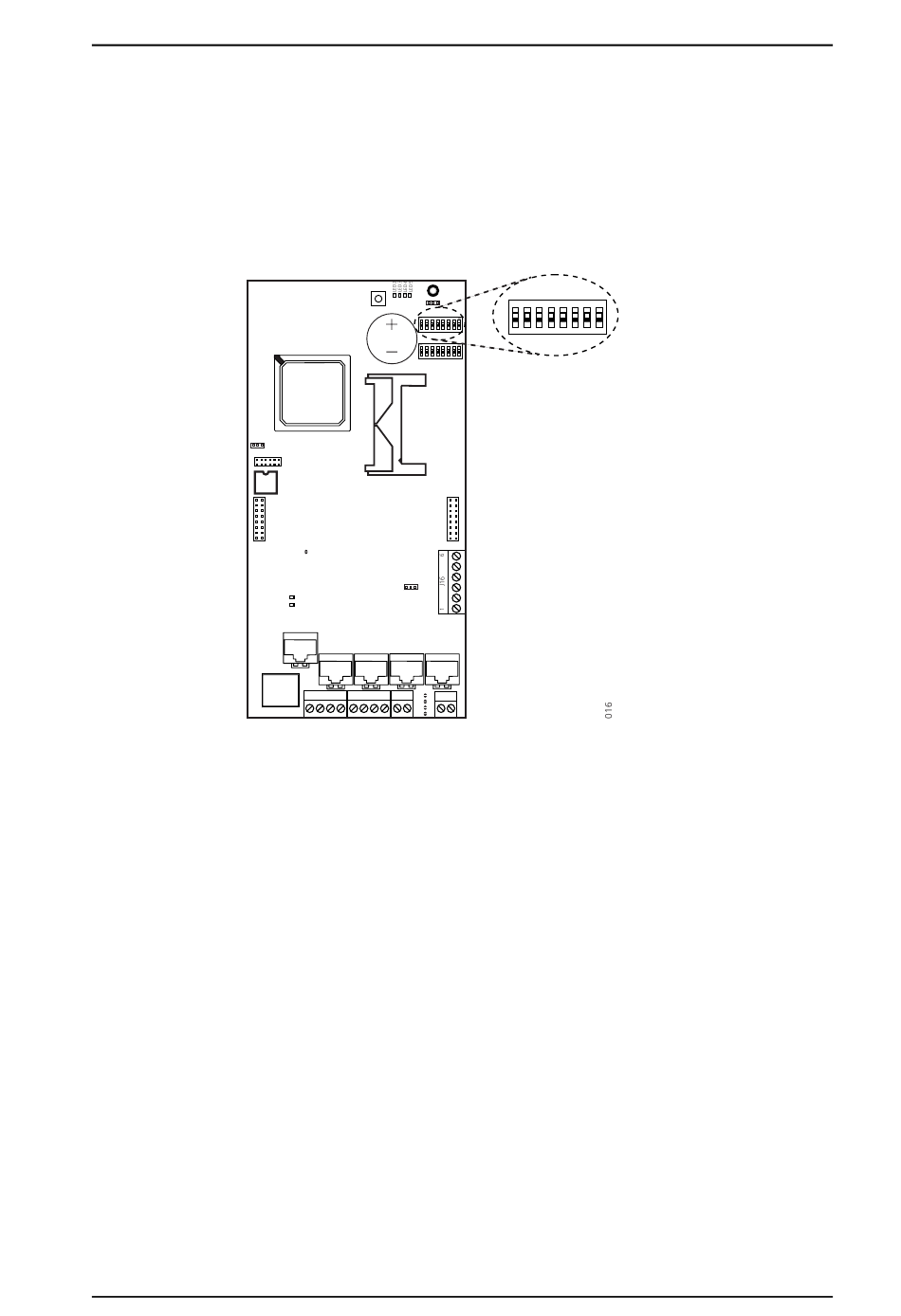

Figure 8. The ELISE2 module addressing switch.
4.8
Connection of System Bus
The ELISE2 module can be installed together with other System 900 units, either via
modular system bus cabling or via twisted-pair lines.
2005-06-15 / Ver.G
