Installation Guide
ELISE2
5.6
Circuit Board Replacement

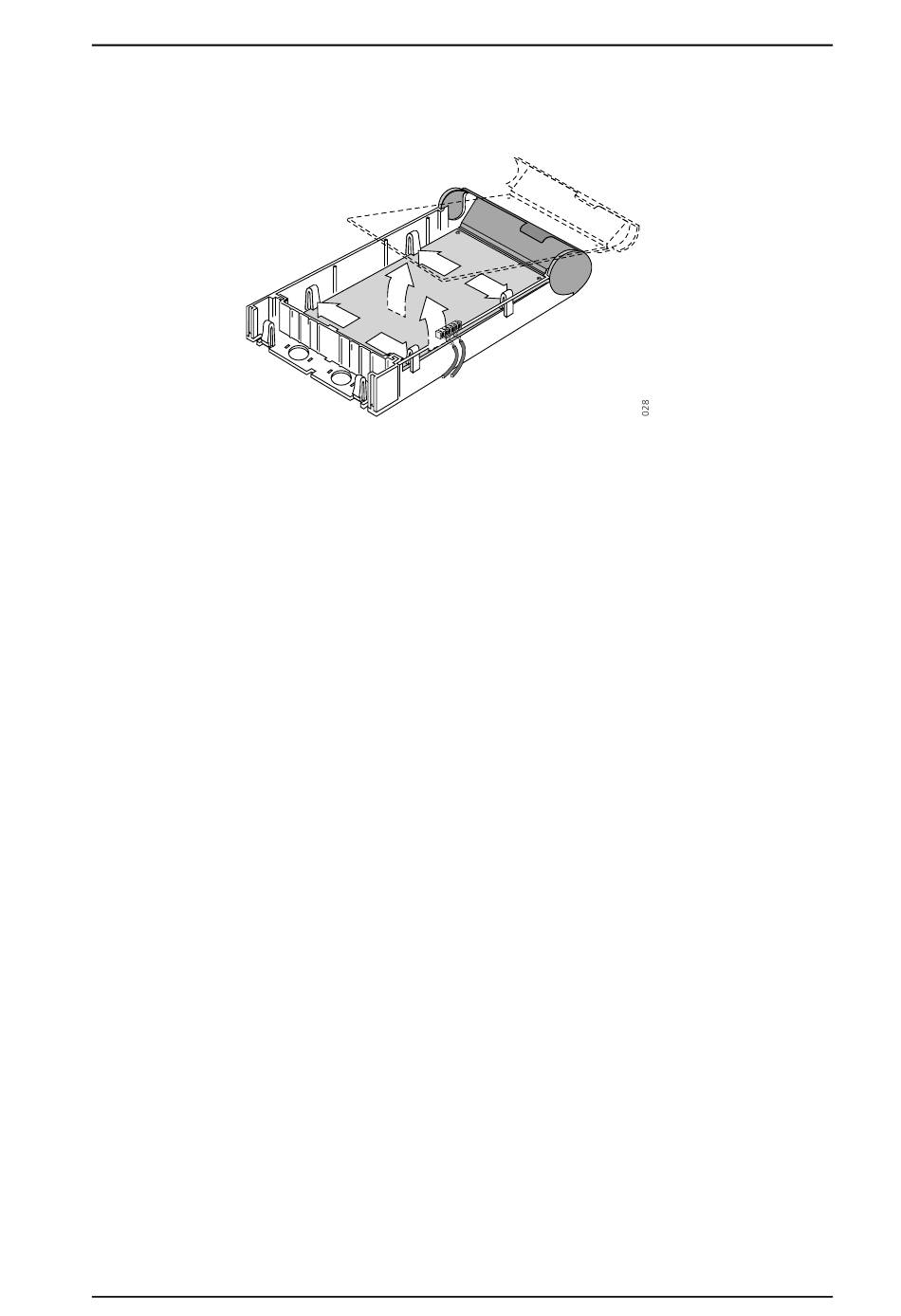

Figure 20. Replacing the ELISE2 circuit board.
1
Perform a power down of the unit.
2
Remove the cover, see
3
Lift off the screw connectors from the circuit board. (1)
4
Press the four holding clips to release the circuit board (2).
5
Remove the circuit board (3).
6
Install the new circuit board in the case and make sure the circuit board clicks into
position.
7
Set all switches and jumpers as they were on the original circuit board and replace
the screw connectors.
8
Check installation according to
2005-06-15 / Ver.G
2
2
3
2
1
2
4.1 Opening the Housing
4.14 Installation Test Procedure
TD 92232GB
on page 9.
on page 22.
27
