Installation Guide
ELISE2
Bus Connection to Modular Jacks
1

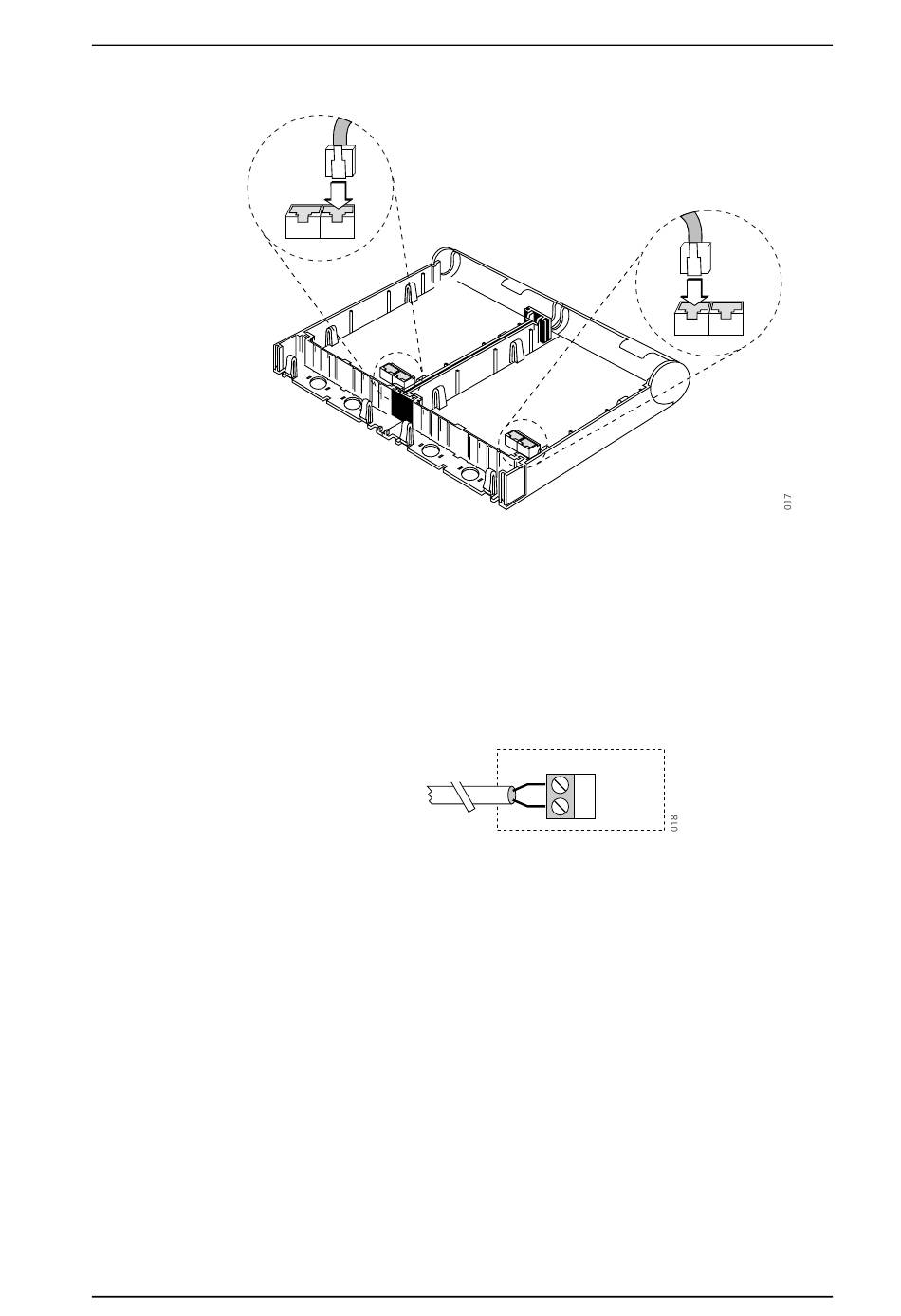

The illustration above shows an ELISE2 module placed to the left of another System
900 unit. Connect the bus cable as shown, from connector J12/J13 on the ELISE2
module to the bus connector on the other unit.
Note: Make sure connectors are correctly inserted!
Bus Connection to Screw Terminals
If system bus cable is not used, connections are made with twisted pairs to screw
connector J24.
To A or B-bus in other units
within the System 900
Figure 9. Connection of System 900 bus.
Other System 900 units are connected to A or B-bus, pin 1 and 2 at screw connector J24.
Note: Observe polarity. Use only twisted pairs for two-wire connections.
2005-06-15 / Ver.G
ELISE
J12 J13
Other unit
J24
1
BUS 1
2
BUS 2
TD 92232GB
15
