Installation Guide
ELISE2
Image Installation Mode
The Compact Flash includes the ELISE2 operating system and application software. If all
information (operating system and application software) needs to be updated, then the
complete Compact Flash image must to be replaced. The ELISE2 is normally set in image
installation mode from the administration pages but it can also be set by the operating
mode switch. See
Installing an Image on an empty Compact Flash
If the Compact Flash needs to be partly updated with new application software, the image
installation mode should not be used. For more information, see
Software
on page 25.
Unlicensed Mode
It is possible to run the ELISE2, with limited functionality, without a licence. How the mode
functions is application dependent. For more exact information about the functionality
during unlicensed mode, see the application documentation.
In unlicensed mode, it is possible to enter a licence that does not match the current
hardware. This makes it possible to configure a Compact Flash on one hardware and move
the Compact Flash to another hardware without changing the licence.
3.4
Selection of Operating Mode
All 8 sections of SW3 are set to OFF for normal operating mode.
SW3

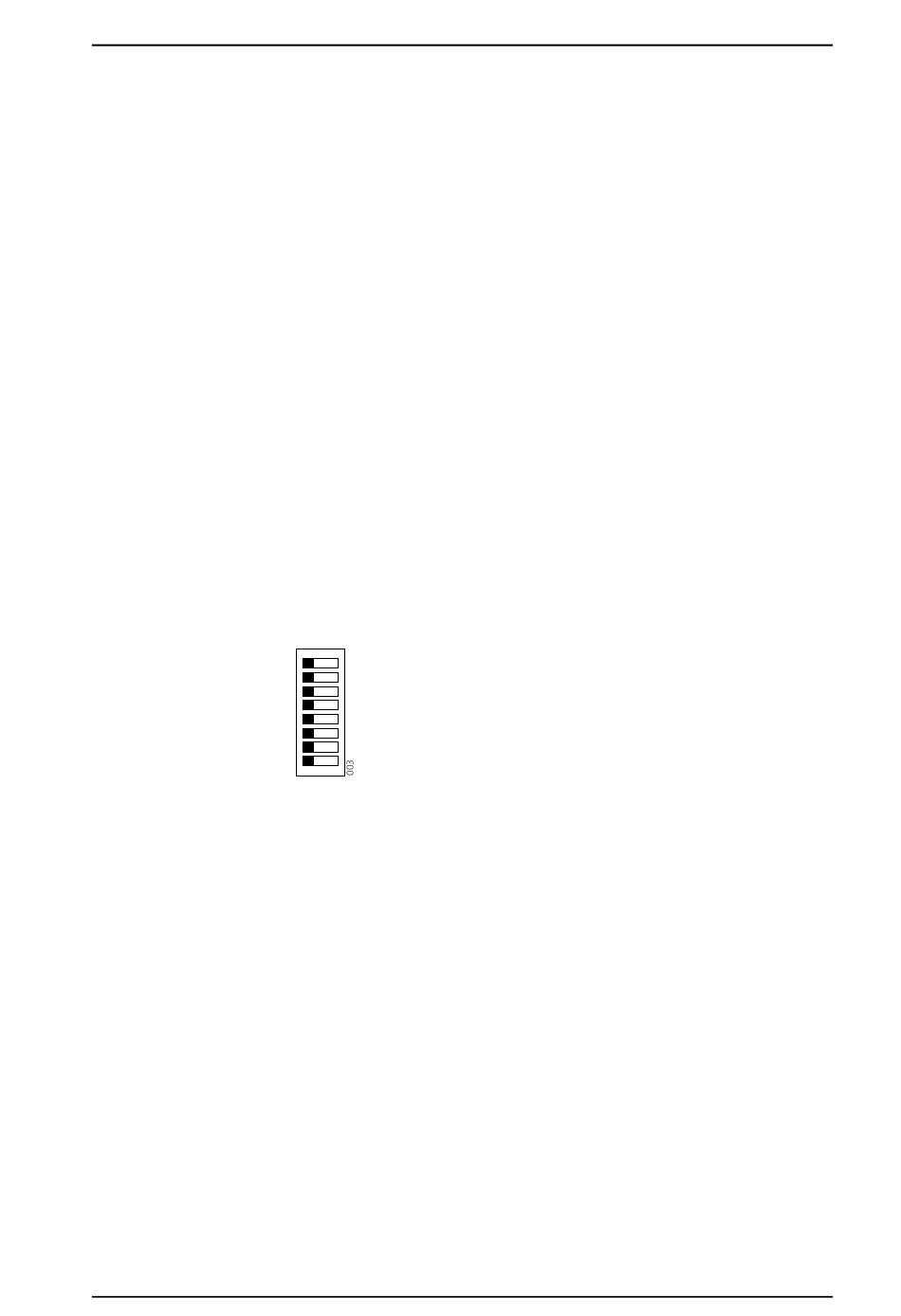

Figure 3. Switch for selection of operating mode.
Section 1:
Section 2:
Section 3:
Section 4:
Section 5:
Section 6:
Section 7:
Section 8:
Changing Operating Mode
1
Set the section that corresponds to the operating mode to ON.
2
Open the administration web page and press "Reboot" or follow the instructions in
3.2 Power Down and Restart of ELISE2
2005-06-15 / Ver.G
5.3 Replacing an Image on the Compact Flash
OFF ON
1
8
Network setup mode
Fail-safe mode
Not used, must be set to OFF
Image Installation mode
Unlicensed mode
Not used, must be set to OFF
Not used, must be set to OFF
Not used, must be set to OFF
on page 26 or
on page 26.
5.2 Updating Application
on page 4.
TD 92232GB
5.4
5
