Installation Guide
ELISE2
System Installation
When the ELISE2 controls the communication on the A-bus, a maximum of 15 modules
can be connected to the A-bus. The ELISE2 should have the address 00 and other modules
that are connected to the A-bus must have addresses in the range 01-0F.
See also 4.16 Message Distribution
Required Hardware Modifications
When ELISE2 shall control the communication on the A/B-bus, jumper points S4 and S5
has to be soldered, see
1
IC24

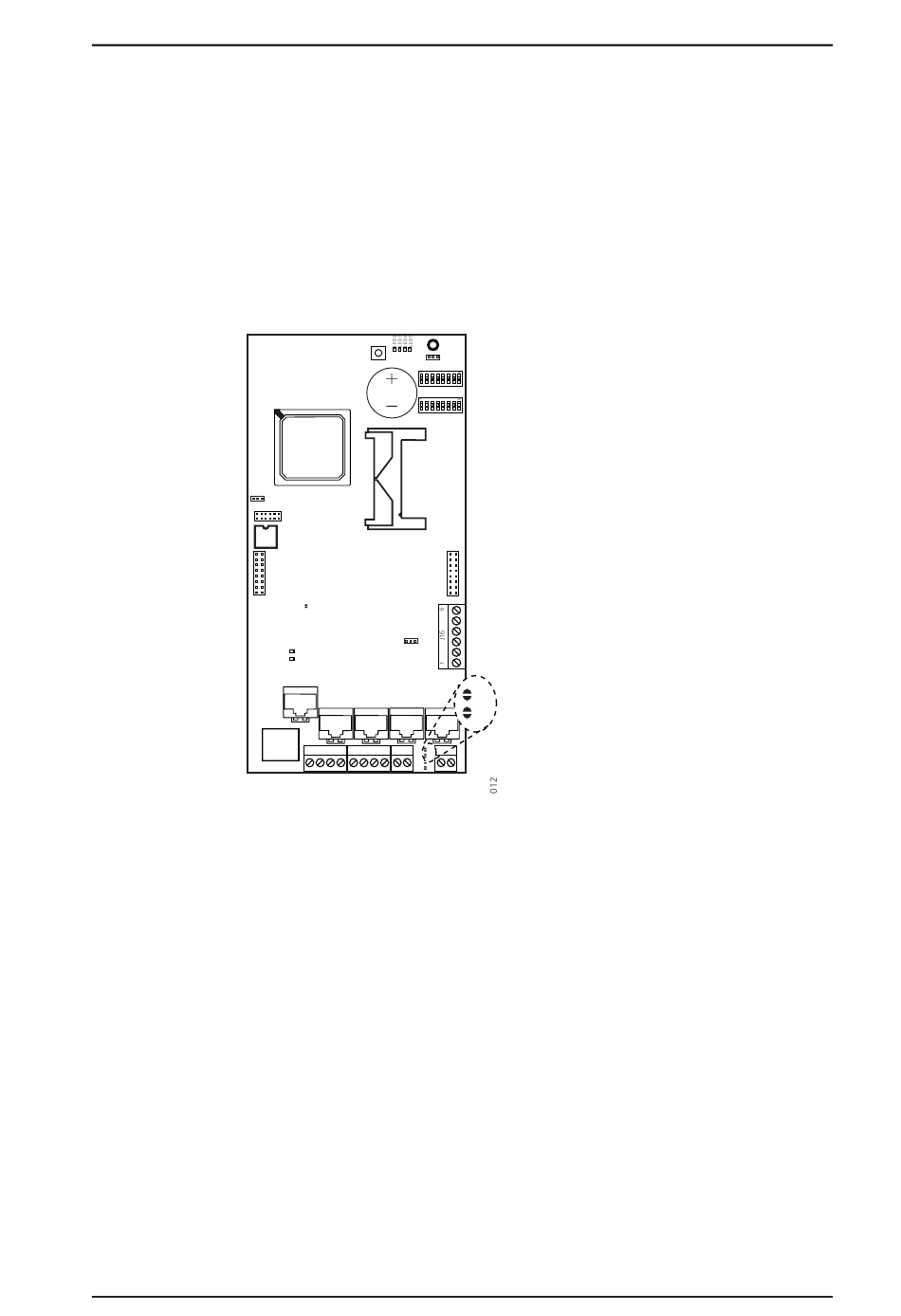

Figure 7. Jumper points for configuring the ELISE2 unit to be a communication
2005-06-15 / Ver.G
figure 7 below.
SW4
BAT1
IC1
J2
J4
J22
J9
S3
J15
LED6
LED7
J7
RS232:3
J8 J11 J12 J13
RS232:2 RS232:1 900 900
J20
ETH
1 4 1 4 1 2
S4 S4
J5 J6 J14
S5 S5
S1
S2
controller on A/B-bus.
on page 24 and documentation for the System 900.
LED1
J1
SW2
SW3
J10
S4
S5
1 2
J24
