4.13 Connection of Ethernet

If ELISE2 is connected directly to a PC, a crossover cable has to be used. If ELISE2 is
connected to a HUB, an ordinary (straight through pinouts) cable has to be used. The
cable supplied is an ordinary cable.
Connect the Ethernet cable to connector J20, see
It is recommended to break off a suitable section before inserting the Ethernet cable, see
4.2 Wiring Runs

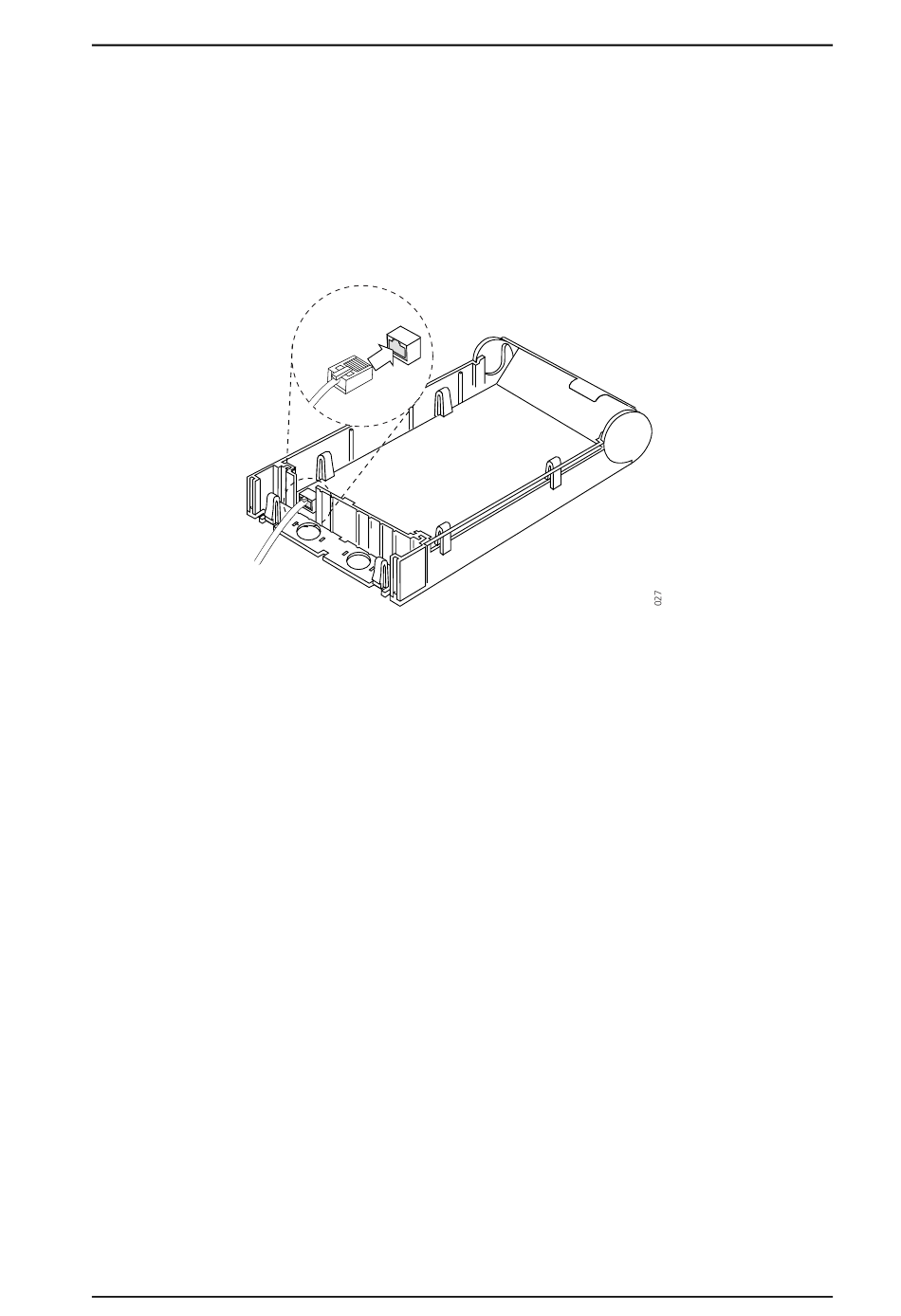

Figure 19. Connection of Ethernet cable

4.14 Installation Test Procedure

1 If the ELISE2 module is connected to a Central Unit, the indicator will light steadily
green within 90 seconds.
If the indicator continues to flash orange, check:
• Connections on ELISE2
• ELISE2 has a correct System 900 address
Note: Check also the application documentation for trouble-shooting information.
If the indicator starts to blink red, check:
• IP address
• Network connections
• Licence
• Module key
If everything seems to be OK but the function indicator still flashes, the fault is
probably located outside the ELISE2:
Check the other System 900 units according to document System Installation, On-
site Paging System, TD 90227GB, or contact your dealer.
2 Open the administrator page in a browser and navigate to "Troubleshoot". Use the
information log and tools given to test that ELISE2 is functioning properly.
3 Replace the cover.
4 When all other units are installed, perform the system test described in System
Installation, On-site Paging System, TD 90227GB.
2005-06-15 / Ver.G
on page 10.
Ethernet
figure 19 below.
