Installation Guide
ELISE2
1
Introduction
The ELISE2 module can be used as a platform for a wide range of applications. The
module can be used as an interface between systems, for example a TCP/IP network and
the System 900 bus.
The licence is application dependent and therefore described in the application
documentation.
The parameter setup of ELISE2 is done with a web browser.

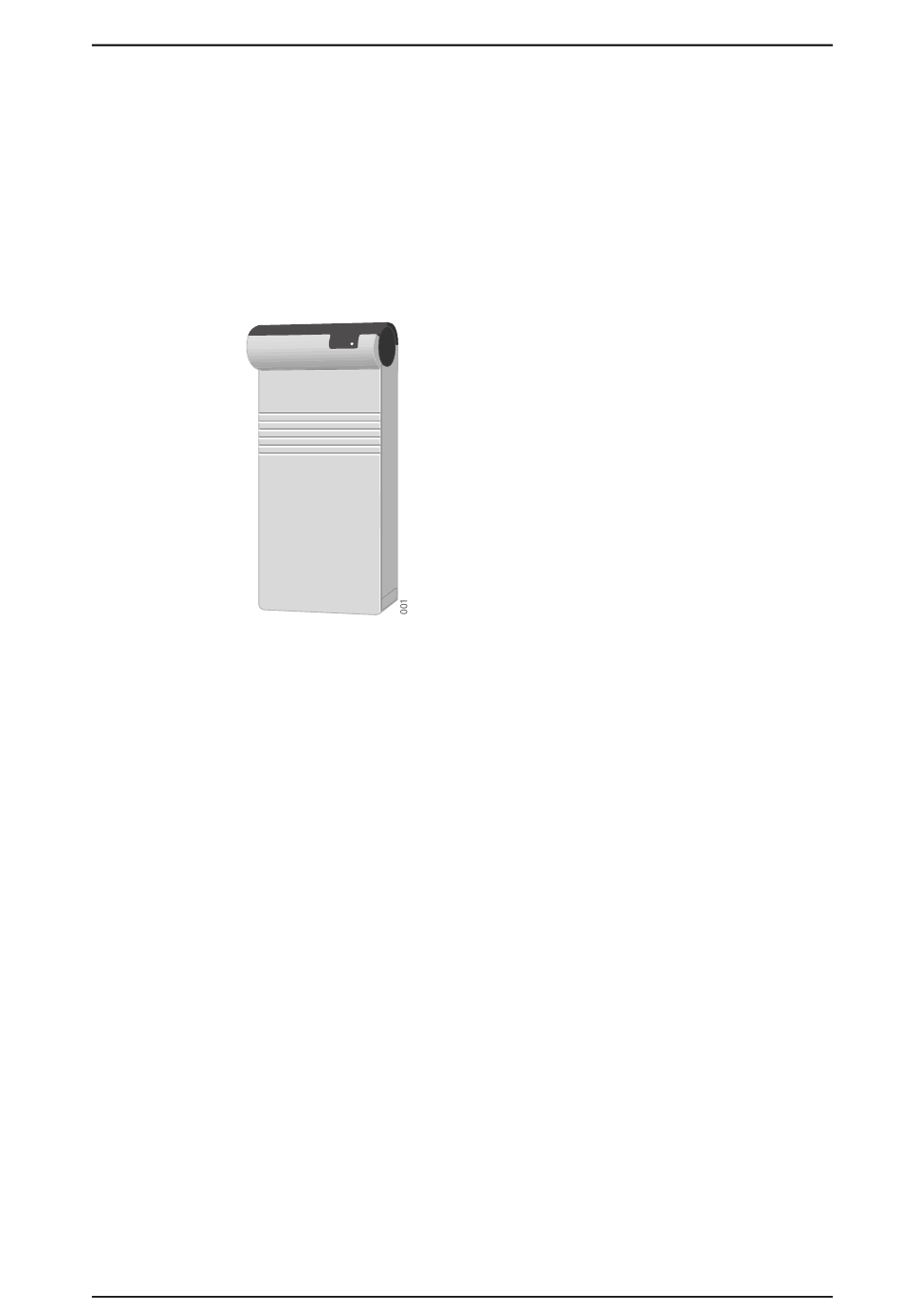

Figure 1. The ELISE2 module.
Supply voltage:
Current consumption:
Delivery includes:
Tools etc. required:
2005-06-15 / Ver.G
12 – 24 V/DC ±10%
max 0.4 A at 12 V
max 0.2 A at 24 V
ELISE2
System Bus Cabling
Ethernet cable
Screwdriver
Cutting pliers
Screws for installation
Multimeter
Power supply
PC with Microsoft Internet Explorer 5.5 or later
Software "Route to ELISE". (Available from the
distributor)
TD 92232GB
1
