Installation Guide
ELISE2
4.2

Wiring Runs

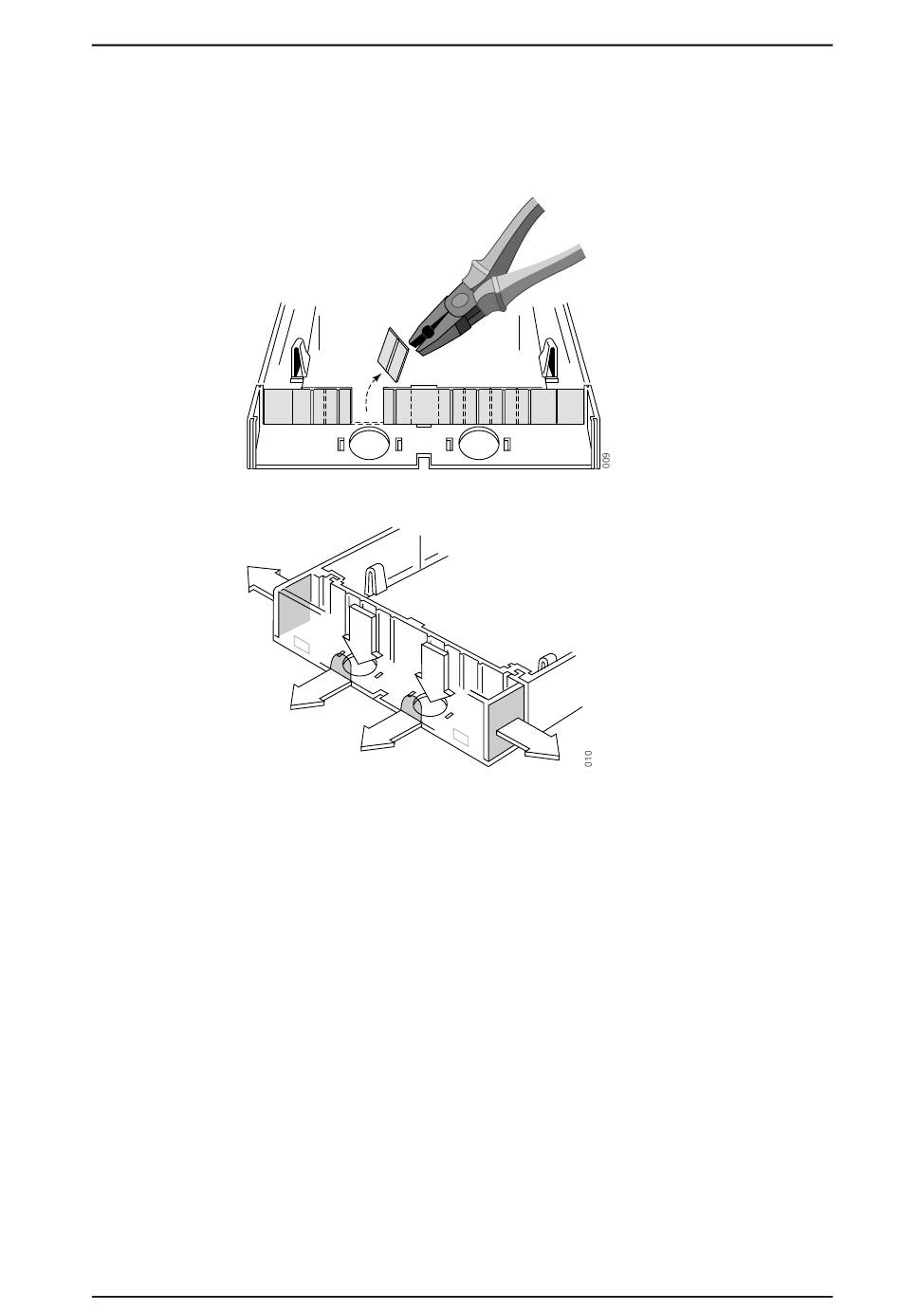

The plastic partition is scored to facilitate breaking at convenient intervals.
1
Use pliers to break off a suitable section.
2
Run the wiring out through the partition. Wiring can be run three ways from the
ELISE2 module:
1
• Remove the rectangular covers and run the cabling out through the side (1).
• Break off sections at short side of case and run the cabling downwards (2).
• Run the cabling through the round holes at the bottom of the case (3).
3
Secure the wiring with cable straps.
2005-06-15 / Ver.G
3
3
2
2
1
TD 92232GB
