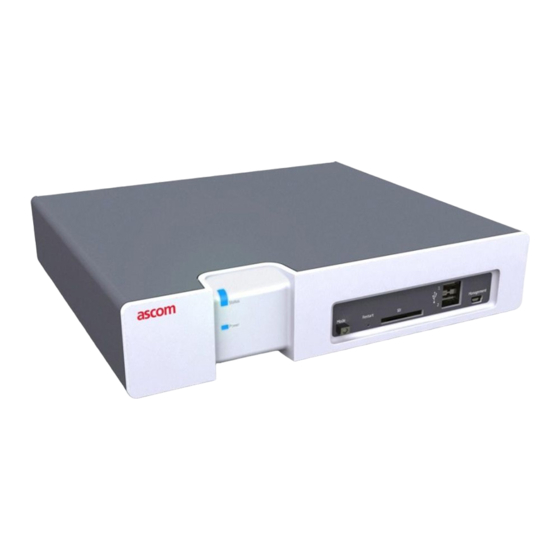

ASCOM Elise 3 Manual

ASCOM Elise 3 Manual

Embedded linux server

Advertisement

Quick Links

elise 3 –
embedded linux server
including SAfety inStructionS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elise 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ASCOM Elise 3

  • Page 1 3 – embedded linux server including SAfety inStructionS...
  • Page 2 Contents Getting Started .................. 2 Safety and Regulatory Instructions for Elise3 ......... 8...
  • Page 3: Getting Started

    English Getting Started These instructions will help you getting started and to access the product. Supply voltage: 100 – 240 V AC 12 – 24 V DC Current consumption: Max. 275 mA at AC input (100 V) Max. 1 A at DC input (12 V) Note: Before getting started read the Safety and Regulatory Instructions for Elise3...
  • Page 4: Accessing The Product

    LEDs Status LED Power LED Mode LED Status and power OK Blue Starting up/ shutting down Blue Error/fault Warning Mass storage mode Blue Fixed light indicates normal state Slow flashing light indicates medium attention Quick flashing light indicates high attention Figure 2.
  • Page 5: Access Via The Management Port

    Access via the Management port Note: A port driver needs to be installed on your computer the first time it is used for accessing the product via the management port. The port driver is located on the product. The installation of the port driver differs depending on the computer’s operating system, see either Install the Port Driver on Windows XP/Vista page 4 or...
  • Page 6 7 Select Search for the best driver in these locations. 8 Check the Search removable media (floppy, CD-ROM...) check box. 9 Check the Include this location in the search: check box. 10 Browse to the folder where the port driver is saved. 11 Click “Next”.
  • Page 7 7 Right click “RNDIS/Ethernet gadget” and select “Update driver software”. A new window opens. 8 Click “Browse my computer for driver software”. 9 Browse to the folder where the port driver is saved and click “Next”. A Windows Security window opens. 10 Click “Install this driver software anyway”.
  • Page 8 Configuration The product needs to be configured with basic settings. Some products settings can be set in an installation Setup Wizard accessible from the web interface. The Setup Wizard will start automatically the first time the module is accessed from the web browser and every time until the configuration has been saved.
  • Page 9: Safety Instructions

    Safety and Regulatory Instructions for Elise3 Safety Instructions For safe and efficient operation of the equipment, observe the guidelines given in this manual and in the Installation Guide, and all necessary safety precautions when using the equipment. Follow the operating instructions and adhere to all warnings and safety precautions located on the product, and in the product manuals.
  • Page 10 EMC Directive 2004/108/EC, LVD Directive 2006/95/EC and Eco Design 2005/32/EC. The Declaration of Conformity may be consulted at: http://www.ascom-ws.com/doc/ Regulatory Compliance Statements (USA and Canada only) FCC compliance statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 11 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help. Information to user This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.
  • Page 12 Ascom Wireless Solutions P.O. Box 8783 SE-402 76 Göteborg, Sweden T +46 31 55 93 00 | F +46 31 55 20 31 www.ascom.com...
