Now that we haved configured the basic IP Settings of the RM unit, changed the ECP Manager configuration
to monitor the new IP, and saved this configuration of the RM permanently, we can look at some more detailed
settings.
4.5.2. Join & Node Control

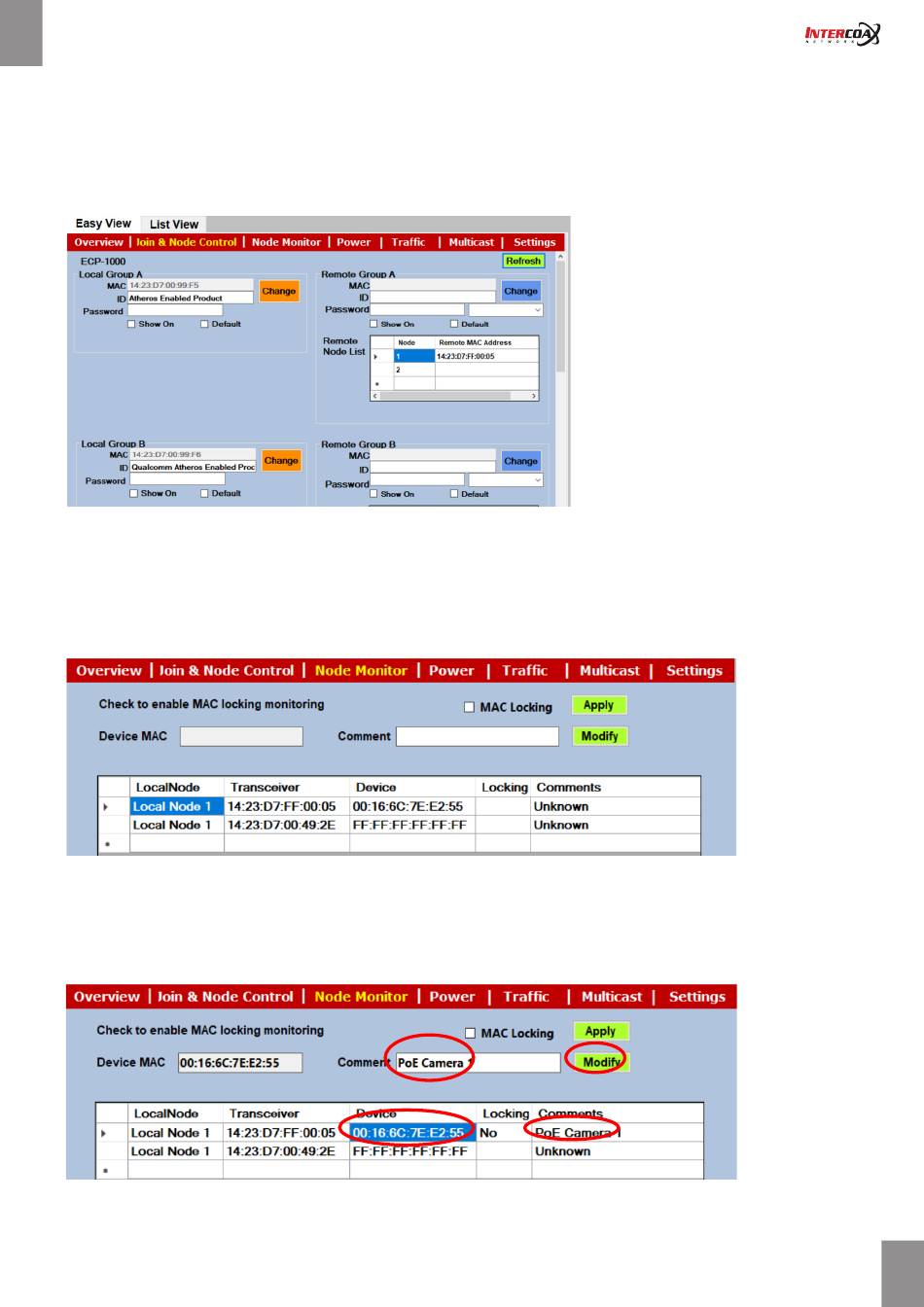

After going into the RM unit by clicking on it in the 'General' tab, select the 'Join & Node Control' tab:
In this tab, you can view any connected TX units and their MAC Addresses.
Unless being very familiar with IEEE 1901 devices, do not change any settings!
Any warranty will be void when changing these settings without official support.

4.5.3. Node Monitor

This tab shows all connected TX units with their MAC Address under 'Transceiver' and the respective end-
device with their MAC Address, under 'Device'. When the shown Device MAC Address with a Transceiver is
'FF:FF:FF:FF:FF:FF', this means there is currently no device connected to that TX unit.
By clicking on a device, it is possible to add a comment to that connection:
Management Software Configuration — 24
