Intercoax 2816RM-ECP Quick Start Manual

Quick Start Guide
ECP-2808RM / ECP-2816RM
Please read carefully the instruction manual before use.
Depending on the model, the image
and the actual look of the product may vary.
[Rev.1.0]

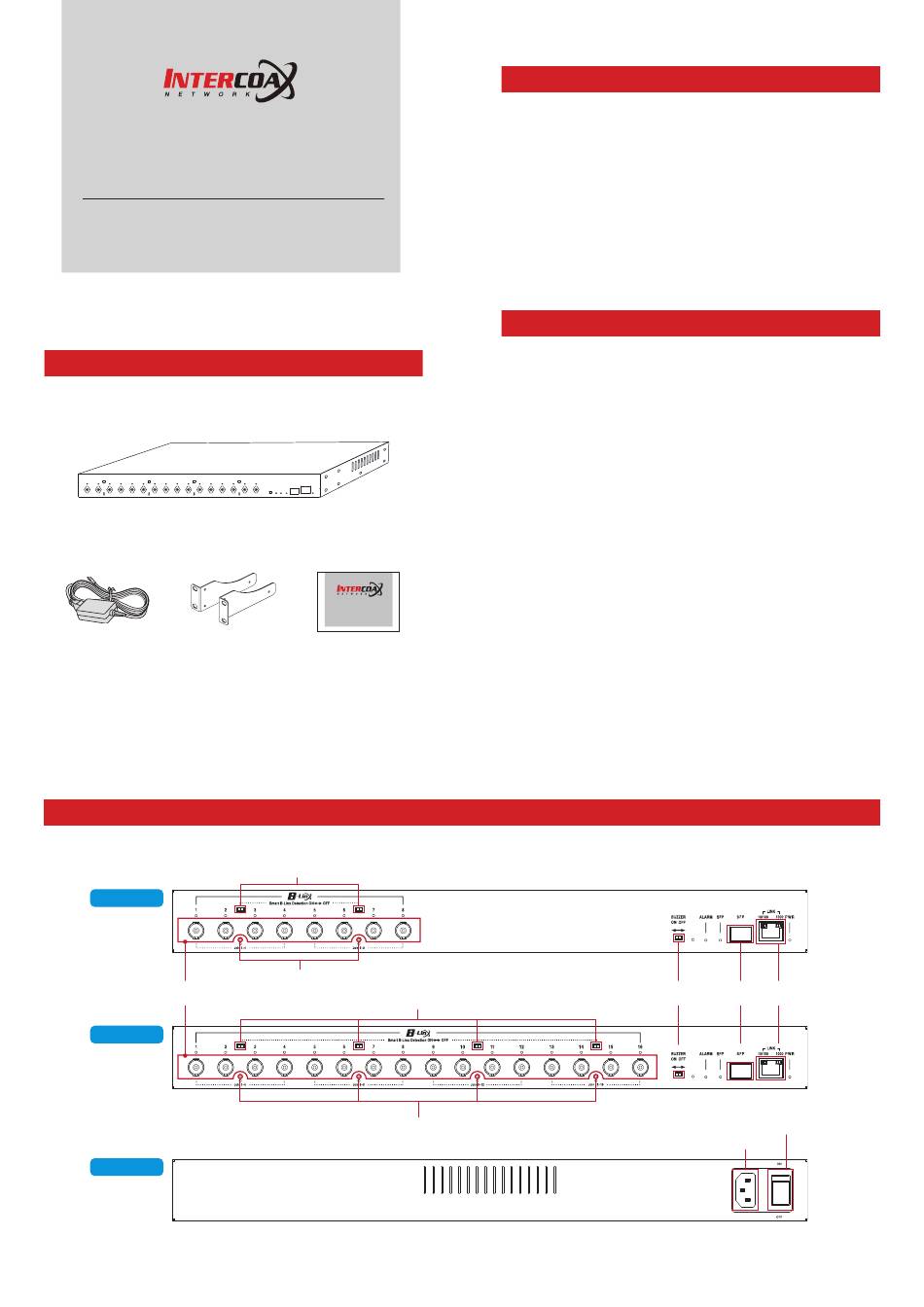

Package
ECP-2808RM / ECP-2816RM
Power Cord Bracket
Smart Detection ON/OFF
ECP-2808RM
B-Linx Ports
ECP-2816RM
Rear
Quick Start Guide
Hardware Overview
Join Button
Smart Detection ON/OFF
Join Button
Overview
The ECP-2808RM/2816RM are 19" rack mountable Managed
Long Distance Ethernet and PoE over Coax Receiving Switches.
ECP-2808RM/2816RM are available with 8 or 16 B-Linx(Coax) ports.
ECP-2808RM/2816RM are capable of connecting more than 8/16
ECP Transmitters even with Daisy-Chain connection and also
support PoE powered devices such as IP cameras. Data rates up to
1Gbps are achievable, making these devices the ideal choice in new
or legacy installations where existing coax cable is re-deployed as
part of an upgrade from Analog to IP cameras. ECP-2808RM has
built-in 320 Watt power supply and ECP-2816RM has built-in 640
Watt power supply. All connected IEEE1901 HPAV standard devices
are manageable with the ECP Manager, via Web GUI.
Features

ECP Manager software, via Web GUI to access, monitor and
manage the ECP-2808RM / 2816RM easily and remotely.

Configure Join & Unjoin, Changing joining password and power
reset of remotely connected devices

Real-time monitoring of power consumption for each port

Multicast Setting with IGMP Query & Report Generator
 SNMP/SSH, VLAN/QoS

Port Locking by MAC Addresses
 Back up & Restore of configuration

8/16 Port long distance EoC up to 2.4Km

PoE/ PoE+/ Extra PoE up to 60W (PoE++) per B-Linx port

Each port has Auto Power Short Protection. When the cable is being
shorted or damaged, it won't transmit power until the cable is fixed
 B-Linx Device Detection will secure the power transmission only
to B-Linx devices

320W / 640W Built-in Power Supply

Built-in crosstalk cancelling technology

B-Linx Multiple Nodes can be used (Daisy Chain, Star, Etc.) on each port
 All IEEE1901-HPAV standard EoC devices can be easily
connected remotely
 19-inch(1U) rack mountable design

Giga-bit SFP and Copper uplink port

Supports UTP, Telephone (2 Pairs), 2-Wire cable communication
(Using BTE Series)

Surge Protection
Buzzer ON/OFF
AC Power Connector
SFP RJ45
Power ON/OFF Switch
