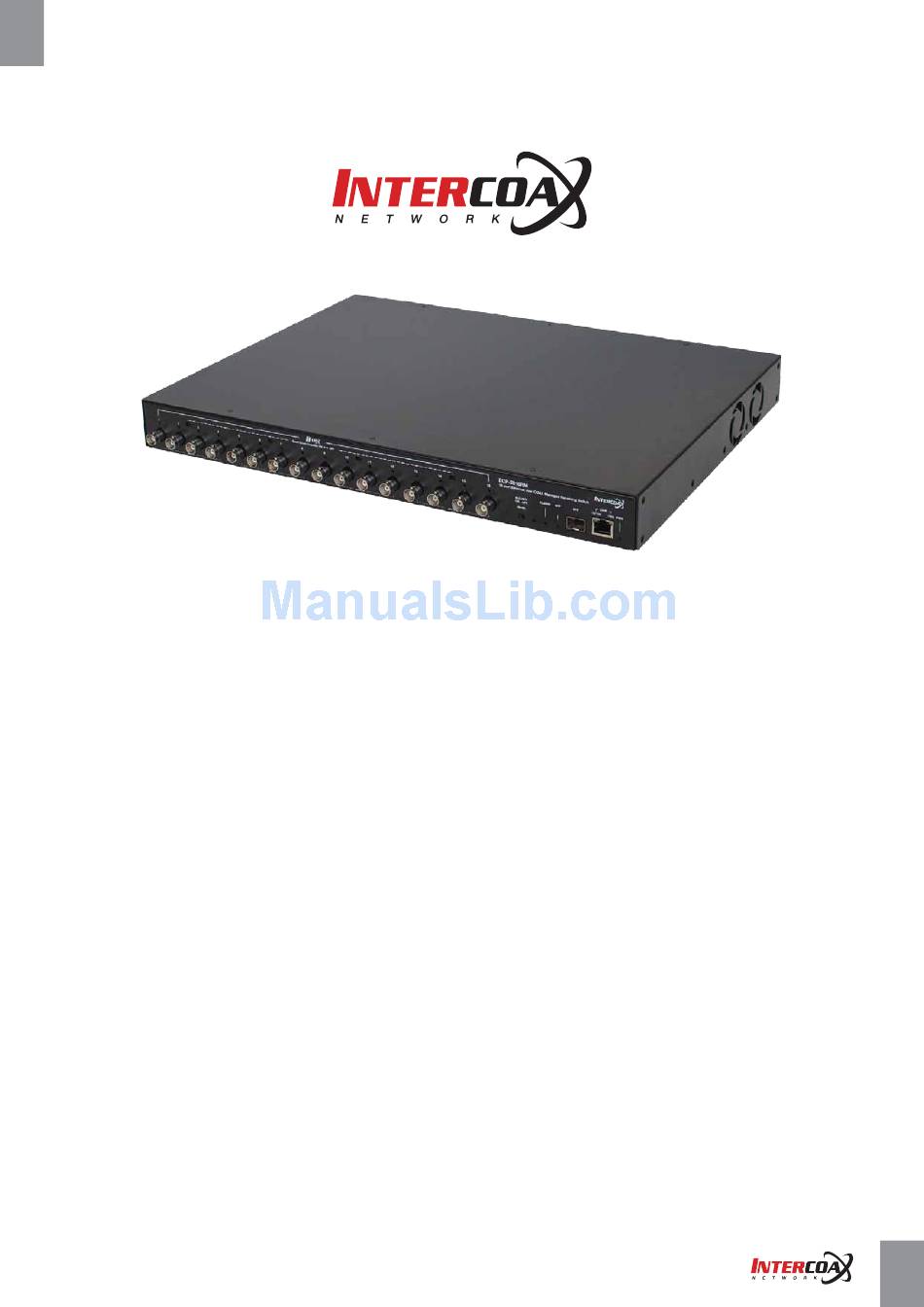

Page 1: User Manual
High-Speed, Long distance Ethernet and PoE Extender Ethernet over Coax / UTP Managed Receiving Switch ECP-2808RM / ECP-2816RM / EUP-2808RM / EUP-2816RM User Manual version 1.7 Network Solution Provider... -
Page 2: Table Of Contents
High-Speed, Long distance Ethernet and PoE Extender Contents Precaution and Safety Guidelines 1. Product Overview 1 - 1. Introduction 1 - 2. Features 1 - 3. Package Contents 2. Hardware Installation 2 - 1. Front Panel 2 - 2. Rear Panel 2 - 3. -
Page 3: Precaution And Safety Guidelines
High-Speed, Long distance Ethernet and PoE Extender Precaution and Safety Guidelines • Please install the device following the installation guide. • Reed all warnings. • Warning - Do not touch the device and cable with wet hands. • Warning - Clean this apparatus only with a dry cloth. Warning - Please do not put the products on anything electrical conductive (screwdrivers, coins, iron, etc.) •... -
Page 4: Product Overview
High-Speed, Long distance Ethernet and PoE Extender 1. Product Overview 1-1. Introduction The All-New Intercoax ECP/EUP-2808RM/2816RM Series is 19” rack mountable managed Long Distance Ethernet and PoE over Coax/UTP Receiving Switches. ECP/EUP-2808RM/2816RM series are capable of connecting more than 8/16 ECP Transmitters even with Daisy-Chain connection and also support PoE powered devices such as IP cameras. -
Page 5: Hardware Installation
EUP-2816RM 1. B-Linx Ports (1~8 / 1~16) : Connect Intercoax ECP Transmitters or IEEE1901-HPAV standard devices by coaxial cable with BNC male connector. 2. T-Linx Ports (1~8 / 1~16) : Connect Intercoax ECP Transmitters or IEEE1901-HPAV standard devices by UTP cable with RJ45 male connector. -
Page 6: Rear Panel
MAC Address #4 Model : ECP-2816RM Default IP : 192.168.4.17 H/W Version 1.01 Serial Number Intercoax Co., Ltd www.intercoax.com INPUT: 100~240VAC 50/60 Hz 5A 1. Power ON/OFF Switch 2. Power Connector The connector is for 100~240V AC power inputs 50Hz/60Hz... -
Page 7: Led Indication
High-Speed, Long distance Ethernet and PoE Extender 2-3. LED Indication ECP-2808RM EUP-2808RM ECP-2816RM EUP-2816RM LED Indication Blinking - ECP/EUP Transmitter is connected B-Linx / T-Linx - No device connected - Short circuit or over current - Power over coax / UTP... -
Page 8: Configuration Instruction
High-Speed, Long distance Ethernet and PoE Extender 2-4. Configuration Instruction 2-4-1. Prepare devices and materials • Ethernet over Coax /UTP Receiving Switch (ECP-2808RM, EUP-2808RM, ECP-2816RM, EUP-2816RM) • ECP-Transmitters (ECP-2801, ECP-2701, ECP-9501, ECP-8401, ECP-8301, EUP-2801, EUP-8401,etc) • EUP-Transmitters (EUP-8401T, EUP-2601T, EUP-2801T & All ECP-Transmitters with BTE-02) •... - Page 9 High-Speed, Long distance Ethernet and PoE Extender 5. The green join LED of the receiving switch and ECP-Transmitters will blink regularly if both devices are already joined with same network password. [Note] All ECP/EUP products have the same network password as factory default mode to support plug &...
-
Page 10: Rack Mount Instructions
High-Speed, Long distance Ethernet and PoE Extender Rackmount Bracket Installation Guide Picture 1 Picture 2 1. Remove the 3 of factory installed screws from both sides of managed switch and keep these screws as they will be used to attach the new rack mount brackets. (See Picture 1 & 2) Picture 3 Picture 4 2. -
Page 11: Joining Instruction
High-Speed, Long distance Ethernet and PoE Extender 2-4-3. Joining instruction • All ECP/EUP products are pre-joined with the same network password (“HomePlugAV”) as the factory default mode to support plug & play configuration between ECP/EUP Series. • If the receiving switch and all of ECP/EUP-Transmitters are already Joined (Join LED on both devices), It is unnecessary to join the devices again pressing JOIN button. -
Page 12: Label The Configured Network Group
[Note] Joining can also be made with the exclusive management software, INTERCOAX ECP MANAGER but before joining with software, the ECP-28XXRM series and ECP-Transmitters should already be joined together with the same network group password. (For more details about software joining,... -
Page 13: Transmission Distance & Bandwidth By Distance
High-Speed, Long distance Ethernet and PoE Extender 2-5. Transmission distance & Bandwidth by distance 2-5-1. Performance chart ■ ECP-2808RM / ECP-2816RM (B-Linx Models) • When using ECP-2XXX series as Transmitter (Based on One transmitter per port) RG6 Coaxial Cable 100m... - Page 14 High-Speed, Long distance Ethernet and PoE Extender 2-5. Transmission distance & Bandwidth by distance 2-5-1. Performance chart ■ EUP-2808RM / EUP-2816RM (T-Linx Models) • When using 2xxx series + BTE-02 (ECP Model only) as Transmitter as Transmitter (Based on One transmitter per port) Cat.5e UTP Cable 100m 200m...
-
Page 15: Typical Installation
High-Speed, Long distance Ethernet and PoE Extender 2-6. Typical Installation • The ECP/EUP-2808/2816RM Series deliver high bandwidth and power over coax/UTP cable. All ECP/EUP single port units or ECP/EUP transmitter series can be used as remote transmitters, typically located at the IP camera. •... -
Page 16: Product Specifications
High-Speed, Long distance Ethernet and PoE Extender 3. Product Specifications 3-1. Technical Specifications Model ECP-2808RM EUP-2808RM ECP-2816RM EUP-2816RM 8 * 75Ω BNC (Female) - 16 * 75Ω BNC (Female) - Coax Ethernet over Coax (B-Linx) Ethernet over Coax (B-Linx) 8 * 100Ω RJ45 (Female) - 16 * 100Ω... -
Page 17: Management Software Configuration
The ECP MANAGER LITE is the browser based GUI. Users can access to management of all ECP-2808/16 series and its connected IEEE1901-HPAV standard transmitters. • The ECP MANAGER software allows managing multiple of INTERCOAX Managed Receivers remotely from the central management office. With the ECP MANAGER software, users can access to all connected IEEE1901-HPAV standard transmitters. -
Page 18: Getting Started
6. Open the Setting page and change IP address as desired address. 7. Change Login ID and Password on Admin page of the Intercoax ECP Manager. [Note] Please refer to Admin page for changing Admin ID and password (Page 36) -
Page 19: Ecp Manager
High-Speed, Long distance Ethernet and PoE Extender 4-3. Getting started 4-3-2. ECP MANAGER 1. Unzip the file, ECPManager.zip 2. Move the unzipped folder, ECPManager to Local Disk (C:) => Location: C:\ECPManager 3. Click the setup.exe file [Note] During initial Installation for ECP Manager. Internet connectivity is required. 4. - Page 20 High-Speed, Long distance Ethernet and PoE Extender 4-3. Getting started 4-3-2. ECP MANAGER 8. Change the Login ID and Password as desired on the Admin window. [Note] Please refer to admin window page for changing ID and Password (Page 36) 9.
-
Page 21: Configuration Windows
High-Speed, Long distance Ethernet and PoE Extender 4-4. Configuration Windows 4-4-1. System Summary • System summary shows the system configuration of the connected ECP managed switches. • System summary information will be shown on all windows. - ECP Manager Software Version shows the version of the current software. - Total number of ECP Receiver Groups shows the total number of the registered group. -
Page 22: General Window
High-Speed, Long distance Ethernet and PoE Extender 4-4-2. General Window 4-4-2-1 Easy View • Installed ECP Managed Receivers are shown on General – Easy View. • ECP Manager is programmed to check the connectivity of each ECP Managed Receivers automatically. If an ECP Managed Receiver is connected to ECP Manager, then the box on the right will stay green. - Page 23 High-Speed, Long distance Ethernet and PoE Extender Clicking • By Clicking on the GUI of the corresponding device, users can enter the menu of each device. • Each device GUI shows; - Port connection status (All connected B-Linx and T-Linx port will be showed with Green color) ►...
-
Page 24: List View
High-Speed, Long distance Ethernet and PoE Extender 4-4-2. General Window 4-4-2-2 List View • Installed ECP Managed Receivers are also shown on General – List View. • When there are many ECP Managed Receivers are installed, it is convenient to control all installed ECP Managed Receivers on List View. •... -
Page 25: Receiver Overview
High-Speed, Long distance Ethernet and PoE Extender 4-4-2. General Window 4-4-2-3 Receiver Overview • By Clicking on the GUI of the corresponding device GUI on Easy view, users can enter the configuration menu of each device. • Receiver Overview shows the brief information of the selected device such as; - Model: Product type - Product Number: Product number - Serial Number: Serial number of the selected device... -
Page 26: Join & Node Control
High-Speed, Long distance Ethernet and PoE Extender 4-4-2. General Window 4-4-2-4 Join & Node Control • On this menu, users can make network groups by joining the connected ECP/EUP Transmitters with ECP/EUP managed switch. • ECP/EUP managed switch series have 2 or 4 network groups with every 4 channels (1-4, 5-8, 9-12, 13-16) and it is possible to avoid network interference by setting the different password of each group. - Page 27 High-Speed, Long distance Ethernet and PoE Extender 4-4-2-4 Join & Node Control Local Group Remote Group • Local Group A, B or A, B, C, D - This section shows the information of each Local Group (IEEE1901-HPAV chipset), ECP managed switch side. - MAC: Mac address of the each Group’s chipset (MAC address is read automatically from the device) - ID: Each Group’s ID that registered already as factory default.
-
Page 28: Node Monitor
High-Speed, Long distance Ethernet and PoE Extender 4-4-2-5 Node Monitor • This menu shows the MAC address of the ECP/EUPTransmitters and the end devices connected to each Local Node. • Comments on each IP device is very useful to identify the devices. •... -
Page 29: Power
High-Speed, Long distance Ethernet and PoE Extender 4-4-2-6 Power • Power page shows all power information of the ECP managed switch and power usage on every port with the line graph. • In this page, users can check the system power voltage and the power consumption of the ECP/EUP Transmitters including the end-devices by each port. -
Page 30: Multicast
High-Speed, Long distance Ethernet and PoE Extender 4-4-2-7 Multicast • Multicast menu shows all added multicast addresses. • On this page, users can add the new multicast address as desired and turn on IGMP query generator for IGMP Snooping for all added multicast streams. •... -
Page 31: Settings
High-Speed, Long distance Ethernet and PoE Extender 4-4-2-8 Settings • On the Settings menu, users can set the network addressing of the device, the VLAN and backup and restore the device configuration, update the firmware and reboot the system. Network settings •... - Page 32 High-Speed, Long distance Ethernet and PoE Extender 4-4-2-8 Settings - Check Remote Group VLAN Enable Box to activate the VLAN feature and check the each group box to select uplink path to Giga Ethernet or SFP port. [Note] ECP/EUP Managed Switch series have 2 or 4 network groups with every channels (1-4, 5-8, 9-12, 13-16) and VLAN Settings are conducted on each group.
-
Page 33: Ecp Config Window
High-Speed, Long distance Ethernet and PoE Extender 4-4-3 ECP Config Window 4-4-3-1 Group Configuration • On the Group Configuration menu, users can create a new group of the ECP managed switches. • The information of the selected device will be shown by clicking the device on the table. - Group Name: Enter the desired group name. -
Page 34: Ecp Configuration
High-Speed, Long distance Ethernet and PoE Extender 4-4-3 ECP Config Window 4-4-3-2 ECP Configuration • On the ECP Configuration menu, users can add new ECP managed switch. - ECP ID: Enter a desired ID of the device. - Enable: ► Yes - The device monitoring will be activated on the General Menu. ►... -
Page 35: Snmp Window
High-Speed, Long distance Ethernet and PoE Extender 4-4-4 SNMP Window • Using the SNMP protocol, the system or network administrator can monitor the device. • As the default setting, 6 objectIDs are available, for specified function, please contact to the manufacturer. MIB (Management Information Base) Test - Group: Select an assigned group. -
Page 36: Admin Window
High-Speed, Long distance Ethernet and PoE Extender 4-4-5 Admin Window 4-4-5-1 Administrator • The initial administrator ID & Password is set to “ admin” and you will need to configure the password in the admin window. • The administrator has full access to all users. •... -
Page 37: System Config
High-Speed, Long distance Ethernet and PoE Extender 4-4-5 Admin Window 4-4-5-2 System Config On System Config menu, the user can configure e-mail server to send the device status to a registered recipient. - SMTP server: Enter the SMTP server address to connect to. - SMTP Login ID: Enter a ID to use authentication when connecting to the SMTP sever. -
Page 38: Logout Window
High-Speed, Long distance Ethernet and PoE Extender 4-4-6 Logout Window • Logout and close the ECP Manager Software Page 38 of 41 Network Solution Provider... -
Page 39: Troubleshooting
High-Speed, Long distance Ethernet and PoE Extender 5. Troubleshooting 5-1. Hardware Action Problem . Live video will be cut off . Check if the power supply system is properly connected. . Check if coax / UTP cable is connected properly. . -
Page 40: Software
High-Speed, Long distance Ethernet and PoE Extender 5. Troubleshooting 5-2. Software Action Problem . Network connection is fail. . Check if IP address of the PC and Receiving switch is set correctly. . “Check” massage is displayed . Please check that the cable length does not exceed transmission distance limitation on current ECP Manager reporting of 100 meters. -
Page 41: Warranty Policy
Intercoax’s liability under any warranties shall be discharged by replacing or repairing any part or parts which do not conform to the applicable warranty under normal and proper use.
