Intercoax EUP-2816RM Quick Start Manual

Quick Start Guide
EUP-2808RM / EUP-2816RM
Please read carefully the instruction manual before use.
Depending on the model, the image
and the actual look of the product may vary.
[Rev.1.0]

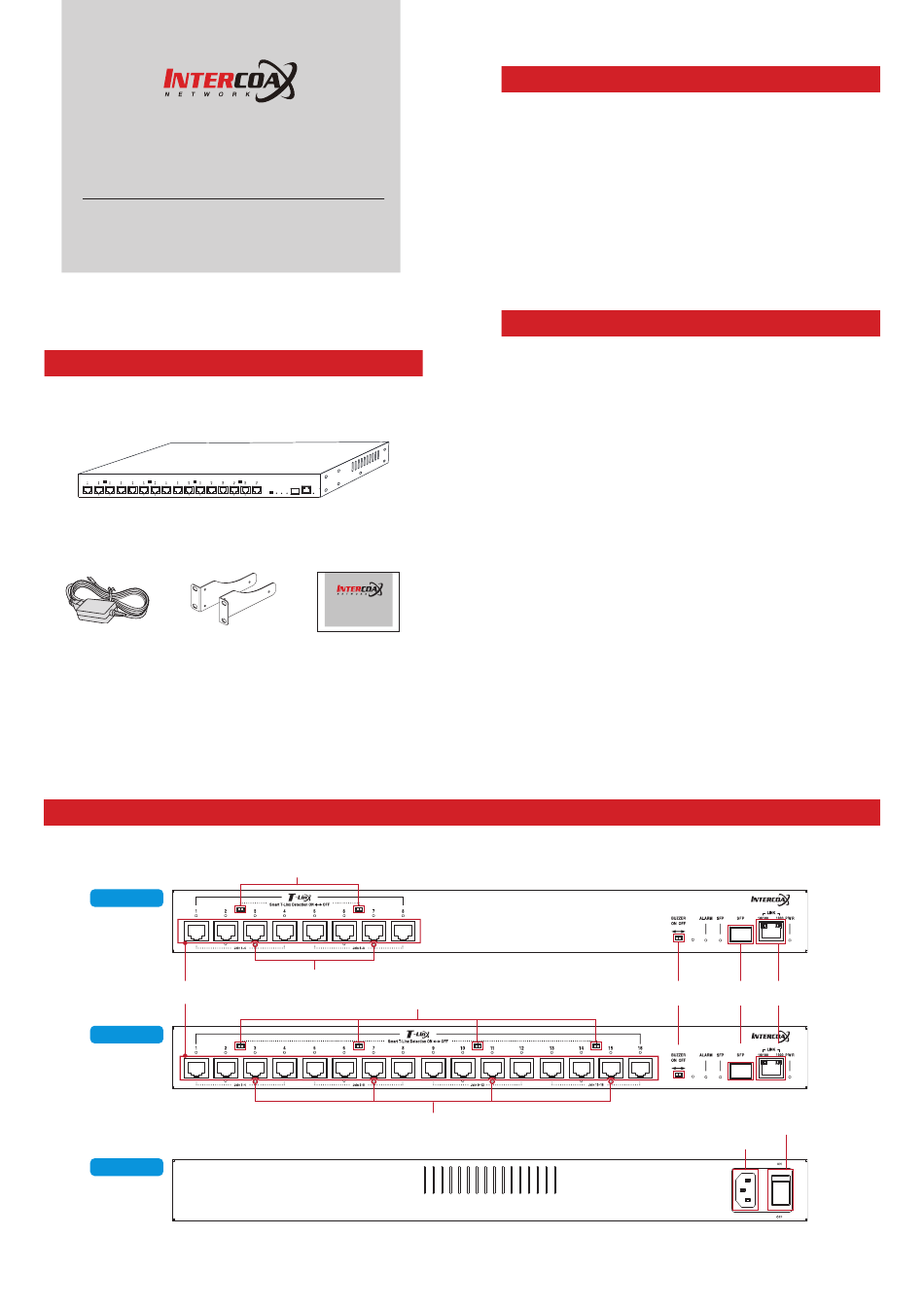

Package
EUP-2808RM / EUP-2816RM
Power Cord Bracket
Smart Detection ON/OFF
EUP-2808RM
T-Linx Ports
EUP-2816RM
Rear
Quick Start Guide
Hardware Overview
Join Button
Smart Detection ON/OFF
Join Button
Overview

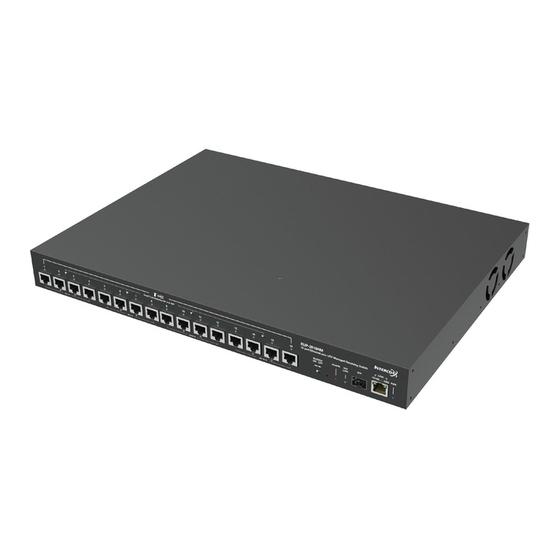

The All-New Intercoax EUP-2808RM/2816RM are 19" rack mountable
Managed Long Distance Ethernet and PoE over UTP Receiving
Switches. EUP-2808RM/2816RM are available with 8 or 16 T-Linx(UTP)
ports. EUP-2808RM/2816RM are capable of connecting more than
8/16 EUP Transmitters (or use ECP Transmitters with BTE-02) even
with Daisy-Chain connection and also support PoE powered devices
such as IP cameras. Data rates up to 1Gbps are achievable, making
these devices the ideal choice in new or legacy installations where
existing UTP cable is re-deployed as part of an upgrade from Analog
to IP cameras. EUP-2808RM has built-in 320 Watt power supply and
EUP-2816RM has built-in 640 Watt power supply. PoE up to 60W per
port is available. All connected IEEE1901 HPAV standard devices are
manageable with the ECP Manager, via Web GUI.
Features
 ECP Manager software, via Web GUI to access, monitor and
manager the EUP-2808RM / 2816RM easily and remotely.

Configure Join & Unjoin, Changing joining password and power
reset of remotely connected devices

Real-time monitoring of power consumption for each port

Multicast Setting with IGMP Query & Report Generator

SNMP/SSH, VLAN/QoS

Port Locking by MAC Addresses

Back up & Restore of configuration

8/16 Port long distance up to 1.2Km
 PoE/ PoE+/ Extra PoE up to 60W (PoE++) per T-Linx port

Each port has Auto Power Short Protection. When the cable is being
shorted or damaged, it won't transmit power until the cable is fixed

T-Linx Device Detection will secure the power transmission only
to T-Linx devices

320W / 640W Built-in Power Supply
 Built-in crosstalk cancelling technology

T-Linx Multiple Nodes can be used (Daisy Chain, Star, Etc.) on
each port
 All IEEE1901-HPAV standard EoC devices can be easily
connected remotely

19-inch(1U) rack mountable design

Giga-bit SFP and Copper uplink port
 Supports UTP, Telephone (2 Pairs), 2-Wire cable communication
(Using BTE Series)

Surge Protection
Buzzer ON/OFF
AC Power Connector
SFP RJ45
Power ON/OFF Switch
