Intercoax HPS-01 Installation Manual

HPS-01 Installation Guide
Please read the installation guide carefully before product installation.
1) Please install the device following the installation guide.
2) Do not touch the device and cable with wet hands.
3) Keep away from moisture and shock.
4) Do not install the device near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
5) If the device is defective or malfunctioning, please unplug the power immediately and
contact to dealer or service senter.
1) This device is designed for indoor use only.
2) Do not use this device for other purpose.
3) Do not subject the product to physical shocks.
4) Do not disassemble the product or insert foreign object.
The HPS-01 is a 2Port Hybrid PoE Switch that transmits network signal and PoE+ power up
to 250 meters between the devices.
1 input 2 output design makes easy to install 2 network devices into a single LAN cable and
possible to connect multiple devices in a cascade configuration.
1) 1 input 2 output design (Possible to connect 2 network devices using 1 cable)
2) Extended Ethernet transmission distance up to 250m
(When configured with the Hybrid PoE Switch Series)
3) PoE, PoE+, Extra PoE (Max. 60W output)
4) Over current protection for secured power supply
5) NMS (Network Management System) by IP address
Connection Status monitoring / Transmission Bandwidth per port monitoring /
Reset per each port / Event & Alarm / e-MAP
6) Plug & Play
Max. 130m
Caution

Precautions for Installation

Precautions for use

Overview

Features

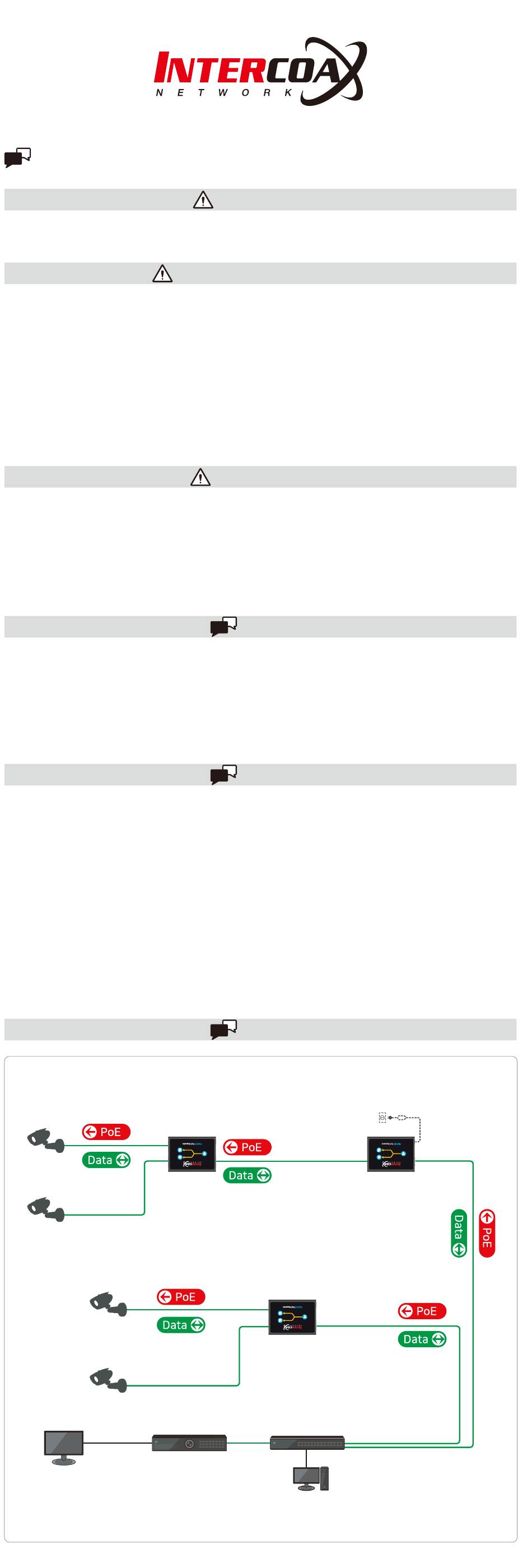

Applications

HPS-01
Max. 130m
NVR
Cat.5e or Better
Max. 250m
HPS-01
Max. 100m
HPS-01
PoE Switch
Computer
(NMS)
56V DC/1.2A Power Supply
(optional)
Max. 100m
