Intercoax FLX-1008 Quick Start Manual

Quick Start Guide
FLX-1008
Please carefully read the instruction manual before use.
Depending on the model, the image and the actual look of the product may vary.
* Please visit our website www.intercoax.com
[Rev.1.1]

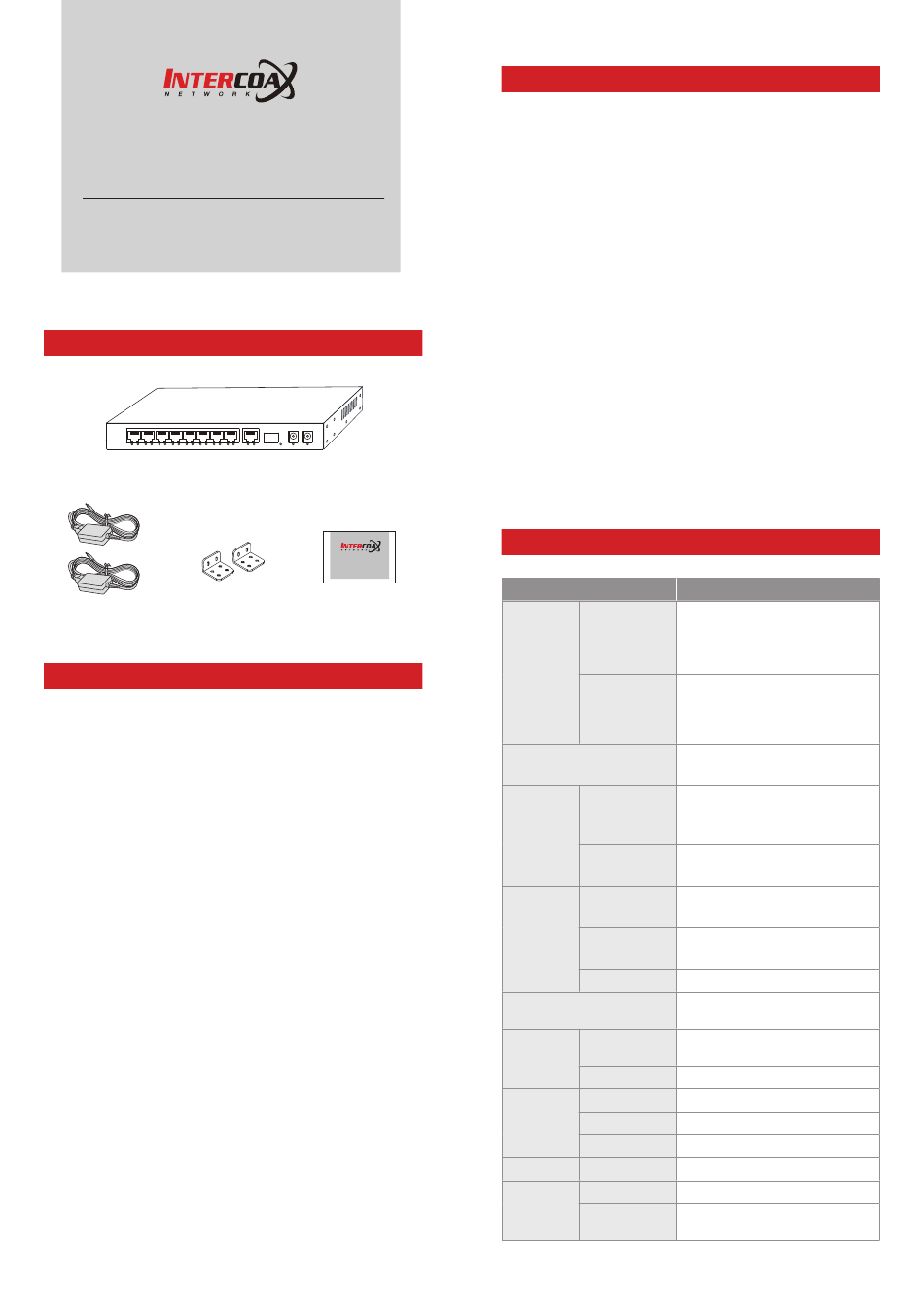

Package
FLX-1008
Adapter Bracket
Features

PoE Ethernet Switch
- Downlink: 8 x RJ45 (PoE+)
- Uplink: 1 x RJ45, 1 x SFP

Transmission Method
- Downlink: Automatically detect standard Ethernet and Long
Reach Protocol (FLEXIA)
- Uplink: Standard Ethernet and Standard SFP Module

Transmission Speed
- Downlink: 10/100Mbps Auto negotiation
- Uplink: 100/1000Mbps Auto negotiation
 Transmission distance
- Downlink: Max.100m for standard Ethernet, and Max.500m
at 100Mbps and Max.1Km at 10Mbps for Long Reach
Protocol.
- Uplink: Max.100m for standard Ethernet; standard SFP
Module follows the Module specification.
 Downlink 8-Port PoE Power
- Max.30W/Port; overall PoE Power 136W
- Secure PoE power transmission guaranteed with Standard
PSE (Power Sourcing Equipment) application

1 or 2 Power adapters (57V/1.2A), DC 48V ~ 57V power also
possible
- Downlink 8-port PoE total capacity depends on the power
adapter

Action Status LED supported

Ultra-Small Design

19" Rack Mount (Exclusive Rack Mounted Bracket Sold
Separately)
to download Manual.
Quick Start
Guide
Overview

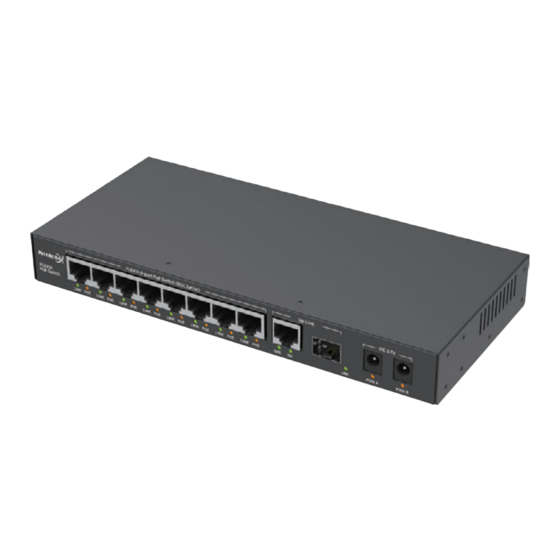

The FLX-1008 is a receiver for the FLEXIA camera line. It is
Intercoax's new short and long range Ethernet Switching Hub,
with 8 RJ45 ports supporting PoE+ (IEEE802.3at) as downlink
and 2 ports supporting RJ45 and SFP as uplinks.
The downlink transmits at 10/100Mbps and automatically
detects standard Ethernet as well as Long Reach Protocol. The
uplink transmits at 100/1000 Mbps and supports both standard
Ethernet and standard SFP Module.
Maximum transmission distance is 1km when connected to
FLEXIA cameras supporting Long Reach Protocol, and 100m
with standard Ethernet.
Two power supplies are included for redundancy and power
sharing (30W per port)
 When using 2 power supplies, PoE supports about 136W for
all ports and max.30W per port (Ex: If 1 ~ 4 ports are used,
30W/port; if all 8 ports are used, 17W/port)
 When using 1 power supply, overall PoE is about 68W, and
max.30W per port (Ex: If 1 ~ 2 ports are used, 30W/port; if
all 8 ports are used, 8.5W/port)
Specification
Model
Downlink
Interface
Uplink
Transmission Rate
Downlink
Transmission
distance
Uplink
Downlink
LED
Indication
Uplink
PWR Input
Power Input
PoE
Power
Output
Dimension
Weight
Mechanical Operating Temp. -10 ~ 60 °C
Storage Temp.
Environment Relative Humidity 10% ~ 90%
Certification
Compliance
Surge Protection
FLX-1008: 8Port Flexia PoE Switch
8 x RJ-45:
FLEXIA with Auto-negotiation
- 10/100 Base-T
- 10/100 Long Reach Protocol
1 x RJ-45 – 100/1000 Base-T with
Auto-detect MDIX
1 x SFP – 100Base-FX/1000Base-X
Module with serdes type
Downlink: Max. 100Mbps/Port.
Uplink: Max. 1000Mbps
Up to 100m (10/100 Base-T)
Up to 500m (100 Long Reach Protocol)
Up to 1km(10 Long Reach Protocol)
Up to 100m(100/1000 Base-T)
According to SFP Module
8 x RJ45 Data Link (Green)
8 x PoE Output (Orange)
1 x RJ-45 Data Link (Green)
1 x SFP Data Link (Green)
2 x Power Input (Orange)
2 x Power input [ DC-Jack ]
DC48V-57V
IEEE802.3af(PoE), IEEE802.3at
(PoE+)
225(L) x 105(W) x 29(H) mm
700g
- 30 ~ 80 °C
FCC, CE, KC
IEC 61000-4-5 4kV (1.2 / 50us),
2kA(8 / 20us)
