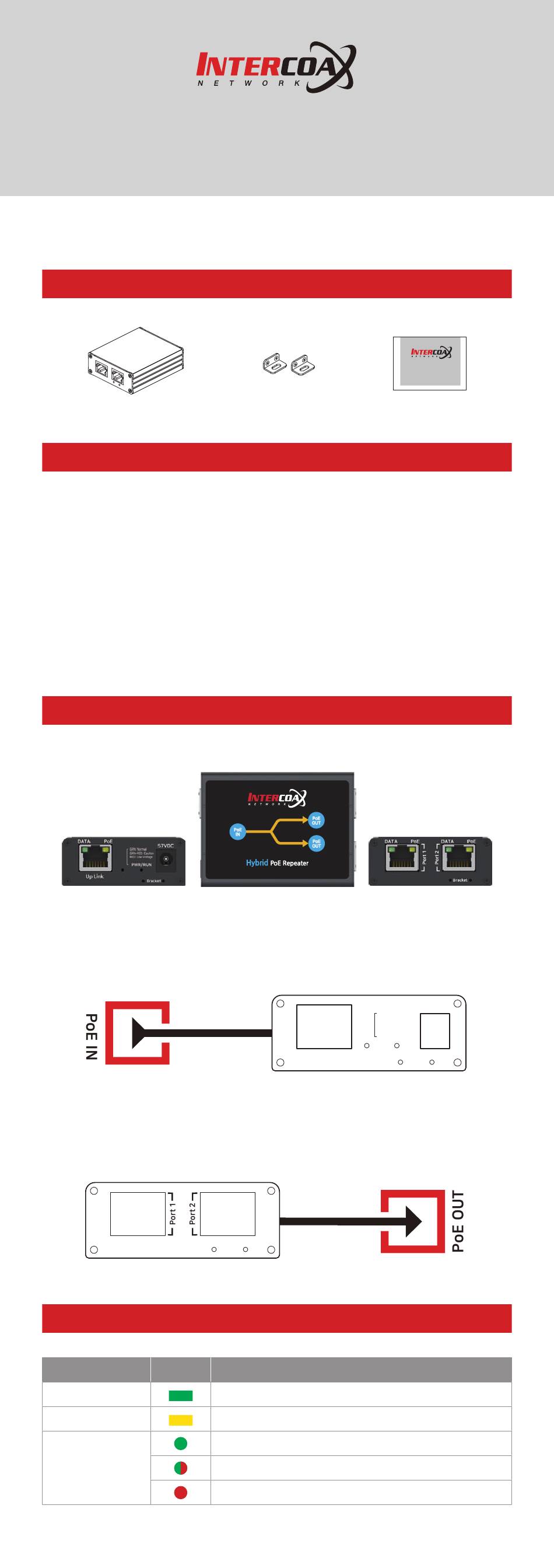

Intercoax HPS-01 Quick Start Manual

Please read carefully the instruction manual before use. Contents of this manual are
subject to change without prior notice for reasons such as functionality enhancements.
HPS-01
 1 input 2 output design (Possible to connect 2 network devices using 1
cable)
 Extended Ethernet transmission distance up to 200m
(Configured with the Hybrid PoE Switch Series)
 10/100 Base-T Ethernet (Full Duplex)
 Power Status LED indication
 PoE input
 DC48~57V power input
 Cascade configuration
 Over current protection for secured power supply
 Surge Protection

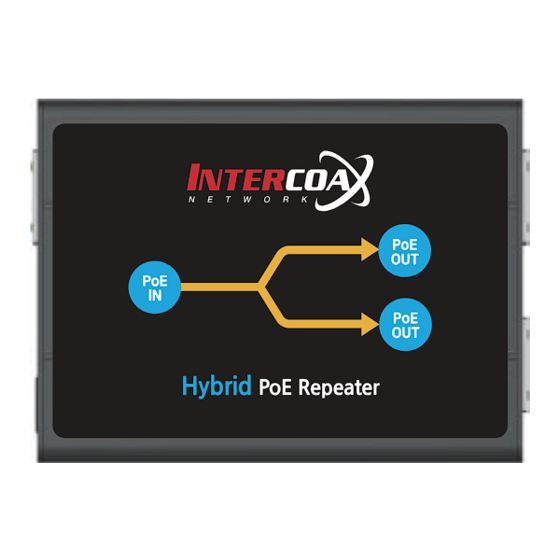

1. Product Image
2. HPS-01 is powered by power supply or PSE (Power Sourcing Equipment)
such as PoE Switch or Injector.
3. Connect UTP cable from PSE to "PoE IN" port. Data/PoE LED indicates
working status.
4. Connect UTP cable from Camera to "PoE OUT" port and Data/PoE LED
indicates working status. Also, applying additional HPS-01s on the one
of "PoE OUT" port , it is possible to connect multiple network devices in a
cascade configuration.
DATA
DATA
Indicator
DATA
PoE
PWR/RUN
Quick Start Guide
HPS-01

Package

Features

Installation Guide

PoE DATA PoE
PoE DATA PoE
Bracket
Bracket

LED Indicators

Color
Bracket
DATA PoE
DATA PoE
Up Link
Up Link
Function
Blinking : Ethernet Data Act
ON : PoE Powered
Normal (48VDC and more)
Caution
Power Shortage (38VDC and below)
Rev.4.1
Quick Start Guide
57VDC
57VDC
GRN: Normal
GRN: Normal
GRN+RED: Caution
GRN+RED: Caution
RED: Low Voltage
RED: Low Voltage
PWR/RUN
PWR/RUN
Bracket
Bracket
