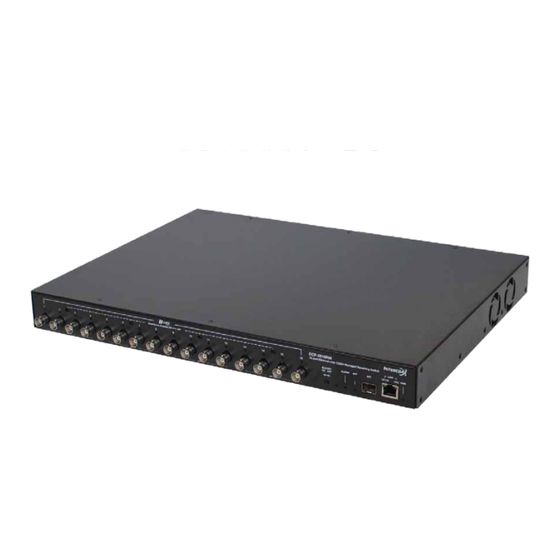

Intercoax ECP-2808RM User Manual
Ethernet over coax / utp managed receiving switch
Hide thumbs
Also See for ECP-2808RM:
- User manual (41 pages) ,
- Quick installation manual (4 pages) ,
- User manual (40 pages)
Related Manuals for Intercoax ECP-2808RM
Summary of Contents for Intercoax ECP-2808RM
- Page 1 User Manual - Hardware - Ethernet over Coax / UTP Managed Receiving Switch ECP-2808RM / ECP-2816RM / EUP-2808RM / EUP-2816RM Rev.3.0 www.intercoax.com...
-
Page 2: Table Of Contents
Contents Precaution and Safety Guidelines ...................3 1. Product Overview .........................4 1.1. Introduction ..............................4 1.2. Features ............................... 4 1.3. Package Contents ............................. 4 2. Hardware Installation ......................5 2.1. Front Panel ..............................5 2.2. Rear Panel ..............................6 2.3. LED Indication ............................7 2.4. ... -
Page 3: Precaution And Safety Guidelines
Precaution and Safety Guidelines • Please install the device following the installation guide. • Reed all warnings. • Warning: Do not touch the device and cable with wet hands. • Warning: Clean this apparatus only with a dry cloth. • Warning: Please do not put the products on anything electrical conductive (screwdrivers, coins, iron, etc.) and not put them around water. -
Page 4: Product Overview
(*Dual power supply of 320W + 320W for power sharing and redundancy) PoE up to 60W per port is available. Intercoax' "ECP Manager", accessible via Web GUI, allows management of all IEEE 1901-HPAV standard devices connected, and multiple ECP/EUP-2808RM/2816RM devices remotely. -
Page 5: Hardware Installation
[EUP-2816RM] Description B-Linx Ports (1~8 / 1~16) : Connect Intercoax ECP Transmitters or IEEE1901-HPAV standard devices by coaxial cable with BNC male connector. T-Linx Ports (1~8 / 1~16) : Connect Intercoax ECP Transmitters or IEEE1901-HPAV standard devices by UTP cable with RJ45 male connector. -
Page 6: Rear Panel
- Press the button with a paper clip and hold for 2 seconds for Joining (Create new password). - Press the button with a paper clip and hold for 15 seconds for Unjoining (Remove the existing password). [Note] Please refer to the Network Grouping Software manual, available on Intercoax' Website. Off : Buzzer On Move the switch left or right to buzzer sound on or off. -
Page 7: Led Indication
2.3. LED Indication [ECP-2808RM] [EUP-2808RM] [ECP-2816RM] [EUP-2816RM] Blinking Indication • ECP/EUP Transmitter is B-Linx/T-Linx connected • No device connected • Short circuit or over current on B-Linx / T-Linx port protection is working (1~8 / 1~16) • Power over coax / UTP working properly •... -
Page 8: Configuration Instruction
2.4. Configuration Instruction 2.4.1. Prepare devices and materials • Ethernet over Coax /UTP Receiving Switch (ECP-2808RM, EUP-2808RM, ECP-2816RM, EUP-2816RM) • ECP-Transmitters (ECP-2701, ECP-8401, ECP-8301, ECP-2601T, etc.) • EUP-Transmitters (EUP-8401T, EUP-2601T & All ECP-Transmitters with BTE-02) • RJ-45 patch cord • Short Coax cable or 4 pairs UTP cable (at least 4 cables for joining) •... - Page 9 6. If the green Join LED is OFF on both receiving switch and ECP-Transmitter, joining work should be necessary for network communication. [Note] For joining work, Please refer to the Network Grouping Software manual, available on Intercoax' Website. 7. Connect ECP-Transmitters to IP Camera (IP it is PoE IP Camera, Please select PoE Switch ‘ON’ from ECP Transmitters) 8.
-
Page 10: Rackmount Bracket Installation Guide
2.4.2.1. Rackmount Bracket Installation Guide 1. Remove the 3 of factory installed screws from both sides of managed switch and keep these screws as they will be used to attach the new rack mount brackets. (See Picture 1 & 2) Picture 1 Picture 2 2. -
Page 11: Grounding
2.4.2.3. Grounding █ Glossary Abbreviation Description • E = Earth = Ground • Sign : Ground • FG = Frame Ground • Sign : • Product Case • DG = DC Ground • Product PCB Board • The outside of •... - Page 12 Earth and FG link █ • Right example - B (AC Power input) must be connected - A terminal (AC powered product) and - C (set rack type case ) • Incorrect example When part no connections, failure such as noise interference.
- Page 13 FG and DG Separation █ Product Case(FG) Product PCB board (DG) ex) ECP-8301EP • Incorrect example is FG(Frame Ground) is DG(DC Ground) [Caution] Do not connect FG and DG directly. • Right example (ex. ECP-8404) Product Case(FG) is FG(Frame Ground) is Protection element is DG(DC Ground) Product PCB board...
- Page 14 DG separates between Remote products █ • Right example - When you connect the main unit to several remote products by cable and use it as a multi, ensure that DG(DC Ground) between Remote Products ECP-2704T is not connected each other. ECP-2701 ECP-2701 ECP-2701...
-
Page 15: Joining Instruction
B. ECP/EUP-Transmitter will reboot and it is ready to be joined. C. BNC Join LED turns off. 3. Join : We recommend using the Intercoax Manager Software to join the devices (the software can be downloaded on our website) Creating new password (Random password) A. -
Page 16: Label The Configured Network Group
This method will join the devices by assigning a random password and it can not be restored to the factory default password. [Note] Joining can also be made with the management software, INTERCOAX ECP MANAGER but before joining with software, the ECP-28XXRM series and ECP-Transmitters should already be joined together with the same network group password. -
Page 17: Transmission Distance & Bandwidth By Distance
2.5. Transmission distance & Bandwidth by distance 2.5.1. Performance chart █ ECP-2808RM / ECP-2816RM (B-Linx Models) When using ECP-2XXX series as Transmitter (Based on One transmitter per port) RG6 Coaxial Cable 100m 200m 300m 500m Trans.Rate (Mbps) 57.5 57.5 57.5 57.5... - Page 18 █ EUP-2808RM / EUP-2816RM (T-Linx Models) When using 2xxx series + BTE-02 (ECP Model only) as Transmitter as Transmitter (Based on One transmitter per port) Cat.5e UTP Cable 100m 200m 300m 500m Trans.Rate (Mbps) 55.1 51.7 35.4 25.7 23.8 PoE Output (W) 51.6 45.5 28.4...
-
Page 19: Typical Installation
2.6. Typical Installation • The ECP/EUP-2808/2816RM Series deliver high bandwidth and power over coax/UTP cable. All ECP/EUP single port units or ECP/EUP transmitter series can be used as remote transmitters, typically located at the IP camera. • ECP/EUP-2xxxx series are recommended to be used as remote transmitters for the maximum performance. •... -
Page 20: Product Specifications
3. Product Specifications 3.1. Technical Specifications Model ECP-2808RM EUP-2808RM ECP-2816RM EUP-2816RM 8x75Ω BNC 16x75Ω BNC Coax (Female) - Ethernet (Female) - Ethernet over Coax (B-Linx) over Coax (B-Linx) 8x100Ω RJ45 16x100Ω RJ45 Interface (Female) - (Female) - Ethernet Ethernet over over Twisted Pairs Twisted Pairs (T-LinX) -
Page 21: Troubleshooting
4. Troubleshooting Problem Action • Check if the power supply system is properly connected. • Check if coax / UTP cable is connected properly. • Check if B-Linx / T-Linx Port LED is ON. • Check if the network port is properly connected and the network setting is set Live video will be cut off correctly. -
Page 22: Warranty Policy
Intercoax’s liability under any warranties shall be discharged by replacing or repairing any part or parts which do not conform to the applicable warranty under normal and proper use. Intercoax’s liability with respect to any product shall not exceed a refund of the price received by Intercoax for that product, and in no event shall Intercoax have any liability for any incidental, consequential, special, or indirect ...
