2.5. Typical Installation

• The ECP/EUP-2808/2816RM Series deliver high bandwidth and power over coax/UTP cable.
All ECP/EUP single port units or ECP/EUP transmitter series can be used as remote transmitters, typically
located at the IP camera.

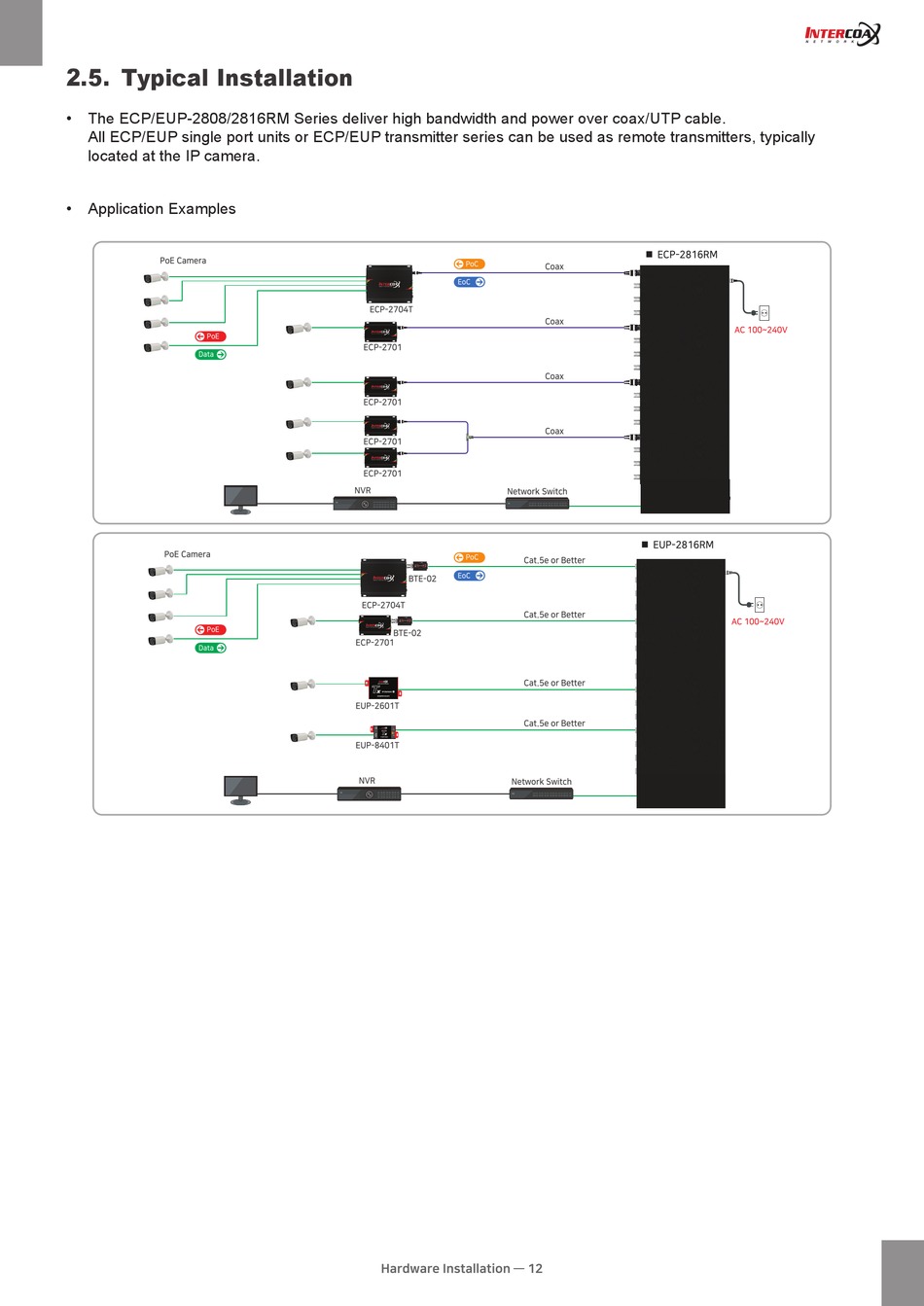

• Application Examples
PoE Camera
PoE
Data
PoE Camera
PoE
Data
PoC
EoC
ECP-2704T
ECP-2701
ECP-2701
ECP-2701
ECP-2701
NVR
Network Switch
PoC
Cat.5e or Better
EoC
BTE-02
ECP-2704T
Cat.5e or Better
BTE-02
ECP-2701
Cat.5e or Better
EUP-2601T
Cat.5e or Better
EUP-8401 Ethernet over Coax Transceiver
EUP-8401T
NVR
Network Switch
Hardware Installation — 12
 ECP-2816RM
Coax
Coax
Coax
Coax
 EUP-2816RM
AC 100~240V
AC 100~240V
