Intercoax ECP-2808RM User Manual page 10

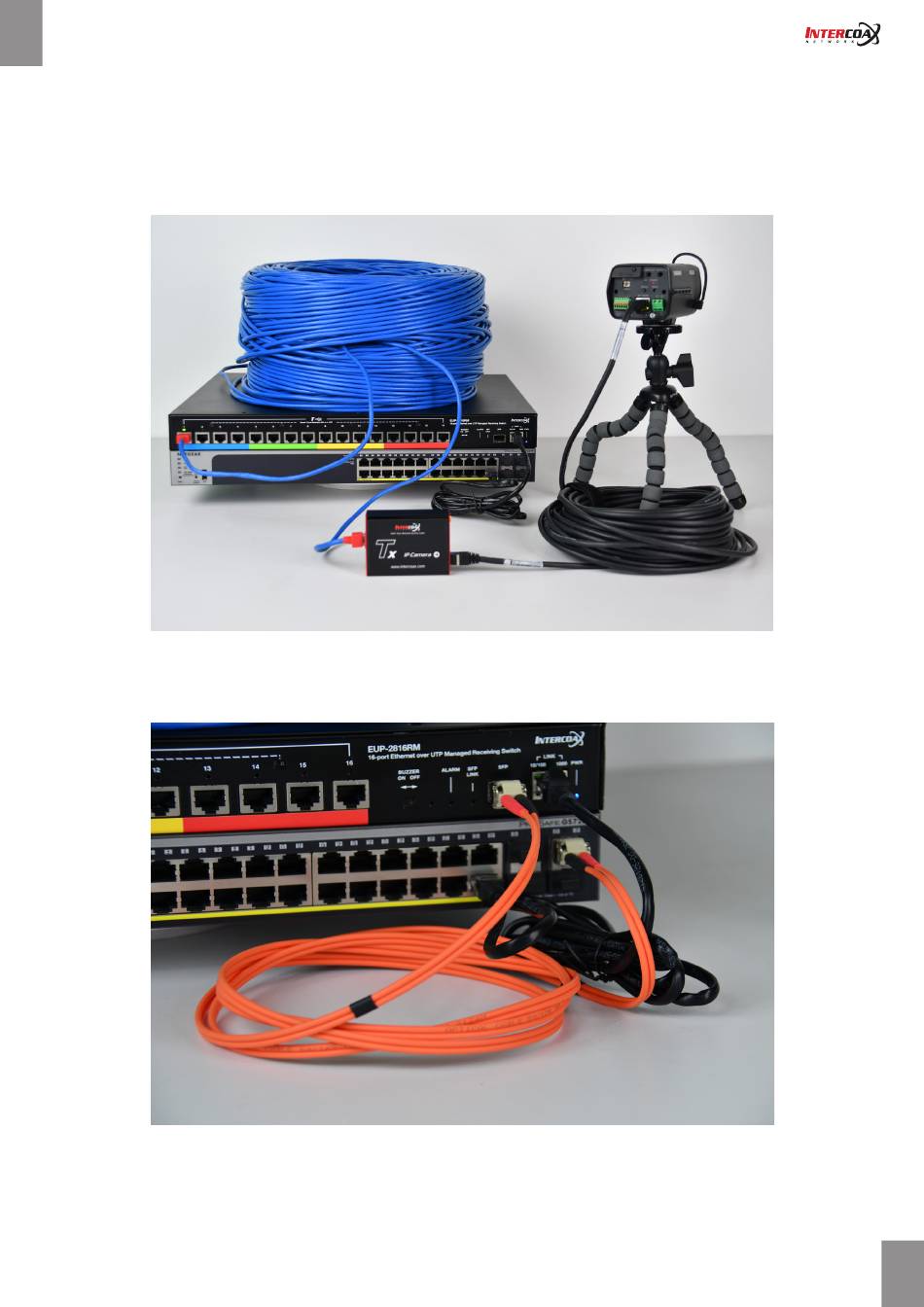

2. Connect ECP-Transmitters to the IP end device (e.g. IP Camera, IP Access Control Unit, VoIP phone, etc.)
(If you want the device to be powered by PoE, Please set the PoE Switch to 'ON' on the ECP Transmitter).
Connect the receiving switch to your Network Switch or your PC using the RJ45 Patch cord.
3. Alternatively, use optical SFP Transceiver modules and a fiber cable to connect to the SFP uplink port of the
receiving switch to an optical SFP port of your Network Switch. This can be used as standalone connection or
redundant port.
4. Apply power to the receiving switch.
Hardware Installation — 10
