Intercoax HPS-1008 Quick Start Manual

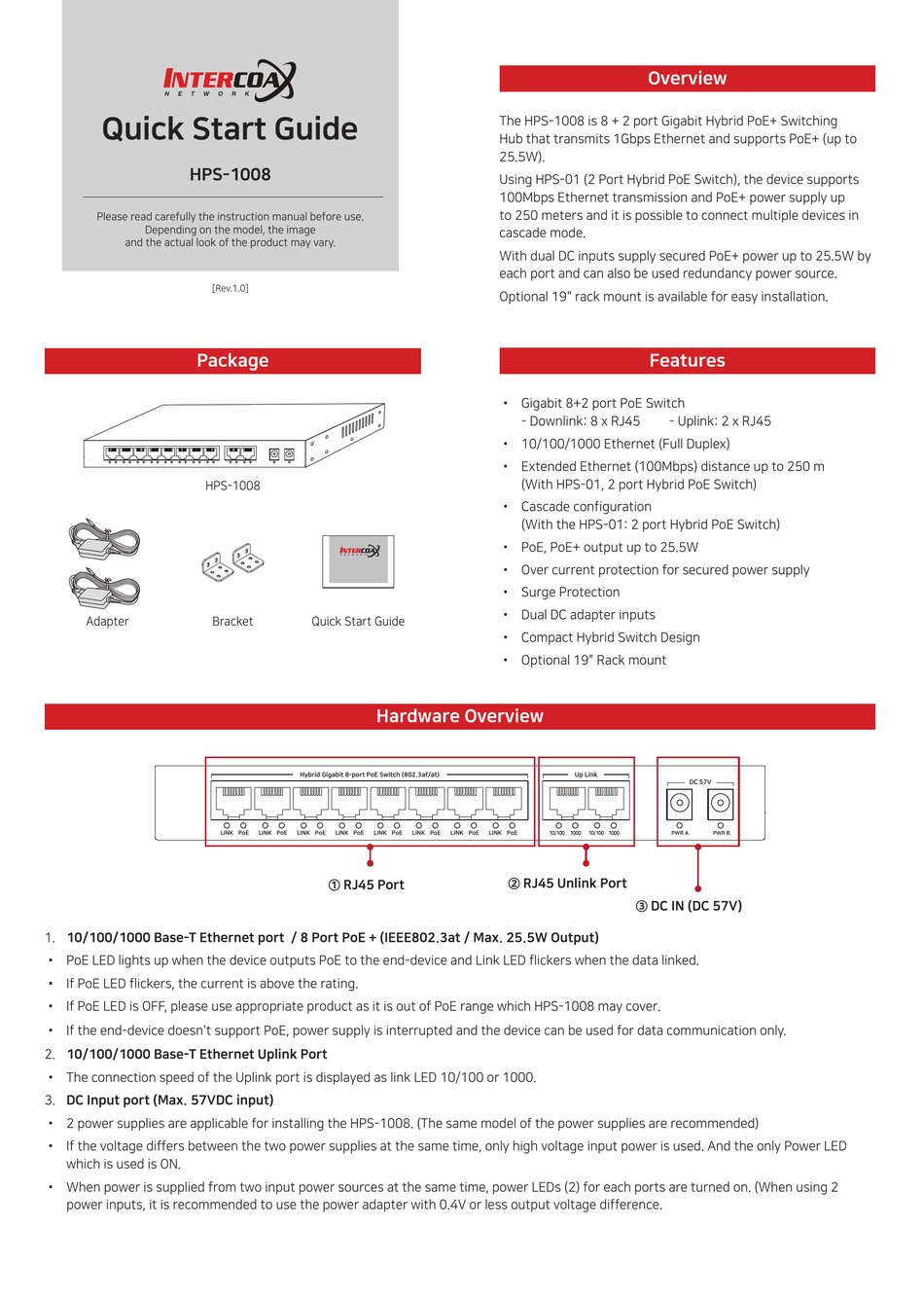

Quick Start Guide

HPS-1008
Please read carefully the instruction manual before use.
Depending on the model, the image
and the actual look of the product may vary.
[Rev.1.0]
Package
HPS-1008
Adapter Bracket
1. 10/100/1000 Base-T Ethernet port / 8 Port PoE + (IEEE802.3at / Max. 25.5W Output)
 PoE LED lights up when the device outputs PoE to the end-device and Link LED flickers when the data linked.

If PoE LED flickers, the current is above the rating.

If PoE LED is OFF, please use appropriate product as it is out of PoE range which HPS-1008 may cover.

If the end-device doesn't support PoE, power supply is interrupted and the device can be used for data communication only.
2. 10/100/1000 Base-T Ethernet Uplink Port

The connection speed of the Uplink port is displayed as link LED 10/100 or 1000.
3. DC Input port (Max. 57VDC input)

2 power supplies are applicable for installing the HPS-1008. (The same model of the power supplies are recommended)
 If the voltage differs between the two power supplies at the same time, only high voltage input power is used. And the only Power LED
which is used is ON.

When power is supplied from two input power sources at the same time, power LEDs (2) for each ports are turned on. (When using 2
power inputs, it is recommended to use the power adapter with 0.4V or less output voltage difference.
Quick Start Guide
Hardware Overview
Hybrid Gigabit 8-port PoE Switch (802.3af/at)
LINK PoE LINK PoE LINK PoE LINK PoE LINK PoE
① RJ45 포트
① RJ45 Port
The HPS-1008 is 8 + 2 port Gigabit Hybrid PoE+ Switching
Hub that transmits 1Gbps Ethernet and supports PoE+ (up to
25.5W).
Using HPS-01 (2 Port Hybrid PoE Switch), the device supports
100Mbps Ethernet transmission and PoE+ power supply up
to 250 meters and it is possible to connect multiple devices in
cascade mode.
With dual DC inputs supply secured PoE+ power up to 25.5W by
each port and can also be used redundancy power source.
Optional 19" rack mount is available for easy installation.
 Gigabit 8+2 port PoE Switch
- Downlink: 8 x RJ45

10/100/1000 Ethernet (Full Duplex)

Extended Ethernet (100Mbps) distance up to 250 m
(With HPS-01, 2 port Hybrid PoE Switch)

Cascade configuration
(With the HPS-01: 2 port Hybrid PoE Switch)

PoE, PoE+ output up to 25.5W

Over current protection for secured power supply

Surge Protection

Dual DC adapter inputs

Compact Hybrid Switch Design

Optional 19" Rack mount
Up Link
LINK PoE LINK PoE LINK PoE
10 / 100 1000
② RJ45 Unlink 포트 ② RJ45 Unlink Port
Overview
Features
- Uplink: 2 x RJ45
DC 57V
10 / 100 1000 PWR A PWR B
③ DC IN (DC 57V)
③ DC IN (DC 57V)
