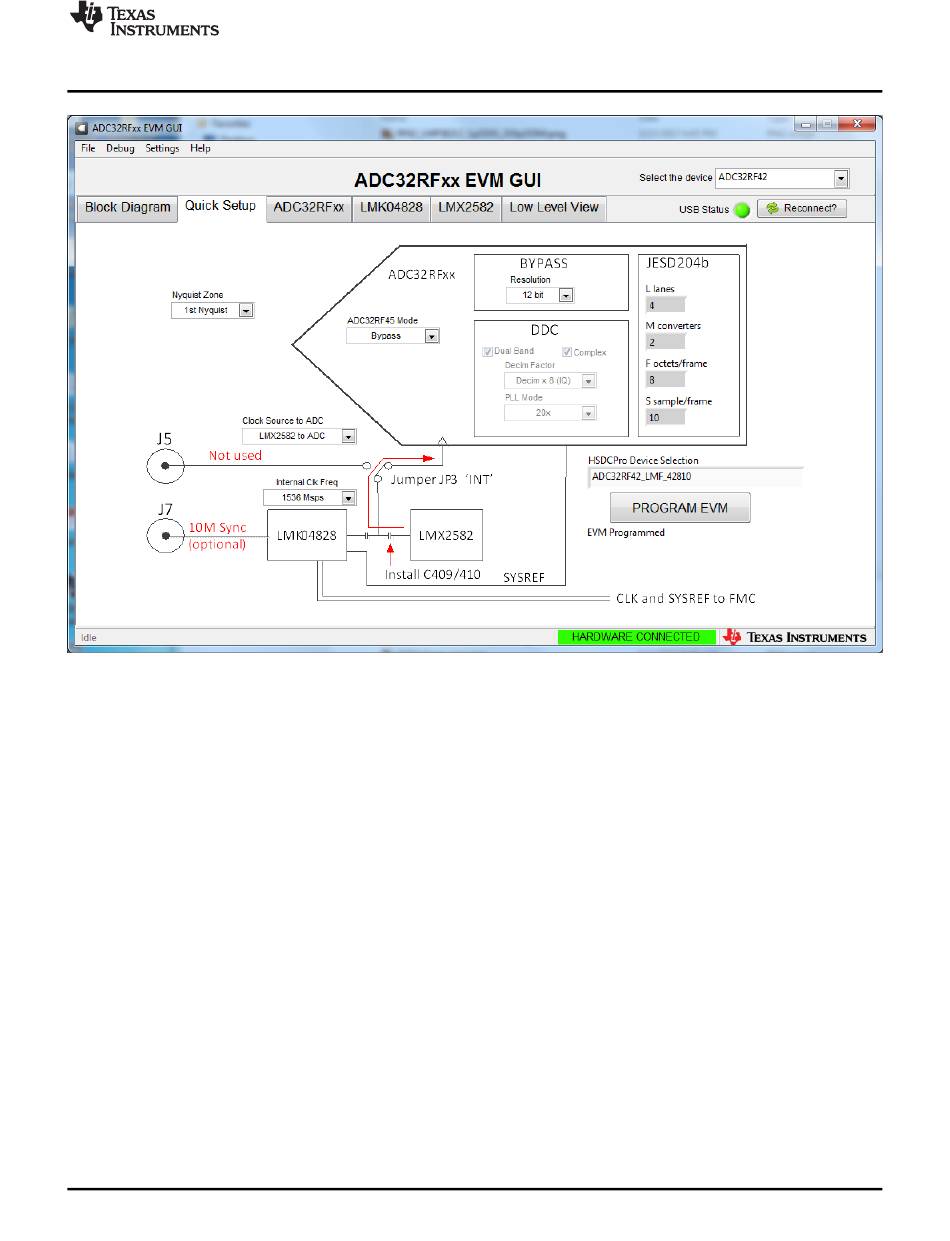

Figure 31. ADC32RF42-EVM Quick Setup View Bypass Mode
7. Select the Clock Source to ADC. In this example, LMX2582 is used to clock the ADC.
8. Select the Internal Clk Freq. In this example, 1536 Msps is selected. (Upon first launch of the GUI, the
default clock rate selection may be grayed out if the clock rate is too fast or too slow for the ADC. If the
GUI comes up with a grayed out selection then a valid selection must be chosen before pressing
PROGRAM EVM, else an error message will pop up saying that a config file for this clock rate could
not be found.)
9. Select ADC32RF45 Mode. In this example, Bypass is chosen.
10. Select Resolution. In this example, 12 bit is selected.
11. Press PROGRAM EVM.
12. After pressing the PROGRAM EVM button, the device will be configured in 12-bit, LMFS 42810 LMFS
mode.
SLAU620D – April 2016 – Revised August 2017
Submit Documentation Feedback
Quick-Start Procedure for Bypass LMFS 42810 Mode in ADC32RF42 With Internal Clocking
