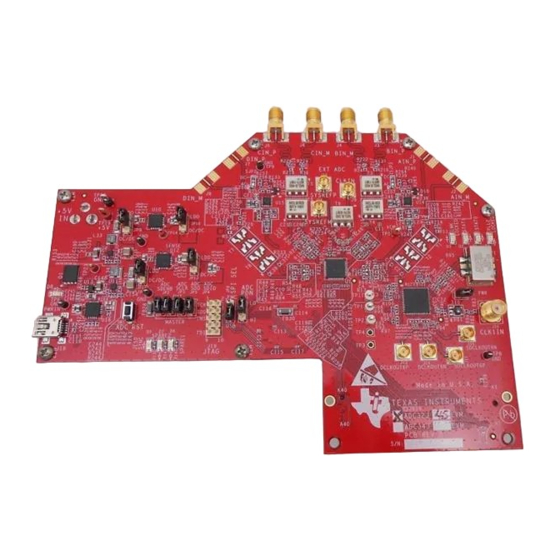

This document is intended to serve as a user's guide for the ADC3xxx EVM and ADC3xJxx EVM. The
EVMs provide a platform for evaluating the ADC3xxx which is a dual- or quad-channel, 12- or 14-bit serial
LVDS interface, analog-to-digital converter (ADC) with sampling speed grades of 25, 50, 80, and 125
Msps. The ADC3xJxx is a dual- or quad-channel, 12- or 14-bit JESD204B-compliant interface ADC with
sampling speed grades of 50, 80, 125, and 160 Msps. This family of converters only requires a single 1.8-
V supply, provides flexible input clock dividers, and provides internal features for improved 1/f (ADC32xx,
ADC34xx) and SFDR performance. Throughout this document, the abbreviations EVM and ADC3xxxx,
and the term evaluation module are synonymous with the ADC3xxx EVM and ADC3xJxx EVM, unless
otherwise noted.
...................................................................................................................
1
1.1
1.2
1.3
1.4
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
3.6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
All trademarks are the property of their respective owners.
SLAU579A - June 2014 - Revised September 2014
Submit Documentation Feedback
ADC3xxx, ADC3xJxx EVM User's Guide
................................................................................................
.................................................................................................
...................................................................................
............................................................................................................
...........................................................................................
...............................................................................................
......................................................................................................
..........................................................................................
................................................................................
.............................................................................................
....................................................................................
...............................................................................................
...............................................................................................................
...............................................................................................................
..............................................................................................................
..............................................................................................................
..............................................................................................................
Copyright © 2014, Texas Instruments Incorporated
SLAU579A - June 2014 - Revised September 2014
Contents
.........................................................................
............................................................
......................................................................
.........................................................
........................................................
..................................................................
List of Figures
...............................................................................
.....................................................................
......................................................................
......................................................
.............................................................
..................................................
ADC3xxx, ADC3xJxx EVM User's Guide
User's Guide
.......................................
3
4
6
7
10
12
12
12
21
21
22
22
24
25
26
4
5
6
7
8
11
11
13
14
16
18
20
21
22
23
24
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments ADC3 J EVM Series
Summary of Contents for Texas Instruments ADC3 J EVM Series
-
Page 1: Table Of Contents
ADC3xxx Operating in 14-Bit Mode at 125 Msps with 10-MHz Input Signal ..........ADC32Jxx/ADC34Jxx and TSW14J56 Test Setup Block Diagram All trademarks are the property of their respective owners. SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 2 ...................... Power Supply Options ....................ADC3xxxx EVM Connectors ..................ADC3xxxx EVM Jumper Options ..................ADC3xxxx EVM LED Indicators ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 3: Introduction
For the dual this means there will be 2 lanes per device and 4 lanes per device for the quad. Please refer to the data sheet for more information on sLVDS serialization and JESD204B lane configurations. SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 4: Evm Block Diagram
CH C DCD P/M sLVDS 14bit CH D Power Supply Circuits Figure 1. Simplified ADC344x EVM Block Diagram ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 5: Simplified Adc34J4X Evm Block Diagram
Power to the ADC3xxx EVM is typically supplied by a single 5-V connection by way of a 5-V power brick. All necessary voltages for the ADC EVM are derived from the 5-V input connection. SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 6: Evm Power Supply
TPS7A4700 Low Noise LDO 3.3V to TPS7A4700 LMK04828 Low Noise LDO TPS62080 Figure 3. Simplified EVM Power Supply ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 7: Evm Connectors And Jumpers
LED. Figure 4. ADC34Jxx EVM Connector and Jumper Locations SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 8: Adc34Xx Evm Connector And Jumper Locations
The input circuit can be configured to connect to two SMA connectors for differential signaling, if desired. Table 3 lists the connector information for the ADC3xxxx. ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 9 DCLKOUT7N – LMK output test point, positive 5-V input power jack Mini USB connector for SPI GUI control CPLD JTAG port SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 10: Evm Adc Input Circuit Configurations
By default the input circuit is set for operation within the 1st 2 Nyquist zones. For higher frequency inputs use the high frequency input circuit as shown in Figure ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 11: Adc3Xxxx Adc Input Circuit Options
For ADC evaluation, set the signal generator output to approximately +10 dBm. 0.1PF CLK IN : 0.1PF : 0.1PF Figure 7. DC34xx Clock Input Circuit SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 12: Software Control
The GUI tabs provide a convenient and simplified interface to the most used registers of each device. ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 13: Common Tab
Clk Diver – Internal clock divider to allow harmonic clocking, a higher frequency clock can be provided to the ADC and then divided down to the desired sample rate. Figure 8. Common Tab SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 14: Adc32Xx Tab
OVR on LSB – over range indication on LSB, by default it is normal LSB function • LVDS Swing – control the LVDS swing on the LVDS signals Figure 9. ADC32xx Tab ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 15 OVR on LSB – over range indication on LSB, by default it is normal LSB function • LVDS Swing – control the LVDS swing on the LVDS signals SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 16: Adc34Xx Tab
Software Control www.ti.com Figure 10. ADC34XX Tab ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 17 • Release ILA SEQ – delay generation of ILA sequence by 0, 1, 2, 3 MF after CGS SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 18: Adc32Jxx Tab
Software Control www.ti.com Figure 11. ADC32Jxx Tab ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 19 • Release ILA SEQ – delay generation of ILA sequence by 0, 1, 2, 3 MF after CGS SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 20: Adc34Jxx Tab
NOTE: Reset the board after every power cycle and then click the reconnect FTDI button on the GUI. • File→Exit: Stops the program ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 21: Basic Test Procedure
Sources Signal Signal Generator Generator (Input Source) (CLK Source) Figure 13. ADC32xx/ADC34xx and TSW1400 Test Setup Block Diagram SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 22: Test Set-Up Connection
7. Select channel 1, 2, 3, or 4 depending on the channel to which the signal generator is connected 8. Press the Capture button on the HSDC Pro GUI ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 23: Adc3Xxx Operating In 14-Bit Mode At 125 Msps With 10-Mhz Input Signal
If the basic capture at this point is correct, then the front panel options of the SPI GUI and the front panel options of the TSW1400 GUI may be varied as desired to test out different device options. SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 24: Test Block Diagram With Adc32Jxx And Adc34Jxx
To A, B, C, D Channels LMK0 4828 Signal Generator (Input Source) Figure 16. ADC32Jxx/ADC34Jxx and TSW14J56 Test Setup Block Diagram ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 25: Test Set-Up Connection (Onboard Lmk04828 Clock)
JP12 – 1,2 – default condition select LDO power • JP13 – 1,2 – default condition select LDO power SLAU579A – June 2014 – Revised September 2014 ADC3xxx, ADC3xJxx EVM User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 26: Adc32J/34Jxx And Tsw14J56 Setup Guide
9. Press the Capture button on the HSDC Pro GUI 10. Observe an FFT result similar to that of Figure 16 ADC3xxx, ADC3xJxx EVM User’s Guide SLAU579A – June 2014 – Revised September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 27 Deleted several rows from ADC3xxxx EVM Jumper Options table. NOTE: Page numbers for previous revisions may differ from page numbers in the current version. SLAU579A – June 2014 – Revised September 2014 Revision History Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
