www.ti.com
User's Guide
ADC364xEVM Evaluation Module
Abstract
This user's guide describes the characteristics, operation, and use of the ADC364x evaluation module (EVM).
This user's guide discusses how to set up and configure the software and hardware, and reviews various
aspects of the program operation. Throughout this document, the terms evaluation board, evaluation module,
and EVM are synonymous with the ADC364xEVM. In the following sections of this document, the ADC364x
evaluation board is referred to as the EVM and the ADC364x device is referred to as the ADC device.
Abstract......................................................................................................................................................................................
1
Introduction.............................................................................................................................................................................2
2 Equipment...............................................................................................................................................................................
2.2 Required Equipment..........................................................................................................................................................
3 Setup Procedure.....................................................................................................................................................................
3.1 Install High-Speed Data Converter (HSDC) Pro Software.................................................................................................
3.2 Install ADC35XXEVM GUI 1.0 Software............................................................................................................................
3.4 Connect the Power Supply and Mini-USB Connections....................................................................................................
Configuration..............................................................................................................................................................7
4.1 Bypass Mode.....................................................................................................................................................................
Mode.....................................................................................................................................................12
4.3 Complex Decimation Mode..............................................................................................................................................
5 External Clocking Hardware Setup.....................................................................................................................................
5.1 Hardware Modfications....................................................................................................................................................
5.2 Hardware Setup: Real Decimation 16x Mode..................................................................................................................
6 ADC364xEVM Power Monitor..............................................................................................................................................
7 Test Pattern...........................................................................................................................................................................
SBAU232 - OCTOBER 2020
Submit Document Feedback
Table of Contents
Summary.............................................................................................................3
TSW1400EVM.......................................................................................................................5
..................................................................................................24
Copyright © 2020 Texas Instruments Incorporated
Abstract
ADC364xEVM Evaluation Module
1
3
4
5
5
5
6
8
16
20
20
24
25
26
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments ADC364xEVM
Summary of Contents for Texas Instruments ADC364xEVM
-
Page 1: Table Of Contents
Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the ADC364xEVM. In the following sections of this document, the ADC364x evaluation board is referred to as the EVM and the ADC364x device is referred to as the ADC device. -
Page 2: Introduction

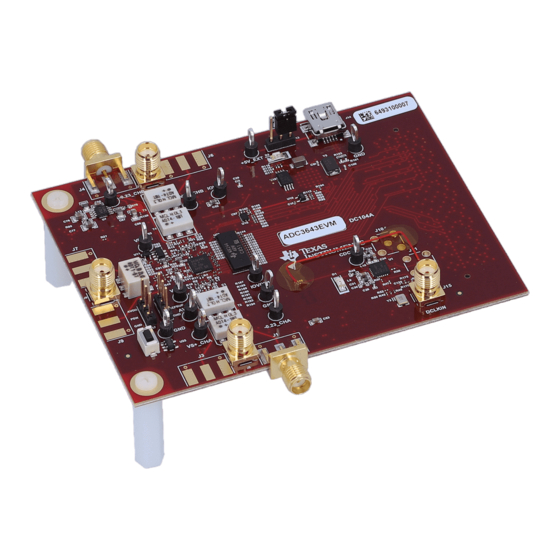

The ADC364xEVM is an evaluation board used to evaluate the ADC364x analog-to-digital converter (ADC) from Texas Instruments. The ADC364xEVM is a dual-channel, 14-bit ADC that can operate up to 125 Mega-samples per second (MSPS). The ADC364x uses a parallel or serial CMOS interface to output the digital data. The serialized CMOS interface supports output rates to 250 Mbps which translates to ~ 30 MSPS (2-wire) to ~ 10 MSPS (0.5-wire) output rates after complex decimation. -
Page 3: Equipment
2.1 Evaluation Board Feature Identification Summary Figure 2-1. ADC364xEVM Feature Identification Ensure that jumper J8 is shunted in the 2-3 position. This allows 5 V to be supplied to the ADC364xEVM through the mini-USB connector. SBAU232 – OCTOBER 2020... -
Page 4: Required Equipment
Bandpass filter, greater than or equal to 60-dB harmonic attenuation, less than or equal to 5% bandwidth, greater than 18-dBm power, less than 5-dB insertion loss • Signal-path cables, SMA ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 5: Setup Procedure
Extract and run the executable file, and accept the default installation options. 3.3 Connect the ADC EVM and TSW1400EVM Connect the ADC364xEVM FMC connector to J1 of the FPGA Interposer Card. Connect J2 of the FPGA Interposer Card to J1 of the TSW1400EVM. -
Page 6: Connect The Power Supply And Mini-Usb Connections
2. Connect the power cable to the TSW1400EVM at 5-V (minimum 3 A) power supply. Place the power switch (SW7) to the "On" position. 3. Connect the mini-USB cable to the TSW1400EVM (J2). 4. Connect the mini-USB cable to the ADC3643EVM (J14). ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 7: Device Configuration
A software reset may be performed at any time to reset the ADC registers to their default state. Figure 4-1. ADC35xx Software Reset Replace this image SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 8: Bypass Mode
Ensure that "CDC Enable" is green (enabled). • Click "Configure CDC" button. • Click "Configure" button. Figure 4-2. ADC35xx GUI settings for Bypass Mode ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 9 Launch HSDC Pro • Select the TSW1400 and click OK Figure 4-3. HSDC Pro: Connect to TSW1400 • Click OK for the no firmware loaded prompt. SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 10 • Enter the input frequency of the input signal in the box that says "ADC Input Target Frequency" (5 MHz used in this example). ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 11 Device Configuration • Press Capture Figure 4-5. Bypass Mode Capture • The analog input signal power may need to be adjusted to reach -1 dBFS. SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 12: Real Decimation Mode
Device Configuration www.ti.com 4.2 Real Decimation Mode The following software configuration steps will program the ADC364xEVM in Real Decimation mode. 4.2.1 ADC35XX GUI: Real Decimation Mode Configuration After launching the ADC35xx GUI perform the following steps: • Under Resolution, select 16 bit. - Page 13 Click OK for the no firmware loaded prompt. • Select “ADC3643_2W_14bit_CMOS” to load firmware, and click Yes. Figure 4-7. Real Decimation HSDC Pro INI File • SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 14 Device Configuration www.ti.com Click on the cog next to “ADC Output Data Rate”. Figure 4-8. Real Decimation Mode HSDC Pro Parameters • ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 15 Enter 1M in “ADC Input Frequency” • Enter 16 in “Decimation”. • Click Ok. • Click the Capture button Figure 4-9. HSDC Pro Cog Wheel SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 16: Complex Decimation Mode
Device Configuration www.ti.com 4.3 Complex Decimation Mode The following software configuration steps will program the ADC364xEVM in Complex Decimation mode (16x) with a 10 MHz analog input and 9.9 MHz NCO. 4.3.1 ADC35XX GUI: Complex Decimation Configuration After launching the ADC35xxEVM GUI perform the following steps: •... - Page 17 Click OK for the "no firmware loaded" prompt. • Select “ADC3643_2W_14bit_CMOS_Complex” to load firmware, and click Yes. Figure 4-11. Complex Decimation HSDC Pro INI file • SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 18 Under "NCO", enter "9.9M" • Under “Decimation”, enter "16". • Click "OK". Figure 4-12. Complex Decimation Mode HSDC Pro Parameters • Select "Complex FFT" ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 19 Device Configuration • Press "Capture" Figure 4-13. Complex Mode Capture SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 20: External Clocking Hardware Setup
ADC35xx GUI should be configured (with the exception of using external clocks). 5.1 Hardware Modfications The following hardware modifications must be made in order to operate the ADC364xEVM using an external sample and (if required) data clock . External Sample Clock Modification: ADC364xEVM Evaluation Module SBAU232 –... - Page 21 • DNI R32, R40 • Install R36, R37 (0-Ω resistor) • Connect sample clock to J8. Connect DCLKIN to J15. Figure 5-1. ADC364xEVM Schematic Snippet: Sample Clock External DCLKIN Modification: • DNI R176 SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright ©...
- Page 22 External Clocking Hardware Setup www.ti.com • Replace C129 with 0-Ω resistor. Figure 5-2. ADC364xEVM Schematic Snippet: DCKLIN ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 23 External Clocking Hardware Setup • SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 24: Hardware Setup: Real Decimation 16X Mode
5.3 External Clock: ADC35XX GUI Real Decimation Mode To program the ADC364xEVM follow the steps written in the previous section titled "ADC35xx GUI: Real Decimation Configuration". The only difference that must be observed in the GUI is "CDC Clock Enable" button must be disabled (red) before selecting "Configure"... -
Page 25: Adc364Xevm Power Monitor
The ADC364xEVM is equipped with on-board current shunt monitors that are able to measure the current consumption on the +1.8VD C rails (AVDD and IOVDD). The user has the ability to read the ADC364xEVM's power consumption on the front page of the ADC35XX GUI. Click the "Measure Power" button to refresh the current values. -
Page 26: Test Pattern
The digital ramp pattern is now enabled on the ADC. The output of the ADC is now a 14 bit, incrementing ramp pattern. Figure 7-1. ADC35XXEVM GUI 1.0 Ramp Pattern ADC364xEVM Evaluation Module SBAU232 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 27 Figure 7-2. HSDC Pro Digital Ramp Pattern Trademarks Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners. SBAU232 – OCTOBER 2020 ADC364xEVM Evaluation Module Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
