Quick-Start Procedure for Digital DDC (Decimation Plus NCO) Mode in ADC32RF4x and ADC32RF8x

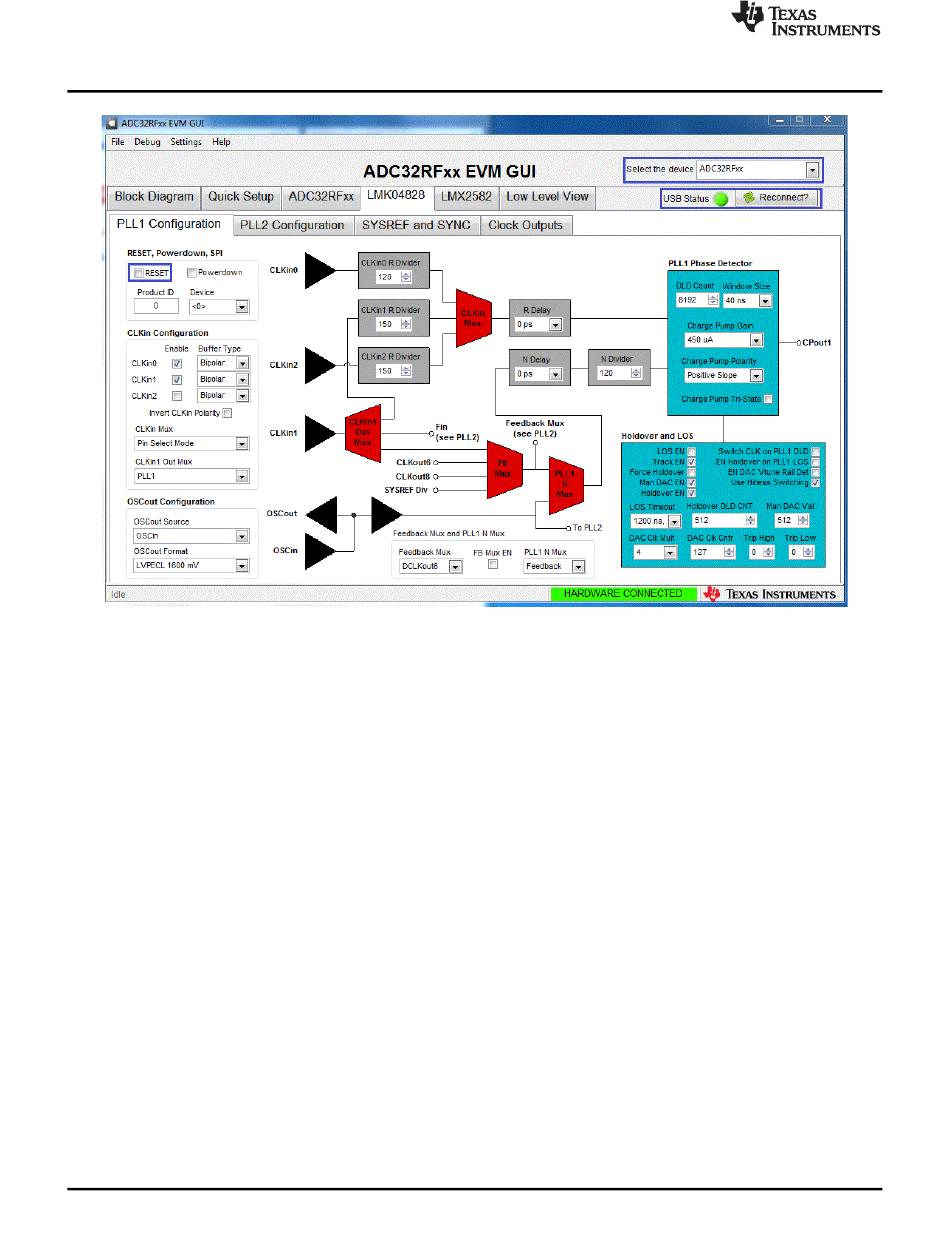

Figure 18. ADC32RFxx-EVM GUI LMK04828 PLL1 Page DDC Mode
3. On the LMK04828 PLL1 tab, press the RESET button.
4. On the ADC32RFxx-EVM, press SW1 (ADC RESET) to provide a hardware reset to the ADC.
5. Click on the Quick Setup tab.
6. Select the Nyquist Zone for the input. It will be 2nd Nyquist in this example setup (Fs=2949.12M,
Fin=1960M).
