Quick-Start Procedure for Digital DDC (Decimation Plus NCO) Mode in ADC32RF82
4.3

High Speed Data Converter Pro (HSDC Pro)

1. Open High Speed Data Converter Pro by going to Start Menu → All Programs → Texas Instruments →
High Speed Data Converter Pro.
2. Click OK to connect to the TSW14J56. If there is more than one TSW14J56 connected to the host PC,
select the appropriate serial number of the board to be programmed.
3. Select the ADC tab at the top of the GUI.
4. Use the Select ADC drop-down menu at the top left corner to select ADC32RF80_LMF_8821 as
Figure 13 shows.
5. When prompted to update the firmware for the ADC, click Yes and wait for the firmware to download to
the TSW14J56. The following message appears while the firmware is downloading to the FPGA.
(Downloading firmware does not mean the GUI is looking for newer revisions at ti.com. It simply means
the bitfile for the firmware for the FPGA is being pushed to the FPGA through the USB cable.)
18
ADC32RFxx-EVM

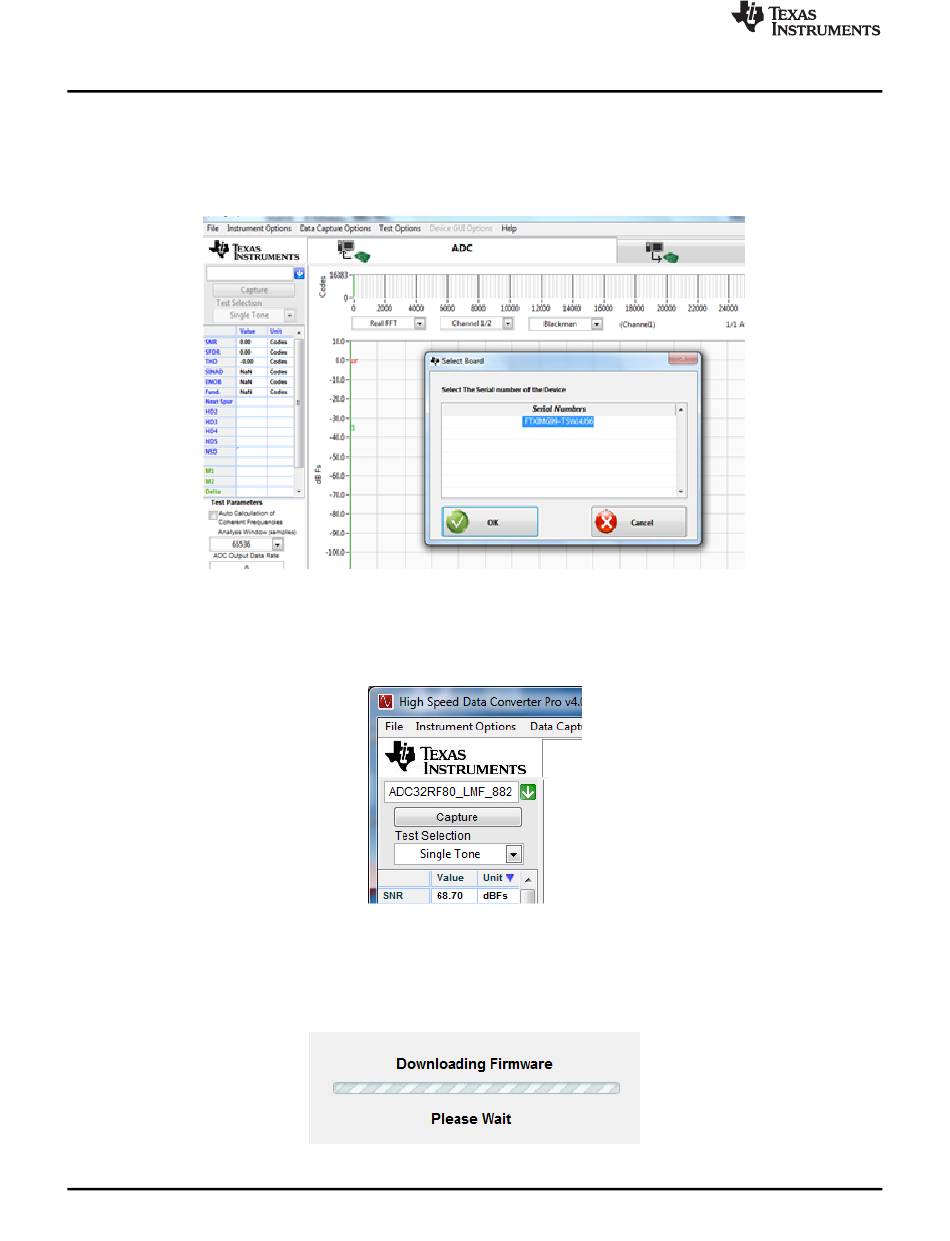

Figure 12. Connecting to TSW14J56
Figure 13. HSDC Pro Device Selection LMFS8821 Mode
Figure 14. Download Firmware
