Quick-Start Procedure for Bypass LMFS82820 Mode in ADC32RF45
5. When prompted to update the firmware for the ADC, click Yes and wait for the firmware to download
to the TSW14J56.
6. After the firmware download has completed, enter "2949.12M" into the ADC Output Data Rate field at
the bottom left corner of the HSDC Pro GUI.
7. Select "Channel 1/2" in the channel select window located at the top middle of the GUI.
8. Click the Instrument Options menu at the top of HSDC Pro and select Reset Board.
9. Click the Capture button in HSDC Pro to capture data from the ADC.
10. The result should match the example capture in
12
ADC32RFxx-EVM

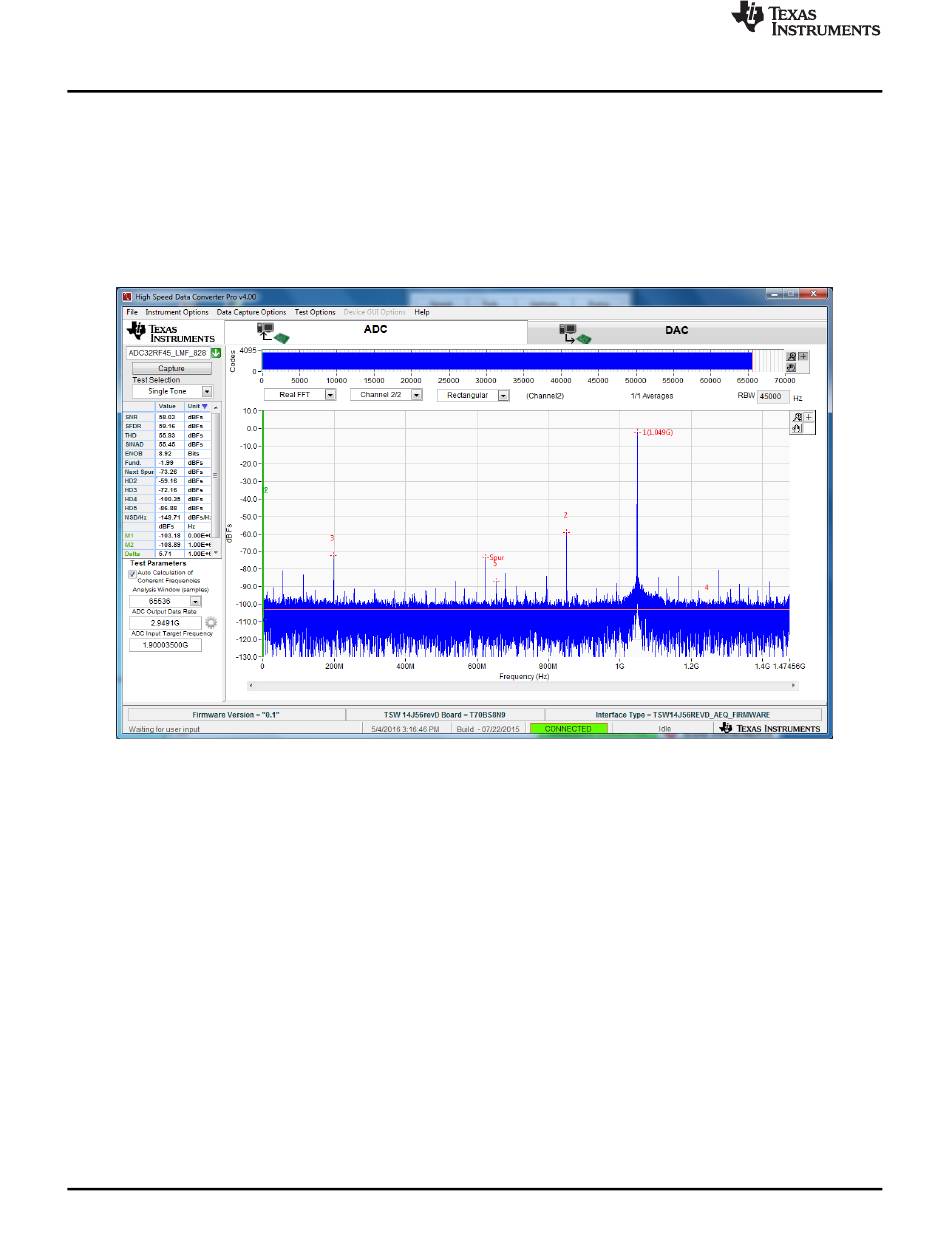

Figure 7. Example Capture from Channel A – Bypass Mode
