Quick-Start Procedure for Bypass LMFS8224 Mode in ADC32RF44 and Internal Clocking

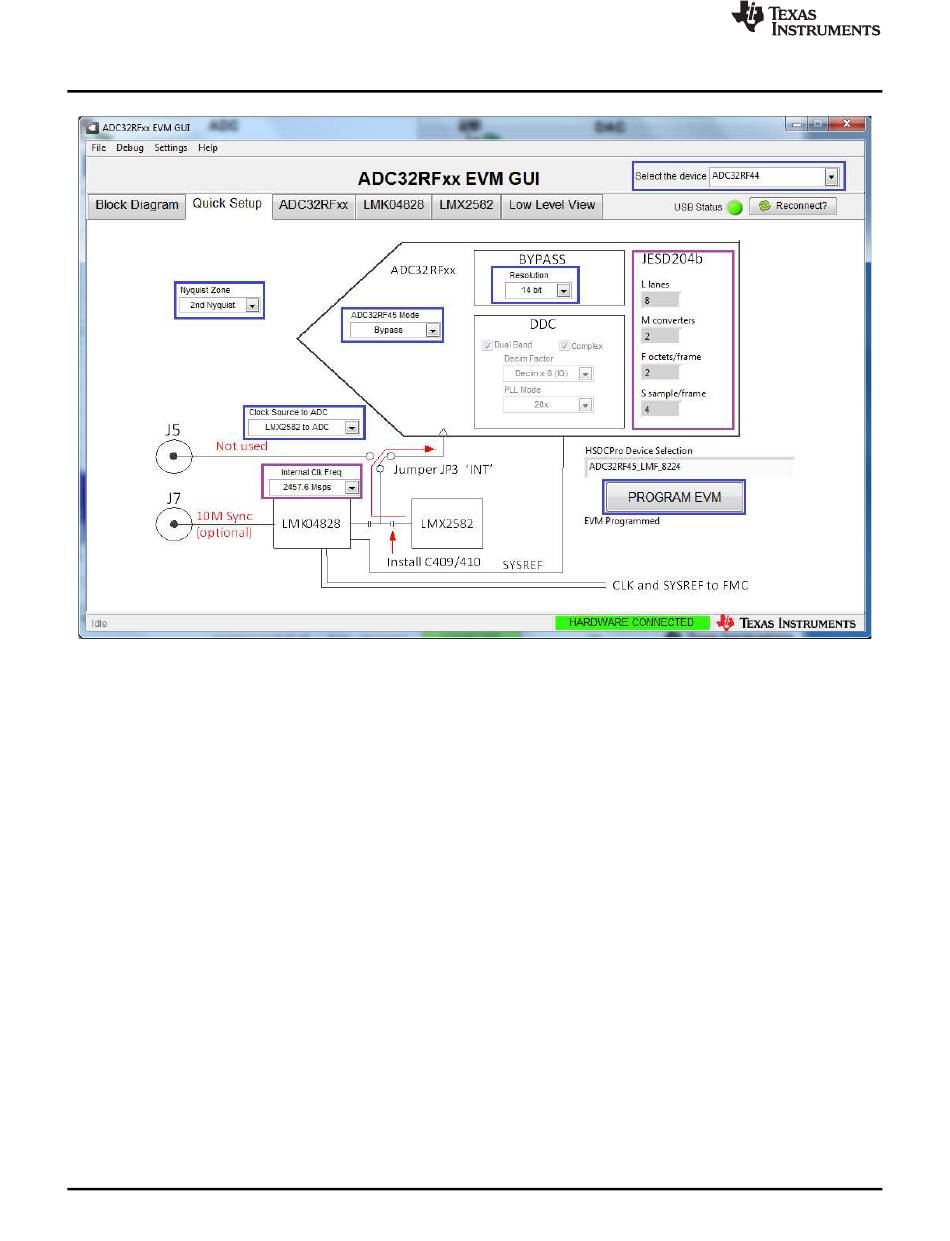

Figure 28. ADC32RF44-EVM Quick Setup View Bypass Mode
7. Select the Clock Source to ADC. In this example, LMX2582 is used to Clock the ADC.
8. Select the Internal Clk Freq. In this example, 2457.6 Msps is selected.
9. Select ADC32RF45 Mode. In this example, Bypass is chosen.
10. Select Resolution. In this example, 14 bit is selected.
11. Press PROGRAM EVM.
12. After pressing the PROGRAM EVM button, the device will be configured in 14 bit LMFS8224 LMFS
mode.
