www.ti.com
User's Guide
ADC32RF5xEVM User Guide
1
Overview..................................................................................................................................................................................2
1.1 Required Hardware............................................................................................................................................................
1.2 Required Software.............................................................................................................................................................
1.3 Evaluation Board Feature Identification.............................................................................................................................
Guide....................................................................................................................................................................4
2.1 Introduction........................................................................................................................................................................
Setup...................................................................................................................................................................4
2.2.1 ADC32RF5xEVM GUI Installation...............................................................................................................................
2.2.2 High Speed Data Converter Pro GUI Installation........................................................................................................
2.3 Hardware Setup.................................................................................................................................................................
4 Quick Start Procedure for Complex Decimation Mode.......................................................................................................
4.1 8x Complex Decimation.....................................................................................................................................................
4.2 128x Complex Decimation...............................................................................................................................................
Modes...................................................................................................................................................................14
Comparison.............................................................................................................................................................14
Mode..............................................................................................................................................................15
6 Revision History...................................................................................................................................................................
Appendix...............................................................................................................................................................................16
A.1 References......................................................................................................................................................................
SBAU377 - SEPTEMBER 2021
Submit Document Feedback
Table of Contents
Mode..............................................................................................................................6
Mode............................................................................................................................................6
Copyright © 2021 Texas Instruments Incorporated
Table of Contents
2
2
3
4
4
4
5
8
8
10
15
16
ADC32RF5xEVM User Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments ADC32RF5xEVM
Summary of Contents for Texas Instruments ADC32RF5xEVM
-
Page 1: Table Of Contents
4.1 8x Complex Decimation..............................4.2 128x Complex Decimation............................... 5 Operating Modes...................................14 5.1 Input Comparison................................14 5.2 Quad ADC Mode................................15 6 Revision History................................... Appendix....................................16 A.1 References..................................SBAU377 – SEPTEMBER 2021 ADC32RF5xEVM User Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 2: Overview

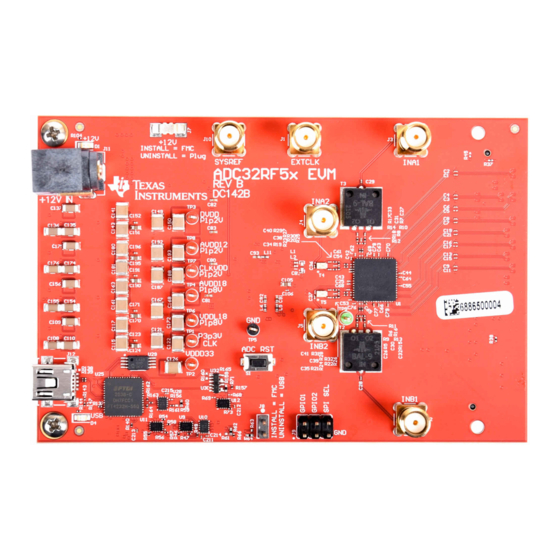

1 Overview The ADC32RF5xEVM is an evaluation module (EVM) designed to evaluate the ADC32RF5x family of high- speed, JESD204B interface ADCs. The EVM includes an onboard clocking solution (LMK04832), transformer- coupled analog inputs, full power solution, and easy-to-use software GUI and USB interface. The following features apply to this EVM: •... -
Page 3: Evaluation Board Feature Identification
Overview 1.3 Evaluation Board Feature Identification The EVM features are shown in Figure 1-1 Figure 1-1. EVM Features SBAU377 – SEPTEMBER 2021 ADC32RF5xEVM User Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 4: Quick Start Guide
Quick Start Guide www.ti.com 2 Quick Start Guide The EVM test procedure to obtain a valid data capture from the ADC32RF5xEVM using the TSW14J58EVM data capture board is provided in this section. This is the starting point for all evaluations. 2.1 Introduction... -
Page 5: Hardware Setup
Quick Start Guide 3. Run setup.exe and follow the installation prompts to complete installation. 2.3 Hardware Setup A typical test setup using the ADC32RF5xEVM and TSW14J58EVM is shown in Figure 2-1. Figure 2-1. ADC32RF5xEVM Bench Setup Block Diagram SBAU377 – SEPTEMBER 2021... -
Page 6: Quick Start Procedure For Bypass Mode
ADC32RF5x devices. TSW14J58EVM 1. Connect the ADC32RF5xEVM to the TSW14J58EVM using the FMC connectors. 2. Connect a 6V, 5A minimum power supply to connector J2. 3. Connect a USB 2.0 TypeA to Mini-B cable to connector J23. - Page 7 6. Adjust signal generator output such that the measured fundamental power in HSDC Pro is at the user's desired level. (shown below is -12 dBFs) Figure 3-3. 300.039 MHz, bypass mode, 2x averaging, dither off SBAU377 – SEPTEMBER 2021 ADC32RF5xEVM User Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 8: Quick Start Procedure For Complex Decimation Mode
Similar to the bypass operating mode, the user has the option to enable averaging of each internal pair of ADCs. This section will provide two example configurations for operating the ADC32RF5xEVM in 8x and 128x decimation modes. - Page 9 13. Check the tickbox labeled Auto Calculation of Coherent Frequencies and you will see the ADC Input Target Frequency change from 790 M to the coherent frequency. Set the signal generator connected to channel A input to this coherent frequency. SBAU377 – SEPTEMBER 2021 ADC32RF5xEVM User Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 10: 128X Complex Decimation
6. Set the channel INB1 NCO0 and NCO1 to 1000 (MHz). 7. Change LMK divider from 8 to 32. 8. Once these settings are verified and match Figure 4-5, press the Device Bringup button. ADC32RF5xEVM User Guide SBAU377 – SEPTEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... - Page 11 Quick Start Procedure for Complex Decimation Mode Figure 4-5. ADC32RF5xEVM GUI, 128x complex decimation, 1GHz NCO 9. Wait until after the message Device Bringup Completed appears in the Log. 10. In HSDC Pro, connect to the TSW14J58EVM and select ADC32RF5x_1481_1p5G-2G as the INI file shown Figure 4-6 below.
- Page 12 13. Check the tickbox labeled "Enable?" and then enter the parameters shown in Figure 4-7 below. Figure 4-7. Additional Device Parameters , 128x complex decimation ADC32RF5xEVM User Guide SBAU377 – SEPTEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
- Page 13 18. Adjust signal generator output such that the measured fundamental power in HSDC Pro is at the user's desired level. Figure 4-8. 1003.002 MHz input, 128x complex decimation, 2x averaging, dither amplitude 3 SBAU377 – SEPTEMBER 2021 ADC32RF5xEVM User Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 14: Operating Modes
The following figure has been included to provide the user with a range of frequencies for the possible ADC32RF5xEVM averaging modes. For best performance, at input frequencies less than 800 MHz, it is recommended to use the outer inputs (AIN1 or BIN1) in either of the 1x or 2x averaging modes. At frequencies above 800 MHz, both of the inputs (inner vs outer) yield similar performance. -
Page 15: Quad Adc Mode
Operating Modes 5.2 Quad ADC Mode Programming into quad mode enables the functionality of the channel selection menu in the ADC32RF5xEVM GUI. This programming mode must be chosen when the user wants to capture using the inner inputs (INA2, INB2) in 1x or 2x averaging modes. -
Page 16: A Appendix
High Speed Data Converter Pro software and user guide (SLWU087) Note The EVM schematics, layout, and BOM are available on the ADC32RF54EVM tool page on www.ti.com/tool/ADC32RF54EVM. ADC32RF5xEVM User Guide SBAU377 – SEPTEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... - Page 17 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 18 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 19 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 20 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 21 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
- Page 22 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
- Page 23 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments ADC32RF54EVM...
