6.3

High Speed Data Converter Pro (HSDC Pro)

1. Open High Speed Data Converter Pro (v4.5 or newer) by going to Start Menu → All Programs →
Texas Instruments → High Speed Data Converter Pro.
2. Click OK to connect to the TSW14J56. If there is more than one TSW14J56 connected to the host PC,
select the appropriate serial number of the board to be programmed.
3. Select the ADC tab at the top of the GUI.
4. Use the Select ADC drop-down menu at the top left corner to select ADC32RF45_LMF_8224.
5. When prompted to update the firmware for the ADC, click Yes and wait for the firmware to download to
the TSW14J56.
6. After the firmware download has completed, enter "2949.12M" into the ADC Output Data Rate field at
the bottom left corner of the HSDC Pro GUI.
7. Select "Channel 1/2" in the channel select window located at the top middle of the GUI.
8. Click the Instrument Options menu at the top of HSDC Pro and select Reset Board.
9. Click Capture in HSDC Pro to capture data from the ADC.
10. The result should match the example capture in

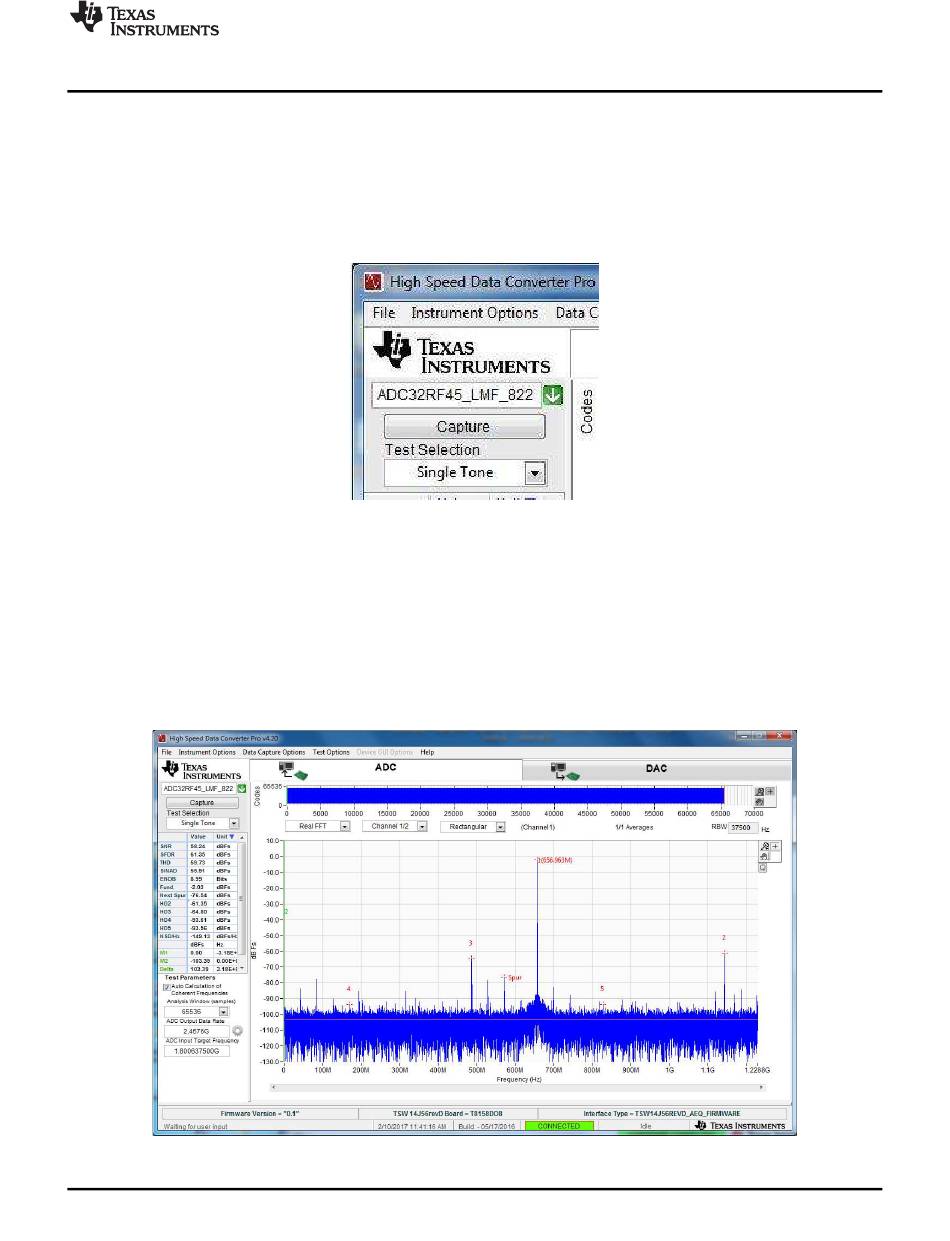

Figure 30. Example Capture from Channel A – LMFS8224 Mode
SLAU620D – April 2016 – Revised August 2017
Submit Documentation Feedback
Quick-Start Procedure for Bypass LMFS8224 Mode in ADC32RF44 and Internal Clocking
Figure 29. HSDC Pro Device Selection LMFS_8224 Mode
Copyright © 2016–2017, Texas Instruments Incorporated
Figure 30.
31
ADC32RFxx-EVM
