11. After pressing the PROGRAM EVM button, the device will be configured as shown in
Figure 5 indicating the 12 bit packed 5 sample mode for LMFS82820.

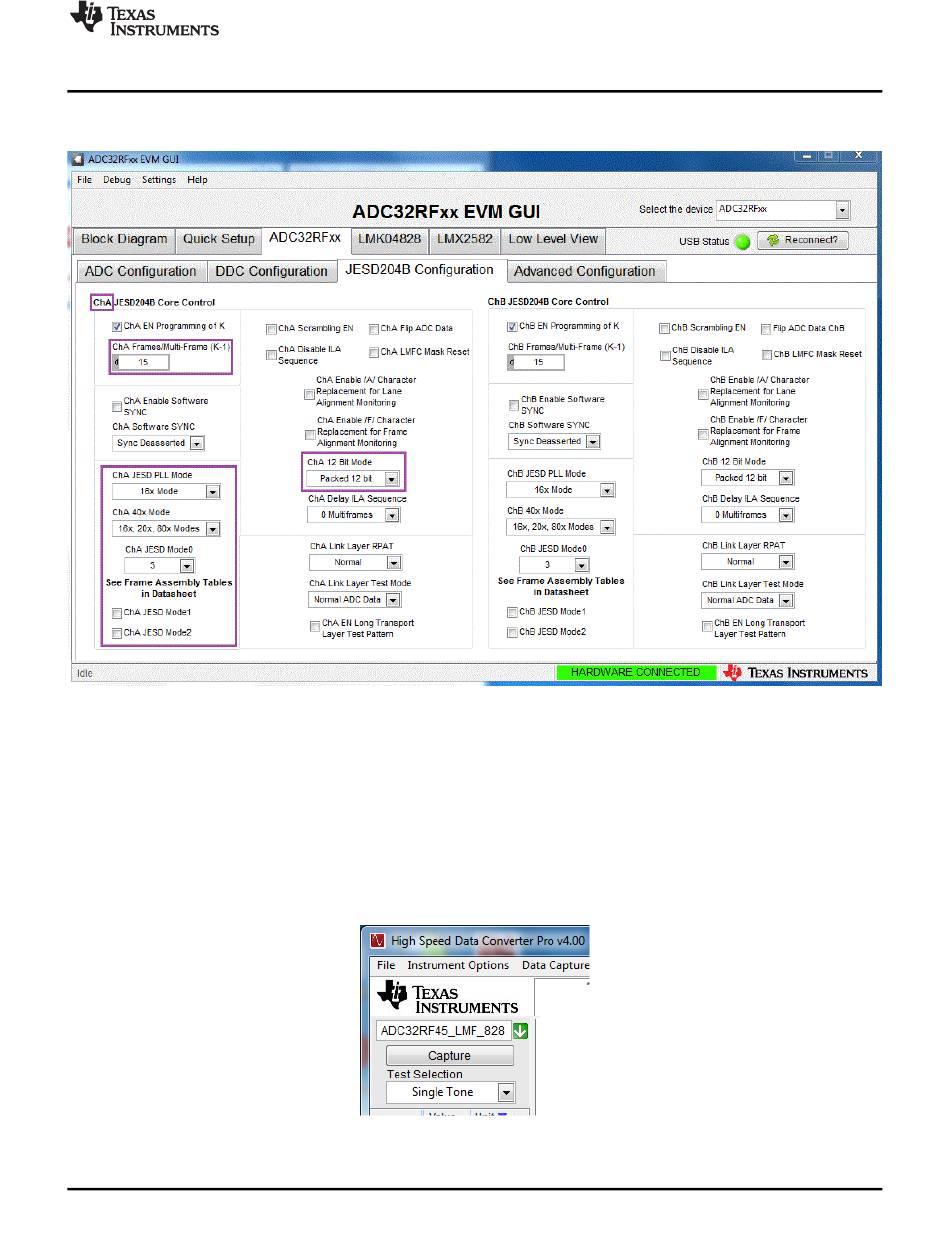

Figure 5. ADC32RFxx-EVM GUI JESD204B Tab Bypass Mode
3.3

High Speed Data Converter Pro (HSDC Pro)

1. Open High Speed Data Converter Pro (v4.5 or newer) by going to Start Menu → All Programs →
Texas Instruments → High Speed Data Converter Pro.
2. Click OK to connect to the TSW14J56. If there is more than one TSW14J56 connected to the host PC,
select the appropriate serial number of the board to be programmed.
3. Select the ADC tab at the top of the GUI.
4. Use the Select ADC drop-down menu at the top left corner to select ADC32RF45_LMF_82820.
SLAU620D – April 2016 – Revised August 2017
Submit Documentation Feedback
Figure 6. HSDC Pro Device Selection LMFS_82820 Mode
Copyright © 2016–2017, Texas Instruments Incorporated
Quick-Start Procedure for Bypass LMFS82820 Mode in ADC32RF45
Figure 4 and
11
ADC32RFxx-EVM
