SKF Multilog On-line System IMx-T User Manual page 28

Unit Configuration
Network Configuration
·
·
Serial Configuration Interface (RS232)
RS232 interface is used only when the required basic network configuration setup is
being done.
Use a serial null modem cable with a 9-pin D-SUB connector. It is recommended to use
a short length cable for RS232 interface in order to maintain full communication speed.
RS232 interface connector is located on the front panel of each CPU card.
Important - RS232 connector is used only when the required basic network configuration
setup is being done. Therefore, the cable should not be connected to RS232 connector at
any other time.
3-28
The HEX rotary switch for IMx-T is located inside, back of the right-most panel
(looking at the rack from the front panel).
In order to get to the HEX rotary switch, first turn off the power, then take out
the right-most panel.
RS232 Connector Pinout
Pin
Description
1
N.C.
2
Rx
3
Tx
4
N.C.
5
GND
6
N.C.
7
N.C.
8
N.C.
9
N.C.
Table 3-11: RS232 connector pinout
N.C. = Not Connected

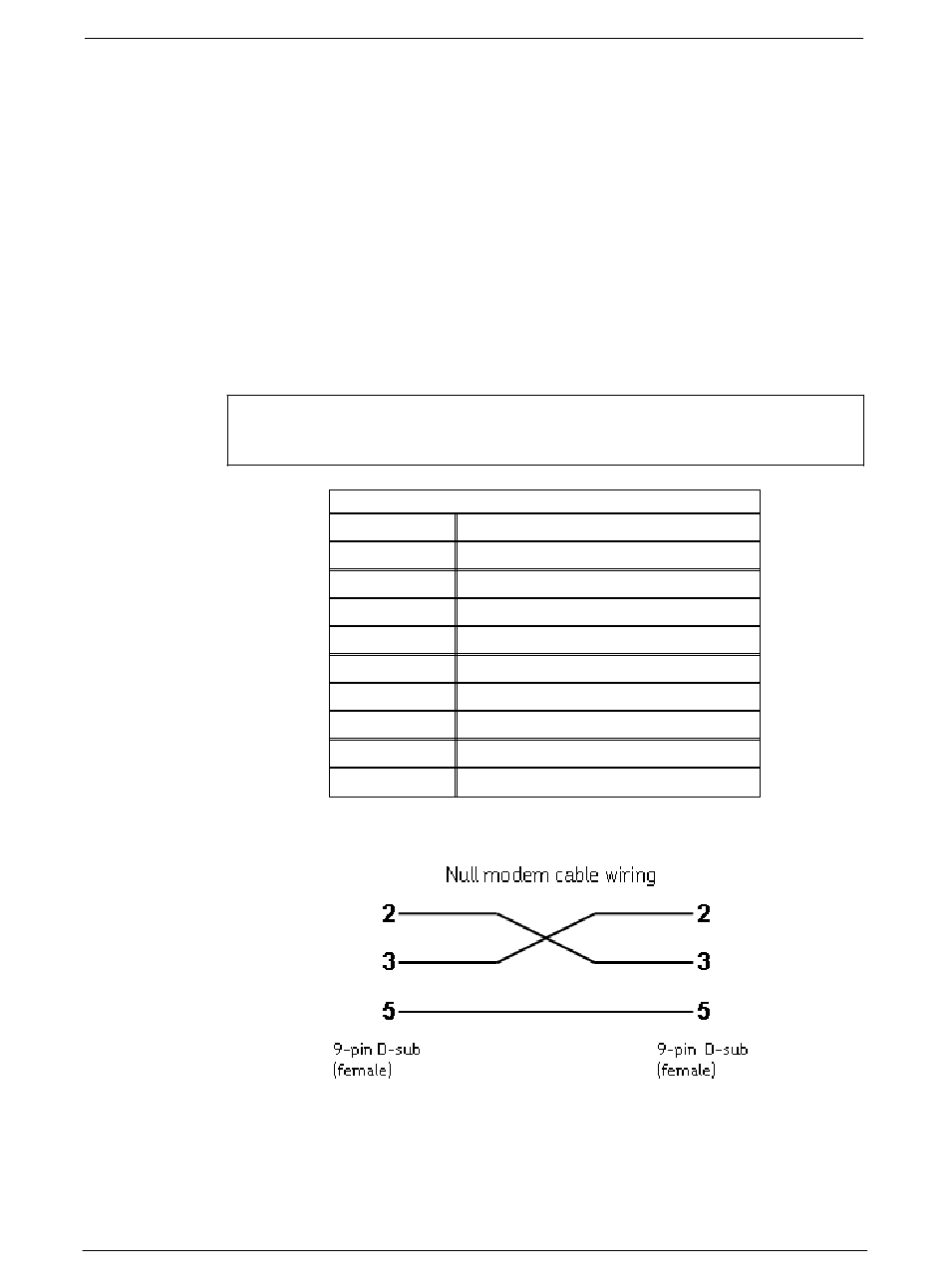

Figure 3-17: Null modem cable wiring
