Unit Configuration
4-20 mA Output
4-20 mA Output
IMx-T has 16 outputs available for 4–20 mA outputs which are configurable by the
@ptitude Observer software. This connection is used for sending any measurement
value from IMx-T to the Distributed Control System (DCS
Ø Any measurement point can be configured to a 4–20 mA output.
Ø If a vibration measurement point is configured to a 4–20 mA output, the overall will
be sent.
Ø The configuration of 4–20 mA output is done by @ptitude Observer software
through MasCon/IMx units interface which is a part of On-line menu item.
Ø Note that in order to configure 4–20 mA output(s), the selected channel must have
measurement point(s) already created.
The following is an example of how to set up 4–20 mA output in Observer 8.3 or later.
1. Through Observer, at MasCon/IMx units interface under On-line menu select an
IMx-T unit then click on 4-20 mA Output.
3-22

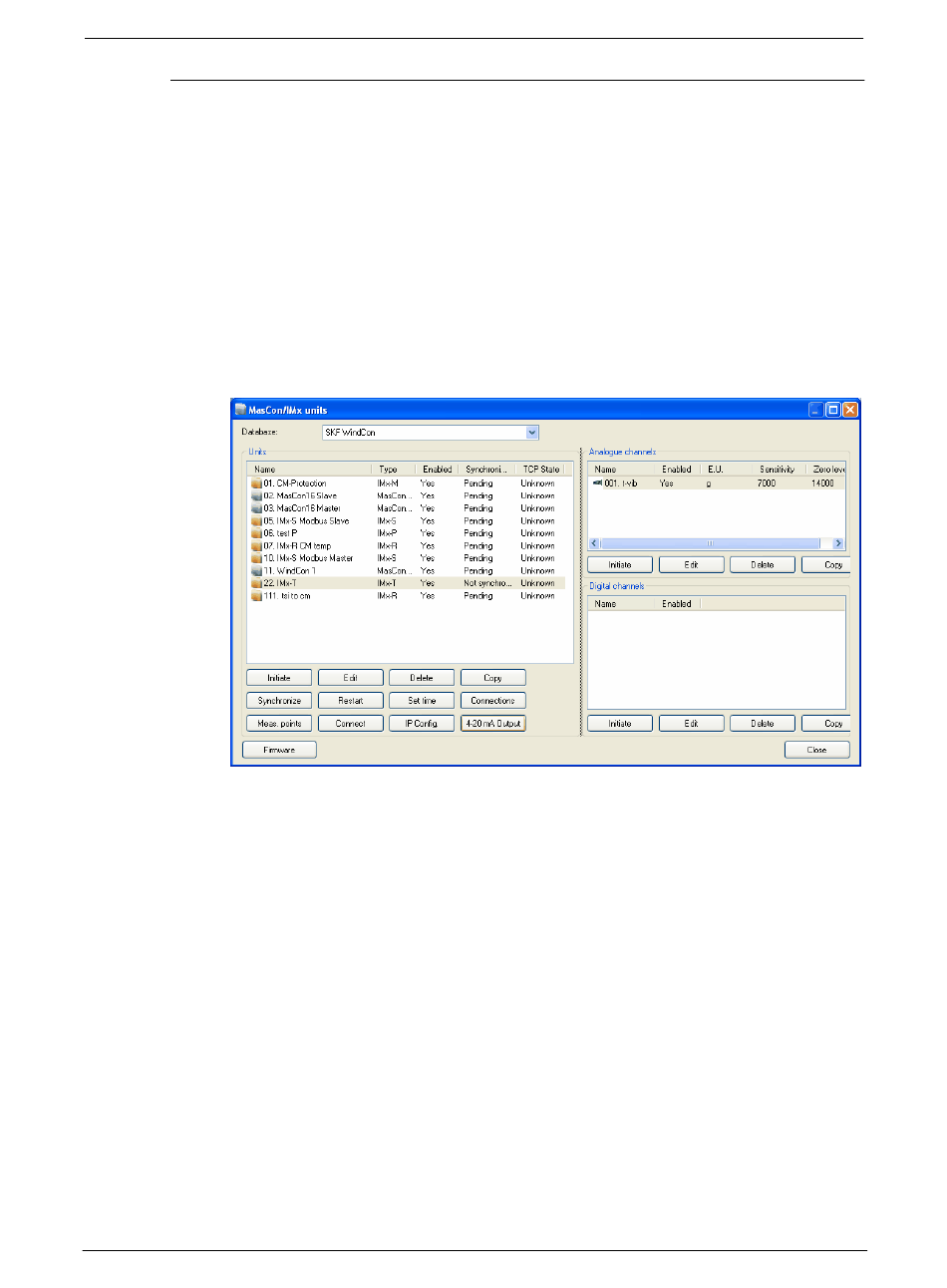

Figure 3-11: Observer On-line MasCon/IMx units interface
)
.
