The following table shows the pinout of 4-20 mA 37-Pin D-sub on the IMx-T unit along
with the corresponding 4–20 mA out channels.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SKF Multilog On-line System IMx-T
User Manual, Revision F
4–20mA out channel
Ch1+ 4–20mA
Ch2+ 4–20mA
Ch3+ 4–20mA
Ch4+ 4–20mA
Ch5+ 4–20mA
Ch6+ 4–20mA
Ch7+ 4–20mA
Ch8+ 4–20mA
Ch9+ 4–20mA
Ch10+ 4–20mA
Ch11+ 4–20mA
Ch12+ 4–20mA
Ch13+ 4–20mA
Ch14+ 4–20mA
Ch15+ 4–20mA
Ch16+ 4–20mA
GND
GND
GND
inout of 4-20 mA 37-Pin D-sub
Table 3-8: P

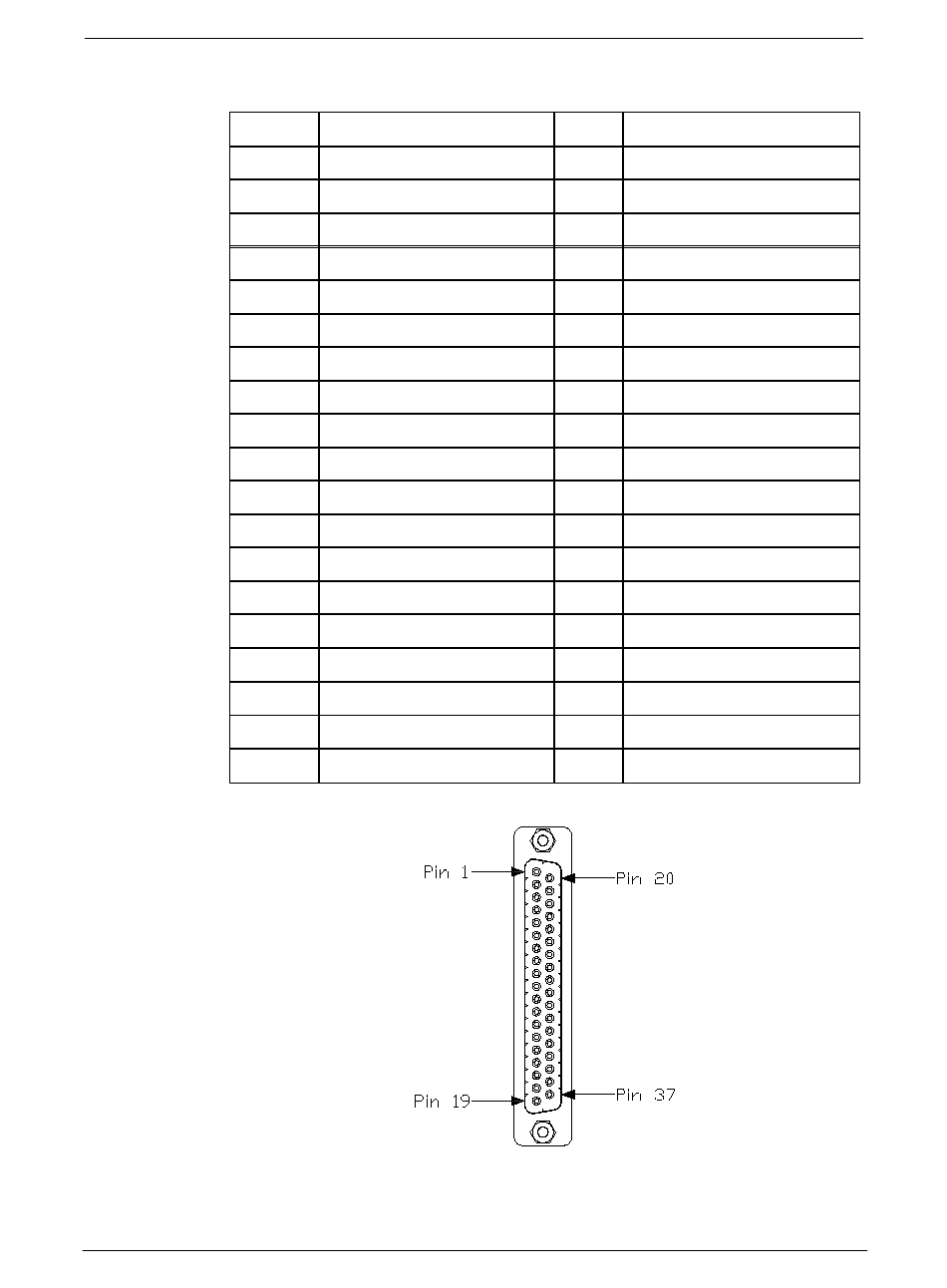

Figure 3-14: Pin numbers for 4-20 mA 37-Pin D-sub (female)
Pin 4–20mA out channel
20 Ch1- 4–20mA
21 Ch2- 4–20mA
22 Ch3- 4–20mA
23 Ch4- 4–20mA
24 Ch5- 4–20mA
25 Ch6- 4–20mA
26 Ch7- 4–20mA
27 Ch8- 4–20mA
28 Ch9- 4–20mA
29 Ch10- 4–20mA
30 Ch11- 4–20mA
31 Ch12- 4–20mA
32 Ch13- 4–20mA
33 Ch14- 4–20mA
34 Ch15- 4–20mA
35 Ch16- 4–20mA
36 GND
37 GND
- -
Unit Configuration
4-20 mA Output
