2. At 4-20 mA Output screen click on Initiate or Edit an existing 4-20 mA Output
channel in order to configure.
Note that the channel you select at this screen has to have measurement point(s)
already created.
The 4-20 mA clipping limits are 3,8 mA and 20,2 mA.
Minimum and maximum scale values are configurable.
In this example, the minimum is set to 0 and the maximum is set to 16. Which
means that;
Note that if the measurement point is a vibration, the actual vibration value will be
according to the overall from trend.
SKF Multilog On-line System IMx-T
User Manual, Revision F

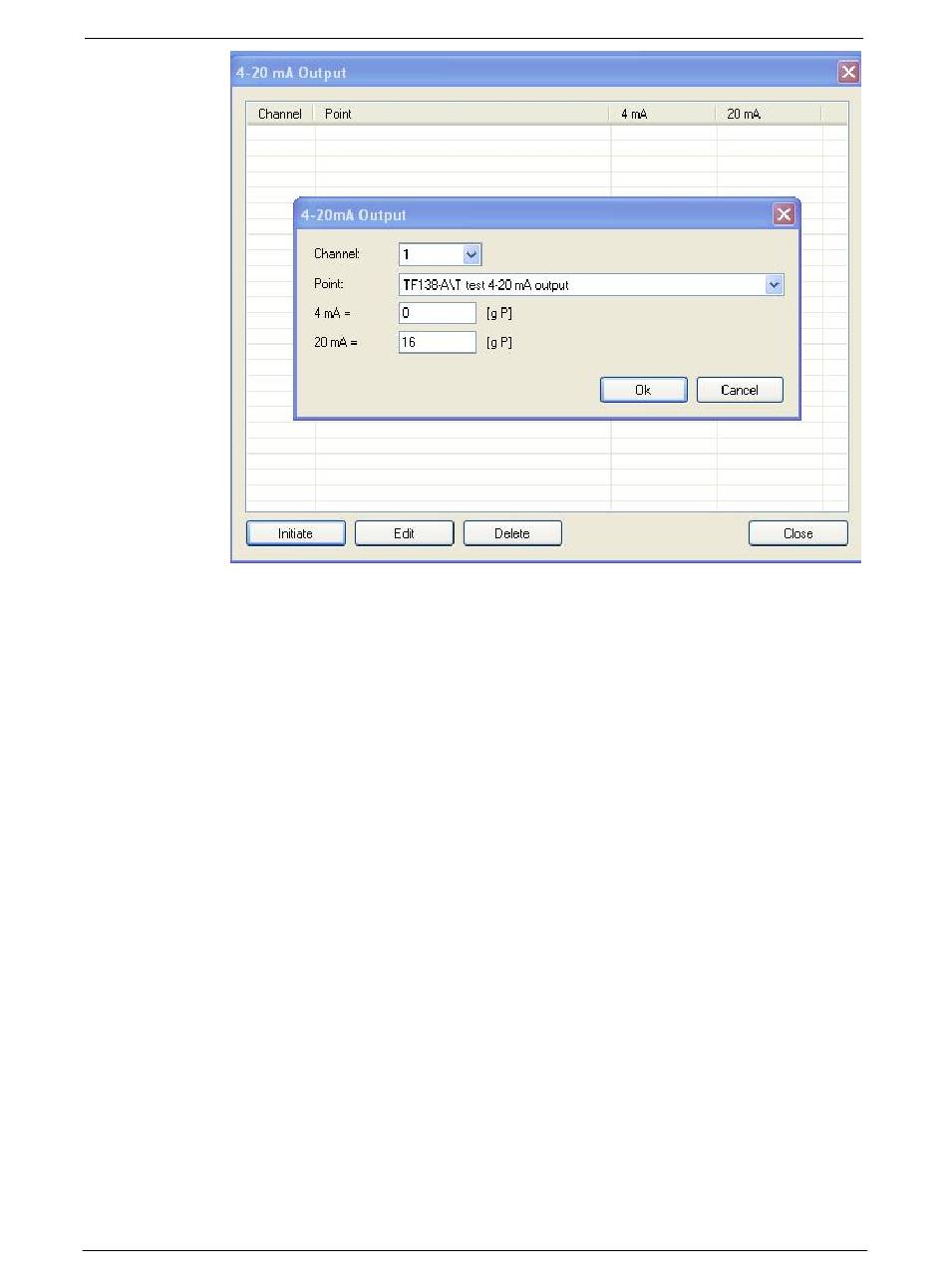

Figure 3-12: Observer On-line interface
0 measurement point value will be 4 mA
5 measurement point value will be 9 mA
16 measurement point value will be 20 mA
Unit Configuration
4-20 mA Output
