UG-1461

ADMV1013 BLOCK DIAGRAM AND FUNCTIONS

The ADMV1013 plugin appears similar to the block diagram
shown in the ADMV1013 data sheet. The similarities between
the plugin and the block diagram make it easy to correlate the
functions on the ADMV1013-EVALZ evaluation board with the
corresponding descriptions in the
ADMV1013 data sheet provides a full description of each block
Table 1. ADMV1013 Block Diagram Label Functions (See Figure 14)
Label Function
A
To apply all register values to the device, click Apply Changes (Label A). When Auto Apply is highlighted in the ADMV1013-044718,
Rev. A tab, the Apply Changes feature and the Read All feature (Label B) continuously run every few seconds, and the Apply
Changes and Read All buttons do not need to be clicked to apply or read back the block diagram settings.
B To read back all SPI registers of the device, click Read All (Label B). When Auto Apply is highlighted in the ADMV1013-044718, Rev. A
tab, the Apply Changes feature and the Read All feature continuously run every few seconds, and the Apply Changes and Read All
buttons do not need to be clicked to apply or read back the block diagram settings.
C Click Reset Chip (Label C) to reset the 1.8 V SPI including the SPI_SOFT_RESET bit. The functionality of the Reset Chip
command is the same as the functionality of the Reset Chip button (Label F1).
D Click Diff (Label D) to show registers that are different on the device.
E Click Software Defaults (Label E) to load the software defaults on to the device, and then click Apply Changes.
F1
Click the Reset Chip button (Label F1) to set the following bits:
SPI_SOFT_RESET bit (Bit 14, Register 0x00) to 0x1.
PARITY_EN bit (Bit 15, Register 0x00) to 0x1.
VVA_TEMPERATURE_COMPENSATION bits (Bits[15:0], Register 0x0A) to 0xE700.
Mixer_OFF_ADJ_I_P bits (Bits[15:9], Register 0x07) to 0x3F.
Mixer_OFF_ADJ_I_N bits (Bits[8:2], Register 0x07) to 0x3F.
Mixer_OFF_ADJ_Q_P bits (Bits[15:9], Register 0x08) to 0x3F.
Mixer_OFF_ADJ_Q_N bits (Bits[8:2], Register 0x08) to 0x3F.
F2 Click Parity Enable (Label F2), and then click Apply Changes to set the PARITY_EN bit (Bit 15, Register 0x00). When Parity
Enable is highlighted, the PARITY_EN bit is enabled. When Parity Enable is not highlighted, the PARITY_EN bit is disabled. For
proper functionality of the ADMV1013-EVALZ evaluation board, it is recommended to always keep Parity Enable highlighted.
ADMV1013 data sheet. The
C D
A B E
K
F1
F2
F3
L
J
I
G
R

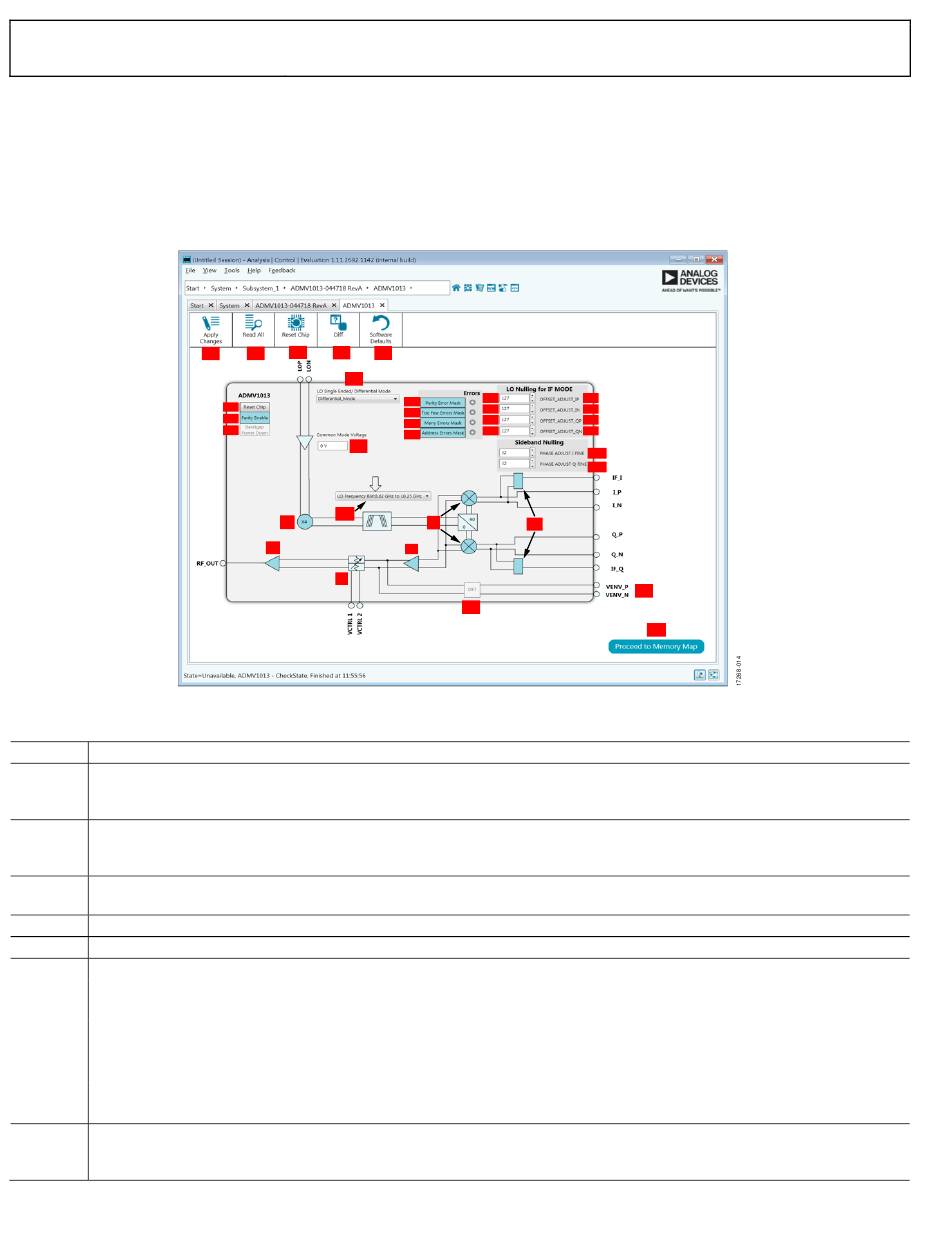

Figure 14. ADMV1013
and register, as well as the corresponding settings. Some blocks
and functions pertain to the ADMV1013-EVALZ evaluation board.
Figure 14 shows the full screen
labels, and Table 1 describes the functionality of each block.
T5 V1
T1
T6 V2
T2
T7 V3
T3
T8 V4
T4
P
M
H
U1
Block Diagram with Labels
Rev. B | Page 8 of 19
ADMV1013-EVALZ
ADMV1013
V4
Q1
Q2
U2
W
User Guide
block diagram with
