TEST RESULTS

The following results test results of the ADMV1013-EVALZ
evaluation board are the expected results. V
for both the IF results and the I/Q results.

IF RESULTS

Jumper J1 to Jumper J4 are excluded from the IF measurements
that follow. The hybrids and evaluation board RF traces have not
been de-embedded.
= 1800 mV is used
CTRL

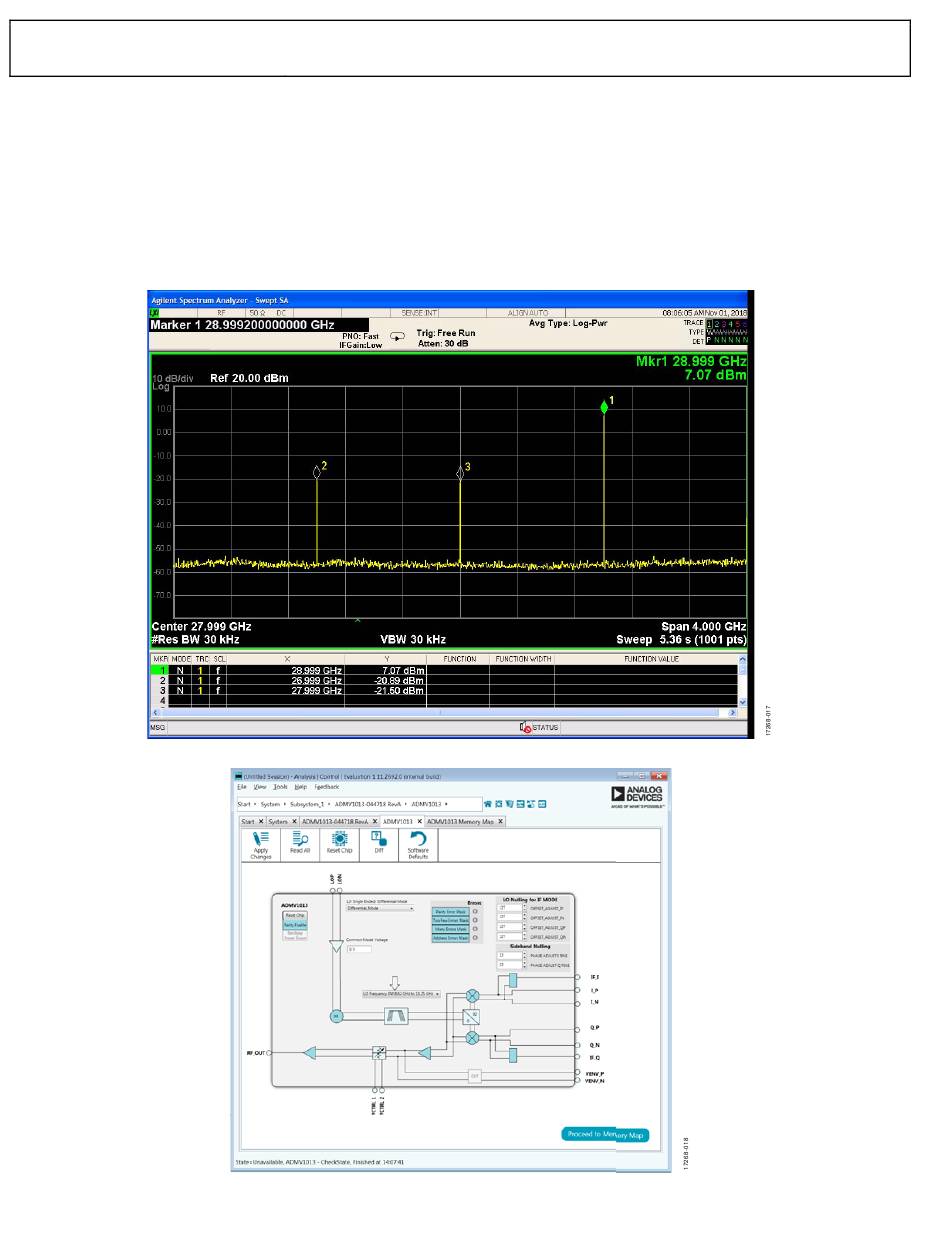

Figure 17. ADMV1013 Results for IF Mode with Upper Sideband Settings
Figure 18. ADMV1013 GUI Settings for an LO with Upper Sideband Settings and Set to IF Mode
Figure 17 shows the results of an IF input of 1000 MHz at
−10 dBm, single tone mixed, with a 7 GHz LO at 0 dBm to an
RF output of 29 GHz for upper sideband settings.
See Figure 18 for the graphical user interface (GUI) settings that
produce the results shown in Figure 17.
