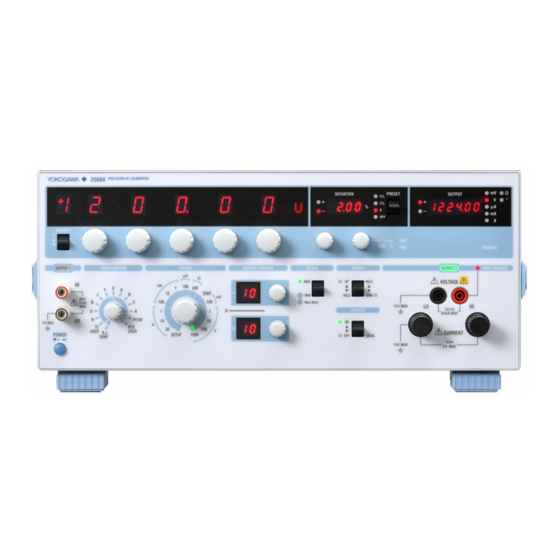

2560A
Precision DC Calibrator
IM 2560A-01EN
3rd Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2560A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA 2560A

Summary of Contents for YOKOGAWA 2560A

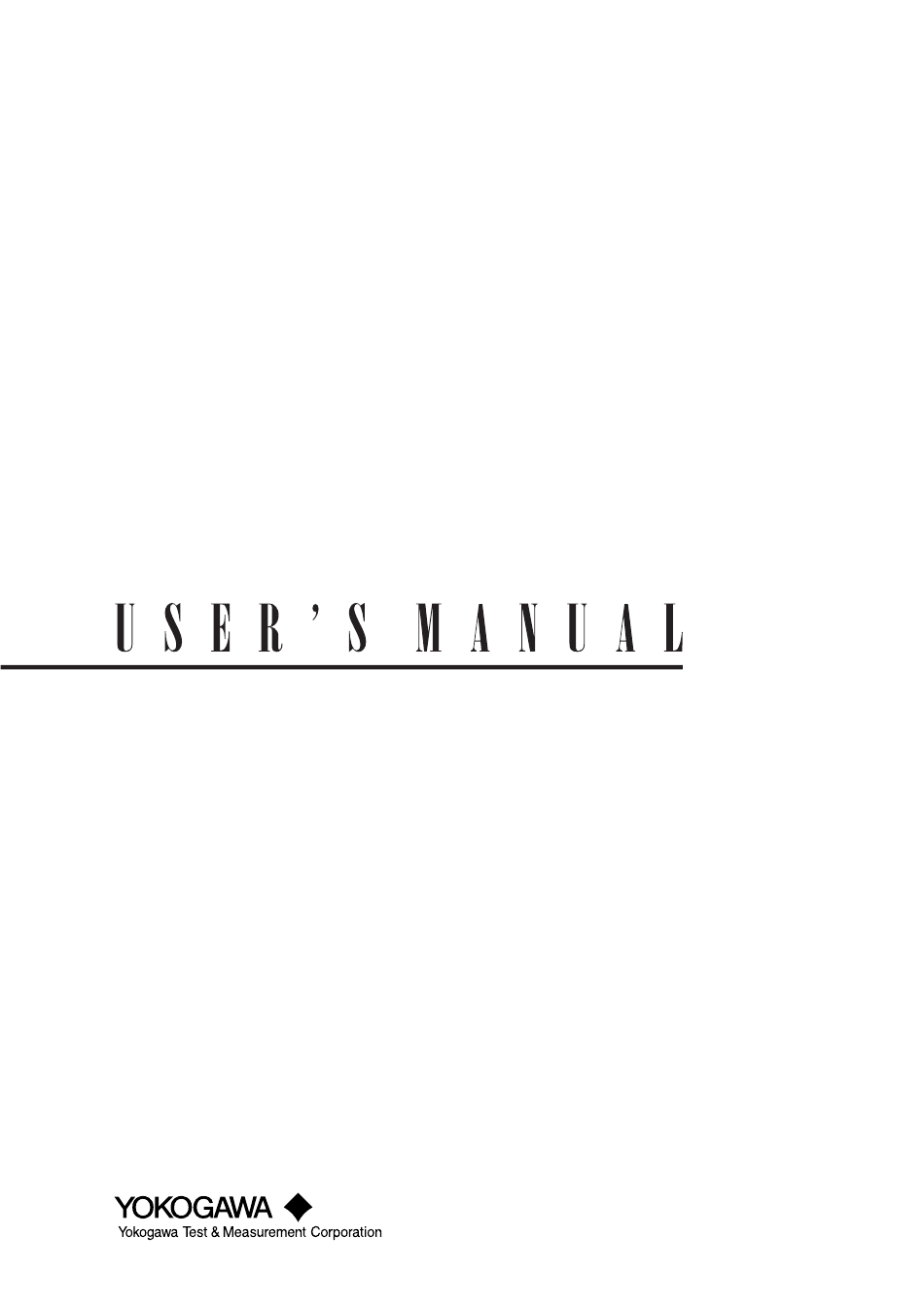

  • Page 1 2560A Precision DC Calibrator IM 2560A-01EN 3rd Edition...
  • Page 2 Product Registration Thank you for purchasing YOKOGAWA products. YOKOGAWA provides registered users with a variety of information and services. Please allow us to serve you best by completing the product registration form accessible from our website. http://tmi.yokogawa.com/ PIM 103-04E...

  • Page 3: List Of Manuals

    Thank you for purchasing the 2560A Precision DC Calibrator. The 2560A is a DC calibrator that sources DC voltage, DC current, and resistance. It also sources thermoelectromotive force and resistance that simulate those of a temperature sensor. DC voltage -1224 V to +1224 V DC current -12.24 A to +36.72 A...
  • Page 4 YOKOGAWA is strictly prohibited. • The TCP/IP software of this product and the documents concerning it have been developed/created by YOKOGAWA based on the BSD Networking Software, Release 1 that has been licensed from the Regents of the University of California.

  • Page 5: Checking The Contents Of The Package

    Unpack the box and check the contents before operating the instrument. If the wrong items have been delivered, if items are missing, or if there is a problem with the appearance of the items, contact your nearest YOKOGAWA dealer. 2560A Check that the product that you received is what you ordered by referring to the model name and suffix code given on the name plate on the rear panel.
  • Page 6 • Use the accessories specified in this manual. Moreover, use the accessories of this product only with Yokogawa products that specify them as accessories. • Use the accessories of this product within the rated range of each accessory. When using several accessories together, use them within the specification range of the accessory with the lowest rating.

  • Page 7: Safety Precautions

    Store this manual in a safe place close to the instrument so that you can refer to it immediately. Keep this manual until you dispose of the instrument. YOKOGAWA assumes no liability for the customer’s failure to comply with these requirements. The following symbols are used on this instrument.
  • Page 8 WARNING Use the Instrument Only for Its Intended Purpose The 2560A is a DC calibrator that sources DC voltage, DC current, and resistance. It also sources thermoelectromotive force and resistance that simulate those of a temperature sensor. Use the 2560A only for these purposes.
  • Page 9 Measurement Category The measurement category of the 2560A terminals is Other (O). Do not use it for main power supply circuits or circuits that fall under Measurement Categories II, III, and IV.
  • Page 10 Utiliser l'instrument aux seules fins pour lesquelles il est prévu Le 2560A est un calibreur c.c. qui émet de la tension c.c., du courant c.c. et de la résistance. Il émet également une force thermo-électromotive et une résistance qui stimulent celles des capteurs de température.
  • Page 11 émis. Catégorie de mesure La catégorie de mesure des bornes 2560A est O (Other, Autre). Ne l'utilisez pas pour les circuits d'alimentation principale ou ceux correspondant aux catégories de mesure II, III et IV.

  • Page 12: Regulations And Sales In Each Country Or Region

    Authorized Representative in the EEA Yokogawa Europe B. V. is the authorized representative of Yokogawa Test & Measurement Corporation for this product in the EEA. To contact Yokogawa Europe B.V., see the separate list of worldwide contacts, PIM 113-01Z2. 關於在台灣銷售...

  • Page 13: Conventions Used In This Manual

    Note Calls attention to information that is important for the proper operation of the instrument. IM 2560A-01EN...
  • Page 14 Indicates a communication command that corresponds to some of the features described on the procedural explanation page. Characters and Terminology Used in Procedural Explanations Dial and Switches Bold characters used in the procedural explanations indicate dials and switches on the panel. IM 2560A-01EN...

  • Page 15: Table Of Contents

    Other Features ....................... 2-12 Chapter 3 Preparation Handling Precautions ....................... 3-1 Installing the 2560A ......................3-3 Connecting to the Power Supply ..................3-6 Turning On and Off the Power Switch ................3-8 Wiring Precautions ......................3-10 Connecting Wires ......................3-14...
  • Page 16 Chapter 9 GP-IB Interface GP-IB Interface Features and Specifications ..............9-1 Connecting through the GP-IB Interface ................9-3 Configuring the 2560A GP-IB Settings ................9-5 Responses to Interface Messages ................... 9-8 Chapter 10 Ethernet Interface 10.1 Ethernet Interface Features and Specifications ............. 10-1 10.2...
  • Page 17 User Definitions of Thermocouples and RTDs ........... App-9 Appendix 7 List of Default Settings and Settings That Are Saved ........App-13 Appendix 8 About the IEEE 488.2-1992 Standard .............. App-14 Appendix 9 ASCII Character Codes ..................App-15 Index Index IM 2560A-01EN...
  • Page 18 • Displays the SETUP menu. → ch. 4 REMOTE indicator DEVIATION/PRESET Section Illuminates when the 2560A is in remote mode • Sets the deviation. Displays the lowest digit in high (controlled through communications). → sec. 9.1, resolution mode. → sec. 1.2, 7.2 10.1, 11.1...
  • Page 19 • Used when writing user-defined files for thermocouple and RTD temperature output → ch. 9 from a PC to the 2560A (USB mass storage) → sec. 6.5 • Used when controlling the 2560A remotely from a PC through the USB interface (USB-TMC) → ch. 11 Ethernet port (100BASE-TX/10BASE-T) Used when controlling the 2560A remotely from a PC through the Ethernet interface →...

  • Page 20: Dial And Switches

    When the output is turned on, the specified voltage, current, resistance, or temperature is generated from the output terminals. Setting a value other than ±0 (zero) causes the Non Zero indicator to turn on. Index IM 2560A-01EN...
  • Page 21 6-digit 7-segment LEDs are used. OUTPUT switch Unit indicators OFF indicator When the 2560A is in remote communication mode and you flip the OUTPUT switch down, the 2560A switches to local mode (except during local lockout (see section 9.4)). Output ON Flipping the OUTPUT switch up turns the ON indicator on.
  • Page 22 DOWN indicator UP Sweep Flipping the SWEEP switch up when the output is on turns the UP indicator on. The 2560A starts sweeping toward main setting (MAX). If you flip the SWEEP switch down while sweeping up or if sweeping reaches sweep end value, a beep is sounded, and sweeping stops (HOLD state).

  • Page 23: Digital Numbers And Characters

    Digital Numbers and Characters The 7-segment LED on the 2560A shows numbers, letters, and mathematical symbols using special characters in the manner shown below. Some of the characters shown below are not used on the 2560A. ^(power) Lowercase c Lowercase h...

  • Page 24: Chapter 2 Features

    Features System Configuration External RJ sensor Communication interface Command control High voltage output Low voltage-current (OUTPUT 2) output (OUTPUT 1) Large current output (OUTPUT 2) DUT (output target) DUT (output target) Range Range µA Ω TEMP 1000 Index IM 2560A-01EN...

  • Page 25: Dc Voltage, Dc Current, And Resistance Sourcing

    3 In the 100 mV range, the output voltage may drop significantly when the output current exceeds 12 mA. Connect a load that will not cause the output current to exceed 12 mA. The 2560A can also perform sink operation (see the next page). But it is not defined as part of the instrument’s specifications.
  • Page 26 Sinking is also possible at other ranges, but it is not defined as part of the instrument’s specifications. * By absorbing the current from a voltage source such as a distributor, the 2560A can simulate a load, like a two-wire transmitter.

  • Page 27: Temperature-Sensor-Simulation Thermoelectromotive-Force And Resistance Sourcing

    2560A using an RJ sensor and source thermoelectromotive force that is corrected using the measured temperature. • If an RJ sensor is not connected to the 2560A or is not detected, the 2560A applies its internal RJC.
  • Page 28 This is called reference junction compensation. The 2560A outputs from its low voltage-current output terminals (OUTPUT 1) the resistance of an RTD Pt100 that corresponds to the specified temperature. The 2560A supports Pt100, which is defined by IEC and JIS standards.
  • Page 29 The data that you create are written to the 2560A in the following manner. • Write the user-defined data saved in a file to the 2560A using the USB mass storage feature. • Transmit the user-defined data for each temperature range using communication commands. The transmitted data is written to the 2560A.

  • Page 30: Scaling

    This enables the output divider, deviation, and sweeping features of the 2560A to be used on a wider scale. Scaling cannot be used in high resolution mode.

  • Page 31: Output Divider

    = 0 m = 4 Ammeter n = 1 2.5 A m = 4 Ammeter n = 2 m = 4 Ammeter n = 3 7.5 A m = 4 Ammeter n = 4 10 A m = 4 IM 2560A-01EN...
  • Page 32 In the example above, before fine adjustment, the meter needle is pointing to 9.97 A, which is 0.30% smaller than the 10 A current output from the 2560A. The deviation polarity (the sign) of the 2560A indicates whether the target device indication is larger or smaller than the accurate position. In this example, because the meter is pointing to a value that is 0.30% smaller than the 2560A output value,...
  • Page 33 = 4 In the above example, the 2560A is generating –5.00% of the output setting. To calibrate the scale, turn a deviation dial to move the meter needle to the correct position. For details on how to read the deviation, see “Deviation”...

  • Page 34: Sweeping

    Sweeps the needle over the specified time. Ammeter 0 A to 12 A UP sweep Ammeter 12 A to 0 A DOWN sweep When sweeping up, sweeping is performed up to 120% of the maximum scale value. Index 2-11 IM 2560A-01EN...

  • Page 35: Other Features

    Error Log Display The error log keeps a record of error codes that occur in communication and self-tests while the 2560A is on. You use the SETUP menu to display the error log. The error log is cleared when the power is turned off.
  • Page 36 Handling Precautions Safety Precautions If you are using the 2560A for the first time, make sure to read “Safety Precautions,” on pages v to vii. Do Not Remove the Case Do not remove the case from the instrument. Some parts of the instrument use high voltages and are extremely dangerous.
  • Page 37 Never place objects such as other instruments or objects that contain water on top of the instrument. Doing so may damage the instrument. For details on stacking the 2560A, see section 3.2. Keep Electrically Charged Objects Away from the Instrument Keep electrically charged objects away from the input and output terminals.
  • Page 38 Installing the 2560A WARNING • Do not install the instrument outdoors or in locations subject to rain or water. • Install the instrument so that you can immediately remove the power cord if an abnormal or dangerous condition occurs. CAUTION If you block the outlet holes on the top or the inlet holes on the rear of the instrument, the instrument will become hot and may break down.
  • Page 39 The supplied rubber stoppers can be attached to bottom legs of the instrument to prevent the instrument from sliding. You can install the instrument in a tilted position using the movable legs. However, if you attach the front rubber leg cap, you will not be able to stack the 2560A. Movable legs WARNING •...
  • Page 40 To mount the instrument on a rack, use a rack mount kit (sold separately). Item Model Model 751533-E4 Rack mount kit (for mounting one 2560A on an EIA standard rack) 751533-E4 Model 751533-J4 Rack mount kit (for mounting one 2560A on a JIS standard rack) 751533-J4 An outline of the mounting procedure is given below.

  • Page 41: Connecting To The Power Supply

    • Toujours utiliser une rallonge avec broche de mise à la terre, à défaut de quoi l’instrument ne serait pas relié à la terre. • Si une sortie CA conforme au câble d’alimentation fourni n’est pas disponible et que vous ne pouvez pas relier l’instrument à la terre, ne l’utilisez pas. IM 2560A-01EN...
  • Page 42 Check that the voltage supplied to the instrument is less than or equal to the maximum rated voltage of the power cord that you will be using before use. Three-prong outlet 2560A Index IM 2560A-01EN...

  • Page 43: Turning On And Off The Power Switch

    • Initialize the 2560A settings → section 15.8, “Initializing the Settings.” If the 2560A still does not work properly after checking these items, contact your nearest YOKOGAWA dealer for repairs. If an error code is displayed, check the information in section 15.3, and take the appropriate actions.
  • Page 44 Do not turn off the power when the instrument’s output is turned on. Doing so can damage the 2560A. It can also cause damage to the devices connected to the 2560A. Turn the output off first, and the turn off the power.

  • Page 45: Wiring Precautions

    Lead wires are not shorted because of wiring errors, broken insulation of lead wires, unintended contact with conductive parts, and so on. • The lead wires are fastened firmly to the terminals. • There no problems with the terminals, such as the presence of foreign substances. 3-10 IM 2560A-01EN...
  • Page 46 • When using thermocouple ranges, do not apply external voltage or current. Also, do not connect to a charged capacitive load. Doing so may damage the voltage divider inside the 2560A. • May cause abnormal voltage output when turn off 2560A. 2560A output turned OFF and then turn off 2560A. Index...
  • Page 47 Les câbles en plomb ne sont pas court-circuités en raison d’erreurs de câblage, d’absence d’isolation des câbles en plomb, de contact accidentel avec des pièces conductrices etc. • Les câbles sont fermement vissés sur les bornes. • Les bornes ne présentent aucune anomalie, telle la présence de corps étrangers. 3-12 IM 2560A-01EN...
  • Page 48 à une charge capacitive chargée. Cela pourrait endommager le diviseur de tension à l’intérieur du 2560A. • Peut cause de tension anormale de sortie quand désactiver 2560A. 2560A sortie éteint et puis désactiver le 2560A. Index...

  • Page 49: Connecting Wires

    RJ externe du 2560A peut endommager la fiche de raccordement ou la borne d’entrée du capteur RJ externe. Vérifier l’orientation de la fiche avant de la brancher. Wire the lead wires from the target device to the output terminals of the 2560A. Wire them in the following manner.
  • Page 50 Large current output terminals Knob Terminal base Pass the knob screw through the crimped terminal, and then tighten the output terminal knob firmly with your hand. The terminal or knob may break if you apply excessive torque. Crimped terminal Index 3-15 IM 2560A-01EN...
  • Page 51 Current sinking (absorption) is possible in any of the voltage or current ranges. For example, by absorbing the current from a voltage source such as a distributor, the 2560A can simulate a load, like a two-wire transmitter. For the maximum sink current, see “DC Voltage Sourcing” or “DC Current Sourcing” in section 2.2.
  • Page 52 If the output terminal temperature changes as a result of making contact when wiring thermocouples, compensating lead wires, and the like; making contact when connecting external RJ sensors; and due to ambient air movement, errors exceeding the accuracy specifications may occur. In such situations, wait until the output stabilizes. Index 3-17 IM 2560A-01EN...
  • Page 53 Wiring to the External RJ Sensor Input Terminal To wire an external reference junction (RJ) sensor to the external RJ sensor input terminal on the rear panel of the 2560A, follow the procedure below. Wiring an RJ Sensor to the Terminal Plug Loosen the screws on the top of the terminal plug (these screws are used to fix lead wires in place), and insert stripped lead wires into the lead wire connection terminals.
  • Page 54 Value: 0.0.0.0 to 255.255.255.255 Example: 192 (IP 1).168 (IP 2).0 (IP 3).1 (IP 4) MASK subnet mask Value: 0.0.0.0 to 255.255.255.255 MASK Example: 255 (MASK 1).255 (MASK 2).255 MASK (MASK 3).0 (MASK 4) MASK Index To the next page IM 2560A-01EN...
  • Page 55 Execute a self-test. → sec. 15.7 EXEC Executes a self-test NEXT Performs simple adjustment Moves to/returns from the next menu level PASS Enter the password. For the password entry and simple adjustment procedure, see the following webpage. http://tmi.yokogawa.com/products/generators-sources/standard/high-voltage-and-high-current-precision-dc-calibrator-2560a/ IM 2560A-01EN...

  • Page 56: How To Use The Setup Menu

    GATE 3 of the default gateway to the MAC address menu and operate main setting dials 1 to 4 to return to the GATE menu of default gateway, the GATE1 menu (with the first auxiliary information) is displayed. Index IM 2560A-01EN...
  • Page 57 • Deviation dial 2 Enters the first digit from the right when facing the 2560A panel. Turning deviation dial 2 changes the value by 1.

  • Page 58: Chapter 5 Voltage, Current, And Resistance Sourcing

    The OUTPUT 1 indicator on the front panel illuminates. 100 V, 1000 V High voltage output terminals (OUTPUT 2) The OUTPUT 2 indicator on the front panel illuminates. The HIGH VOLTAGE indicator will illuminate even if the output is off. Index IM 2560A-01EN...
  • Page 59 400 Ω Low voltage-current output terminals (OUTPUT 1) The OUTPUT 1 indicator on the front panel illuminates. Note The 2560A does not have an auto range feature that automatically switches the range according to the main setting. <<Command Mnemonic>> :SOURce:FUNCtion {VOLTage|CURRent|RESistance} :SOURce:RANGe {<...

  • Page 60: Specifying The Main Setting And Polarity

    1 mA ± 1.20000 mA 10 nA 10 mA ± 12.0000 mA 100 nA 100 mA ± 120.000 mA 1 µA ± 1.20000 10 µA 10 A ± 12.0000 100 µA 30 A 0 to +36.000 1 mA Index IM 2560A-01EN...
  • Page 61 :SOURce:LEVel:MAXimum {< Voltage >|< Current >|< Resistance >|MINimum|MAXimum} :SOURce:LEVel:MINimum {< Voltage >|< Current >|< Resistance >|MINimum|MAXimum} :SOURce:SLEVel[:AUTO] {< Voltage >|< Current >|< Resistance >|MINimum|MAXimum} :SOURce:SLEVel:MAXimum {< Voltage >|< Current >|< Resistance >|MINimum|MAXimum} :SOURce:SLEVel:MINimum {< Voltage >|< Current >|< Resistance >|MINimum|MAXimum} IM 2560A-01EN...

  • Page 62: Setting The Output Scaling

    Set MIN greater than or equal to MAX MAX=MIN (the specified MIN value) Set MAX to negative MIN is also set to negative. with the POLARITY switch Set MIN to negative MAX stays positive.* Index with the POLARITY switch IM 2560A-01EN...
  • Page 63 • The SCALE switch is set to MAX. • You can change scaling even when the output is on. • Output divider, deviation, and sweep features operate assuming (main setting (MAX) – main setting (MIN)) to be 100%. IM 2560A-01EN...

  • Page 64: Turning The Output On And Off

    Turning the Output On and Off WARNING • Before turning on the output of the 2560A, make sure that wiring is connected properly. • Do not touch the terminals or cables when the 2560A output is on. Doing so may cause electric shock. French AVERTISSEMENT •...
  • Page 65 5.4 Turning the Output On and Off Explanation When the output is turned on, the 2560A will source the specified voltage, current, or resistance from each output terminal. • The output terminals vary depending on the selected range. See section 5.1. Before turning on the output, make sure that the lead wires are connected to the proper output terminals.

  • Page 66: Chapter 6 Temperature-Sensor-Simulation Thermoelectromotive-Force And

    Avec des gammes de thermocouples, ne pas alimenter en tension externe, ni courant. En outre, ne connectez pas à une charge capacitive chargée. Cela pourrait endommager le diviseur de tension à l’intérieur du 2560A. Procedure Turn the RANGE dial to select TEMP.
  • Page 67 R, S, B, J, T, E, K, N, C, A, TC USER* * If you select TC USER, the thermoelectromotive force of a user-defined thermocouple can be sourced. For details how to write user-defined data to the 2560A, see section 6.5. For the data definition specifications, see appendix 6.
  • Page 68 (-120.000 mV to +120.000 mV) * If you select TC USER, the thermoelectromotive force corresponding to the user-defined temperature can be sourced. For a detailed procedure, see section 6.5. For details on definition expressions, see appendix 6. Index IM 2560A-01EN...
  • Page 69 <<Command Mnemonic>> :OUTPut:POLarity[:AUTO] {NORMal|INVerted} :OUTPut:POLarity:MAXimum {NORMal|INVerted} :OUTPut:POLarity:MINimum {NORMal|INVerted} :SOURce:FUNCtion {TCouple|RTD} :SOURce:LEVel[:AUTO] {< Temperature >|MINimum|MAXimum} :SOURce:LEVel:MAXimum {< Temperature >|MINimum|MAXimum} :SOURce:LEVel:MINimum {< Temperature >|MINimum|MAXimum} :SOURce:SLEVel[:AUTO] {< Temperature >|MINimum|MAXimum} :SOURce:SLEVel:MAXimum {< Temperature >|MINimum|MAXimum} :SOURce:SLEVel:MINimum {< Temperature >|MINimum|MAXimum} IM 2560A-01EN...

  • Page 70: Setting The Output Scaling

    Set MIN greater than or equal to MAX MAX=MIN (the specified MIN value) Set MAX to negative MIN is also set to negative. with the POLARITY switch Set MIN to negative MAX stays positive. Index with the POLARITY switch IM 2560A-01EN...
  • Page 71 • The SCALE switch is set to MAX. • You can change scaling even when the output is on. • Output divider, deviation, and sweep features operate assuming (main setting (MAX) – main setting (MIN)) to be 100%. IM 2560A-01EN...
  • Page 72 The output value display unit of thermoelectromotive force and resistance for the specified temperature on the 2560A is set to “°” by default. By changing the output value display mode settings, you can set the unit to “mV” for thermocouples and “Ω” for RTDs. The procedure is shown on the next page.
  • Page 73 Flip the PRESET switch down. The setting is confirmed. All the PRESET indicators turn off. PRESET indicator Main setting dials (use any) Deviation dials (either) PRESET switch 4. Select MONI. 5. Select DEG or V.OHM. 6. Confirm the settings. IM 2560A-01EN...
  • Page 74 Explanation Turning the Output On and Off When the output is turned on, the 2560A will source the thermoelectromotive force or resistance corresponding to the specified temperature from the output terminals. • If you change the range or the thermoelectromotive force or resistance type, the output automatically turns off.

  • Page 75: Writing User-Defined Data

    2560A. If you find out that the PC connected to the 2560A is infected with a computer virus, turn off the 2560A. Computer viruses in the 2560A will be erased.

  • Page 76: App

    Connecting the 2560A to the PC through USB Using a USB cable, connect the USB port (type B) on the rear panel of the 2560A to the PC. See the USB interface specifications in section 11.1 and the connection diagram in section 11.2.
  • Page 77 • The user-defined data file name is fixed. When placing the file in the 2560A IN folder, an error will not occur even if a different file name is used. However, make sure to rename the file to TCUSER.TXT or RTDUSER.TXT before performing step 9 on the next page.
  • Page 78 Connecting the 2560A to the PC through USB The USB port on the rear panel of the 2560A is type B. The USB port on the PC is type A. Connect the 2560A to the PC using a USB cable with a type B connector on one end and type A connector on the other.
  • Page 79 6.5 Writing User-Defined Data Definition File The names of the user-defined data files saved in the 2560A IN and 2560A OUT folders are fixed. The name is not case sensitive. • Thermocouple user-defined data file name: TCUSER.TXT • RTD user-defined data file name: RTDUSER.TXT If User-Defined Data Contains Errors If there is an error in the user-defined data, an error will occur.

  • Page 80: Setting Reference Junction Compensation

    When an external RJ When an external RJ sensor is not connected sensor is connected Internal RJC is applied. After several seconds When an external RJ sensor is connected and the 2560A has detected it Internal : On : Blinking : Off Manual input When the setting is not 0.00°C...
  • Page 81 “NEXT” appears on the deviation display. All the PRESET indicators turn on. Flip the PRESET switch down. The TEMP menu appears. All the PRESET indicators turn off. PRESET indicator PRESET switch Main setting dials (use any) 3. Display the TEMP menu. 2. Select TEMP. 6-16 IM 2560A-01EN...
  • Page 82 If you decide not to change the setting, step 6 is not necessary. Flip the PRESET switch down. The setting is confirmed. All the PRESET indicators turn off. PRESET indicator Deviation dials PRESET switch 5. Set the difference between 6. Confirm the settings. 100.00 Ω and R0. Index 6-17 IM 2560A-01EN...
  • Page 83 RJ sensor. • When an External RJ Sensor Is Not Detected If an RJ sensor is not connected to the 2560A or is not detected, the 2560A applies its internal RJC. RJ sensors 257875 are sold separately as accessories. An RTD Pt100 can also be used as an RJ sensor.

  • Page 84: Selecting The Temperature Unit

    Flip the PRESET switch down. The setting is confirmed. All the PRESET indicators turn off. PRESET indicator Main setting dials (use any) Deviation dials (either) PRESET switch Index 4. Select UNIT. 5. Select CEL or FAR. 6. Confirm the settings. 6-19 IM 2560A-01EN...
  • Page 85 6.7 Selecting the Temperature Unit Explanation On models with the -UF suffix code, you can select the temperature unit. You can set the temperature using the selected unit. CEL: °C FAR: °F <<Command Mnemonic>> :SYSTem:UNIT {C|CEL|F|FAR} 6-20 IM 2560A-01EN...
  • Page 86 For details on how to turn the output on and off and how to set the range, see chapter 5 or 6. <<Command Mnemonic>> :DIVider:NUMerator {<NRf>|MINimum|MAXimum} :DIVider:DENominator {<NRf>|MINimum|MAXimum} Index IM 2560A-01EN...

  • Page 87: Deviation Output

    • If the output is turned on, the output remains on even if you change the deviation with the deviation dials. • How the deviation changes when the main setting or the denominator m or numerator n of the output divider is changed depends on the preset setting (explained later). See the description of presets. IM 2560A-01EN...
  • Page 88 (nominal values), and use deviation dials 1 and 2 to align the meter needle to the scale values. If you turn a dial to the right and set a negative deviation value, the 2560A outputs a value that is larger than the original output value by the main setting value × deviation. A negative deviation means that the meter needle is indicating a value less than the 2560A output.

  • Page 89: Sweep Output

    Flip the PRESET switch down. The setting is confirmed. All the PRESET indicators turn off. PRESET indicator PRESET switch Main setting dials (use any) Deviation dials (either) 4. Confirm the settings. 2. Select SWEEP. 3. Select the sweep time. IM 2560A-01EN...
  • Page 90 When the output is turned on, flip the SWEEP switch up. The UP indicator illuminates, and the 2560A starts sweeping toward main setting (MAX). When the sweep end value is reached or if you flip the SWEEP switch down while sweeping is in progress, sweeping will stop (hold state).
  • Page 91 5 or 6. UP Sweep Flipping the SWEEP switch up when the output is on turns the UP indicator on. The 2560A starts sweeping toward main setting (MAX). DOWN Sweep Flipping the SWEEP switch down when the output is on turns the DOWN indicator on.

  • Page 92: Chapter 8 Other Features

    Flip the PRESET switch down. • The setting is confirmed. All the PRESET indicators turn off. • The 2560A returns from the SETUP menu to source mode, and the range is set to 1 V. PRESET indicator PRESET switch Main setting dials (use any) Deviation dials (either) 4.
  • Page 93 Further, high resolution mode cannot be used for temperature or resistance ranges. • If you flip the PRESET switch down to confirm the resolution setting, the 2560A returns from the SETUP menu to source mode, and the range is set to 1 V.

  • Page 94: Turning The Beep Sound On And Off

    Flip the PRESET switch down. The setting is confirmed. All the PRESET indicators turn off. PRESET indicator Main setting dials (use any) Deviation dials (either) PRESET switch 4. Confirm the settings. 2. Select BEEP. 3. Select ON or OFF. Index IM 2560A-01EN...
  • Page 95 Turning the Beep Sound On and Off Explanation You can select whether to sound beeps that indicate the 2560A operating status. You cannot change the volume. You can turn the beep sound on or off for the following notifications. • When a voltage greater than or equal to +150 V or less than or equal to –150 V is to be output, regardless of the output on/off state •...

  • Page 96: Chapter 9 Gp-Ib Interface

    • With the exception of turning the power switch on and off, you can use the reception feature to specify the same settings that you specify by using the front panel keys. • The 2560A can receive panel setup parameters, error codes, and other output requests from a controller.
  • Page 97 When Switching from Remote to Local Mode When the 2560A is in remote mode and you flip the OUTPUT switch to the LOCAL side, the 2560A switches to local mode. This is not possible when local lockout (see section 9.4) has been activated by the controller.
  • Page 98 • On the PC end, use a GP-IB board (or card) made by National Instruments. For details, see section 9.1. • The 2560A may not operate properly if the 2560A is connected to the PC through converters (such as a GP-IB to USB converter). For more details, contact your nearest YOKOGAWA dealer.
  • Page 99 9.2 Connecting through the GP-IB Interface CAUTION Be sure to turn off the PC and the 2560A before you connect or remove communication cables. Otherwise, erroneous operation may result, or the internal circuitry may break. French ATTENTION Toujours mettre le PC et le 2560A hors tension avant de brancher ou de débrancher des câbles de communication, pour éviter tout dysfonctionnement ou panne du circuit interne.

  • Page 100: Configuring The 2560A Gp-Ib Settings

    Configuring the 2560A GP-IB Settings Procedure Turn the RANGE dial to select SETUP. The SETUP menu appears. 1. Select SETUP. The SETUP indicator turns on. RANGE dial Selecting the GP-IB Interface Turn a main setting dial to select GPIB. “NEXT” appears on the deviation display. All the PRESET indicators turn on.
  • Page 101 9.3 Configuring the 2560A GP-IB Settings Setting the GP-IB Address Turn a main setting dial to select ADRS. The deviation display shows the current GP-IB address. Turn the deviation dials to set the GP-IB address. • When you change the setting, all PRESET indicators turn on.
  • Page 102 PC or other device. • The command type setting takes effect when you turn the 2560A off and then back on. If you select COMP, the 2560A will not accept standard commands nor communicate using the USB or LAN interface.

  • Page 103: Responses To Interface Messages

    They are classified as follows: Uni-line Messages A single control line is used to transmit uni-line messages. The following three types are available. • IFC(Interface Clear) • REN(Remote Enable) • IDY(Identify) IM 2560A-01EN...
  • Page 104 Secondary address address command The 2560A supports interface messages marked with a «. Note Difference between SDC and DCL In multi-line messages, SDC messages are those that require talker or listener designation and DCL messages are those that do not require a designation. Therefore, SDC messages are directed at a particular instrument while DCL messages are directed at all instruments on the bus.

  • Page 105: Chapter 10 Ethernet Interface

    When Switching from Remote to Local Mode When the 2560A is in remote mode and you flip the OUTPUT switch to the LOCAL side, the 2560A switches to local mode. However, this does not work if the 2560A has received a :COMMunicate:LOCKout ON command from the PC.

  • Page 106: Connecting To The Ethernet Interface

    RJ-45 modular jack Notes on Connection • To connect the 2560A to a PC through a hub or router, use straight cables. To directly connect the 2560A to a PC (one-to-one connection), use a crossover cable. • Use a network cable that supports the data rate of your network.

  • Page 107: Configuring The 2560A Ethernet Settings

    10.3 Configuring the 2560A Ethernet Settings Procedure Turn the RANGE dial to select SETUP. The SETUP menu appears. 1. Select SETUP. The SETUP indicator turns on. RANGE dial Selecting the Ethernet Interface Turn a main setting dial to select LAN.
  • Page 108 10.3 Configuring the 2560A Ethernet Settings Turning DHCP On and Off Turn a main setting dial to select DHCP. The deviation display shows the current DHCP setting. Turn a deviation dial to select ON or OFF. • When you change the setting, all PRESET indicators turn on.
  • Page 109 Internet. If you are connecting the 2560A to a network with a DHCP server, you can turn on the DHCP setting. If you do, the IP address will be automatically assigned to the 2560A when it is connected to the network, so you do not have to set the address.
  • Page 110 00.12, and the output display shows 34.56.78. The first octet is not shown. Note Only use a single communication interface: USB, GP-IB, or Ethernet. If you send commands simultaneously from more than one communication interface, the 2560A will not execute the commands properly. 10-6 IM 2560A-01EN...
  • Page 111 When Switching from Remote to Local Mode When the 2560A is in remote mode and you flip the OUTPUT switch to the LOCAL side, the 2560A switches to local mode. However, this does not work if the 2560A has received a :COMMunicate:LOCKout ON command from the PC.

  • Page 112: Connecting Through The Usb Interface

    • Be sure to insert the USB cable connector firmly into the USB port. • Do not connect or remove the USB cable from the time when the 2560A is turned on until operation becomes available (approximately 20 to 30 seconds). Doing so may damage the 2560A.

  • Page 113: Configuring The 2560A Usb Interface

    11.3 Configuring the 2560A USB Interface Procedure Turn the RANGE dial to select SETUP. The SETUP menu appears. 1. Select SETUP. The SETUP indicator turns on. RANGE dial Selecting the Remote Control Feature Turn a main setting dial to select USB.
  • Page 114 Install the YOKOGAWA USB TMC (Test and Measurement Class) driver on your PC. For information about how to obtain the YOKOGAWA USB TMC driver, contact your nearest YOKOGAWA dealer. You can also access the YOKOGAWA USB driver download web page and download the driver.

  • Page 115: Chapter 12 Programming Overview

    Messages are used to exchange information between The program message unit syntax is shown below. the controller and the 2560A. Messages that are sent from the controller to the 2560A are called program messages, and messages that are sent from the 2560A <Program header>...
  • Page 116 Separate the data from the header with a space. Deadlock For details, see section 12.3. The 2560A can store at least 1024 bytes of messages in its transmit and receive buffers (the number of <Response Data> available bytes varies depending on the operating Response data contains the content of the response.

  • Page 117: Commands

    • When Concatenating Commands of the Same There are three types of commands (program Group headers) that a controller may send to the 2560A. The The 2560A stores the hierarchical level of the commands differ in their program header formats.
  • Page 118 Some upper-level queries of a group, which may be comprised of more than three hierarchical levels, can cause the 2560A to transmit all the lower level settings. The response to an upper-level query can be sent back to the 2560A as a program message. This enables the settings that were present when the upper-level query was made to be reproduced later on.
  • Page 119 The 2560A normally returns response headers with the lower-case section removed. You can configure the 2560A so that full headers are returned. Use the COMMunicate:VERBose command for this purpose. The sections enclosed in square brackets ( [] ) are also omitted in the abbreviated form.
  • Page 120 Any of the forms <NR1> to <NR3> Celsius Temperature °C Fahrenheit Temperature °F (only on models • The 2560A can receive decimal values that are sent with the -UF suffix code) from the controller in any of the forms <NR1> to Second Time <NR3>.
  • Page 121 #B<Binary value made up of the digits 0 and 1> <Block Data> <Block data> contains 8-bit values. It is only used in • <Register> is not case sensitive. response messages on the 2560A. The syntax is as • Response messages are always expressed in the follows: <NR1> form.

  • Page 122: Synchronization With The Controller

    (see section 14.4). You can determine whether approximately 500 ms • Using the COMMunicate:WAIT Command (response time of the 2560A) has elapsed after The COMMunicate:WAIT command is used to wait the output value is changed by reading bit 3 of the for a specific event to occur.

  • Page 123: List Of Commands

    13-4 :COMMunicate:LOCKout Sets/clears local lockout. 13-4 :COMMunicate:REMote Sets or queries whether the 2560A is in remote or local mode. On is remote 13-4 mode. :COMMunicate:VERBose Sets or queries whether the response to a query is returned fully spelled out 13-4 or in its abbreviated form.
  • Page 124 Sets or queries the GP-IB command type. 13-19 :SYSTem:COMMunicate:USB:FUNCti Sets or queries the USB feature (USB-TMC/storage). 13-19 :SYSTem:REBoot Restarts the 2560A when the specified time elapses. 13-19 :SYSTem:RESolution Sets or queries the resolution mode. 13-19 :SYSTem:RJC:RESister Sets or queries the resistance of the sensor to be used for the external 13-19 reference junction for 0°C.
  • Page 125 Sets or queries the service request enable register value. 13-21 *STB? Queries the Status Byte Register value. 13-21 *TST? Executes a self-test and queries the result. 13-21 *WAI Holds the execution of the subsequent command until the specified overlap 13-21 command is completed. Index 13-3 IM 2560A-01EN...

  • Page 126: Communicate Group

    Description For details on the extended event register, see :COMMunicate:LOCKout? section 14.4. :COMMUNICATE:LOCKOUT ON Example :COMMUNICATE:LOCKOUT? -> :COMMUNICATE:LOCKOUT 1 :COMMunicate:REMote Function Sets or queries whether the 2560A is in remote or local mode. On is remote mode. :COMMunicate:REMote <Boolean> Syntax :COMMunicate:REMote? ON|1: Remote OFF|0: Local :COMMUNICATE:REMOTE ON Example :COMMUNICATE:REMOTE? ->...
  • Page 127 = - 20.00PCT |-20.00 to 20.00PCT |20.00 - 20.00PCT |-20.00 : -20.00 % 20.00PCT |20.00 : 20.00 % MINimum: Minimum value ( -20.00 % ) MAXimum: Maximum value (20.00%) :DEVIATION:VALUE -20.00 Example :DEVIATION:VALUE? -> -20.00 Index Index 13-5 13-5 IM 2560A-01EN...
  • Page 128 :DIVIDER:DENOMINATOR? -> 4 :DIVider:NUMerator Function Sets or queries the numerator n of the output divider. :DIVider:NUMerator {<NRf>|MINimum| Syntax MAXimum} :DIVider:NUMerator? <NRf> = 0 to denominator m MINimum: 0 MAXimum: Denominator m :DIVIDER:NUMERATOR 4 Example :DIVIDER:NUMERATOR? -> 4 13-6 13-6 IM 2560A-01EN...

  • Page 129: Output Group

    :OUTPUT:POLARITY:MAXimum NORMal Example :OUTPUT:POLARITY:MAXimum? -> :OUTPUT:POLARITY:MAXimum NORMAL Description If the source function is RJTEMP and you set the polarity, a “221: Setting conflict” error will occur. NORMal is returned as a response to a query. Index Index 13-7 13-7 IM 2560A-01EN...

  • Page 130: Source Group

    6. If the resolution mode is set to HIGH, the :SOURCE:LEVEL:AUTO 10V Example main setting can be set only when the source :SOURCE:LEVEL:AUTO? function is set to VOLTage or CURRent. -> :SOURCE:LEVEL:AUTO 10.0000E+00 Another digit is added to the resolution. 13-8 13-8 IM 2560A-01EN...
  • Page 131 :SOURce:SLEVel:MAXimum command. 3. For other notes, see items 3 to 6 in the 3. For other notes, see items 3 to 6 in the description of the :SOURce:LEVel[:AUTO] description of the :SOURce:LEVel[:AUTO] command. command. Index Index 13-9 13-9 IM 2560A-01EN...
  • Page 132 Voltage :SOURCE:READ CURRent Current Current 100.000E+00,100.000E+00 RESistance Resistance Resistance 1000V range TCouple Temperature Thermo- :SOURCE:READ electromotive 1.00000E+03,1.00000E+03 force 400OHM range Temperature Resistance :SOURCE:READ 400.00E+00,400.00E+00 TCouple :SOURCE:READ 1.0000E+03,40.2050E-03 :SOURCE:READ 100.00E+00,138.51E+00 When the output is OFF :SOURCE:READ 9.91E+37,9.91E+37 13-10 13-10 IM 2560A-01EN...
  • Page 133 A correction is performed using a manually 10.00000E-03,10.00000E-03 input temperature. You can set the temperature 100 mV or 100 mA range from the 2560A front panel (see section :SOURCE:READ 6.6 and chapter 4). You can also set it with 100.0000E-03,100.0000E-03...
  • Page 134 Example in the following table. -> :SOURCE:RJC:TEMPERATURE: :SOURCE:RTD:WRITE EXTERNAL 0.0 Writes the user definitions to the 2560A’s Description If the reference junction temperature is outside internal memory. The user definitions take the measurement range, 9.9E+37 or –9.9E+37 is effect. :SOURCE:FUNCTION RTD returned.
  • Page 135 “C” will be displayed in the dot matrix LEDs of the set to positive. 2560A front panel. 2. To set the value without the sign, use the If set to a single character, “°C” will be displayed :SOURce:LEVel[:AUTO] command.
  • Page 136 :SOURCE:TCOUPLE:WRITE set to positive. Writes the user definitions to the 2560A’s 2. To set the value without the sign, use the internal memory. The user definitions take :SOURce:LEVel:MAXimum command.
  • Page 137 Writes a user-defined thermocouple. :SOURce:TCouple:WRITe Syntax :SOURCE:TCOUPLE:WRITE Example Description The user definition set with the :SOURce:TCouple:DEFine command is written to the 2560A’s internal memory. :SOURce:TYPE Function Sets or queries the thermocouple or RTD type. :SOURce:TYPE {R|S|B|J|T|E|K|N|C|A| Syntax PT100|USER} :SOURCE:TYPE B Example :SOURCE:TYPE? ->...
  • Page 138 Syntax :STATus:QMESsage? :STATus:ERRor? :STATUS:QMESSAGE OFF Example :STATUS:QMESSAGE? Function Queries the error code and message of the last -> :STATUS:QMESSAGE 0 error that has occurred (top of the error queue). :STATus:ERRor? Syntax :STATUS:ERROR? Example -> 113,"Undefined header" 13-16 13-16 IM 2560A-01EN...
  • Page 139 DOWN: Down sweeping is executed. :SWEEP:DIRECTION UP Example :SWEEP:DIRECTION? -> UP :SWEep:TIMe Function Sets or queries the sweep time. :SWEep:TIMe < Time > Syntax :SWEep:TIMe? <Time>: 8S, 16S, 32S, 64S :SWEEP:TIME 16S Example :SWEEP:TIME? -> 16 Index Index 13-17 13-17 IM 2560A-01EN...

  • Page 140: System Group

    Sets or queries the Ethernet default gateway. :SYSTem:COMMunicate:ETHernet: -> :SYSTEM:COMMUNICATE:ETHERNET: Syntax GATEway < String > MASK "255.255.255.0" :SYSTem:COMMunicate:ETHernet: GATEway? <String> = "x.x.x.x": x = 0 to 255 :SYSTEM:COMMUNICATE:ETHERNET: Example GATEWAY "192.168.0.1" :SYSTEM:COMMUNICATE:ETHERNET: GATEWAY? -> :SYSTEM:COMMUNICATE:ETHERNET: GATEWAY "192.168.0.1" 13-18 13-18 IM 2560A-01EN...
  • Page 141 13.9 SYSTem Group :SYSTem:COMMunicate:GPIB? :SYSTem:REBoot Function Queries all the GP-IB communication settings. Function Restarts the 2560A when the specified time :SYSTem:COMMunicate:GPIB? Syntax elapses. :SYSTem:REBoot < Time > Syntax :SYSTem:COMMunicate:GPIB:ADDRess <Time> = 0 (S) to 60 (S) :SYSTEM:REBOOT 3 Function Sets or queries the GP-IB address.
  • Page 142 *OPC? -> 1 Example status byte register is not set to 1, even if a Description The 2560A does not have overlap commands. 1 query error occurs. is always returned. • The default value is *ESE 0 (all bits disabled).
  • Page 143 When receiving a response from Description • Specify the value as a sum of the values of the 2560A, set the timeout to a relatively large each bit in decimal format. value. • For example, specifying *SRE 239 will cause...

  • Page 144: Chapter 14 Status Reports

    & & & & & & Standard event register Extended event enable register & & & & & & & & & & & & & & & & Extended event register Transition filter Condition register Index 14-1 IM 2560A-01EN...
  • Page 145 For example, use the *ESE command to set the standard event enable register bits to 1 and 0. You can use the *ESE? command to query whether the standard event enable register bits are ones or zeros. For details on these commands, see chapter 13. 14-2 IM 2560A-01EN...

  • Page 146: Status Byte

    1 when an error occurs. of the service request enable register is 1, bit 6 (MSS) See section 14.5. is set to 1, and the 2560A requests service from the • Bit 3 EES (Extend Event Summary Bit) controller.

  • Page 147: Standard Event Register

    Command names are misspelled, or character You can also check what type of event occurred in the data that is not one of the available options has 2560A by reading the contents of the standard event been received. register. • Bit 4 EXE (Execution Error)
  • Page 148 The specified extended event register bit is set to 1 when the corresponding condition register bit changes from 1 to 0. BOTH The specified extended event register bit is set to 1 when the corresponding condition register bit changes from 0 to 1 or from 1 to 0. NEVer Always zero. Index 14-5 IM 2560A-01EN...

  • Page 149: Output And Error Queues

    • When a deadlock occurs (see section 10.1). • When a device clear command (DCL or SDC) is received. • When the 2560A is restarted. The *CLS command does not clear the output queue. You can determine whether or not the output queue is empty by checking bit 4 (MAV) in the status byte.

  • Page 150: Chapter 15 Troubleshooting, Maintenance, And Inspection

    Reference Nothing appears on the display when the power is turned on. Securely connect the power cord to the 2560A and to the power outlet. Set the supply voltage and frequency to within the permitted range. The output does not turn on.

  • Page 151: Error Indication

    15.2 Error Indication Various displays on the 2560A blinks or turns off if a setting is outside the selectable range or if a setting inconsistent with other settings is specified. This section explains the indications, possible causes, and their corrective actions.
  • Page 152 When the source range of the user-defined thermocouple is ±10.0°C and the RJC value is -20°C * Even if it goes outside the source range of the user-defined thermocouple, the 2560A will assume the RJC value to be 0.00°C (no reference junction compensation) and output thermoelectromotive force after applying reference junction compensation.
  • Page 153 • “+199.99” is shown for +60°C or higher. Example: If hot air is hitting the reference junction Correction Set the RJC value within the –20°C to +60°C range. However, if cause 1-2 or 1-3 persists, blinking of the RJC indicator will continue. 15-4 IM 2560A-01EN...
  • Page 154 Check the connection conditions or load. 3.5, 3.6 voltage or current amplifier. E.034 An overvoltage load was detected. Check the connection conditions or load. 3.5, 3.6 E.040 An error was detected in the user Check the syntax. Appendix 6 definition file. Index 15-5 IM 2560A-01EN...
  • Page 155 <Block data> cannot be used. 12-7 and Chapter 13 Block data not allowed. <Block data> cannot be used. 12-7 and Chapter 13 Missing Right Mathematical operations cannot be used. — Invalid expression. Mathematical operations cannot be used. Chapter 13 15-6 IM 2560A-01EN...
  • Page 156 Corrective Action Page Expression data not allowed. Mathematical operations cannot be used. Chapter 13 Invalid outside macro definition. The 2560A does not support the IEEE 488.2 macro — specifications. Communication Execution Errors (200 to 299) Error in communication execution Code...
  • Page 157 Communication commands cannot be executed because — the RANGE dial is set to SETUP. System Errors (900/999) Code Message Corrective Action Page 911 to CPU board error. For details about the message and corrective action, 15-4 see section 15.3. 15-8 IM 2560A-01EN...

  • Page 158: Displaying The Error Log

    “NEXT” appears on the deviation display. All the PRESET indicators turn on. Flip the PRESET switch down. The error log menu appears. All the PRESET indicators turn off. PRESET indicator PRESET switch Main setting dials (use any) 3. Display the error log menu. 2. Select ERROR. Index 15-9 IM 2560A-01EN...
  • Page 159 PRESET switch Main setting dials (use any) 5. Clear the error log. 4. Select ERROR. Note Once you clear the error log, you cannot undo it. Confirm that it is okay to perform this operation before execution. 15-10 IM 2560A-01EN...
  • Page 160 • Log numbers range from 1 to 64. Up to 64 errors can be logged. If more than 64 errors occur, communication error code 350 will occur. Check by connecting the 2560A to a PC through a communication interface. Clearing the Error Log You can clear the error log.

  • Page 161: Instrument Error Detection And Clearance

    For details on warning codes, see section 15.3. Clearing the Warning If a warning is detected and the 2560A trips, eliminate the cause, and then clear the warning display. • Flip the OUTPUT switch down (OFF) to clear the warning display.
  • Page 162 All the PRESET indicators turn on, the deviation display shows “EXIT,” and the output display shows “DONE.” Flip the PRESET switch down. The self-test execution menu returns. PRESET indicator PRESET switch 4. Return to the self-test execution menu. Index 15-13 IM 2560A-01EN...
  • Page 163 • If the self-test completes successfully, the deviation display shows “EXIT,” and the output display shows “DONE.” • If an error is detected, the error code will be displayed. Note • For details on error codes, see section 15.3. • If multiple errors occur, the error codes are displayed alternately. 15-14 IM 2560A-01EN...

  • Page 164: Initializing The Settings

    • The 2560A settings are initialized. All the PRESET indicators turn off. • The 2560A returns from the SETUP menu to source mode, and the range is set to 1 V. PRESET indicator PRESET switch Main setting dials (use any) 3.

  • Page 165: Displaying The Product Information

    PCL, AMP, BOOT, or SER.NO. The product information is displayed on the deviation display or output display according to the selected item. Display example of SER.NO Main setting dials (use any) 4. Select FIRM, PCL, AMP, BOOT, or SER.NO. 15-16 IM 2560A-01EN...
  • Page 166 You can displays the product information. Firmware (FIRM), Logic (PCL, AMP) and Boot (BOOT) Information The version of each program for controlling the 2560A system is displayed. You may need to check these when you update or repair the system.

  • Page 167: Cleaning The Filter

    Si le filtre raccordé aux orifices d'entrée est poussiéreux, l'admission d'air risque de s'obstruer, ce qui risque d'entraîner une surchauffe de l'équipement et sa panne. There is a filter attached to the air inlet on the rear panel of the 2560A. Check the filter periodically to see that it is not clogged.
  • Page 168 Then, let the filter dry naturally. Note If the filter is clogged, the temperature inside the 2560A will increase and will affect the operation and performance. Check the filter once every three months. How fast the filter gets dirty depends on the environment.

  • Page 169: Recommended Part Replacement

    1 year 15.12 Adjustment and Calibration Calibration We recommend that you calibrate the 2560A once a year to maintain its accuracy (1 year accuracy). Contact your nearest YOKOGAWA dealer to have your 2560A calibrated. Adjustment Contact your nearest YOKOGAWA dealer to have your 2560A adjusted. You can also adjust the 2560A by yourself.

  • Page 170: Chapter 16 Specifications

    11 Only for the 100 mA range, the specifications are defined for sinking current up to 30 mA. Immediately after sinking current that exceeds 30 mA, errors exceeding the accuracy specifications may occur due to the increased temperature inside the Index 2560A. 16-1 IM 2560A-01EN...
  • Page 171 When excitation current Is[mA] is between 0.1 mA and 1 mA, add (0.0025/Is) Ω. Thermocouple Thermoelectromotive Force Source The 2560A sources thermoelectromotive force that corresponds to the specified temperature. Type Source Range Setting Resolution Output Resistance -50°C to +1768°C...
  • Page 172 ±0.3°C of reference junction temperature measurement error. • The 2560A’s internal reference junction temperature measurement accuracy is ±0.3°C. • The external reference junction temperature measurement accuracy when the RJ sensor 257875 (sold separately) is used with the 2560A is ±0.3°C (typical value).
  • Page 173 16.1 Source Section RTD Resistance Source The 2560A sources resistance that corresponds to the specified temperature. Type Source Range Setting Resolution Excitation Current Pt100 -200.0°C to +850.0°C 0.1°C 0.1 mA to 2 mA -9999.9°C to +9999.9°C RTD USER However, within the temperature 0.1°C...
  • Page 174 10 µA/V or less Output Value Equation The output value of the 2560A is calculated from the scale, output divider, and deviation settings within source range of each range. The relational expression is shown below. Output value = MIN + (MAX − MIN)×(n/m) + (MAX − MIN)×(−deviation) MAX: Maximum value of the scale (output range) (see section 2.4)

  • Page 175: Functions

    Select the time for changing the setting from 0% to 100% or 100% to 0% from approx. 8 s, approx. 16 s, approx. 32 s, and approx. 64. Reference junction The following three modes. The 2560A corrects the sourced thermoelectromotive force (RJC) compensation (RJC) according to the selected mode.

  • Page 176: External Input

    The next time the power is turned on, the 2560A starts with those settings. Error log Logs the error codes of the errors that the 2560A detects. The error log can also be displayed. Self-test Performs a self-test on its condition.

  • Page 177: Computer Interface

    HS (High Speed; 480 Mbps) and FS (Full Speed; 12 Mbps) Supported protocols USBTMC-USB488 (USB Test and Measurement Class Ver.1.0) GP-IB commands can be used through USB. Mass Storage Class Ver. 1.1 The 2560A can be accessed from a PC. 16-8 IM 2560A-01EN...
  • Page 178 After warm-up time has passed Warm-up time Approx. 30 minutes (after acclimatizing the 2560A to the operating environment for at least an hour) If the instrument has been stored in a hot-temperature, high-humidity environment, warm up the instrument for at least a day.
  • Page 179 Pollution degree 2 applies to normal indoor atmospheres (with only non-conductive pollution). 3 The measurement category of the 2560A terminals is Other (O). Do not use it to measure the main power supply or for Measurement Categories II, III, and IV.

  • Page 180: Rj Sensor 257875 Specifications

    Approx. 1 mA Withstand voltage 100 VAC for 1 minute between the 257875 measurement section and the 2560A case (Withstand voltage when the sensor is connected to the 2560A’s external RJ sensor input terminal) Cord length Approx. 1.95 m •...

  • Page 181: External Dimensions

    16.7 External Dimensions Unit: mm Rear view (24.5) Unless otherwise specified, tolerances are ±3% (however, tolerances are ±0.3 mm when below 10 mm). 16-12 IM 2560A-01EN...

  • Page 182: Appendix

    The 2560A does not use relays to invert the polarity for ranges other than 1000 V and 10 A, so glitches due to polarity switching do not occur. The control system on the isolated side is surrounded by a guard potential to suppress the effects of common-mode noise.

  • Page 183: Appendix 2 Example Of Meter And Transducer Calibration

    The 2560A enables you to set a preset to make the meter needle point to a position short of the accurate scale position of the next calibration point when the voltage or current is output.
  • Page 184 4. Vary the numerator n from 0 to 4, and for each setting turn the deviation dials to align the meter needle. For details on 2560A configuration, see chapter 5 and sections 7.1 and 7.2. Main setting (MAX) = 20 mA...
  • Page 185 Output Note For temperature, the source range of the positive side of the 2560A and that of the negative side are different. When setting main setting (MAX) and main setting (MIN), if the source range is exceeded as a result of changing the polarity, the main setting and polarity blink. If you turn any of the main setting dials in this condition, the main setting is set to the maximum absolute value within that polarity’s source range, and...

  • Page 186: Appendix 3 Thermocouple Calibration Wiring Examples

    0.00°C. For details on 2560A configuration, see section 6.6. Set the thermocouple type, temperature, and the like, and calibrate. For details on 2560A configuration, see sections 6.1 to 6.4. When Using the Internal Reference Junction Compensation Wiring Example...
  • Page 187 For details on 2560A configuration, see section 6.6. Set the thermocouple type, temperature, and the like, and calibrate. • For details on 2560A configuration, see sections 6.1 to 6.4. • Reference junction compensation error is added to the thermocouple temperature source accuracy.

  • Page 188: Appendix 4 Rtd Calibration Wiring Examples

    Note To calibrate more accurately, use the fork terminal adapter set 758921 (included or sold separately) to connect the lead wires (A and B) on the sensing side to the fastening sections of the 2560A output terminals. Four-wire system Three-wire system...

  • Page 189: Appendix 5 Two-Unit Parallel Connection

    Appendix 5 Two-Unit Parallel Connection When two units are connected in parallel to the large current terminals of the 2560A, up to 73.44 A of DC current can be output to the two units. Output target device Note The specifications of accuracy, stability, and temperature coefficient are those obtained by adding the values for two units.
  • Page 190 Lower limit of Lower limit of Lower limit of temperature temperature temperature range 1 range 2 range k The 2560A calculates resistance Ru [Ω] at temperature t [°C] using the polynomial and outputs the Index resultant value. App-9 IM 2560A-01EN...

  • Page 191: Appendix 6 User Definitions Of Thermocouples And Rtds

    Write the user-defined data from a definition file to the 2560A using the USB mass storage feature. Before the data is written, the 2560A checks for errors in the data. If there are no errors, the data will be written to the 2560A’s internal memory. If data is already written, it is updated. If there is an error, the contents in the internal memory will not be updated.
  • Page 192 Can be set using a fixed-point number or floating-point number. If omitted, 0 is set. Up to 21 coefficients can be set. Use a comma to delimit the coefficients. Set the coefficients so that the thermoelectromotive force or resistance do not exceed the maximum output. Index App-11 IM 2560A-01EN...
  • Page 193 (') or double quotation marks ("). • You can assign a character to identify among different types of user definitions. • You can delete the user-defined data written in the 2560A’s internal memory. User-Definition Error Messages...

  • Page 194: Appendix 7 List Of Default Settings And Settings That Are Saved

    ° Temperature unit (only on models with the -UF °C suffix code) Beep sound GP-IB Interface addresses Command type (TYPE) NORMAL Ethernet DHCP interface (LAN) IP address 192.168.0.1 Subnet mask 255.255.255.0 Default gateway 0.0.0.0 USB interface Index App-13 IM 2560A-01EN...

  • Page 195: Appendix 8 About The Ieee 488.2-1992 Standard

    Appendix 8 About the IEEE 488.2-1992 Standard The 2560A’s GP-IB interface conforms to the IEEE 488.2-1992 standard. This standard specifies that the following 23 items be stated in the document. This section describes these items. (1) Of the IEEE 488.1 interface functions, the...
  • Page 196 Appendix 9 ASCII Character Codes This section provides a table of ASCII character codes. ‘ ” & ’ < > (RUBOUT) addresses Universal Listener Talker Secondary commands commands addresses addresses commands Example Octal GP-IB code ASCII character code Hexadecimal Decimal Index App-15 IM 2560A-01EN...
  • Page 197 LED ................ 1-3 IP address ..............10-4, 13-18 DOWN ................13-17 DOWN indicator..............1-5 Page DOWN sweep ..............1-5, 7-6 large current output terminals ..........1-1 leg cap ................iv, 3-4 LLO (Local Lockout) ............... 9-8 Index Index-1 IM 2560A-01EN...
  • Page 198 SDC (Selected Device Clear) ..........9-8 PCL ..................15-17 self-test ..............13-21, 15-13 PMT ..................12-1 sequential commands............12-8 polarity ................5-3, 6-3 serial number ..........2-12, 13-20, 15-17 polarity display ................ 1-3 SER.NO ................15-17 polarity indicator ..............1-5 Index-2 IM 2560A-01EN...
  • Page 199 Page version .................. 2-12 voltage .................. 12-6 voltage range settings ............5-1 Page warm-up.................. 3-8 warm-up time ................ 16-9 warning ................. 15-8 warning, clearing ..............15-12 warning codes ..............15-5 Index warning detection (trip detection) ........15-12 Index-3 IM 2560A-01EN...

Table of Contents
