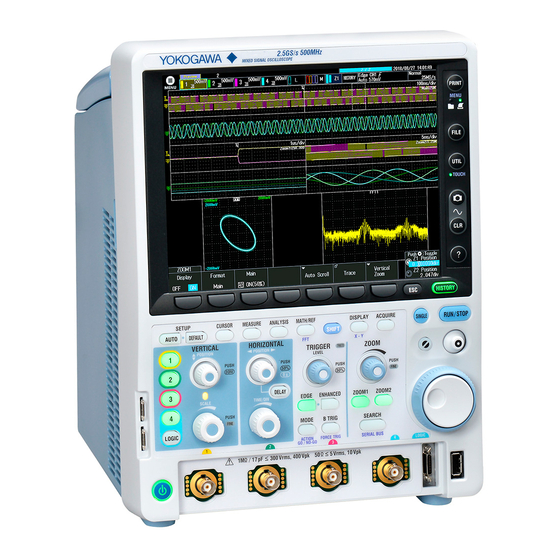

Page 1 DLM3022, DLM3032, DLM3052 Digital Oscilloscope DLM3024, DLM3034, DLM3054 Mixed Signal Oscilloscope Features Guide IM DLM3054-01EN 1st Edition nbn Austria GmbH...
Page 2 • Every effort has been made in the preparation of this manual to ensure the accuracy of its contents. However, should you have any questions or find any errors, please contact your nearest YOKOGAWA dealer. • Copying or reproducing all or any part of the contents of this manual without the permission of YOKOGAWA is strictly prohibited.
Page 3: Manuals
The following manuals, including this one, are provided as manuals for this instrument. Please read all manuals. Manual Title Manual No. Description DLM3022, DLM3032, DLM3052 IM DLM3054-01EN This document. The supplied CD contains the PDF file of this Digital oscilloscope manual.
Page 4: Table Of Contents
Contents Manuals ............................ii Vertical Axis (Analog Signal) Turning the Display On and Off (Display) ..................1-1 Vertical Scale (SCALE knob) ......................1-1 Waveform Vertical Position (POSITION knob) ................1-2 Input Coupling (Coupling) ......................1-3 Probe Attenuation (Probe) ......................1-3 Inverted Waveform Display (Invert) ....................
Page 5 Contents FlexRay Bus Trigger [ENHANCED, option] ................4-24 CAN Bus Trigger [ENHANCED, option] ..................4-30 CAN FD Bus Trigger [ENHANCED, option] ................4-38 LIN Bus Trigger [ENHANCED, option] ..................4-44 CXPI Bus Trigger [ENHANCED, option] ..................4-48 SENT Trigger [ENHANCED, option] ................... 4-56 UART Trigger [ENHANCED, option] ...................
Page 6 Contents Computed and Reference Waveforms Computation Mode (Mode) ......................9-1 Computation Source Waveforms (Source1/Source2) ..............9-1 Reference Waveforms ........................9-2 Operators (Operation) ........................9-3 Initial Point (Initial Point) ....................... 9-6 Setting Labels and Units (Label/Unit) ................... 9-6 Scaling (Ranging) ......................... 9-7 User-Defined Computation (User Define, Option) ................
Page 7 Contents Zooming in on Waveforms Turning the Zoom Windows On or Off (Display) ................. 13-1 Display Format (Format) ......................13-1 Displaying the Main Window (Main).................... 13-2 Auto Scrolling (Auto Scroll) ......................13-2 Zoom Source Waveforms (Trace) ....................13-2 Zoom Factor (ZOOM knob)......................13-2 Zoom Position (Z1 Position, Z2 Position)..................
Page 8 Contents Waveform Histogram Display Turning the Histograms On or Off (Display) ................16-1 Source Waveform (Trace) ......................16-1 Source Axis (Type) ........................16-1 Range Setup (Range Setup)....................... 16-1 Measurement (Measure Setup) ....................16-2 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Overview of the Power Supply Analysis Feature ................
Page 9 Contents Ethernet Communication (Network) TCP/IP(TCP/IP) .......................... 21-2 FTP Server (FTP Server) ......................21-3 Mail (Mail) ........................... 21-4 Network Drive (Net Drive) ......................21-5 Network Printer (Net Print) ......................21-6 SNTP (SNTP) ..........................21-6 Other Features Auto Setup (AUTO SETUP) ......................22-1 Default Settings (DEFAULT SETUP) ..................
Page 10: Vertical Axis (Analog Signal)
1 Vertical Axis (Analog Signal) You can configure the vertical scale, vertical position, input coupling, probe attenuation, linear scaling, and bandwidth limit settings of the CH1 through CH4 input signals. If you are using a probe that is compatible with this instrument’s probe interface, the instrument automatically configures the input impedance (50 Ω...
Page 11: Waveform Vertical Position (Position Knob)
1 Vertical Axis (Analog Signal) • The SCALE knob has a push switch. If you push the SCALE knob, the FINE indicator illuminates, and you can set the vertical scale with higher resolution. Measurement Resolution and Effective Data Range This instrument uses an 8-bit A/D converter to sample the input signal. The instrument’s effective data range is 250 levels (LSB).
Page 12: Input Coupling (Coupling)
1 Vertical Axis (Analog Signal) Input Coupling (Coupling) You can change the coupling used to input analog signals into the vertical (voltage) control circuit. Select one of the following input coupling options. Displays only the AC component of the input signal. The input impedance is 1 MΩ. Displays both the AC and DC components of the input signal.
Page 13: Inverted Waveform Display (Invert)
Demagnetization and automatic zero adjustment of current probes can be executed when all the following conditions are met. • A current probe with a YOKOGAWA probe interface (e.g., PBC100, PBC050) is connected to the signal input terminal. • The input coupling is set to DC.
Page 14: Label Display (Label)
1 Vertical Axis (Analog Signal) Unit (Unit) You can set the unit using up to four alphanumeric characters. Scaling Coefficient (A) and Offset (B) The selectable ranges of scaling coefficient A and offset B are as follows: Selectable of A and B −10.000E+30 to +10.000E+30 Default settings 1.0000E+00...
Page 15 1 Vertical Axis (Analog Signal) Offset Cancel (Offset Cancel) You can set whether or not to apply the specified offset to various measured values. The offset-cancel feature ON/OFF setting applies to all channels. The default setting is off. • ON The specified offset is applied to the result of cursor measurements, computations, and automated measurement of waveform parameters.
Page 16: Vertical Axis (Logic Signal)
2 Vertical Axis (Logic Signal) You can configure the vertical display range, bus display on/off, threshold level, and other settings for the input (logic) signals. Logic signals are applied through the logic signal input port (8 bits) on the front panel. Turning the Display On and Off (Display) Select whether to show or hide the logic signal waveform.
Page 17 2 Vertical Axis (Logic Signal) Threshold Level (Threshold, Level) Set the level (threshold level) of the logic signal to detect, high or low. Preset (Threshold) Selecting from the following presets automatically sets the threshold level. If you select User, you can set the level in the range of −10 V to 10 V in 0.1 V steps. CMOS(5 V) 2.5 V CMOS(3.3 V)
Page 18: Bus Display (Bus)
2 Vertical Axis (Logic Signal) Bus Display (Bus) Bits 0 to 7 can be displayed as bus signals. Turning the Display On and Off (Display) You can turn the bus display on and off. If you turn it on, a bus display appears according to the specified bus bit assignments (Assignment), label (Name), and format (Format).
Page 19: State Display (State)
2 Vertical Axis (Logic Signal) State Display (State) The state display shows logic signal data that has been sampled on the edge of the signal specified as the clock source. Even when the input signal changes, the state is retained until the clock source edge changes. Display ON/OFF (State) You can turn the state display on and off.
Page 20: Setting The Display Order Of Bits And The Bus (Bit Order)
2 Vertical Axis (Logic Signal) Assignment(Assignment) You can set whether to apply the state display separately for the bus and each bit. You can also set them all at once. Source Bit (Source Bit) Set this when the clock source is set to LOGIC. Select from the following. Bit0 to Bit7 Setting the Display Order of Bits and the Bus (Bit Order) Set the vertical display order of bits and the bus on the screen.
Page 21: Horizontal Axis (Time Axis)
3 Horizontal Axis (Time Axis) Time Scale (TIME/DIV knob) Set the time scale as a length of time per grid division. You can adjust the amount of time that you want to display waveforms for by setting the time scale. Because the horizontal display range is 10 divisions, the amount of time displayed is equal to the TIME/DIV setting ×...
Page 22 3 Horizontal Axis (Time Axis) Roll mode display In roll mode, the displayed waveform is not updated using triggers. Rather, the oldest data is deleted as new data is acquired, and the waveform flows from the right to the left of the screen. This mode is useful for observing low-frequency signals or signals that change slowly.
Page 23: Triggering
4 Triggering Triggers are events used to display waveforms. A trigger occurs when the specified trigger condition is met, and a waveform is displayed on the screen. Trigger mode (Trigger Mode) The trigger mode determines the conditions for updating the displayed waveforms. There are five trigger modes. Auto Mode (Auto) If the trigger conditions are met within a timeout period, the instrument updates the displayed waveforms on each trigger occurrence.
Page 24: Trigger Type (Type)
4 Triggering Trigger Type (Type) The following trigger types are available. EDGE • Edge trigger: Triggers on the edges of a single trigger source (a simple trigger). ENHANCED • Edge OR trigger: Triggers on the OR logic of multiple trigger source edges. •...
Page 25: Signal Type And Trigger Type Combinations
4 Triggering Signal Type and Trigger Type Combinations The signal type (analog or logic) determines what trigger types you can use. CH1 to CH4 LOGIC Mixed Edge − Edge OR Pattern Pulse Width − Rise/Fall Time − Runt − Timeout −...
Page 26: Basic Trigger Settings
4 Triggering Basic Trigger Settings • Trigger source: The trigger source signal. • Trigger slope: Specifies which edge, rising or falling, the instrument will trigger on. • Trigger level: The trigger determination level. • Trigger position: The position where the trigger point will be displayed. •...
Page 27 4 Triggering Trigger Level (Level) Trigger level refers to the signal level used as a reference for detecting a signal’s rising and falling edges or high and low states. With simple triggers such as the edge trigger, the instrument triggers when the trigger source level passes through the specified trigger level.
Page 28 4 Triggering HF Rejection (HF Rejection) Use HF rejection when you want to remove the high-frequency components (above approximately 15 kHz or 20 MHz) from the trigger signal. You can select from one of the settings below. You cannot use HF rejection when the trigger source is set to LOGIC, EXT, or LINE.
Page 29 4 Triggering • If you change the trigger position when waveform acquisition is stopped, the instrument re-displays waveforms using the new position. • The time values of cursor measurements are based on the trigger position. If you change the trigger position, the measured values will change (except during roll mode display).
Page 30: Edge Or Trigger [Enhanced]
4 Triggering • In repetitive sampling mode, waveform updating may slow down. If this happens, reduce the hold-off time setting. • To trigger with the hold-off time set longer than the timeout period of auto trigger and auto level trigger, set the trigger mode to Normal.
Page 31: Pattern Trigger [Enhanced]
4 Triggering Pattern Trigger [ENHANCED] The instrument triggers on whether the trigger source pattern matches the specified patter or on the pattern duration. You can also use a clock source. When a Clock Source Is Specified Example 1 The results of comparing the combination (Logic) of the trigger source signal pattern (Pattern) and the specified pattern are sampled on the edges of the clock source, and the instrument triggers at the point of change in the comparison results (Enter or Exit of the trigger condition (Condition)).
Page 32 4 Triggering When a Clock Source Is Not Specified Example 1 The instrument triggers at the point of change in the results (Enter or Exit of the trigger condition (Condition)) of comparing the combination (Logic) of the trigger source signal pattern (Pattern) and the specified pattern are sampled on the edges of the clock source.
Page 33 4 Triggering Examples of Various Time Conditions The following figure illustrates the trigger points when various time conditions are met. More than, Less than, Inside, Outside: Triggers at the end point of the trigger condition achievement time (t) Timeout: Triggers when a timeout occurs More than Less than Time...
Page 34 4 Triggering Combination (Logic) Select the trigger source combination from one of the settings below. Allows triggering when all the trigger source signal patterns match the specified pattern Allows triggering when any of the trigger source signal patterns matches the specified pattern Trigger Condition (Condition) Select the condition for judging the results of comparing the trigger source signal pattern and the specified pattern.
Page 35: Pulse Width Trigger [Enhanced]
4 Triggering Level (Level), HF Rejection (HF Rejection), Noise Rejection (Noise Rejection) Set these items for the trigger source. These items are the same as those of the edge trigger. Trigger Position (POSITION), Trigger Delay (DELAY), Trigger Hold-Off (Holdoff) These items are the same as those of the edge trigger. •...
Page 36: Rise/Fall Time Trigger [Enhanced]
4 Triggering Level (Level), HF Rejection (HF Rejection), Noise Rejection (Noise Rejection) Set these items for the trigger source. These items are the same as those of the edge trigger. Trigger Position (POSITION), Trigger Delay (DELAY), Trigger Hold-Off (Holdoff) These items are the same as those of the edge trigger. •...
Page 37 4 Triggering Time Condition (Time Qualification) Set what kind of relationship must be established between the trigger source’s rising or falling times and the specified reference times (Time1 and Time2) for the instrument to trigger. More than When the rise time or fall time is longer than the specified reference time Less than When the rise time or fall time is shorter than the specified reference time Inside...
Page 38: Runt Trigger [Enhanced]
4 Triggering Runt Trigger [ENHANCED] Runt pulses* are used to trigger the instrument. The instrument also triggers when the relationship between the runt pulse width and the specified reference times meets the selected time condition. * A signal that passes through the first threshold level but returns to the original level without passing the other threshold level.
Page 39: Timeout Trigger [Enhanced]
4 Triggering Reference Range (Upper Level/Lower Level) Set the upper and lower levels of the reference range. HF Rejection (HF Rejection), Noise Rejection (Noise Rejection) Set these items for the trigger source. These items are the same as those of the edge trigger. Trigger Position (POSITION), Trigger Delay (DELAY), Trigger Hold-Off (Holdoff) These items are the same as those of the edge trigger.
Page 40: Window Trigger [Enhanced]
4 Triggering Trigger Position (POSITION), Trigger Delay (DELAY), Trigger Hold-Off (Holdoff) These items are the same as those of the edge trigger. • The instrument may not trigger properly if the spacing between signals or the time detection width is less than 1 ns.
Page 41 4 Triggering Reference Range (Upper Level/Lower Level) Set the upper and lower levels of the reference range. Time Condition (Time Qualification) Set whether the trigger source must be inside (IN) the specified range or outside (OUT) the specified range (Window) and what kind of relationship must be established with the specified reference times (Time or Time1 and Time2) for the instrument to trigger.
Page 42: Window Or Trigger [Enhanced]
4 Triggering Window OR Trigger [ENHANCED] The instrument triggers on the OR logic of the ranges (window) of multiple trigger sources. Example When CH1 = and CH2 = Upper Level CH1 Lower Level CH1 Upper Level CH2 Lower Level CH2 Trigger Trigger Trigger...
Page 43: Interval Trigger [Enhanced]
4 Triggering Interval Trigger [ENHANCED] The instrument triggers when the relationship between the trigger source’s period (i.e., the interval between edges) and the specified reference times meets the selected time condition. When the time condition is timeout, the instrument triggers when a timeout occurs. Example Source: CH1 , Time Qualification: More than (t >...
Page 44 4 Triggering • The instrument may not trigger properly if the spacing between signals or the time detection width is less than 1 ns. • Under standard operating conditions, the time accuracy immediately after calibration is as follows: CH1 to CH4: ±(0.002% of setting + 450 ps) LOGIC: ±(0.002% of setting + 1 ns)
Page 45: Serial Bus Trigger [Enhanced]
* Using YOKOGAWA free software, you can convert a CANdb file (.dbc) to a physical value/symbol definition file, (.sbl), load the file into the instrument, and use it as a set of trigger conditions. You can obtain the free software from the YOKOGAWA website (http://www.yokogawa.com/tm/).
Page 46: Flexray Bus Trigger [Enhanced, Option]
4 Triggering I2C bus trigger The I C bus trigger is used to capture I C bus signals. An Inter Integrated Circuit (I C) bus is a bi-directional bus for inter-IC communications. SPI bus trigger The SPI bus trigger is used to capture SPI bus signals. A Serial Peripheral Interface (SPI) is a synchronous serial bus that is widely used for inter-IC communications and data communications.
Page 47 4 Triggering Error The instrument triggers when it detects various types of errors. • Error Type (Error Type Or) Select the types of errors to detect from the following. The instrument triggers if any of the selected errors is detected. CRC When a Header CRC or Frame CRC error is detected When a BSS error is detected (there is no BSS falling edge at the specified position) When an FES error is detected (there is no FES rising edge at the specified position)
Page 48 4 Triggering You can use an 11-bit ID value as a trigger condition. Comparison Condition (Condition) The frame ID trigger condition is met when the relationship between the reference value and the input- signal ID value matches the specified comparison condition. ID=a When the value is equal to the reference value ID≠a...
Page 49 4 Triggering Data Pattern (Hex/Bin) If the comparison condition is set to True or False, set the data pattern for the specified data size in hexadecimal (Hex) or binary (Bin) notation. If you specify X in the pattern, the condition is assumed to be met regardless of the corresponding bit status.
Page 50 4 Triggering Source (Source) Select the trigger source. After selecting the trigger source, configure the trigger level, hysteresis, bit rate, bus channel assignment, HF rejection, and other settings. Trigger Level (Level) You can set the FlexRay bus signal trigger level for each channel from CH1 to CH4. Set the trigger level between the levels set for Idle and Data_0 so that the trigger circuit recognizes Data_1 and Idle as H and Data_0 as L.
Page 51 4 Triggering Trigger Point The trigger occurs near the BSS falling edge immediately after all the trigger conditions are met. The only exception is that the trigger occurs near the FES rising edge when the trigger mode is set to Error, there is no CRC error in the FlexRay bus signal header, and there is only a CRC error in the frame.
Page 52: Can Bus Trigger [Enhanced, Option]
4 Triggering Digitalization in the Trigger Circuit After the input signal from the FlexRay bus is digitized by the trigger comparator, the trigger circuit samples it using the internal clock. Then noise is removed by the majority filter in the Voting Window. Internal sampling clock Glitch...
Page 53 4 Triggering ID/Data The instrument triggers based on data frames and remote frames in the standard format (Standard) and the extended format (Extend). The instrument triggers on the AND of the SOF, ID, frame type (Remote Frame or Data Frame), Data, and ACK conditions.
Page 54 4 Triggering Comparison Condition (Condition) The data trigger condition is met when the result of comparing the data pattern or reference value to the input signal’s data field meets the specified comparison condition. True When the value matches the data pattern False When the value does not match the data pattern Data=a...
Page 55 4 Triggering Comparison Range (MSB/LSB) Set the MSB (MSB) or LSB (LSB) bit positions for the data that you will compare. For example, if you want to compare bits 5 through 20 of a 4-byte data value (12345678: hexadecimal), set the MSB to 20 and the LSB to 5.
Page 56 4 Triggering ID OR The instrument triggers based on data frames and remote frames in the standard format (Standard) and the extended format (Extend). The instrument triggers on the AND of the SOF, multiple IDs, frame type (Remote Frame or Data Frame), and ACK conditions.
Page 57 4 Triggering Source (Source) Select the trigger source. After selecting the trigger source, configure the trigger level, hysteresis, bit rate, recessive level, HF rejection, sample point, and other settings. Source (Source) Set the trigger source to one of the settings below. CH1 to CH4 Bit Rate (Bit Rate) Select the CAN bus signal’s transfer rate from one of the settings below.
Page 58 4 Triggering Frame Format and Trigger Point The following figures illustrate the formats and trigger points of the various frames. Data Frame (Data Frame) • Standard format CAN Data Frame Arbitration Field Control Field Data Field CRC Field Recessive Data ID 10 - 0 3 - 0 Sequence...
Page 59 4 Triggering Error Frame Error Frame Recessive Data Frame Error Flag Error Delimiter Remote Frame Dominant 6 ≤ Error Flag ≤ 12 If the mode is set to Error Frame, the trigger point is the 6th error flag bit. Stuff Error (Stuff Error) The trigger point is the sample point of the bit that violates the bit stuffing rule.
Page 60: Can Fd Bus Trigger [Enhanced, Option]
4 Triggering CAN FD Bus Trigger [ENHANCED, option] The instrument triggers based on the trigger conditions of a particular frame or type of data in a CAN FD bus signal (ISO 11898-1: 2015 or non-ISO). CAN FD (ISO 11898-1: 2015) CAN FD Data Frame (Standard) Arbitration Field Control Field...
Page 61 4 Triggering ID/Data The instrument triggers based on data frames and remote frames in the standard format (Standard) and the extended format (Extend). The instrument triggers on the AND of the SOF, ID, frame type (Remote Frame or Data Frame), Data, and ACK conditions.
Page 62 4 Triggering • If the comparison size (Size) is set to 0, comparison start position (Position) cannot be set. • The selectable range for position is limited so that Size + Position is less than or equal to 64. Comparison Condition (Condition) The data trigger condition is met when the result of comparing the data pattern or reference value to the input signal’s data field meets the specified comparison condition.
Page 63 4 Triggering ID OR This item is the same as that of the CAN bus trigger. Set the FDF bit state as a trigger condition. 0 (CAN): When the FDF bit is dominant, the instrument assumes that the frame is a CAN bus signal frame and triggers.
Page 64 4 Triggering Recessive Level (Recessive) This item is the same as that of the CAN bus trigger. Level (Level), HF Rejection (HF Rejection) Set these items for the trigger source. These items are the same as those of the edge trigger. Hysteresis (Hysteresis) This item is the same as that of the CAN bus trigger.
Page 65 4 Triggering Frame Format and Trigger Point The following figures illustrate the formats and trigger points of the various frames. Data Frame (Data Frame) • Standard format CAN FD (ISO 11898-1: 2015) CAN FD Data Frame (Standard) Arbitration Field Control Field Data Field CRC Field Recessive...
Page 66: Lin Bus Trigger [Enhanced, Option]
4 Triggering Remote Frame (Remote Frame) This is the same as the CAN bus trigger. Error Frame (Error Frame) This is the same as the CAN bus trigger. Stuff Error (Stuff Error, Fixed Stuff) The trigger point is the sample point of the bit that violates the bit stuffing rule. CRC Error (CRC Error) CRC errors are indicated in the data-frame and remote-frame figures.
Page 67 4 Triggering Error The instrument triggers when it detects various types of errors. • Error Type (Error Type Or) Select the types of errors to detect from the following. The instrument triggers if any of the selected errors is detected. Parity The instrument calculates the parity of the protected identifier field.
Page 68 4 Triggering Data Frame You can specify a value from Data 1 to Data 8 as a trigger condition. Data Length (Size) Set how many consecutive data bytes will be compared. Selectable range: 1 to 8 bytes Comparison Condition (Condition) The data trigger condition is met when the relationship between the data pattern or the reference value and the input signal data value matches the specified comparison condition.
Page 69 4 Triggering ID OR The instrument triggers when the ID matches any of the patterns that you set in ID1 to ID4. • Trigger Condition (Condition Setup) On the Condition Setup screen, set the ID trigger conditions. Break Synch Triggers on a synch field that comes after a break field when the trigger condition is set to Break Synch only. Break Synch of ID OR is always selected as a trigger condition.
Page 70: Cxpi Bus Trigger [Enhanced, Option]
4 Triggering Trigger Point Trigger point when the trigger type is Break Synch Trigger point when the trigger type is ID/Data (Don’t care) Trigger point when the trigger type is ID/Data Start of frame Synch Field Protected Data N Checksum Break Data 1 Identifier...
Page 71 4 Triggering Error The instrument triggers when it detects various types of errors. • Error Type (Error Type Or) Select the types of errors to detect from the following. The instrument triggers if any of the selected errors is detected. Parity When a parity error is detected When a CRC error is detected...
Page 72 4 Triggering • Data The instrument triggers by detecting a data value. Specify the size, position, and condition. Comparison Size (Size) Set the data length to be compared. The data pattern with the specified data length is compared to the input signal data pattern. If “0” is specified, the instrument assumes that a point has been detected regardless of the input signal’s data value.
Page 73 4 Triggering If the comparison condition is a ≤ Data ≤ b or “Data < a or b < Data,” the two reference values are automatically adjusted so that the lower limit is less than or equal to the upper limit. Byte Order (Endian), Sign (Sign), and Comparison Range (MSB/LSB) This item is the same as that of the CAN bus trigger.
Page 74 4 Triggering Bit Rate (Bit Rate) Select the CXPI bus signal’s transfer rate from one of the settings below. 4800bps, 9600bps, 19200bps, User Define If you select User Define, set the transfer rate in the range of 4000 bps to 50000 bps in 10-bps steps. T Sample(T Sample) Set the sum value, T Sample, for determining the logical value of the current bit.
Page 75 4 Triggering Trigger Point The following figure shows the trigger points. • Normal Frame Normal Frame PTYPE Frame Data Bytes Field Field Information Field Field Frame Frame ……… Data 1 Data 2 Data N Type 1 byte 4 bits 2 bits 2 bits 0…12 bytes 1 byte 1 byte...
Page 76 4 Triggering • Long Frame Long Frame PTYPE Frame Data Bytes Field Field Information Field Extension Field Frame Frame … Data 1 Data 2 Data N Type 1 byte 1 byte 4 bits 2 bits 2 bits 1 byte 0…255 bytes 2 bytes (6)(7)(8) (10)
Page 77 4 Triggering • Wakeup Pulse The trigger point is the rising edge after a dominant period ranging from 250 µs to 2500 µs. Rising edge after a specified dominant period • Wakeup/Sleep Positions (1) and (2) above are trigger points for the following conditions. (1) Sleep Position at 5 ms from the last falling edge of the ending clock (2) Wakeup...
Page 78: Sent Trigger [Enhanced, Option]
4 Triggering SENT Trigger [ENHANCED, option] The instrument triggers on a specific pulse or nibble (Nibble) in a SENT signal. The following figure shows the SENT signal frame format. Message (Frame) Next message (Frame) … Data Nibbles: 1 to 6 Status and Fast CH SYNC/CAL...
Page 79 4 Triggering Fast CH Data The instrument triggers on the AND of fast channel Data conditions. • Data Type (Data Type) Select the fast channel data type from one of the settings below. Nibble: Set a 4 to 24 bit data pattern in unit of nibbles (4 bits). User: Set the data sizes of Data1 to Data4 in the range of 0 to 24 bits.
Page 80 4 Triggering Every Slow CH The instrument triggers when it detects a slow channel message. To trigger using Every Slow CH, select the slow channel message type from one of the settings below. This is selectable when the format version (explained later) is APR2016 or JAN2010. •...
Page 81 4 Triggering When the message type is Enhanced • Configuration bit Select the ID and data input format from one of the settings below. • 12bit data, 8bit ID: When the data field is 12 bits and the message ID is 8 bits •...
Page 82 4 Triggering Format (Format) Set the version and signal properties of the SENT signal. Version Set the version of the SENT signal. APR2016: SENT signal complying with the version released in April 2016 JAN2010: SENT signal complying with the version released in January 2010 FEB2008 and older: SENT signal complying with the version released in February 2008 and earlier Clock Tick Set the reference clock period of SENT signals.
Page 83 4 Triggering • Status and Communication Select the method of detecting error type Status and Communication. Select bit 0 or bit 1 or both. If you select both, errors are detected on the OR condition. Bit 0: Bit 0 becoming 1 is detected as an error. Bit 1: Bit 1 becoming 1 is detected as an error.
Page 84: Uart Trigger [Enhanced, Option]
4 Triggering UART Trigger [ENHANCED, option] The instrument triggers on a UART signal. The following figure shows the UART signal data format for positive logic. Data Stop Parity Start (Positive logic) 7 bits (b0 to b6) 8 bits (b0 to b7) No parity bit for NonParity Trigger Mode (Mode)
Page 85 4 Triggering When using binary or hexadecimal, if you set Xs in the data pattern, the corresponding bits will be considered satisfying the condition. If a binary pattern contains any Xs, the corresponding hexadecimal display will be “$.” Source (Source) Source (Source) Set the trigger source to one of the settings below.
Page 86: I 2 C Bus Trigger [Enhanced, Option]
4 Triggering Trigger Point For all formats, in all modes, the trigger point is the stop bit after the trigger condition is met. If multiple data frames are specified, the trigger point is the stop bit of the last data byte. Data Start Parity...
Page 87 4 Triggering Every Start When a start condition is detected, the instrument triggers on the SDA signal’s falling edge. Start condition Triggers here Address Data The instrument triggers on the AND of Address and Data conditions. If you do not select Address or Data, the instrument triggers on the start condition. If you select only Address, the instrument triggers on the address acknowledge bit position.
Page 88 4 Triggering Data You can use a data pattern as a trigger condition. • Data Length (Size) Set how many consecutive data bytes will be compared. Selectable range: 1 to 4 bytes • Comparison Start Position (Position) Set the comparison start position. The instrument skips the specified number of bytes and starts comparing from the next data byte.
Page 89 4 Triggering • Trigger only on the data pattern Mode Address Date Address Don’t care Data Condition: True, Size: 2 bytes, Data pattern: 27 and AE <When the position is not specified> Address + R/W bit 2. Triggers here 1. Matches the specified data pattern size (27 and AE) <When the position is set to 3>...
Page 90 4 Triggering Example (General Call) This example displays the data sequence at the byte level (hexadecimal notation) and indicates the trigger position. The following notations are used in the figure. S: Start condition, P: Stop condition, Shading: Compared pattern • Trigger only on the general call address Mode General Call Second Byte...
Page 91: Spi Bus Trigger [Enhanced, Option]
4 Triggering Start Byte When a start byte master code (pattern: 0000 0001) is detected, the instrument triggers on the acknowledge bit position. Example (Start Byte) This example displays the data sequence at the byte level (hexadecimal notation) and indicates the trigger position.
Page 92 4 Triggering Data 1 or 2 (Data1/Data2) You can use a data pattern as a trigger condition. When the wiring system is 3wire, only set Data1. When the wiring system is 4wire, set Data1 and Data2. Source (Source) Set the Data1 and Data2 sources from one of the settings below. If you select LOGIC, select the source bit. CH1 to CH4, LOGIC (Bit 0 to Bit 7) CS(SS) Source (Source)
Page 93 4 Triggering Level (Level), HF Rejection (HF Rejection), Noise Rejection (Noise Rejection)* Set these items for Clock, Data1, Data2, and CS. These items are the same as those of the edge trigger.* You can set this only when the trigger source is set to LOGIC and the 701989 logic probe is connected. Hysteresis (Hysteresis) You can set this only when the trigger source is CH1 to CH4.
Page 94: User-Defined Serial Bus Trigger [User Define, Enhanced]
4 Triggering User-Defined Serial Bus Trigger [User Define, ENHANCED] The instrument triggers based on the trigger conditions of user-defined serial bus signal data patterns. Data (Source) Data Source (Source) Set the data source to one of the settings below. The available settings vary depending on the model. CH1 to CH4 Active Select which signal level, high or low, will be detected as 1.
Page 95 4 Triggering Latch (Latch) You can specify the timing at which the data source pattern sampled in sync with the clock source is compared with the specified pattern. Latch Source (Source) Set latch source to one of the settings below. The available settings vary depending on the model. CH1 to CH4, None (Latch is not used.
Page 96: Tv Trigger [Enhanced]
4 Triggering Example Clock Data detection Enable Data Latch The latch signal specifies the time when data is compared. Trigger point TV Trigger [ENHANCED] The instrument triggers based on the trigger conditions of a particular field or line in a TV signal. Broadcasting System (Type) Set the broadcasting system to one of the settings below.
Page 97 4 Triggering Field Number (Field) Select the field number to detect. You can only set the field number for NTSC, PAL, or HDTV (1080/60i, 1080/50i, or 1080/24sF). Detects fields whose vertical sync pulse starts at the same time as the start of a line Detects fields whose vertical sync pulse starts 1/2H (where H is the horizontal scanning period) behind the start of a line...
Page 98 4 Triggering SDTV Example The line numbers inside parentheses cannot be specified. 524 525 2207 2208 2209 2251 Line number HDTV Example • Example for 1080/60i, 1080/50i, or 1080/24sF The following line numbers are those when the field number is set to 1 (if the field number is set to 2, the numbers are assigned sequentially by setting 565 to 2).
Page 99: Trigger B [B Trig]
4 Triggering HF Rejection (HF Rejection) Select whether or not to eliminate high-frequency components (300 kHz or higher) from the trigger source. 300kHz: Eliminates high-frequency components greater than or equal to 300 kHz OFF: Does not eliminate high-frequency components When the broadcasting system is not set to User Define, the HF rejection setting is as follows: NTSC, PAL, or SDTV: Fixed at 300 kHz HDTV: Fixed at OFF Horizontal Sync Frequency (HSync)
Page 100 4 Triggering A to B(N) Trigger After the trigger A conditions are met, the instrument triggers when the trigger B conditions are met N times. B(1) B(2) B(3) [trigger] Condition A met Condition A: Edge trigger, CH1 = Condition B: Edge trigger, CH2 = , N = 3 Trigger A (A Trigger) The trigger A conditions are set using the menu that corresponds to the EDGE or ENHANCED key, whichever is...
Page 101: Executing Actions
5 Executing Actions A specific action can be executed when trigger conditions are met (this feature is called action-on-trigger) or when the GO/NO-GO determination result is no-go. You can set the number of times to execute the action in terms of the number of waveform acquisitions or the number of determinations. Logic signals cannot be used as source waveforms for rectangular zone, waveform zone, or polygonal zone in GO/NO-GO determination.
Page 102: Number Of Actions (Action Count/Nogo Count)
5 Executing Actions • Contents of Emails That the Instrument Sends (Go/Nogo AND, Go/Nogo OR) <Subject>: The subject attached to the email. For example: “GoNogo Triggered Report (Nth Nogo result)” [Comment]: Comment [Setup Information]: Reference conditions (contents of condition numbers 1 to 4), Logic (AND/OR), Stop Nogo/Action Count ((the number of no-go results/the number of actions) [Trigger Date and Time]: The time of trigger occurrence [Nogo/Exec Count]: The number Nogo results/the number of judgments performed...
Page 103: Executing Action-On-Trigger Or Go/No-Go Determination (Exec)
5 Executing Actions Executing Action-on-Trigger or GO/NO-GO determination (Exec) Press the Exec soft key. You cannot use the RUN/STOP key for this purpose. During execution, the Exec soft key changes to the Abort soft key. The trigger mode during action-on-trigger or GO/NO-GO determination is set to Normal (this setting is independent from the front-panel MODE key).
Page 104 5 Executing Actions Creating a Rectangular Zone (RectZone) To create a rectangle, use the jog shuttle or the SET key to set the top, bottom, right, and left boundaries of the rectangle. When the NO-GO determination condition is set to IN and the waveform enters the specified rectangular zone, a no-go judgment is made.
Page 105 5 Executing Actions Specifying the Editing Range (Edit) You can specify which portion of the base waveform you want to edit. • Whole: Edit the entire waveform • Part: Edit a portion of the waveform Whole Part Setting Zones (Upper/Lower, Left/Right and T Range1/T Range2) Set vertical or horizontal zones.
Page 106 Editor Software on a PC. You can create up to four polygonal zones and use one of them for GO/NO-GO determination. You can download the Mask Editor Software from the YOKOGAWA website. Loading a Polygon Image Using the FILE Menu, load a polygon image into the specified zone (Zone No.1 to 4).
Page 107: Notes About Action
5 Executing Actions Notes about Action How the instrument operates when the action setting is Print or Save Waveform • The instrument operates based on the settings in the Print menu or FILE menu. If the auto naming feature in the FILE menu is off, files are saved using sequence numbers (Numbering). If it is not off, the files are saved using the specified method.
Page 108: Waveform Acquisition
6 Waveform Acquisition Based on the data that has been stored in the acquisition memory, the instrument performs various operations, such as displaying waveforms on the screen, computing, measuring cursors, and automatically measuring waveform parameters. This chapter explains how to set the number of data points to store in the acquisition memory (the record length), how to enable or disable the sample data averaging feature, and so on.
Page 109: Acquisition Mode (Mode)
6 Waveform Acquisition Acquisition mode (Mode) Select from the following. Normal Mode (Normal) Displays waveforms without processing the sampled data. Envelope Mode (Envelope) The instrument determines the maximum and minimum values among the data sampled at 2.5 GS/s at the time interval that is 2 times of the sampling period (the inverse of the sample rate) of the Normal mode setting and displays the values as pairs to produce the waveform.
Page 110: High Resolution Mode (Hi Resolution)
6 Waveform Acquisition Attenuation Constant and Average Count (Avg Count) Sets the attenuation constant for exponential averaging or the average count for linear averaging. Selectable range: 2 to 1024 Exponential average Simple average ∑ {(N – 1)An – 1 + Xn} nth averaged value nth measured value nth measured value...
Page 111: Sampling Mode (Sampling Mode)
6 Waveform Acquisition Sampling Mode (Sampling Mode) The instrument samples data using a 2.5 GS/s A/D converter, so the maximum sample rate in normal sampling mode (real-time sampling mode) is 2.5 GS/s. If you decrease the time axis setting when measuring fast phenomena, the sample rate will reach its maximum rate (2.5 GS/s) at a certain point.
Page 112: Waveform Acquisition (Run/Stop)
6 Waveform Acquisition • Even if Interpolation or Repetitive Sampling mode is selected, the instrument runs in real-time sampling mode when the sample rate is less than or equal to 2.5 GS/s. When the instrument is running in Interpolation or Repetitive Sampling mode, “IntP” or “Rep” appears at the upper right of the screen. •...
Page 113: Display
7 Display Types of Windows This instrument has the following types of windows. VT waveform display window • Main window Displays normal waveforms, which are not magnified • Zoom1 window Displays zoomed waveforms according to the settings specified using the ZOOM1 key. •...
Page 114: Display Interpolation (Dot Connect)
7 Display Waveform Mapping (Mapping) You can specify how channels are assigned to the divided areas. • Auto The waveforms whose display is turned on are assigned in order starting with the top area. • Manual You can assign each waveform to the area of your choice. You can assign all waveforms regardless of whether their displays are turned on.
Page 115: Graticule (Graticule)
7 Display When the Number of Displayed Waveform Data Points Is Not in the Interpolation Zone If the interpolation method is set to Sine, Line, or Pulse, the dots are connected vertically. Sine/Line/Pulse When the Number of Displayed Waveform Data Points Is in the Interpolation Zone Sine Line Pulse...
Page 116: Accumulation (Accumulate)
7 Display Accumulation (Accumulate) When you turn the accumulate feature on, the instrument acquires waveforms at a rate independent of the screen update interval and accumulates them on the screen. The accumulated waveforms are displayed with gradually decreasing intensity for the specified amount of time.
Page 117: Displaying Xy Waveforms
8 Displaying XY Waveforms You can view the correlation between two input signal levels by assigning the level of a waveform to the X-axis (horizontal axis) and assigning the level of another waveform to the Y-axis (vertical axis). XY waveforms appear in the XY window.
Page 118: Display Source Window (Time Range)
8 Displaying XY Waveforms Display Source Window (Time Range) Set the display and measurement range source window to one of the settings below. Main: Main window Zoom1: Zoom1 window Zoom2: Zoom2 window Display Area (T Range1/T Range2) Sets the start point (T Range1) and the end point (T Range2) of the display and the measurement time period. Selectable range: ±5 divisions with the center of the target window taken to be 0 divisions.
Page 119: Computed And Reference Waveforms
9 Computed and Reference Waveforms The instrument can display up to four computed or reference waveforms (Math/Ref1 to Math/Ref4).* * Only MATH1/REF1 and Math/Ref2 on 2-channel models Computation Mode (Mode) Select the waveforms that will be displayed for Math/Ref1 to Math/Ref4 from one of the settings below. OFF: Does not display computed or reference waveforms Math: Displays computed waveforms Ref: Displays reference waveforms...
Page 120: Reference Waveforms
9 Computed and Reference Waveforms Reference Waveforms If you set the computation mode to Ref, you can display reference waveforms. The following waveforms can be used as reference waveforms. • Waveforms displayed on the screen: You can load waveforms using the Load from soft key. •...
Page 121: Operators (Operation)
9 Computed and Reference Waveforms Operators (Operation) The following operators are available. • S1+S2: Adds the waveforms assigned to Source1 and Source2 • S1−S2: Subtracts the waveform assigned to Source2 from the waveform assigned to Source1 • S1xS2: Multiplies the waveforms assigned to Source1 and Source2 •...
Page 122 9 Computed and Reference Waveforms Smoothing (Moving Avg) The instrument averages the waveforms according to the following equation. Set the number of points to use for moving averaging. n+N−1 ( ∑ ∑ xi + / (2N×2) i=n−N i=n−N+1 (when the weight is set to 2N) •...
Page 123 9 Computed and Reference Waveforms Edge Count (Edge) With the computation initial point (Initial Point) counted as zero, the instrument counts the number of times the waveform specified as Source1 passes through the detection level. • Detection Level (Threshold) Set the level for detecting edges. Selectable range: ±10 div •...
Page 124: Initial Point (Initial Point)
9 Computed and Reference Waveforms • Computation Source Waveform (Source1 (A), Source2 (B), Source3 (Z)) The options are the same as were described above for the computation source waveform (Source1, Source2). You can select None (no setting) for only Source3 (Z). Polarity (Polarity) Select the Source3 (Z) polarity.
Page 125: Scaling (Ranging)
9 Computed and Reference Waveforms Unit (Unit) If the computation mode is Math1 to Math4, you can assign a unit to computation results. • Auto The default unit is used. The unit varies depending on the computation. Filter, addition, subtraction, multiplication, or division V, A, VV, AA, VA Integration Vs, As, VVs, AAs, VAs...
Page 126 9 Computed and Reference Waveforms Operators You can combine the following operators to define expressions. Menu Item Example Description Basic functions +, −, *, / C1+C2−C3 Basic arithmetic of the input value ABS(C1) Absolute value of the input value SQRT SQRT(C2) Square root of the input value LOG(C1)
Page 127 9 Computed and Reference Waveforms Constant Menu Item Description K1 to K4 Constant 0 to 9 − Exponent Used to enter a number in scientific notation in expressions (1E+3 = 1000, 2.5E−3 = 0.0025) Displayed as “E” in expressions to distinguish this from the “EXP” operator. Pi (π) Euler’s constant (Napier’s constant) Base of the natural logarithm (e = 2.71828...)
Page 128 9 Computed and Reference Waveforms • Frequency Band (Band) You can set the frequency band to one of the settings below. • LowPass • HighPass • BandPass • Cutoff frequency (Cutoff1/Cutoff2) Set for Filter1 and Filter2 separately. Selectable range: 2.0% to 30.0% of the sampling frequency Resolution: 0.2% of the sampling frequency Averaging on Computation (Average) Set whether or not to linearly average the user-defined computation data.
Page 129 9 Computed and Reference Waveforms Examples of Expressions For each operator, correct expressions and easily mistaken expressions are listed. Incorrect examples are shaded. DIFF and INTEG (differentiation and integration) Examples Syntax: DIFF(parameter), INTEG(parameters) Parameter: Enter a waveform or an expression that contains waveforms. DIFF(C1/3) Derivative of the C1/3 waveform INTEG(INTEG(C3)) Double integral of the C3 waveform...
Page 130 9 Computed and Reference Waveforms BIN (Conversion into Binary Values) Examples Syntax: BIN(parameter 1, parameter 2, parameter 3) Parameter 1: Set the waveform to convert into binary values. Enter a waveform or an expression that contains waveforms. Parameter 2: Set the upper threshold level. Enter a constant or a constant expression. Parameter 3: Set the lower threshold level.
Page 131 9 Computed and Reference Waveforms Combinations of Operators That Are Not Allowed You cannot enter M2 (Math2) in the expression of Math1. Example:Math1=M2+C3 An expression can only contain up to two FILT1 or FILT2 functions. Example: FILT1(C1)+FILT1(C2)+FILT1(C3) Computation cannot be performed on a computed pulse width. Example: PWHH(C1, 1, 0)+C2 When converting to binary values or when computing pulse width, the source waveform can only be a single waveform.
Page 132: 10 Fft
10 FFT The instrument can determine up to two input waveform power spectra (FFT1 and FFT2).* On models with the user-defined feature (option), the instrument can determine the linear spectrum, rms power spectrum, power spectrum, cross spectrum, transfer function, and coherence function. FFT waveforms appear in the FFT window.
Page 133: Fft Conditions (Fft Setup)
10 FFT FFT Conditions (FFT Setup) Configure the time window and how to display FFT waveforms (normal, peak hold, or average). On models with user-defined computation (option), you can also select the spectrum to analyze. Spectrum Type (Type/Sub Type) On models with user-defined computation (option), you can also select the spectrum to analyze from the following: Spectrum Description...
Page 134: Number Of Fft Points (Fft Point)
10 FFT Time Window (Window) Set the time window to one of the settings below. • Rectangle (rectangular window) • Hanning (Hanning window) • Flattop (flattop window) Waveform Display Mode (Mode) Select how to display FFT waveforms from one of the settings below. •...
Page 135: Scale Value (Display Setup)
10 FFT Scale Value (Display Setup) Set the vertical and horizontal scale values. Vertical Scale (Vert.Scale)1 You can select from one of the settings below. • Auto: Sets the vertical scale values automatically • Manual: For manually setting the center (Center) of the vertical axis and the value per division (Sensitivity) Horizontal Scale (Horiz.Scale) You can select from one of the settings below.
Page 136 10 FFT Peak Cursors (Peak) Using the threshold value (Threshold) and the difference between peak and valley (Excursion), the instrument determines the frequency (Frequency) and level (Peak). Only the peaks that meet the threshold and excursion conditions are displayed. This peak is displayed. (The measured value is greater than the threshold and the peak/bottom difference.) This peak is not detected.
Page 137: 11 Cursor Measurement
11 Cursor Measurement You can move cursors on the waveforms displayed on the screen to view the measured values at the points where the cursors intersect the waveforms. ΔT&ΔV cursor Cursor1 Cursor2 Cursor1 ΔV Cursor2 ΔT Turning Cursor Measurement On and Off (Display) Sets whether or not to make measurements using cursors.
Page 138: Δt Cursors (Δt)
11 Cursor Measurement ΔT Cursors (ΔT) The ΔT cursors are two lines that are perpendicular to the time axis. You can use them to measure the time from the trigger position to each of the ΔT cursors, the time difference between the two cursors, and the inverse of the time difference between the two cursors.
Page 139: Δt&Δv Cursors (Δt&Δv)
11 Cursor Measurement ΔT&ΔV Cursors (ΔT&ΔV) ΔT cursors and ΔV cursors are displayed at the same time. Measurement Items (Item Setup) You can measure the following time and vertical values at the cursor positions. Time axis Time value at Cursor1 Time value at Cursor2 ΔT Difference between the time values of Cursor1 and Cursor2...
Page 140: Angle Cursors (Degree)
11 Cursor Measurement Angle Cursors (Degree) You can measure time values and convert them to angles. On the time axis, set the zero point (Ref Cursor1 position), which will be the measurement reference, the end point (Ref Cursor2 position), and the reference angle that you want to assign to the difference between Ref Cursor1 and Ref Cursor2.
Page 141: Cursor Jumping (Cursor Jump/T Cursor Jump)
11 Cursor Measurement Notes about Cursor Measurement • The measured time values are based on the trigger position.* * If delay cancel (Delay Cancel) is set to OFF, they are based on the trigger point. • The measured value for data that cannot be measured appears as “***.” •...
Page 142: Automated Measurement Of Waveform Parameters
12 Automated Measurement of Waveform Parameters For waveforms that are displayed on the screen, various measurement items (waveform parameters), such as maximum and minimum values, can be measured automatically and their statistics can be calculated. The enhanced parameter measurement feature allows you to automatically measure parameters in two areas (defined as area 1 and area 2) and perform various calculations on the automated measurement values of waveform parameters.
Page 143 12 Automated Measurement of Waveform Parameters Automated Measurement of Waveform Parameters The instrument automatically measures the specified measurement items on the source waveform. Measurement Items (Item Setup) Sets the measurement items for each source waveform. Up to a total of 100000 data values can be saved for the entire area and all sources (CH1 to CH4, Math1 to Math4, LOGIC*).
Page 144 12 Automated Measurement of Waveform Parameters • The unit of measurement that is listed for voltage measurement items changes to amperes when current is measured. If you have specified a unit when measuring in linear-scaling mode, the instrument displays the measured values using the specified unit.
Page 145 12 Automated Measurement of Waveform Parameters Burst: Burst period [s] Set the measurement time period (Time Range) to a value appropriate for the burst period you want to measure. Burst Time range (1) Distal (2) Mesial (3) Proximal Measurement of Delay between Waveforms (Delay Setup) Measures the time difference from the reference waveform (Reference) edge or the trigger position* to the source waveform (Source) edge.
Page 146 12 Automated Measurement of Waveform Parameters Cycle Mode (Cycle Mode) The time range for automated measurement is set to the period, not the time range specified by T Range1 and T Range2. You can set how the instrument determines the time range to one of the settings below. 1 Cycle: Sets the time range to the first period after T Range1 N Cycle: Sets the time range to the left end of the first period that is between T Range1 and T Range2 to the right end of the Nth period...
Page 147 12 Automated Measurement of Waveform Parameters If the statistical processing mode is set to Cycle or History, the measurement location cannot be displayed. Reference Level for Automated Measurement (Ref Levels) Sets the reference level that is used to measure various parameter values such as High, Low, Hi-Low, Rise, and Fall for each source waveform.
Page 148: Statistics (Statistics)
12 Automated Measurement of Waveform Parameters Statistics (Statistics) Display the following five statistics on the automated measurement values of waveform parameters. Statistics can be calculated on up to nine automatically measured items. • Maximum (Max) • Minimum (Min) • Mean (Mean) •...
Page 149 12 Automated Measurement of Waveform Parameters Cyclic Statistical Processing (Cycle) In cyclic statistical processing, the instrument divides the displayed waveform by the period that it automatically determines through calculation, and calculates statistics of the measured values in each period. The method of determining the period is the same as the method for determining the Period measurement item.
Page 150 12 Automated Measurement of Waveform Parameters Statistical Processing of History Waveforms (History) The instrument automatically measures items on the selected range of the history waveform and calculates statistics. The instrument calculates statistics from the oldest waveform. The statistics of the waveforms displayed in Time Stamp are calculated.
Page 151 12 Automated Measurement of Waveform Parameters Trend Display and Histogram Display (Trend/Histogram) You can display up to two trends or histograms* of the specified measurement items. You can also display values using the measurement feature. Mean, standard deviation, and other statistics can be displayed on the histogram display.
Page 152 12 Automated Measurement of Waveform Parameters If the statistical processing mode is set to Continuous and you execute Auto Scale, H-Span is set to 100 if the number of waveform parameters that had been measured is less than or equal to 100. •...
Page 153: Enhanced Parameter Measurement (Enhanced)
12 Automated Measurement of Waveform Parameters Enhanced Parameter Measurement (Enhanced) The enhanced parameter measurement feature allows you to perform automated measurement of the waveform parameters of two areas. It also allows you to perform calculations using the automated measurement values of waveform parameters.
Page 154: Notes About Automated Measurement Of Waveform Parameters
12 Automated Measurement of Waveform Parameters Sample rate. The instrument’s sample rate when the computation was executed. The value changes according to the changes in the T/div or record length setting. Measure Item Max(C1) Selects a waveform parameter. PP(C1,A2) Specifies the calculation source area. If you want to calculate on Area2, add “,A2”...
Page 155: 13 Zooming In On Waveforms
13 Zooming in on Waveforms You can magnify the displayed waveforms vertically or horizontally. The zoomed waveforms of two locations can be displayed simultaneously (the dual zoom feature). You can also specify which channel you want to zoom in on. You cannot zoom if the number of displayed points on the screen is less than or equal to 10.
Page 156: Displaying The Main Window (Main)
13 Zooming in on Waveforms Displaying the Main Window (Main) Selects which area to display the main window in. • OFF: Does not display the main window • On (20%): Displays the main window in the top 20% area of the screen •...
Page 157: Zoom Position (Z1 Position, Z2 Position)
13 Zooming in on Waveforms Zoom Position (Z1 Position, Z2 Position) Taking the horizontal center of the main window to be 0 divisions, set the center position of the zoom boxes in the range of −5 to +5 divisions. In the Main window, the zoom box with solid lines is Zoom1, and the zoom box with dashed lines is Zoom2.
Page 158: 14 Searching Waveforms
14 Searching Waveforms You can search the displayed waveforms for locations that match the specified conditions. You can zoom-in on the detected locations. You can search the waveforms within the specified search range over up to 50000 points. Search start position Search end position Detected Points Hysteresis...
Page 159 14 Searching Waveforms Pattern Search Set the search source pattern and whether a clock source is available. The instrument searches for positions that meet the specified conditions. When a Clock Source Is Specified Search Example 1 The results of comparing the combination (Logic) of the trigger source signal pattern (Pattern) and the specified pattern are sampled on the edges of the clock source, and the instrument searches for the point of change in the comparison results (Enter or Exit of the search condition (Condition)).
Page 160 14 Searching Waveforms When a Clock Source Is Not Specified Search Example 1 The instrument searches for the point of change in the results (Enter or Exit of the achievement condition (Condition)) of comparing the combination (Logic) of the trigger source signal pattern (Pattern) and the specified pattern.
Page 161: Search Conditions (Condition Setup)
14 Searching Waveforms Pulse Width Search The instrument searches for the position where the pulse width of the specified waveform meets the specified reference time. Search Example Mode: Inside Detected point T1:Time1, T2:Time2 Timeout Search The instrument searches for the timeout position from the point where the rising or falling slope of the specified waveform passes through the specified level.
Page 162 14 Searching Waveforms Hysteresis (Hysteresis) When the search source waveform is CH1 to CH4 or Math1 to Math4, you can set a width (hysteresis) to the edge detection level so that the instrument does not detect edges on level changes within the specified width. Selectable range: 0.3 div to 8.0 div Resolution: 0.1 div Pattern Search...
Page 163 14 Searching Waveforms Pulse Width Search Search Source Waveform (Source) You can select from one of the settings below. The available settings vary depending on the model. CH1 to CH4/LOGIC,* Math1 to Math4 * CH4 or LOGIC, whichever the corresponding key is illuminated, can be selected. If you select LOGIC, select the source bit (bit 0 to bit 7).
Page 164: Displaying Detected Waveforms (Display Setup)
14 Searching Waveforms Displaying Detected Waveforms (Display Setup) Displays the detected point of the detected point number specified by (Pattern No.) in the center of the zoom window. When the pattern number is set to 2 2…… (detected points) Source (search source Level waveform)
Page 165: Search Range (Start/End Point)
14 Searching Waveforms Search Range (Start/End Point) Set the search start and stop points (Start Point/End Point) in the range shown below. Selectable range: −5 div to +5 div Detected Point number (Pattern No.) Specify the number of the detected point to display in the zoom window. Detected points are numbered in order.
Page 166: 15 Analyzing And Searching Serial Bus Signals
15 Analyzing and Searching Serial Bus Signals The instrument can decode frames, fields, and other information from the waveform displayed on the screen. Then, it can display the decoded results along with the waveform on the screen or display a list of detailed decoded results.
Page 167: Serial Bus Signal Type (Type)
15 Analyzing and Searching Serial Bus Signals Analysis and Search Source Waveform You can analyze and search any of the following channel waveforms. The selectable channels vary depending on the model. CH1 to CH4/LOGIC, Math1 to Math4 • CH4 or LOGIC, whichever the corresponding key is illuminated, can be selected. •...
Page 168: Zoom Position (Z1 Position, Z2 Position)
User Define * You can display the decoded results using symbols by converting a CANdb file (.dbc) to a physical value/ symbol definition file (.sbl) using the free YOKOGAWA conversion software “Symbol Editor” and by loading the file into the instrument.
Page 169: List Display (List)
15 Analyzing and Searching Serial Bus Signals When I C bus signals are being analyzed, the display of the decoded address pattern is affected by whether the R/W bit is on or off. 7-bit Address Example Address R/W bit In the binary display, the address and R/W bit are both in binary (01010011).
Page 170: Analyzing And Searching Flexray Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching FlexRay Bus Signals (Option) Analysis Source Frame You can analyze the following frames and patterns. Frame Start, Error, ID/Data For the frame format, see “FlexRay Bus Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Source (Source) Set the analysis source to one of the settings below.
Page 171 15 Analyzing and Searching Serial Bus Signals List Display (List) The list displays the following items. Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position.* The instrument can display the analysis results for up to 5000 frames in the range of −5000 to 5000.
Page 172: Analyzing And Searching Can Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching CAN Bus Signals (Option) Analysis Source Frame The following frames can be analyzed. Remote, data, error, and overload frames For the CAN frame format, see “CAN Bus Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Source (Source) Set the analysis source to one of the settings below.
Page 173 15 Analyzing and Searching Serial Bus Signals List Display (List) The list displays the following items. Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position.* The instrument can display the analysis results for up to 100000 frames in the range of −99999 to 99999.
Page 174: Analyzing And Searching Can Fd Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching CAN FD Bus Signals (Option) Analysis Source Frame The following frames can be analyzed. Remote, data, error, and overload frames For the CAN FD frame format, see “CAN FD Bus Trigger”...
Page 175 15 Analyzing and Searching Serial Bus Signals Auto Setup (Auto Setup) Set the CAN FD standard for the specified source and then execute auto setup. The auto setup feature automatically configures the bit rate, recessive level, sample point, level, and hysteresis, and triggers on the start of frame (SOF) of the CAN FD bus signal.
Page 176 15 Analyzing and Searching Serial Bus Signals Search Setup (Search) Search Type (Mode) Select the CAN FD bus signal search type from one of the settings below. • SOF: Searches for the start-of-frame position • Error: Searches for errors • ID/Data: Searches for the position where the AND condition of the ID bit pattern and Data pattern is met •...
Page 177 15 Analyzing and Searching Serial Bus Signals Input Format (Input format) Select the ID input format from one of the settings below. • Pattern: Set the ID bit pattern in hexadecimal or binary notation. • Message: Select this setting to set the ID or Data search conditions by using messages and signals that are defined in the symbol definition file (sbl).
Page 178 15 Analyzing and Searching Serial Bus Signals Reference Values (a and b) If the comparison condition is set to Data = A, Data ≠ a, a ≤ Data, Data ≤ b, a ≤ Data ≤ b, or “Data < a or b <...
Page 179: Analyzing And Searching Lin Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching LIN Bus Signals (Option) Analysis Source Field You can analyze the following fields and patterns. Break, Synch, ID, Data, Checksum For the LIN frame format, see “LIN Bus Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Source (Source) Set the analysis source to one of the settings below.
Page 180 15 Analyzing and Searching Serial Bus Signals List Display (List) The list displays the following items. Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position.* The instrument can display the analysis results for up to 100000 frames in the range of −99999 to 99999.
Page 181 15 Analyzing and Searching Serial Bus Signals Error Type (Error Type Or) If you set the search mode to Error, select the error types to search for from the following settings. Parity The instrument calculates the parity of the protected identifier field. If the result does not satisfy the following equations, the instrument triggers on the protected identifier field’s stop bit position.
Page 182: Analyzing And Searching Cxpi Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching CXPI Bus Signals (Option) Analysis Source Normal frames, long frames (burst frames), sleep frames, wakeup pulses, wakeup state, sleep state For the CXPI frame format, see “CXPI Bus Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Source (Source) Set the analysis source to one of the settings below.
Page 183 15 Analyzing and Searching Serial Bus Signals Auto Setup (Auto Setup) Executes auto setup based on the specified sources. The auto setup feature automatically configures the bit rate, level, and hysteresis and triggers on the start of frame (SOF) of the CXPI bus signal. You cannot execute auto setup if the source is set to Math1 to Math4. Decoded Display (Decode) The colors that are used for the fields in the decoded display are as follows: PTYPE...
Page 184 15 Analyzing and Searching Serial Bus Signals List Display (List/Trend - Show List) The list displays the following items. Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position.* The instrument can display the analysis results for up to 10000 frames in the range of −9999 to 9999.
Page 185 15 Analyzing and Searching Serial Bus Signals PTYPE The instrument searches for PTYPE. • Search Conditions (Condition) Every PTYPE When PTYPE is detected No Response When PID is not detected after PTYPE ID/Data The instrument searches normal, long, and sleep frames. The instrument searches on the AND of SOF, ID, frame information, and data conditions.
Page 186 15 Analyzing and Searching Serial Bus Signals Data You can set a search condition based on the data value. Specify the size, position, condition, and data pattern settings. Comparison Size (Size) Set the data length to be compared. The data pattern with the specified data length is compared to the input signal data pattern.
Page 187 15 Analyzing and Searching Serial Bus Signals If the comparison condition is a ≤ Data ≤ b or “Data < a or b < Data,” the two reference values are automatically adjusted so that the lower limit is less than or equal to the upper limit. Byte Order (Endian), Sign (Sign), and Comparison Range (MSB/LSB) These items are the same as those of the CAN bus trigger.
Page 188: Analyzing And Searching Sent Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching SENT Signals (Option) Analysis Source Fast channel and slow channel of SENT signals For the SENT frame format, see “SENT Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Source (Source) Set the analysis source to one of the settings below.
Page 189 15 Analyzing and Searching Serial Bus Signals Decoded Display (Decode) The colors that are used for the fields in the decoded display are as follows: Fast CH SYNC/CAL Pink (Pink) S&C Yellow (Yellow) Data Cyan (Cyan) Light blue (Light Blue) Pause Orange (Orange) Error...
Page 190 15 Analyzing and Searching Serial Bus Signals Slow CH Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position.* The instrument can display the analysis results for up to 100000 frames in the range of −99999 to 99999. Pressing the RESET key highlights frame number zero.
Page 191 15 Analyzing and Searching Serial Bus Signals Configuring the Display (Display Setup) Set the trend display scale, and turn the display of VT waveforms on or off. • Auto Scale Exec Executes auto scaling. The upper and lower limits are set so that the difference between the maximum data value and minimum data value in the window selected with H-Range covers 80% of the vertical scale of the Trend window.
Page 192 15 Analyzing and Searching Serial Bus Signals Search Setup (Search) Search Type (Mode) Select the SENT signal search type from one of the settings below. • Every Fast CH: Searches for fast channel messages • Fast CH S&C: Searches for the status and communication bit pattern •...
Page 193: Analyzing And Searching Uart Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching UART Signals (Option) Analysis Source Data: Searches for data patterns For the UART data format, see “UART Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Source (Source) Set the analysis source to one of the settings below. CH1 to CH4/LOGIC,* Math1 to Math4 * CH4 or LOGIC, whichever the corresponding key is illuminated, can be selected.
Page 194 15 Analyzing and Searching Serial Bus Signals • Byte Space (Byte Space) The instrument displays data whose time length is less than the specified byte space (Byte Space) in a single group. Selectable Range The selectable range is from the time length that corresponds to the number of bits in the UART signal data format plus 2 bits, to 100 ms.
Page 195 15 Analyzing and Searching Serial Bus Signals List Display (List) The list displays the following items. When Grouping Is Set to ON Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position.* The instrument can display the analysis results for up to 300000 frames in the range of −299999 to 299999.
Page 196: C Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching I C Bus Signals (Option) For the I C data format, see “I C Bus Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Serial Clock (SCL), Serial Data (SDA) Set the SCL and SDA sources to one of the settings below. CH1 to CH4/LOGIC,* Math1 to Math4 * CH4 or LOGIC, whichever the corresponding key is illuminated, can be selected.
Page 197 15 Analyzing and Searching Serial Bus Signals List Display (List) The list displays the following items. Analysis number. Negative numbers are assigned to frames before the and positive numbers are assigned to frames after the trigger position. The instrument can display the analysis results for up to 300000 frames in the range of −299999 to 299999.
Page 198: Analyzing And Searching Spi Bus Signals (Option)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching SPI Bus Signals (Option) For the SPI time chart, see “SPI Bus Trigger” in chapter 4, “Triggering.” Bus Setup (Setup) Wiring system (Mode) This item is the same as that of the SPI bus signal. Bit Order (Bit Order) This item is the same as that of the SPI bus signal.
Page 199 15 Analyzing and Searching Serial Bus Signals Decoded Display (Decode) The colors that are used for the fields in the decoded display are as follows: Data Cyan (Cyan) Group background Gray (Gray) List Display (List) The list displays the following items. Analysis number.
Page 200: Analyzing And Searching User-Defined Serial Bus Signals (User Define)
15 Analyzing and Searching Serial Bus Signals Analyzing and Searching User-Defined Serial Bus Signals (User Define) Bus Setup (Setup) You must set the following items to analyze user-defined serial bus signals. Source (Source) Set the analysis source to one of the settings below. The available settings vary depending on the model. CH1 to CH4,* Math1 to Math4 * You can select CH4 when the key is illuminated.
Page 201: 16 Waveform Histogram Display
16 Waveform Histogram Display The instrument can count the frequency of data occurrence in a specified area and display in a histogram. You can select whether to count the voltage data frequency or the time data frequency. You can measure the mean, standard deviation, maximum value, minimum value, peak value, median, etc. You can configure up to two histogram source waveforms (Select1, Select2).* * Only Select1 on the 2-channel model.
Page 202: Measurement (Measure Setup)
16 Waveform Histogram Display Measurement (Measure Setup) Mode (Mode) OFF: Disables measurement. Param: Measures the value of the selected parameter and performs cursor measurement. Cursor Measurement (Cursor1 and Cursor2) Measurement items C1, C2, and ΔC are used to measure the Cursor1 value, the Cursor2 value, and the difference between the two cursor values.
Page 203: Power Supply Analysis Feature (Power Analysis And Power Measurement, Option)
You need power supplies to use the deskew signal source and current and differential probes without the YOKOGAWA probe interface (differential probes can run on batteries). If the instrument is not equipped with the probe power option (/P4), you need to use the probe power supply (701934), which is sold separately.
Page 204: Switching Loss Analysis (Sw Loss)
17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Example of Deskewing Before deskewing After deskewing Current Voltage waveform waveform Switching Loss Analysis (SW Loss) You can measure the device’s total loss (power loss) and switching loss (power loss during switching). If you select SW Loss, you can calculate statistics and display power waveforms and measured values.
Page 205 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Measurement Setup (Measure Setup) The loss of multiple cycles can be measured. The measurement time period is the range specified by the T Range1 and T Range2 cursors. The cycle is determined on the basis of the intersections of the mesial level and the voltage waveform.
Page 206 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) • Loss calculation period: The period from the point where the voltage waveform goes below the U Level immediately after the waveform goes below the mesial level to the point where the waveform goes above the U Level immediately before the waveform goes above the mesial level.
Page 207 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Level Setup (Level Setup) Sets the voltage level (U Level) and current level (I Level) that are used to determine the loss period and cycle as well as the RDS(on) or Vce(SAT) values used to measure the loss over the loss calculation period. Set the voltage level (U Level) and current level (I Level) within the amplitude range of the source waveforms.
Page 208 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Unit (Unit) Select the unit to use when displaying the measured values of Turn On, On, Turn Off, and Total of loss (Wp). Wh: Watt-hours J: Joules The relationship between watt-hours and joules is as follows: Wh=J/3600 Turning the Measurement Location Indicator On and Off (Indicator) Indicates with cursors the switching period (Turn On, Turn Off), the loss calculation period (On), and the measurement location on the time axis at the end of the cycle.
Page 209: Safe Operating Area Analysis (Soa)
17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Safe Operating Area Analysis (SOA) You can plot the voltage input channel on the X-axis (horizontal axis) and the current input channel on the Y-axis (vertical axis), evaluate the operating range characteristics of a power device (or other device), and check whether or not the device operations fall within the safe operating area (SOA) indicated in gray in the figure below.
Page 210: Harmonic Analysis (Harmonics)
To take measurements accurately in accordance with IEC standards, we recommend that you use a digital power meter from the WT3000 series and harmonic measurement software (761921), both produced by YOKOGAWA. However, the harmonic analysis features on the DLM series are a good way of measuring general characteristics.
Page 211 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Interharmonics (interharmonics) If the input signal is 50 Hz in IEC harmonic measurement, a Fourier transform is taken on 10 periods of the input signal to derive frequency components in 5-Hz resolution. As a result, the area between two harmonics is divided into 10 frequency components.
Page 212 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) • Necessary Class C Settings EUT’s active power (Over 25 watts) Select whether the EUT’s active power exceeds 25 W (True) or not (False). For class C, the reference values change depending on the EUT’s active power.
Page 213 Therefore, the results do not fully comply with the standard. To take make proper measurements in accordance with the standard, you need to use a YOKOGAWA WT3000 series digital power meter and its harmonic measurement software (761921).
Page 214: Measuring Inrush Current By Computing The Joule Integral (I 2 T)
17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Measuring Inrush Current by Computing the Joule Integral (I Measure the Joule integral (I t) of the inrush current. This feature is useful when you are evaluating and comparing items such as device fuses. When you select I t, you can display measured values and a waveform of the Joule integral and compute statistics.
Page 215 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Joule Integral (I t) Waveform Display (I t(Math1)) ON: The Joule integral (I t) waveform is displayed. Computation settings (MATH/REF) become invalid. OFF: The Joule integral (I t) waveform is not displayed. Computation settings (MATH/REF) are valid. Auto Scaling (Auto Ranging) Executes auto scaling.
Page 216: Power Measurement (Power Measurement)
17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Power Measurement (Power Measurement) Power Measurement1, Power Measurement2 Power of up to two circuits can be measured simultaneously. Turning Power Measurement ON or OFF (Mode) Set whether to make power measurements. •...
Page 217 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Deskewing Manually (Deskew CH1/CH2 or Deskew CH3/CH4) You can set values for deskewing the transfer time difference between signals on each channel. Auto Deskew Reference Waveform (Ref Trace) Sets the reference waveform for auto deskewing. The instrument deskews the input signals by using the specified waveform as its reference.
Page 218 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) • Measurement Items of Current Input Channels CH2 and CH4 Current: I+pk, I−pk, Ip-p, Irms, Idc, Iac, Imn, Irmn Average frequency: Avg Freq Ampere hours: q, q+, q−, Abs.q For details on how each item is determined, see appendix 5.
Page 219 17 Power Supply Analysis Feature (Power Analysis and Power Measurement, Option) Statistics (Statistics) Display the following five statistics on the automated measurement values of waveform parameters. • Maximum (Max) • Minimum (Min) • Mean (Mean) • Standard deviation (σ) • The number of measured values used to calculate statistics (Count) This item is the same as that of the automated measurement of waveform parameters.
Page 220: 18 Displaying And Searching History Waveforms
18 Displaying and Searching History Waveforms Acquisition memory stores waveforms that are displayed on the screen and waveform data that have been acquired in the past. The history feature allows you to display or search past waveforms (history waveforms). You can perform the following operations on history waveforms: •...
Page 221: Display Mode (Mode)
18 Displaying and Searching History Waveforms Display Mode (Mode) Selects how history waveforms are displayed. • One: Displays only the waveform of the selected record number • All: Overlays all selected waveforms. All waveforms except the highlighted waveform are displayed in an intermediate color.
Page 222: Searching History Waveforms (Search)
18 Displaying and Searching History Waveforms Searching the List You can move to the following record number. • Delta Max: Record number whose time difference between data triggers is highest • Delta Min: Record number whose time difference between data triggers is lowest •...
Page 223: Replay (Replay)
18 Displaying and Searching History Waveforms Executing a Search (Exec) Searches for waveforms that meet the specified search conditions and displays only the waveforms and timestamps that are detected according to the display mode. Finishing the Search (Reset) Clears the history waveforms that were detected and displays all history waveforms. Replay (Replay) Displays the specified waveform first and then the older or newer data in order.
Page 224: 19 Printing And Saving Screen Captures
19 Printing and Saving Screen Captures Destination Type (Print To) You can save screen captures and print them on the following types of printers. Built-in Printer (BuiltIn) The optional built-in printer if it is installed. USB Printer (USB) The printer that is connected to the instrument through one of the USB 2.0 ports. Network Printer (Network) A printer on the network that the instrument is connected to.
Page 225: Printing On The Built-In Printer (Builtin) (Option)
You can use HP USB ink jet printers that comply with USB Printer Class Ver.1.0. • Do not connect an incompatible USB printer. • For USB printers that have been tested for compatibility, contact your nearest YOKOGAWA dealer. 19-2 IM DLM3054-01EN...
Page 226 19 Printing and Saving Screen Captures Connection Procedure Connect a USB printer to the instrument using a USB cable. You can connect or remove the USB cable regardless of whether the instrument’s power switch is on or off (hot-plugging is supported). If you connect a printer when the power switch is on, the printer becomes available for use after the instrument identifies the printer.
Page 227: Printing On A Network Printer (Network)
19 Printing and Saving Screen Captures Printing on a Network Printer (Network) A printer on the network that the instrument is connected to. You must configure the network printer in advance. Print Mode (Mode) You can print the screen image in one of two modes. The screen capture is the same as that described in “Saving Screen Captures to Files (File).”...
Page 228: Saving Screen Captures To Files (File)
19 Printing and Saving Screen Captures Saving Screen Captures to Files (File) You can save screen captures to files in PNG, BMP, and JPEG formats. Save Mode (Mode) Hardcopy (Hardcopy) The entire instrument screen is saved. Example: When color data is ON (Gray) Normal (Normal) The waveform area of the instrument screen is saved.
Page 229 19 Printing and Saving Screen Captures Data Format (Format) • PNG: The extension is .png. The file size is approximately 50 KB when you save a black and white screen capture and approximately 200 KB when you save a color screen capture. •...
Page 230: Printing And Saving Screen Captures To Multiple Destinations (Multi)
19 Printing and Saving Screen Captures Printing and Saving Screen Captures to Multiple Destinations (Multi) You can print and save screen-capture and waveform data to multiple output destinations at the same time. The instrument outputs screen-capture and waveform data according to the PRINT menu or FILE menu settings. •...
Page 231: 20 Saving And Loading Data
20 Saving and Loading Data You can save the following types of data to the internal storage, a USB storage device, or a network drive. • Waveform data • Setup data • Screen capture data • Waveform zone data • Snapshot waveform data •...
Page 232: Saving Data (Save)
20 Saving and Loading Data Saving Data (Save) The instrument saves data to the specified storage device. Waveform data, Setup data, Other types of data Saving Waveform Data (Waveform) You can save the waveform data that the instrument has measured to a file in binary or ASCII format or to a file in ASCII format with time information.
Page 233 You can load the data into the instrument, display the waveform of the data, and view the values that it contains. You can use the YOKOGAWA’s Xviewer software application to analyze waveforms on your PC. For more details, contact your nearest YOKOGAWA dealer. You can download a trial version from the YOKOGAWA website.
Page 234 20 Saving and Loading Data History Range One and All Settings The history range is fixed to One or All depending on the display mode (Mode) and the type of data to be saved (Data Type) on the HISTORY menu. Display Mode (Mode) on the HISTORY Menu Accumulate Binary...
Page 235: Saving Setup Data (Setup)
20 Saving and Loading Data Saving Setup Data (Setup) You can save setup data to a file or to three different internal memory locations. Saving Setup Data to a File Like waveform data, you can save setup data to a specified storage device. You can specify file names and enter comments in the same way as with waveform data.
Page 236 20 Saving and Loading Data Background (Background) For PNG format, you can save the waveform display area with a transparent background. This feature is convenient when you want to compare waveforms by overlaying screen captures on the PC. • Normal: Saves data without changing the background (opaque). •...
Page 237 20 Saving and Loading Data FFT Computation Results (FFT) You can save the results of computation that was specified using FFT1 or FFT2 in CSV format. The extension is .csv. Up to 250 Kpoints of data can be saved. Freq Info. •...
Page 238: Serial Bus Analysis Results (Others - Serial Bus (Flexray/Can/Can Fd/Lin/Cxpi))
20 Saving and Loading Data Serial Bus Analysis Results (Others - Serial Bus (FlexRay/CAN/ CAN FD/LIN/CXPI)) You can save analysis results for the buses that you specified with the Serial Bus1, Serial Bus2, Serial Bus3 and Serial Bus4 settings. For details on SENT, UART, I C, and SPI analysis results, see “Serial Bus Analysis Results (Others - Serial Bus (SENT/UART/I...
Page 239 20 Saving and Loading Data CAN, CAN FD You can save analysis results of CAN or CAN FD bus signals to a file in CSV format. The extension is .csv. Analysis results of up to 100000 frames (50000 frames for CAN FD) can be saved. Data size* CAN: (The number of frames in analysis results + 4) ×...
Page 240 20 Saving and Loading Data You can save analysis results of LIN bus signals to a file in CSV format. The extension is .csv. Analysis results of up to 100000 frames can be saved. Data size* = (The number of frames in analysis results + 4) × 125 bytes * The data size is for reference.
Page 241: C/Spi))
20 Saving and Loading Data Serial Bus Analysis Results (Others - Serial Bus (SENT/UART/I C/SPI)) You can save analysis results for the buses that you specified with the Serial Bus1, Serial Bus2, Serial Bus3 and Serial Bus4 settings. For details on FlexRay, CAN, CAN FD, LIN, and CXPI analysis results, see “Serial Bus Analysis Results (Others - Serial Bus (FlexRay/CAN/CAN FD/LIN/CXPI)).”...
Page 242 20 Saving and Loading Data Output example of a Slow CH List Analysis Type SerialBus(SENT) Hexadecimal or decimal display of CRC Model Name DLM3000 Error information Model Version *.** No. Time(ms) ID Data Information -45.94672 -30.6392 -15.31336 -0.01192 15.48904 31.01336 Hexadecimal or decimal display of data Hexadecimal or decimal display of ID Amount of time from the trigger position to the start of frame...
Page 243 20 Saving and Loading Data You can save analysis results of I C bus signals to a file in CSV format. The extension is .csv. Analysis results of up to 300000 bytes can be saved. Data size* = (The number of bytes in the analysis results / 2 + 4) × 125 bytes * The data size is for reference.
Page 244: Loading Data (Load)
20 Saving and Loading Data Loading Data (Load) You can load waveform data, setup data, waveform zones, polygonal zones, and snapshot waveforms that have been saved by the instrument. You can also view information about the saved data files using the File Property menu item. Loading Waveform Data (Waveform) You can load waveform data, including Math1 to Math4 waveforms.
Page 245 CANdb files (.dbc extension) must be converted into physical value/symbol definition files (.sbl extension) using the free YOKOGAWA conversion software “Symbol Editor” before they can be loaded and used as trigger conditions or as analysis or search conditions on the instrument.
Page 246: File Operations (Utility)
20 Saving and Loading Data File Operations (Utility) You can create folders on the storage device, delete and copy files, change file names, and so on. File List (File List) Display Format Selects whether to display a list of files or to display thumbnails. Sorting the List You can sort the file list by file name, data size, date, etc.
Page 247 20 Saving and Loading Data Turning Protection On or Off (Protect ON/OFF) You can turn protection on or off for the selected file. The change is reflected in the file attributes, displayed under the Attr column in the file list. Protection File Attribute Description...
Page 248: Ethernet Communication (Network)
21 Ethernet Communication (Network) You can configure TCP/IP parameters and use the Ethernet interface to perform the following tasks. To use this feature, set the communication interface to Network (from the UTILITY menu, select Remote Control > Device > Network). TCP/IP TCP/IP settings for connecting to an Ethernet network.
Page 249: Tcp/Ip(Tcp/Ip)
21 Ethernet Communication (Network) TCP/IP(TCP/IP) Configure the settings that the instrument needs to connect to a network. DHCP DHCP is a protocol that temporarily allocates settings that a PC needs to connect to the Internet. To connect to a network that has a DHCP server, turn the DHCP setting on. When DHCP is turned on, the IP address can be automatically obtained when the instrument is connected to a network.
Page 250: Ftp Server (Ftp Server)
21 Ethernet Communication (Network) FTP Server (FTP Server) You can connect the instrument as an FTP server to a network. Set the user name and password that will be used by devices on the network to access the instrument. Also, set the access timeout value.
Page 251: Mail (Mail)
21 Ethernet Communication (Network) Mail (Mail) You can send trigger times and other information in emails to a specific email address as an action in the action- on-trigger or GO/NO-GO determination feature. Mail Server (Mail Server) Specify the IP address of the mail server on the network that the instrument will use. In a network with a DNS server, you can specify the host name and domain name instead of the IP address.
Page 252: Network Drive (Net Drive)
21 Ethernet Communication (Network) Network Drive (Net Drive) You can save waveform data and setup data to a network drive. FTP Server (FTP Server) Specify the IP address of the FTP server (network drive) for saving waveform and setup data. In a network with a DNS server, you can specify the host name and domain name instead of the IP address.
Page 253: Network Printer (Net Print)
21 Ethernet Communication (Network) Network Printer (Net Print) You can print screen captures on a network printer. The instrument can print to the following printers. • HP inkjet printers (HP InkJet) • HP Laser printers (HP Laser) LPR Servers (LPR Server) Specify the IP address of the printer server that the instrument will connect to.
Page 254: 22 Other Features
22 Other Features Auto Setup (AUTO SETUP) The auto setup feature automatically sets the SCALE, TIME/DIV, trigger level, and other settings to the most suitable values for the input signals. This feature is useful when you are not sure what type of signal will be applied to the instrument. The auto setup feature will not work properly on some input signals.
Page 255: Default Settings (Default Setup)
22 Other Features Default Settings (DEFAULT SETUP) You can reset the instrument settings to their factory default values. This feature is useful when you want to cancel all the settings that you have entered or when you want to redo measurement from scratch. Default setup refers to the act of resetting the instrument settings to their factory default values.
Page 256: Clear Trace (Clear Trace)
22 Other Features Clear Trace (CLEAR TRACE) Clears all the waveforms that are displayed on the screen. If you change the display format or perform other similar operations, the instrument redisplays the channel waveforms, computed waveforms, and loaded waveforms that were displayed before you executed the clear trace operation.
Page 257: Remote Control (Remote Control)
PC so that the status of the device recognized by the PC can be refreshed. For information about how to obtain the YOKOGAWA USB driver, contact your nearest YOKOGAWA dealer. You can also access the YOKOGAWA USB driver download website and download the driver (https://tmi.
Page 258 22 Other Features GP-IB Connects the instrument to a PC using GP-IB. Address (Address) • You can select a value between 0 and 30. • Each device that is connected in a GP-IB system has its own unique address. This address is used to distinguish between different devices.
Page 259: System Configuration (System Configuration)
22 Other Features System Configuration (System Configuration) You can specify the following settings. • Date and time on the instrument • Language (menu, message, USB keyboard) • Measurement display (font size, number of rows outside the waveform area) • Internal storage format •...
Page 260 22 Other Features Language (Language) Sets the language that is used in the setup menu and messages. The available languages vary depending on the model. USB Keyboard Language (USB Keyboard) Sets the USB keyboard language to English. The USB keyboard can be used to enter file names, comments, etc.
Page 261 22 Other Features Adjusting the Backlight (Display) You can turn off the LCD backlight and adjust its brightness. You can prolong the backlight service life by decreasing the backlight brightness or by turning off the backlight when you do not need to view the screen. Adjusting the Brightness (Brightness) You can adjust the brightness in the range of 1 (darkest) to 10 (brightest).
Page 262: Overview (Overview)
22 Other Features Overview (Overview) You can view a list of instrument information and settings. System Information (System Overview) You can view the instrument model, memory size, and installed options. Setup Information (Setup Information1, Setup Information2) You can view a list of current settings. Additional Option License (Option Installation) On 4-channel models, you can add the following options after purchase.
Page 263: Self-Test (Self Test)
The selected self-test starts. If an Error Occurs during a Self-Test If an error occurs even after you carry out the following procedure, contact your nearest YOKOGAWA dealer. • Execute the self-test again several times. • Confirm whether or not the media being tested is properly inserted.
Page 264: Appendix
Appendix Appendix 1 How to Calculate the Area of a Waveform IntegTY+ Area under the positive parts: S1 + S2 IntegTY Area under the positive parts – area under the negative parts: S1 + S3 − S2 Integ for XY Display Open When Each Y Data Point Corresponds to a Single X Data Point X-axis (Y = 0)
Page 265 Appendix Close Multiple Loops Non-Closed Curve Area S = n×S0 Area S = S n: The number Area enclosed by a of loops curve connecting the start and end points Start point Start point, End point end point Waveform Loop Tracing a Figure-Eight Loop Tracing a Spiral Area S = |S0 –...
Page 266: Appendix 2 User-Defined Computation
Appendix Appendix 2 User-Defined Computation Digital Filter Type Type Bandwidth LowPass/HighPass/BandPass LowPass/HighPass/BandPass Filter Order See the following table for the filter orders. 30% (Cutoff*) LowPass HighPass LowPass HighPass * The cutoff percentage is with respect to the sample rate. Filter Response Filter Pass-band Ripple Attenuation Slope...
Page 267 Appendix Hilbert Function (HLBT) Normally, when we analyze real-time signals, it is useful to think of these signals as the real part of functions of complex variables, and to carry out the actual signal analysis using such functions. If the real-time signal is considered to be the real part of the function, the imaginary part can be determined with the Hilbert transform of the real part.
Page 268 Appendix Differentiation and Integration The computation of the differentiated value uses the 5th order Lagrange interpolation formula to derive a point of data from the five points of data before and after the target point. The following equations use data f0 to fn and I0 to In with respect to sampling time x0 to xn. The derivative and integrated values corresponding to these data points are computed as follows: Differentiation (DIFF) Point xk...
Page 269 Appendix pulse width computation The signal is converted to binary values by comparing to the preset threshold level, and the time of the pulse width is plotted as the Y-axis value for that interval. You can set the interval to one of the settings below. PWHH: From a rising edge to the next rising edge.
Page 270: Fft Function
Appendix FFT Function Each frequency component G of a linear spectrum is represented by G=R + jI, where R is the real part and I is the imaginary part. Linear Spectrum The linear spectrum can be directly determined with the FFT. Through this spectrum, the magnitude and phase of each frequency component included in the measured waveform can be found.
Page 271 Appendix Cross Spectrum The cross spectrum is determined from two signals. It is found by taking the product of the linear spectrum of one signal (Gy) and the complex conjugate (Gx*) of the linear spectrum of the other signal (Gx). If the linear spectra of the two signals are represented by Gx = Rx + jIx Gy = Ry + jIy...
Page 272 Appendix Time Windows You can select from rectangular, Hanning, or flattop time windows. The rectangular window is best suited to transient signals, such as impulse waves, which attenuate completely within the time window. The Hanning and flattop windows allow continuity of the signal by gradually attenuating the parts of the signal located near the ends of the time window down to the 0 level.
Page 273: Appendix 3 Ascii Data File Format
Appendix Appendix 3 ASCII Data File Format The instrument can save waveform data to ASCII files. The format of such files is given below. Data Header Size The number of header lines. Model Name The model name. Comment Comment attached at the time the data file was saved. BlockNumber Block number for this group.
Page 274: Appendix 4 Tcp And Udp Port Numbers
Appendix Appendix 4 TCP and UDP Port Numbers The TCP and UDP port numbers that are used on the Ethernet interface of the instrument are listed below. TCP Port Numbers Port Number Description Used For File Transfer [Default Data] FTP server, FTP client* File Transfer [Control] FTP server, FTP client Simple Mail Transfer Protocol...
Page 275: Appendix 5 How Power Measurement Items Are Determined
Appendix Appendix 5 How Power Measurement Items Are Determined The power measurement feature is available on models with the /G03 option. The following table shows how the power measurement items are determined or the equations that are used. Methods of Determination and Equation Measurement Item U+pk U−pk...
Page 276: Appendix 6 Trigger And Detected Points Of Sent Signals
Appendix Appendix 6 Trigger and Detected Points of SENT Signals The following table shows the trigger and detected points of SENT signals. Trigger/detected point Normal, Nibble Trigger/search type NDV in S&C NDV in DataNDV NDV in CRC with SYNC/CAL error, Number with error with error...
Page 277: Appendix 7 Firmware Version And New Features
Appendix Appendix 7 Firmware Version and New Features The following table contains new features that are available for each firmware version. If you are using an older version, you will not be able to use all the features described in this manual. To view the firmware version, press the Overview soft key on the UTILITY menu and check Firmware Version on the Overview screen that is displayed.
Page 278: Index
Index Symbols automated measurement of waveform parameters, saving Page results of ................20-6 ΔT cursor ................11-2 automatic zero adjustment ........... 1-4 ΔT&ΔV cursor ..............11-3 automatic zero adjustment of current probes ....... 1-4 ΔV cursor ................11-2 auto measurement, notes on ..........12-13 λ...
Page 279 Index Data (CAN FD) ..............4-39 Page data (CXPI) .............. 4-50, 15-21 Calc setup................. 12-12 data format (UART) ............4-63 calculation using waveform parameters ......12-12 data frame (CAN) ............4-31, 4-36 calibration ................22-3 data frame (CAN FD)........4-39, 4-43, 15-12 CAN bus signal, analyzing and searching ......
Page 280 Index edge trigger ................4-4 fundamental waveform, changing......... 5-5 email address ..............21-4 Fund Current ..............17-10 e-mail transmission............... 5-1 enable (User Define) ............4-72 Page Endian (CAN) ..............4-32 general call ................. 4-67 Endian (CAN FD)............. 4-40, 15-13 GO/NO-GO determination ............ 5-3 Endian (CXPI)............
Page 281 Index indicator (measure)..........12-5, 17-16 measurement source waveform (auto measurement) ..12-1 information ............19-2, 19-6, 20-6 measurement source waveform (cursor) ......11-1 initial computation point ............9-6 measurement source window ..........12-1 initial point................9-6 measurement time period ........... 12-1 input coupling ...............
