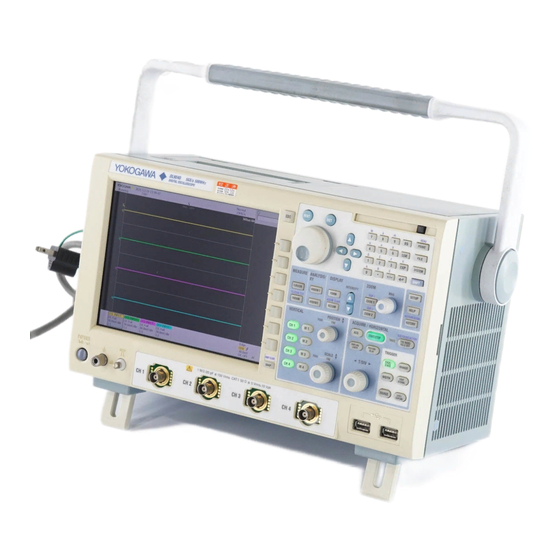

DL9040/DL9140/DL9240 Series
Digital Oscilloscope
IM 701310-02E
3rd Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the signalXplorer DL9040 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA signalXplorer DL9040 Series

Summary of Contents for YOKOGAWA signalXplorer DL9040 Series

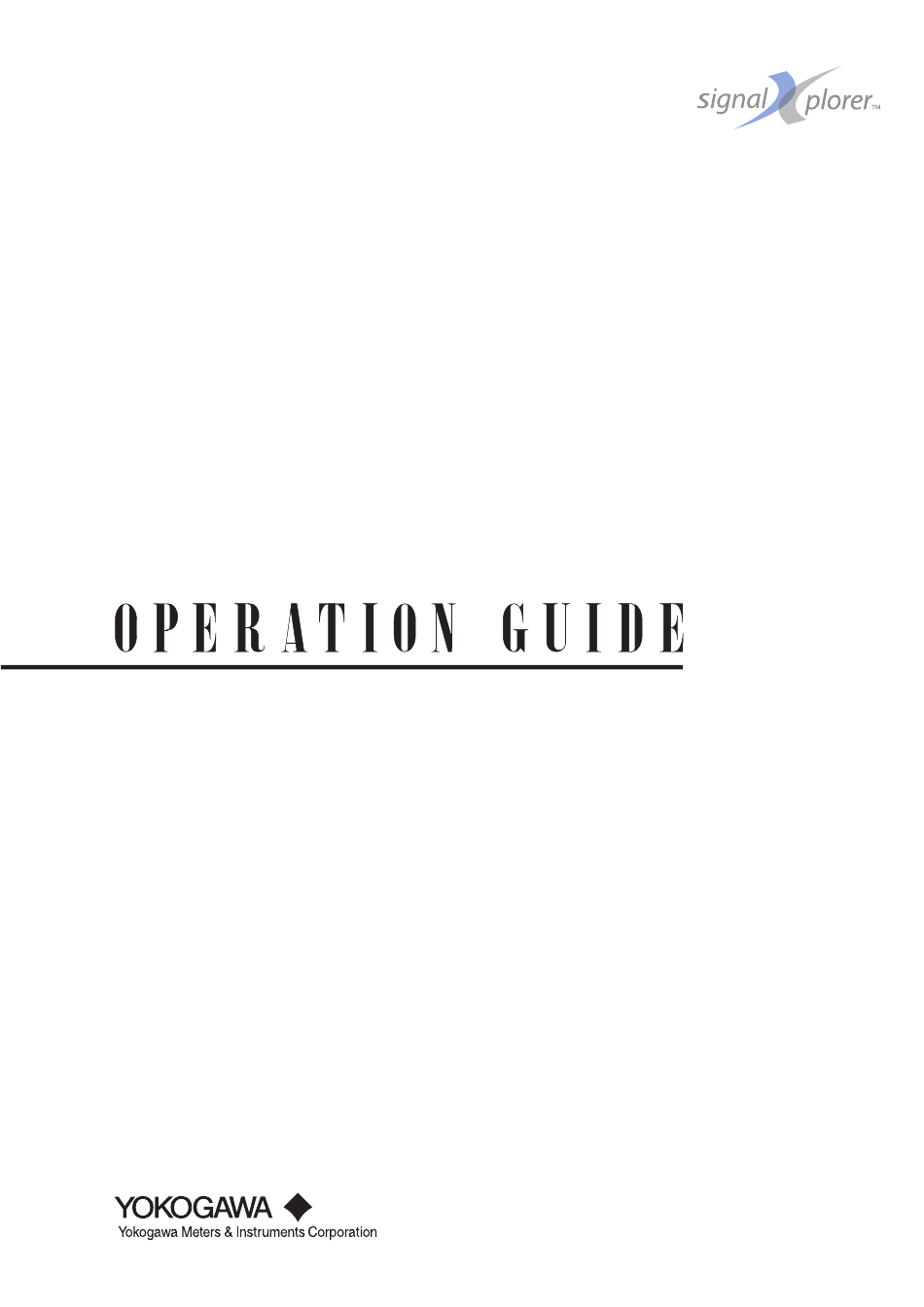

  • Page 1 DL9040/DL9140/DL9240 Series Digital Oscilloscope IM 701310-02E 3rd Edition...
  • Page 2 • Other company and product names are trademarks or registered trademarks of their respective holders. Revisions 1st Edition June 2006 2nd Edition June 2008 3rd Edition April 2009 3rd Edition : April 2009 (YK) All Rights Reserved, Copyright © 2006 Yokogawa Electric Corporation IM 701310-02E...

  • Page 3: Table Of Contents

    Contents Flow of Operation ..............3 Names and Functions of Front Panel Controls .....4 Parts of the Screen..............7 Basic Key and Rotary Knob Operation ........10 Introduction to Main Functions ..........12 Working with the DL9000 ............17 Preparing for an Observation ............17 Displaying a Waveform on the Screen ..........19 Changing Waveform Display Conditions .........20 Changing Trigger Settings ..............22 Measuring a Waveform ..............24...

  • Page 4: Flow Of Operation

    Flow of Operation Flow of Operation Flow of Operation The chart below is provided to give first-time users an easy-to-understand glimpse of the overall flow of the DL9000's operation. It is not intended to describe the flow of operations exactly as they are presented in this manual. For details about specific items introduced in the pages within, refer to the corresponding chapter or section in the user's manual as indicated by the arrows ( Preparing for Measurement...

  • Page 5: Names And Functions Of Front Panel Controls

    Names and Functions of Front Panel Controls Names and Functions of Front Panel Controls Names and Functions of Front Panel Controls This section introduces the names of the various keys and knobs that appear on the front panel, and provides a brief ex- planation of what functions they control.
  • Page 6 Names and Functions of Front Panel Controls Acquisition ACQUIRE HORIZONTAL ACQ COUNT ACTION ACQ key Sections 7.1, 7.2 TRIG MODE START STOP TRIG’D HOLD OFF Displays a menu for setting the method of START/STOP key Section 4.7 SAMPLING POSITION waveform acquisition. LENGTH DELAY Depending on the trigger mode, this...
  • Page 7 Names and Functions of Front Panel Controls Calibration, Ethernet Communications, and Other Operations MENU SYSTEM key Sections 3.6, 4.8, 13.13, chapter 15, SNAP CLEAR key Section 8.7 PRINT and 17 Clears snap shot waveform. CH 2 Displays a menu relating to calibration, network, FILE SNAP key Section 8.7...

  • Page 8: Parts Of The Screen

    Parts of the Screen Parts of the Screen Parts of the Screen This section introduces the menus and symbols appearing on the DL9000 screen. For details about specific items introduced in the pages within, refer to the corresponding chapter or section in the user’s manual as indicated by the arrows ( Common Parts of the Screen Specified horizontal axis scale(time axis T/div)
  • Page 9 Parts of the Screen Screen When Displaying Zoomed Waveforms User’s manual section 8.1, “Zooming the Waveform” Z2 zoom range Z1 zoom range T/div of the normal Normal waveform record waveform display. Main waveform display area Record length for Record length for the Z1 display the Z1 display T/div for Z2...
  • Page 10 Parts of the Screen Screen When Displaying Logic Waveforms User’s manual section 10.6, “Viewing the Phase between Measured Waveform on the XY Display” User’s manual section 10.7, “Performing FFT Analysis” User’s manual section 10.8, “Displaying a Histogram, Trend, or List of the Automatically Measured Waveform Pa- rameters”...

  • Page 11: Basic Key And Rotary Knob Operation

    Basic Key and Rotary Knob Operation Basic Key and Rotary Knob Operation Basic Key and Rotary Knob Operation This section describes key and rotary knob operations which are basic operations for setting the DL9000. Basic Key Operations Operations When a Setup Menu Is Displayed ZOOM 1 Menu (Menu that appears when ZOOM 1 is pressed) Setup menu ESC key...
  • Page 12 Basic Key and Rotary Knob Operation Basic Rotary Knob Operation Selecting an Item Restores the setting to its initial value. RESET Increases (or speeds up) the setting value. UP/DOWN arrow keys Decreases (or slows down) the Moves the selected item up or down. setting value.

  • Page 13: Introduction To Main Functions

    Introduction to Main Functions Introduction to Main Functions Introduction to Main Functions Trigger User’s manual chapter 6, “Triggers” There are three main categories of triggers: Edge/State triggers, Width triggers and Enhanced triggers. Trigger occurs on the edge Trigger occurs when the Trigger occurs on the Trigger occurs if the edge (rising or falling) of a trigger...
  • Page 14 Introduction to Main Functions History Memory User’s manual Capture 11, “Displaying History Waveforms” When measuring waveforms, numerical data is being loaded into the acquisition memory, and that data can be viewed on the DL9000 screen as a waveform. When taking continuous measurements, even if you stop measurement when you see an abnormal waveform, the waveform usually scrolls off the screen by the time measurement stops, preventing you from viewing it carefully.
  • Page 15 Introduction to Main Functions Waveform Computation User’s manual chapter 9, “Computation” The following operations are available: arithmetic (+, -, x), linear scaling, integration, phase shift, moving average(smoosing), IIR filter, edge count, and rotary count. A maximum of eight computed waveform can be displayed.
  • Page 16 Introduction to Main Functions Automatic Measurement of Waveform Parameters User’s manual section 10.2, “Automated Measurement of Waveform Parameters” This feature automatically measures parameters such as the maximum waveform level and frequency. It can measure 30 waveform parameters (including delay between channels) related to the voltage (vertical) axis, time (horizontal) axis, and waveform area.
  • Page 17 When you turn ON telecom test, the accumulate display (Count mode) automatically appears. With the mask test, mask patterns created using the free software available on the Yokogawa Web site are loaded onto the DL9000, and the waveforms that pass through the mask portion are counted.

  • Page 18: Working With The Dl9000

    Working with the DL9000 Working with the DL9000 Working with the DL9000 This section provides an example of how you can observe a probe compensation signal being output from the DL9000 Preparing for an Observation Connecting the Power Supply User’s manual section 3.3, “Connecting the Power” Before connecting the power supply, you must read the warnings in the user’s manual listed in section 3.3, “Connecting the Power.”...
  • Page 19 Working with the DL9000 Connecting the Probe User’s manual section 3.4, “Connecting the Probe” User’s manual section 3.5, “Compensating the Probe (Phase Correction)” Before connecting the probe, you must read the warnings in the user’s manual listed in section 3.5, “Compensating the Probe (Phase Correction).” Connect a probe to the DL9000’s measurement input terminal (CH1).

  • Page 20: Displaying A Waveform On The Screen

    Working with the DL9000 Displaying a Waveform on the Screen This section explains how to perform convenient, basic setting initialization and autosetup when you want to display common repeating waveforms such as sine waves and square waves. Initializing Settings User’s manual section 4.4, “Initializing Settings” The procedure below restores the settings that are controlled using the front panel keys to their factory default values.

  • Page 21: Changing Waveform Display Conditions

    Working with the DL9000 Changing Waveform Display Conditions This section explains how to split the screen, and how to change settings such as the voltage or vertical axis sensitivity and vertical position, or the time or horizontal axis. Changing the Voltage Axis Sensitivity Setting from �00 mV/div to 200 mV/div User’s manual section �.7, “Setting the Scale”...
  • Page 22 Working with the DL9000 Changing the Time Axis Setting from 200 µs/div to 100 ms/div User’s manual section 5.8, “Setting Time Axis (T/div)” The time axis setting is the setting for the amount of time per grid division. If you lower the speed (increase the value) of the time axis setting when in Auto or Auto Level trigger mode, the display mode changes from Update Mode (in which the displayed waveform updates) to Roll Mode (in which the waveform scroll across the screen from right to left).

  • Page 23: Changing Trigger Settings

    Working with the DL9000 Changing Trigger Settings Trigger settings determine which waveforms of the loaded measurement signals to display, and at which times. The following are the most commonly used trigger settings. Trigger Types The three main types of triggers are edge/state triggers, width triggers, and enhanced triggers. For details, see page 12 of this guide.
  • Page 24 Working with the DL9000 Shifting the Trigger Position to the Left by Two Divisions User’s manual section 6.2, “Setting the Trigger Position” By shifting the waveform to the left by just 2 div, the part of the waveform after the trigger (post trigger) becomes much easier to see.

  • Page 25: Measuring A Waveform

    Working with the DL9000 Measuring a Waveform This section explains how to use the vertical cursors to measure the voltage and period of the displayed waveform. In addition to cursor measurement, the DL9000 also has functions such as automatic measurement of waveform parameters and computation functions that are useful for taking pulse waveform and other types of measurements.

  • Page 26: Zooming A Waveform

    Working with the DL9000 Zooming a Waveform This section describes how to zoom a portion of the displayed waveform. You can zoom along the vertical or horizontal axes. Setting the Horizontal Axis Zoom Factor User’s manual section 8.1, “Zooming the Waveform” You can display two zoomed waveform portions of the original (normal) waveform.

  • Page 27: Printing And Saving A Waveform

    Working with the DL9000 Printing and Saving a Waveform This section describes how to print out the displayed waveform on the built-in printer (when the /B5 option is installed) or save it to a storage medium. You can also print waveforms to a USB printer. And you can also save to the flash ATA card (PC card TYPE II) or the compact flash (using the PC card TYPE II adapter) using the installed PC card interface.
  • Page 28 Working with the DL9000 Saving Waveform Data to a Storage Medium User’s manual section 13.�, “Saving/Loading the Measurement Data” You can save the waveform data displayed on screen to a storage medium. When the waveform is saved, its vertical axis, horizontal axis, and trigger settings are also saved. During a save, the media access icon is displayed at the lower left of the screen.
  • Page 29 MEMO IM 701310-02E...
