SYSTEM MONITORS

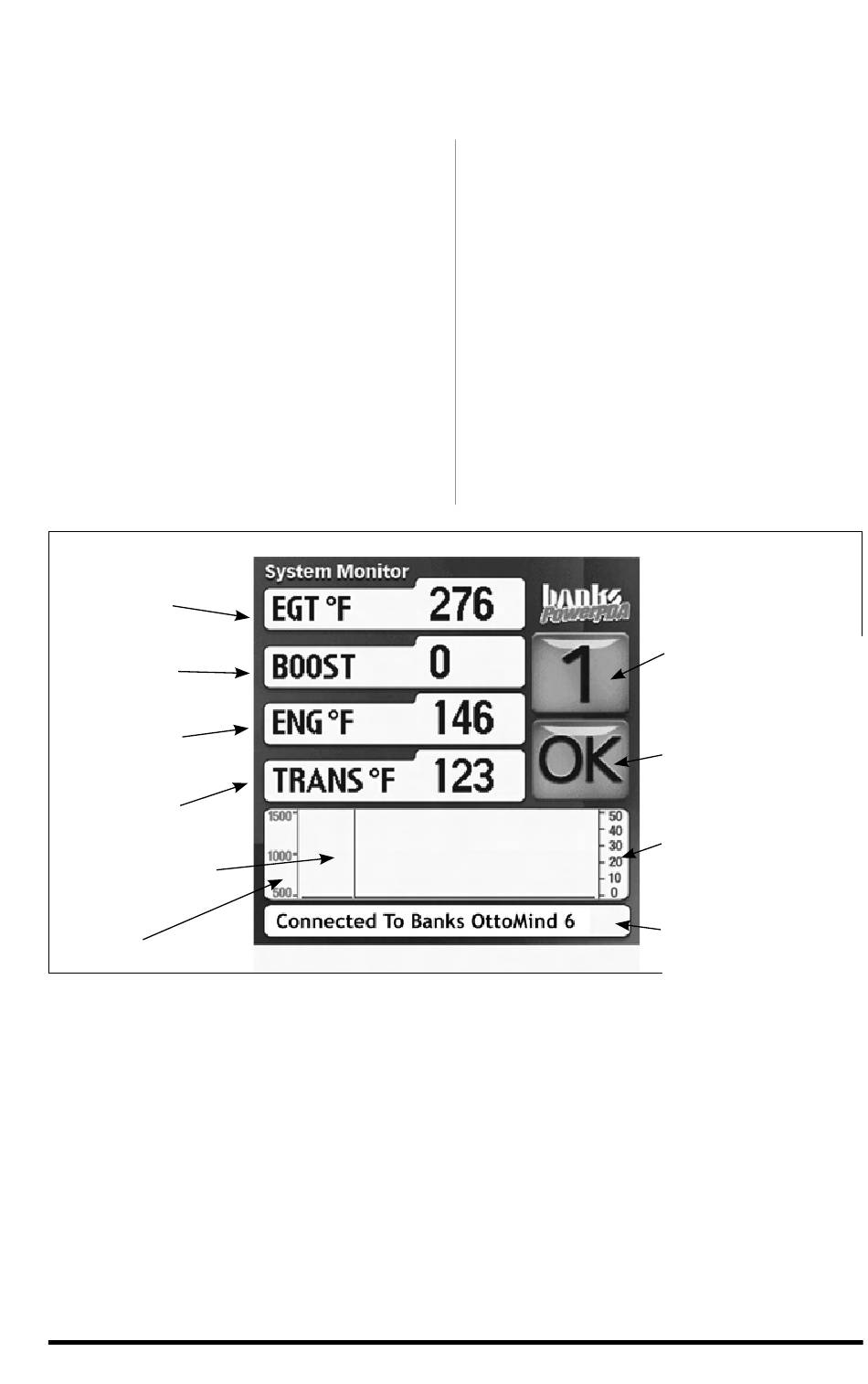

The default System Monitor screen
displays the following: Gauges G1, G2,
G3, G4, Power level, Status Indicator,
Hist-O-Graph and a Status Window.
(See Figure 37). The top two gauge
displays (G1 and G2) are EGT and
BOOST, which cannot be changed. The
bottom two gauges (G3 and G4) can
be changed to display the available
'Parameters'. Refer to section 10 for
instructions on changing the G3 and
G4 gauge displays. The selectable
power levels are 1 thru 6. (Refer to
Section 5-Changing Power Levels).
Below the Power Level Indicator
Figure 37
GAUGE G1
GAUGE G2
GAUGE G3
GAUGE G4
HIST-O-GRAPH
EGT(˚F)
24
96803 v.3.0
is the Status Indicator. When
communications are established
between the Banks PowerPDA ,
OttoMind6 Tuner and vehicle PCM
then an 'OK' will be displayed. In
the event that an on-screen alert or
OttoMind6 malfunction is triggered,
the indicator will show an icon relative
to the alert. The lower half of the
screen displays a Hist-O-Graph, which
displays a continuous graph of EGT
and boost readings. 'Hist-O-Graph'
is the name of the default System
Monitor screen.
1.
To change the 'System Monitor'
POWER LEVEL
INDICATOR
STATUS INDICATOR
