Section 13

SELF DIAGNOSTICS

1.
Press the center button on the
5-way navigator to take you the the
System Menu screen.
2.
Touch the button labeled 'More>'
to move to the second screen of the
System Menu.
3.
Next, touch the 'Self Diagnostics'
button. (See Figure 53)
4.
The 'Self Diagnostics' screen
displays a log of diagnostic events
related to the OttoMind6 tuner (See
Figure 54).
The 'Logged Events' list takes a
moment to update each time this
screen is opened (as indicated by
a slight flickering of the list). Once

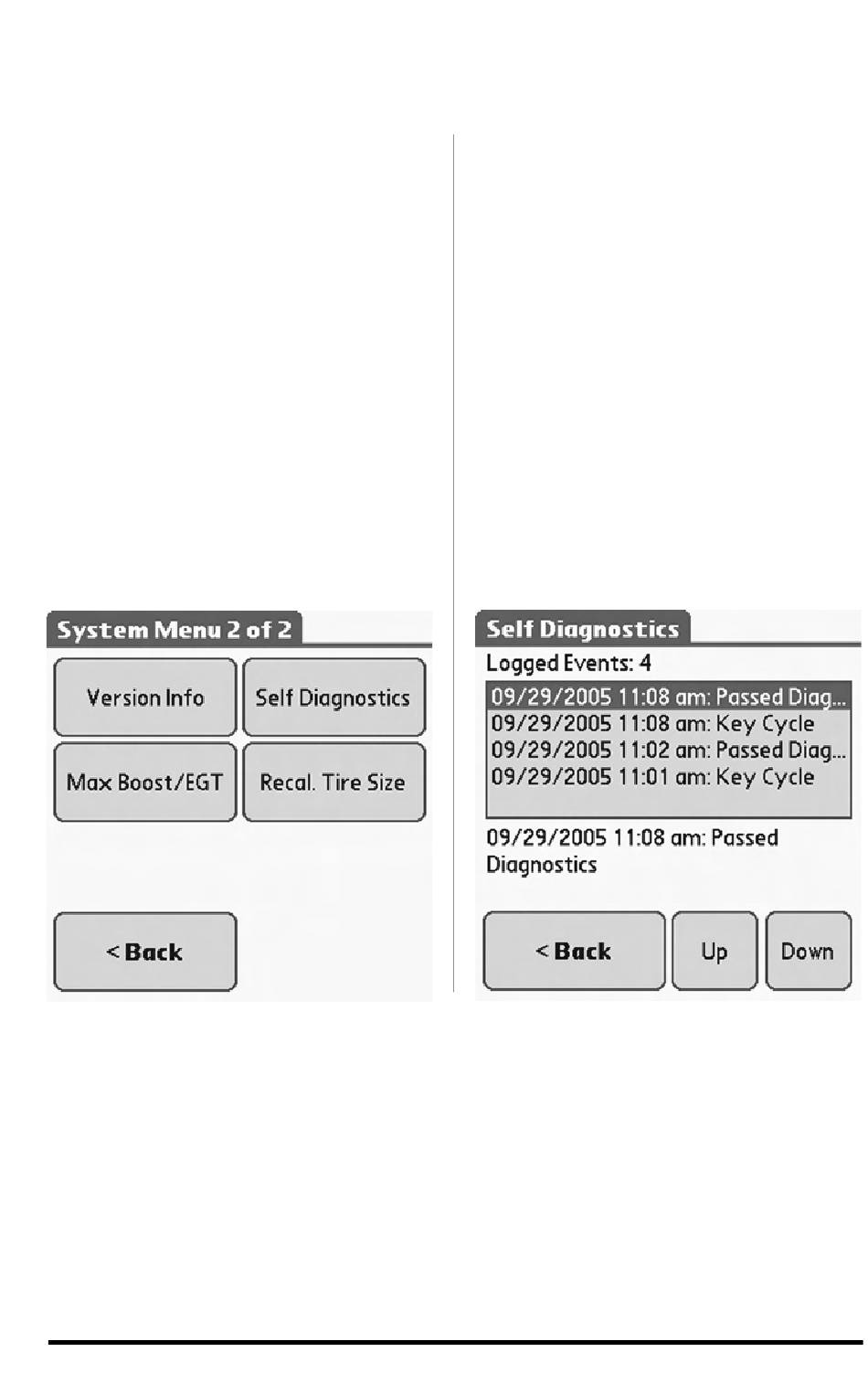

Figure 53
32
96803 v.3.0
the list is updated, the most current
event will appear at the top of the
list. Each event has on associated
timestamp and description, which will
be displayed below the list when that
event is highlighted. Each key cycle
of the vehicle produces a minimum of
two logged events.
5.
Touch the button labeled 'Down'
to scroll down through the recorded
events.
6.
Touch the button labeled 'Up' to
scroll up through the recorded events.
7.
Touch the 'Back' button to return to
the System Monitor screen.
-END, SECTION 13-
Figure 54
