Section 4

SOFTWARE INTRODUCTION

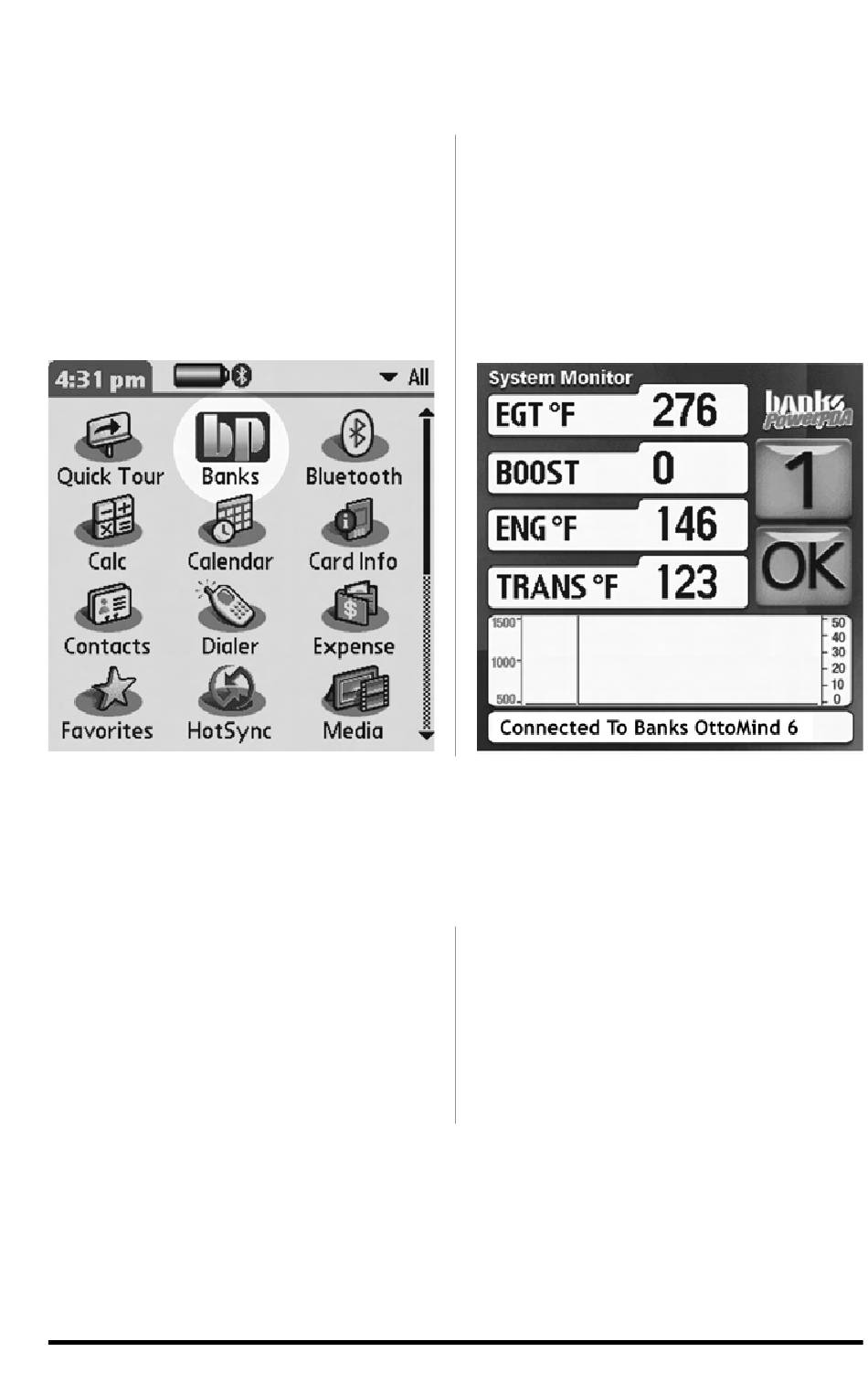

With the key in the 'ON' position, turn
the Banks PowerPDA on and click
on the "Banks" icon. (See Figure
28) The Banks PowerPDA software
will initialize and the System Monitor
screen will appear. (See Figure 29)
The default System Monitor screen
Figure 28

Section 5

CHANGING POWER LEVELS

To change between power levels
use the 5-way navigator button. (See
Figure 1)
1.
Press the navigator button up to
increase the displayed power level.
2.
Press the navigator button down to
decrease the displayed power level.
20
96803 v.3.0
shows the following: four Gauges,
Power Level, OttoMind6 Tuner Status,
Hist-O-Graph and a status window.
The System Monitor is the Banks
PowerPDA's main screen.
-END, SECTION 4-
Figure 29
Note: The selectable power levels are
1 thru 6. Level 1 produces stock power
and level 6 produces the maximum
power. The selection of a power level
can be done with the vehicle on, off
(when the Banks PowerPDA is on), or
while driving.
-END, SECTION 5-
