CHAPTER 3 Physical Description
3

Physical Description

This section provides a physical description of the device.

Physical Dimensions and Operating Environment

The device's physical dimensions and operating environment are listed in the following table:
Table 3-1: Physical Dimensions and Operating Environment
Physical
Specification
Dimensions (H x W x
D)
Weight
Environmental

Front Panel Description

The device's front panel is shown in the following figure and described in the subsequent table.
3U high, 19-inch rack wide
132.5 x 438 x 482.5 mm (5.22 x 17.24 x 19 inches)
21 kg (46.3 lbs.) for fully-populated chassis
■
Operational: 0 to 40°C (41 to 104°F)
■
Storage: -40 to 70°C (-40 to 158°F)
■
Humidity: 5 to 90% non-condensing
■
Over-voltage protection and surge immunity: ITU-T K.21 (basic)
compliant

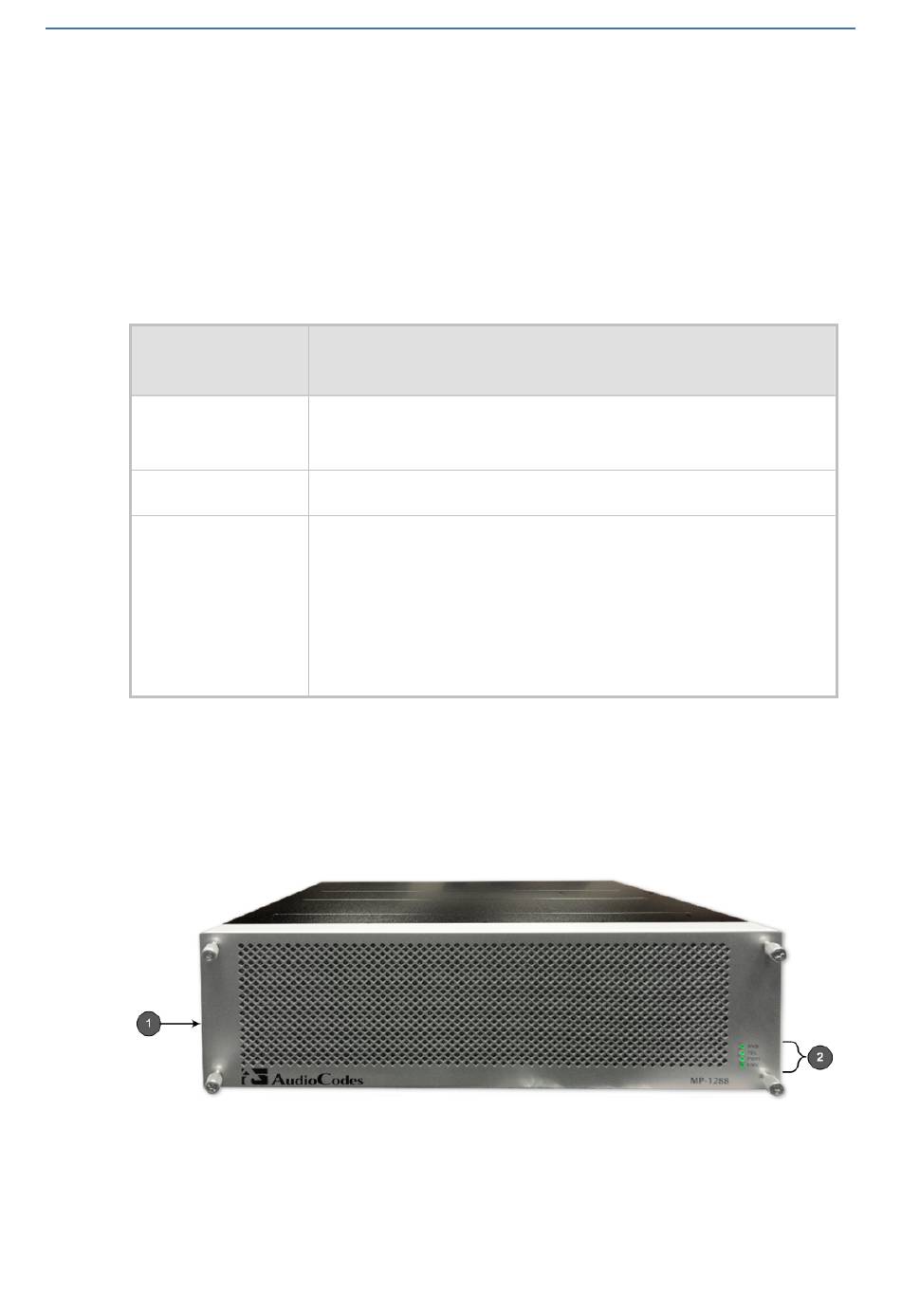

Figure 3-1: Front Panel
- 3 -
MP-1288 | Hardware Installation Manual
Description
