CHAPTER 3 Physical Description
MP-1288 | Hardware Installation Manual

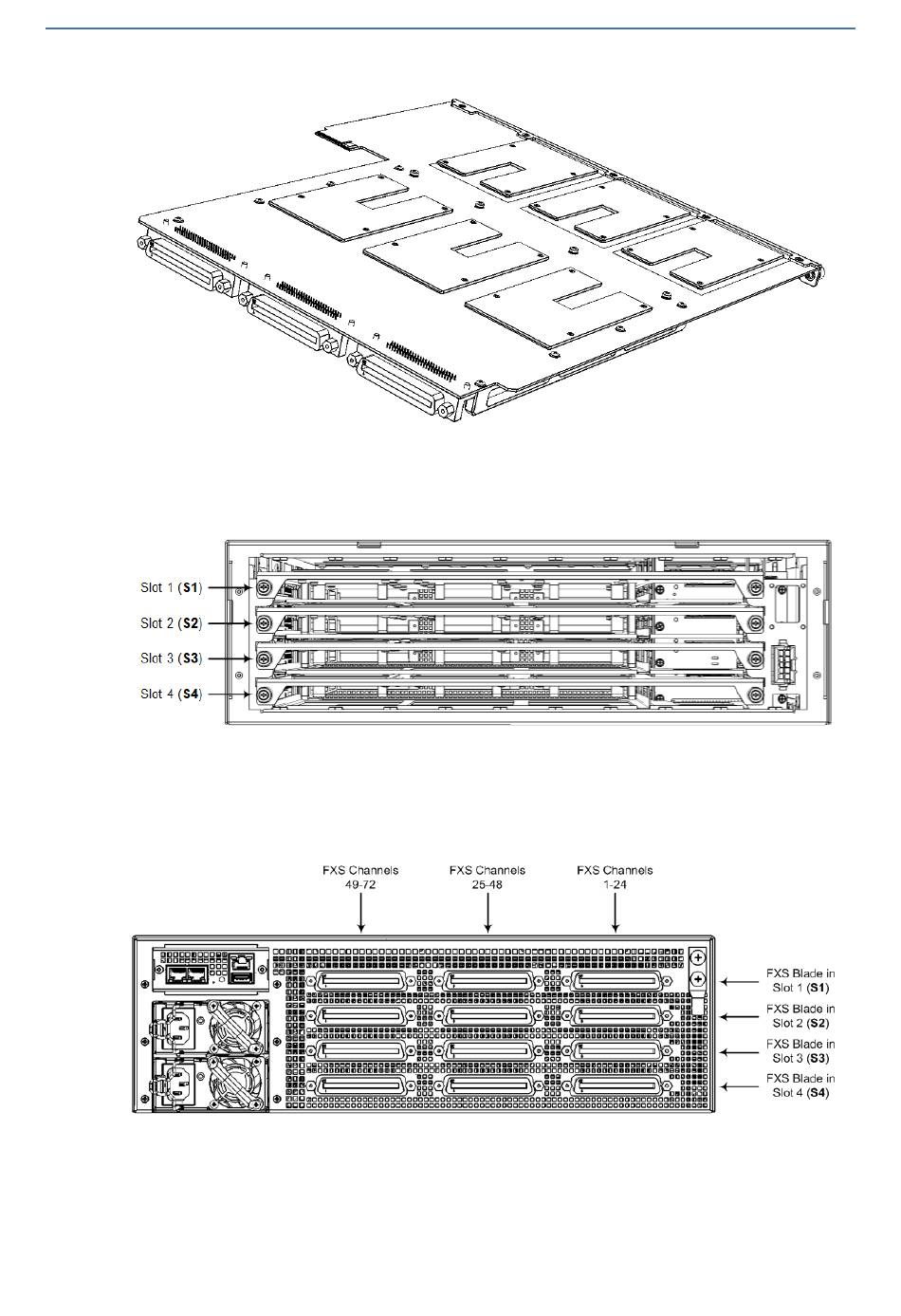

Figure 3-7: FXS Blade Showing Three FXS Telco Connectors
The chassis slot assignment for the FXS blades is shown in the following figure (front panel).
Note that the slot labels (S1, S2, S3 and S4) are located on the rear panel.
Figure 3-8: Chassis Slot Assignment for FXS Blades (Front Panel)
The FXS channel (port) number range of each FXS connector on an FXS blade is indicated by
the labels (FXS 1-24, FXS 25-48, and FXS 49-72) located on the rear panel above the FXS blades,
as shown in the following figure:
Figure 3-9: FXS Blades and FXS Channels per FXS Connector (Rear Panel)
The following table lists the specifications of the device's FXS ports.
