CHAPTER 6 Hardware Maintenance
the inner guiding rule, as shown in the following figure. Slide the FXS blade into the slot
until it has engaged with the chassis backplane:
6.
On the rear panel, secure the FXS blade to the chassis by inserting the hex-standoff
screws, using a 3/16-in. hex-head nut driver. Do not tighten the screws:
7.
On the front panel, secure the FXS blade to the chassis, by tightening the two Philips-head,
captive screws on the front panel of the blade. You can use a Phillips or flathead
screwdriver:

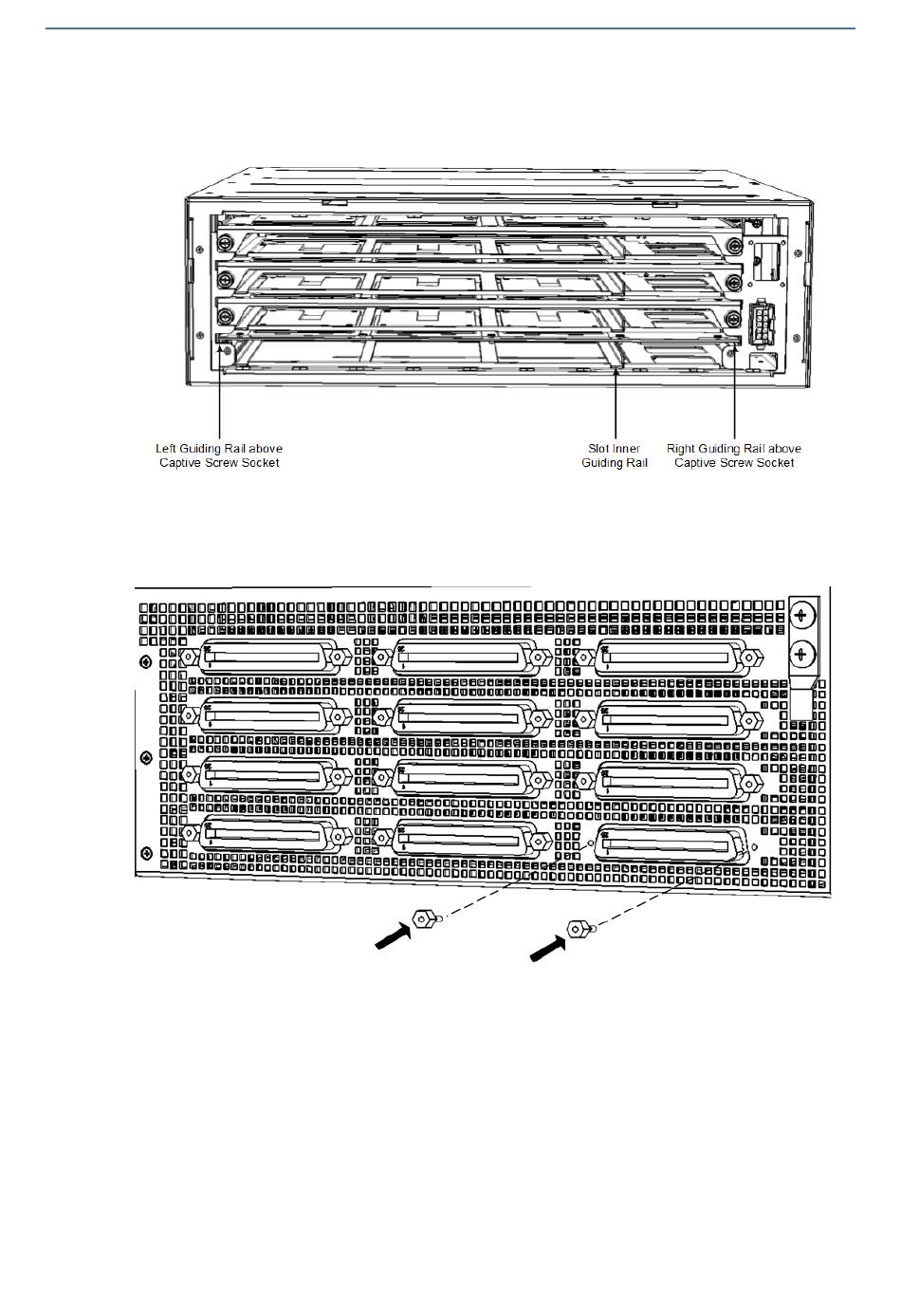

Figure 6-15: Slot's Guiding Rails for FXS Blade
Figure 6-16: Securing FXS Blade to Chassis
MP-1288 | Hardware Installation Manual
- 48 -
