Physical Description; Physical Dimensions; Front Panel Description; Ports And Buttons - AudioCodes Gateway & Session Border Controller Series Hardware Installation Manual

CHAPTER 3 Physical Description
3

Physical Description

This section provides a physical description of the device.

Physical Dimensions

The device's physical dimensions and weight are listed in the following table:
Physical Specification
Dimensions (H x W x D)
Weight
Environmental

Front Panel Description

This section describes the device's front panel.

Ports and Buttons

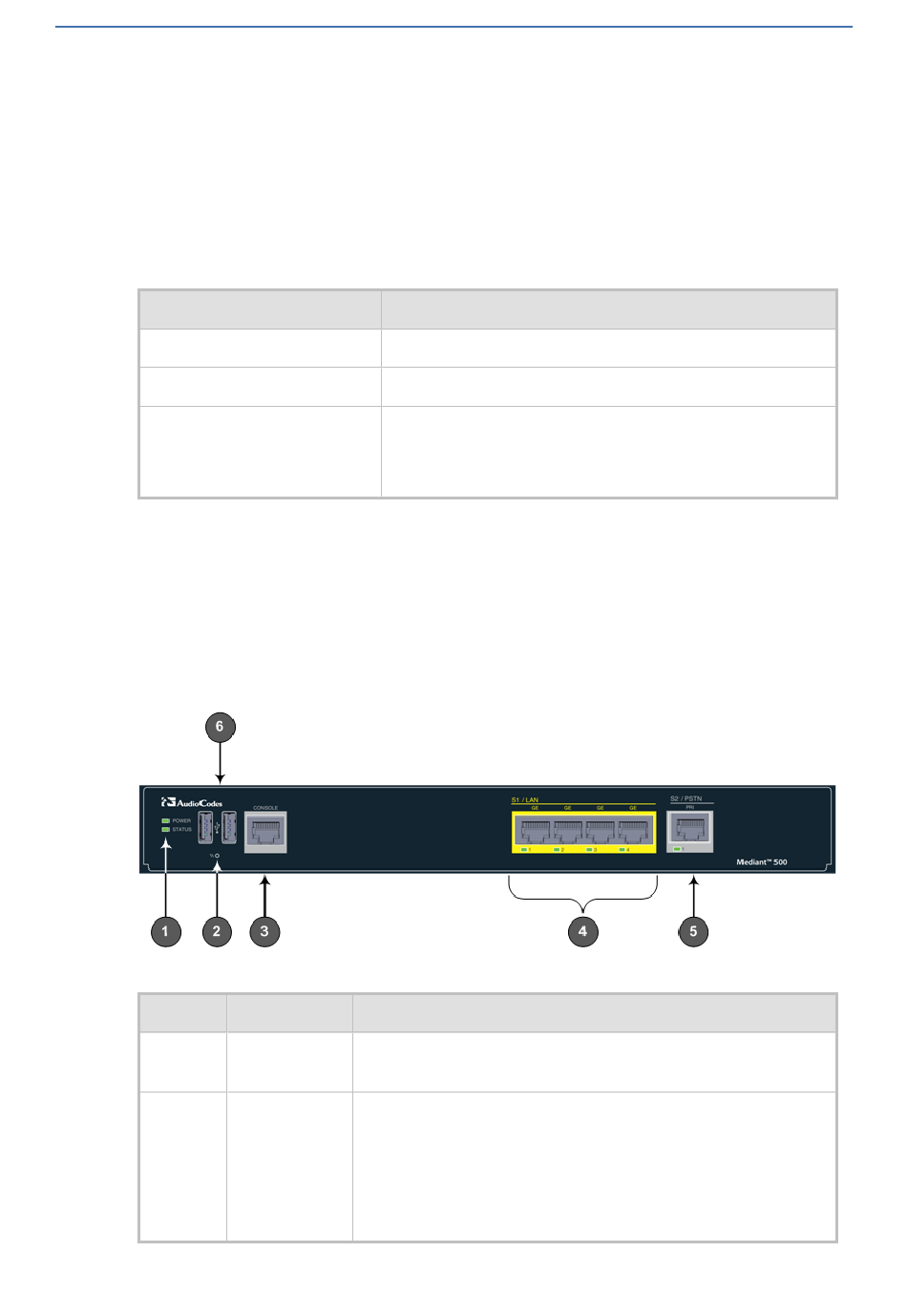

The device's front panel is shown in the following figure and described in the subsequent table.
Item #
1
2
Table 3-1: Physical Dimensions
4.37 (1U) x 31.0 cm x 21.0 cm (1.72 x 12.2 x 8.3 in.)
2.0 kg (4.4 lbs.)
■ Operational: 0 to 40°C (32 to 104°F)
■ Storage: -25 to 70°C (-13 to 158°F)
■ Humidity: 10 to 90% non-condensing
Figure 3-1:
Table 3-2: Front Panel Description
Label
POWER / LEDs indicating the status of the power and reboot/initialization.
STATUS For more information, see
// Reset pinhole button for resetting the device and optionally, for
restoring the device to factory defaults. To restore the device to
factory defaults, do the following:
With a paper clip or any other similar pointed object, press and
hold down the pinhole button for at least 12 seconds, but no
longer than 25 seconds
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
Value
Front Panel
Description
LED Descriptions
- 3 -
on the next page.
