3、INTAKE SYSTEM COMPONENT

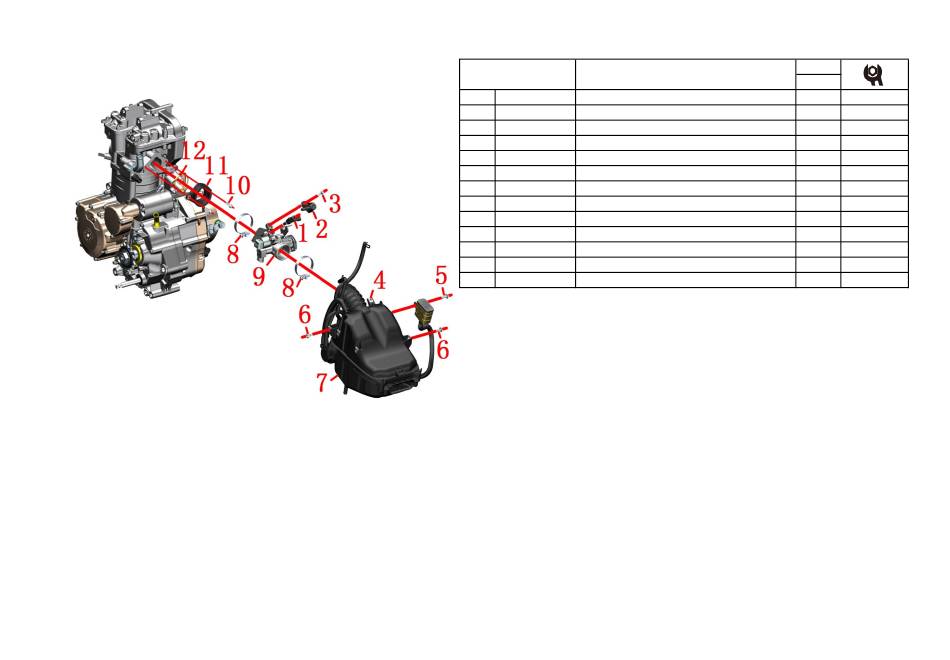

FIG.1 INTAKE SYSTEM
COMPONENT
NO. PART NO.
1 1050954-007000 39－N008 Fuel injector
2 1050954-008000 39－N008 Fuel injector fixator
3 1251112-001093 M6×16 Hexagon flange bolt（color zinc）
4 1251300-063093 Plywood M6×11×15（Environmental protection）
5 1251100-102000 Non-standard bolt M6×16（304stainless steel）
6 1251100-101000 Non-standard bolt M6×12（304stainless steel）
7 1224200-129000 ZT310-V air filter
8 1051354-004000 Φ56×10 Hoop assembly
9 1050954-005000 TB39 Throttle body part
10 1251100-061093 M6×22 Hexagon flange bolt（color zinc）
11 1050954-012000 TB39 Intake pipe assembly
12 1051453-007000 45×2.1 Fluorine rubber O-ring
PROCEDURE:
●Air filter
Remove bolt ⑸、⑹; loosen the pipe hoop assembly ⑻ against the end of the air filter, clamp the hoop on the
exhaust pipe with pliers and unplug the exhaust pipe connected to the exhaust port of the engine, and then use the
rubber plug supplied with the car to prevent foreign bodies from entering the engine. Remove the empty filter
assembly, splint nut ⑸.
●Throttle assembly
Use the plum blossom wrench to loosen the bolt ⑽,and remove the throttle assembly.Loosen the hoop⑻
between the intake pipe assembly ⑾ and throttle assembly ⑼, and then remove them separately.Remove the O-
ring ⑿ from the intake oipe assembly.Loosen the bolt ⑵ on the injector holder ⑶ with a sleeve. Remove the
holder and remove the injector ⑴.
CAUTION:
●First it need to remove the cushion,side cover,oil tank outside cover and liner,rear shock absorber and electrical
device box etc.
●Before reassembly, check the O-ring ⑿ for damage and replace it if any.
CHK
Intake system component(Delphi EFI)
ADJ
PART NAME QTY
1
1
1
8
1
2
1
2
1
2
1
1
15
CAUTION
