4、REAR WHELL COMPONENT

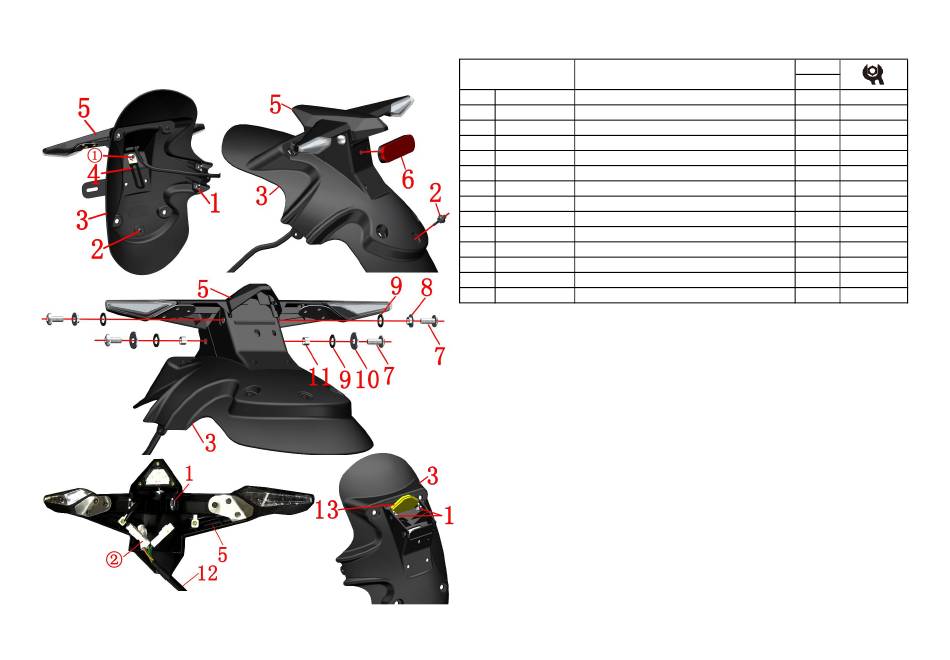

Fig.3 Rear wheel, swinging
arm assembly
NO. PART NO.
1 1251300-063093 Splint M6×11×15 (environmental color)
2 1244100-006000 ZT250-S rear license plate cushioning rubber
3 1224200-109000 ZT310-V rear mud plate fende
4 1270300-273000 Φ8 line clamp (L = 73)
5 1174200-035000 ZT310 rear turn light (including license plate light)
6 1174100-002000 ZT250-S rear reflector
7 1251100-102000 Non-standard bolt M6×16 (304 stainless steel)
8 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5+φ14×1.5
9 1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1)
10 1250502-010093 GB96.1φ6 (environmental color)
11 1274100-018000 ZT250-S muffler anti-scalding bushing
12 1184200-030000 ZT310-R Associate fender transfer cable (L = 2000)
13 1244200-082000 ZT310 Rear auxiliary mud board retaining rubber plug
PROCEDURE:
●Back reflector, license plate cushion rubber
Flip to the back, remove the nut① that comes with the rear reflector ⑹, remove the clamp ⑷ and the back
reflector. Remove the plate cushion rubber ⑵ and remove the 2 plywood nuts ⑴ on the back of the rear
mudguard fender ⑶.
●Steering lights, fender sub-assemblies
Remove the bolts ⑺on the left and right sides, and remove the flange bushing ⑻, cushion rubber ⑼, anti-
scalding bushing ⑾ and gasket ⑽. Disassemble the turn signal and fender subassembly. Note that the sub-mud
switch cable ⑿ cannot be forcibly pulled.
●fender sub-assembly
Remove the 2 plywood nuts ⑴ and retaining rubber plug ⒀ from the fender subassembly ⑶.
●turn signal subassembly
Remove the 2 plywood nuts ⑴ from the turn signal ⑸. Remove the 3 joints of② and remove the sub-mud
switch cable ⑿.
CAUTION:
●Do not pull the cable hard when removing the sub-mud switch.
●When reassembling, check if there is any pressure on the wire to prevent it from tightening.Short circuit
caused by bolts. Pay attention to the lamp connector, do not insert the wrong, turn leftGreen + orange; right turn
signal is green + blue; license plate light is green + pink.
